Toyota Dyna
2001-07 → 2021-11 · chassis KDY22#,23#,25#,26#,LY2## · catalogue 731270 · Europe
Discontinued model
Data version 2022-11

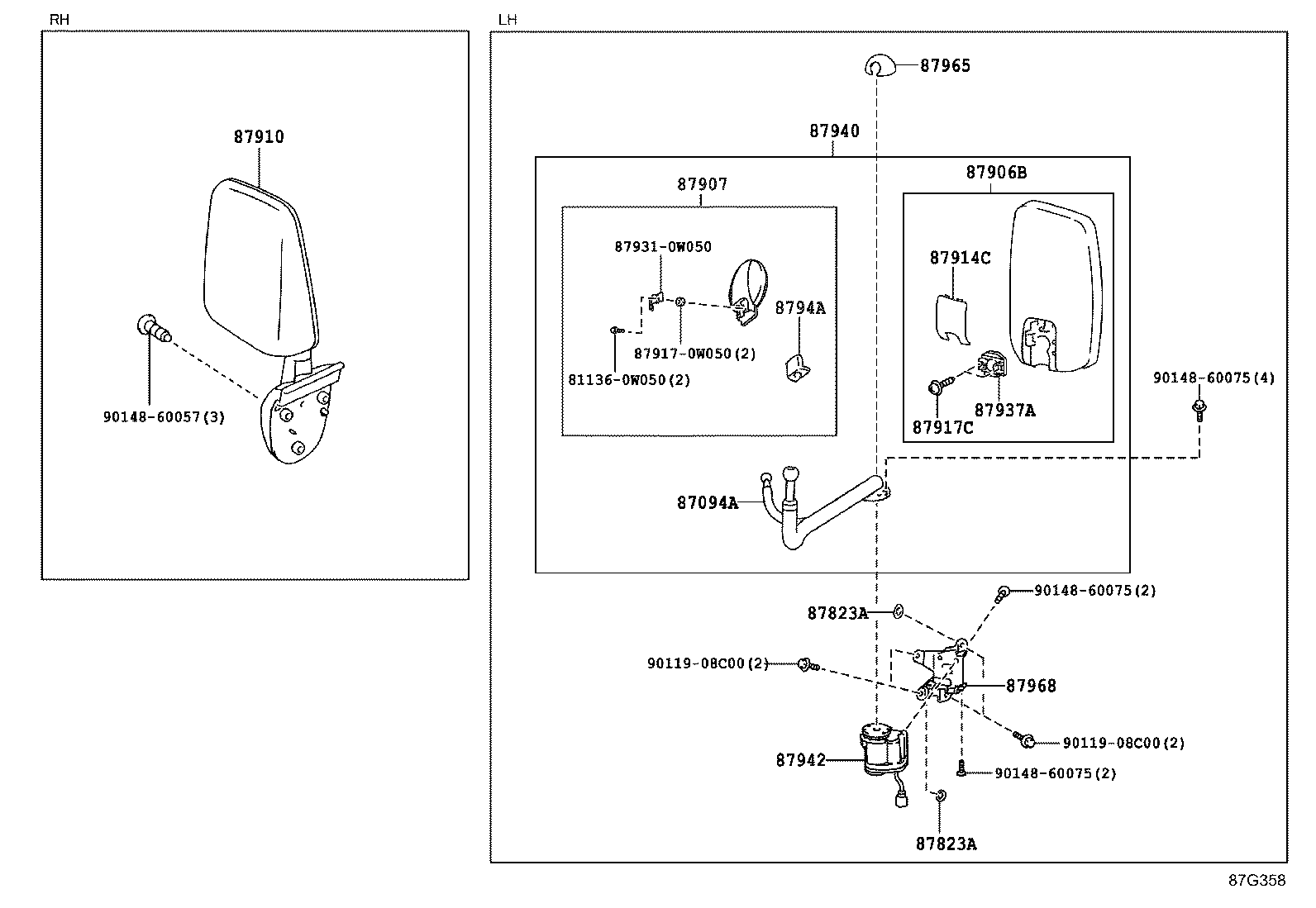

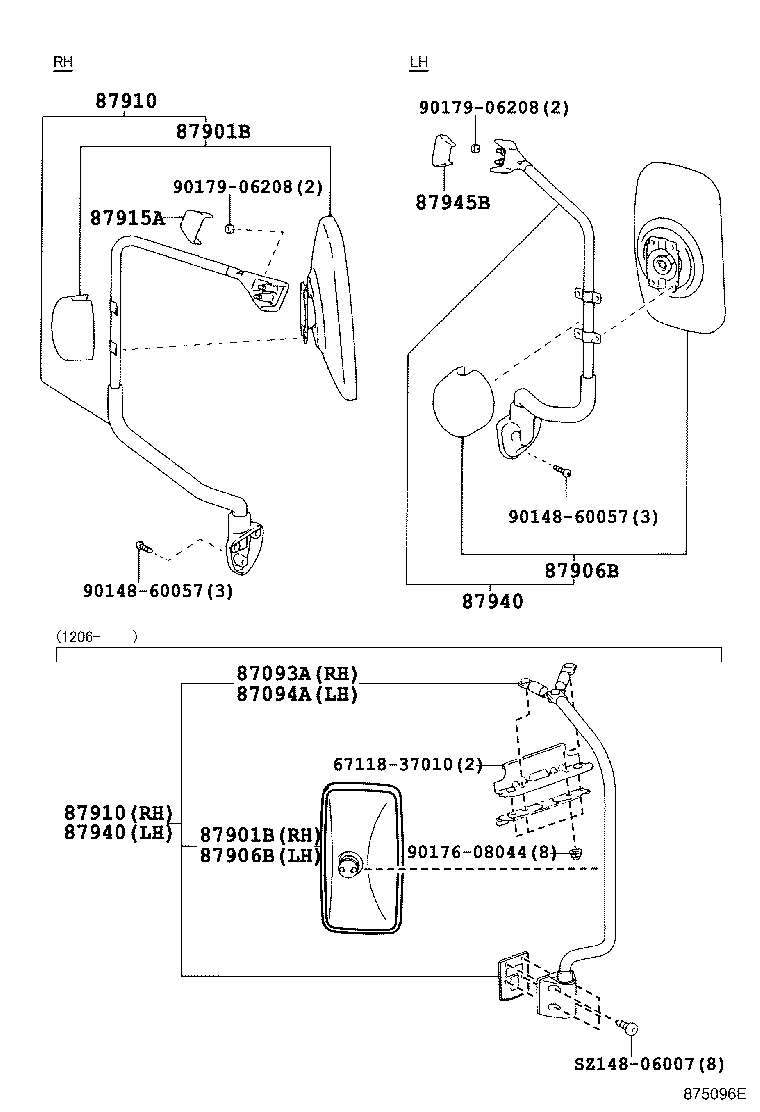

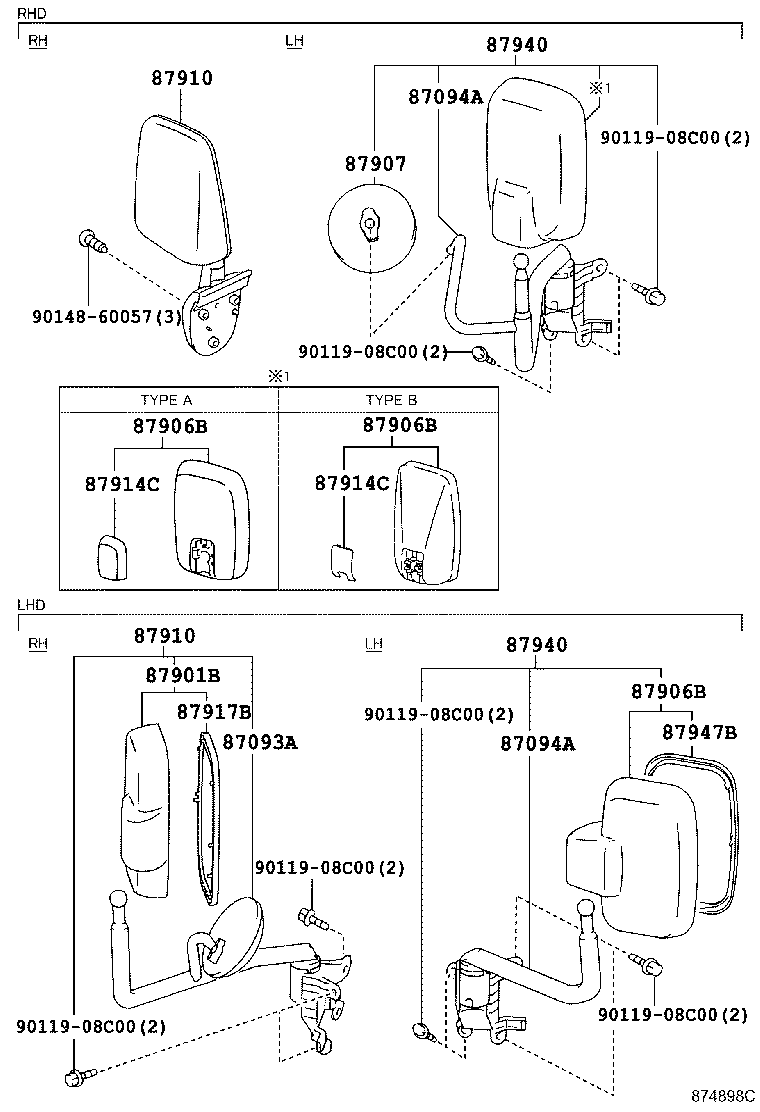

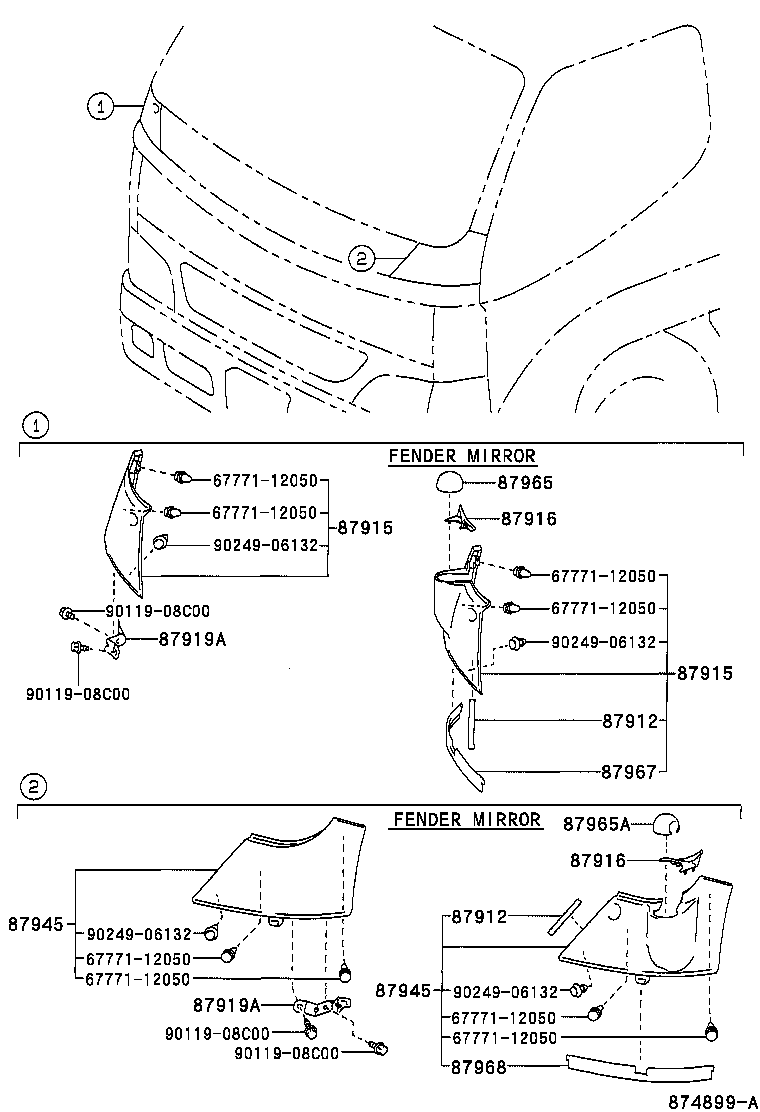

Mirror
36 part groups · 11 illustrations
Part groups
| PNC | Description |
|---|---|
| 87093A | Stay Sub-assy, Outer Rear View Mirror, RH |
| 87094A | Stay Sub-assy, Outer Rear View Mirror, LH |
| 87810 | Mirror Assy, Inner Rear View |
| 87810B | Bulb, Inner Rear View Mirror Lamp |
| 87819 | Lens, Inner RR View Mirror Room Lamp |
| 87823A | Washer, Outer Rear View Mirror Body Joint |
| 87901B | Mirror Sub-assy, Outer Rear View, RH |
| 87902A | Arm Sub-assy, Outer Rear View Mirror, RH |
| 87905A | Arm Sub-assy, Outer Rear View Mirror, LH |
| 87906B | Mirror Sub-assy, Outer Rear View, LH |
| 87907 | Mirror Sub-assy, Outer Under View |
| 87910 | Mirror Assy, Outer Rear View, RH |
| 87911 | Gasket, Outer Rear View Mirror, RH |
| 87912 | Protector, Outer Mirror |
| 87914B | Cover, Outer Mirror Knob, RH |
| 87914C | Cover, Outer Mirror Knob, LH |
| 87915 | Cover, Outer Mirror, RH |
| 87915A | Cover, Outer Mirror, RH |
| 87916 | Bezel, Outer Mirror |
| 87917B | Mirror, Outer Rear View, RH |
| 87917C | Screw, Outer Mirror |
| 87919A | Bracket, Outer Mirror |
| 87921 | Arm, Outer Rear View Mirror, RH |
| 87922A | Arm, Outer Rear View Mirror, LH |
| 87937A | Holder, Mirror, LH |
| 87940 | Mirror Assy, Outer Rear View, LH |
| 87941 | Gasket, Outer Rear View Mirror, LH |
| 87942 | Motor, Mirror, LH |
| 87945 | Cover, Outer Mirror, LH |
| 87945B | Cover, Outer Mirror, LH |
| 87947B | Mirror, Outer Rear View, LH |
| 8794A | Cover, Outer Mirror, LH NO.2 |
| 87965 | Grommet, Outer Mirror |
| 87965A | Grommet, Outer Mirror |
| 87967 | Holder, Mirror, Outer RH |
| 87968 | Holder, Mirror, Outer LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
