Toyota Dyna
2001-07 → 2021-11 · chassis KDY22#,23#,25#,26#,LY2## · catalogue 731270 · Europe
Discontinued model
Data version 2022-11
Heating & Air Conditioning - Heater Unit & Blower
15 part groups · 5 illustrations
Part groups

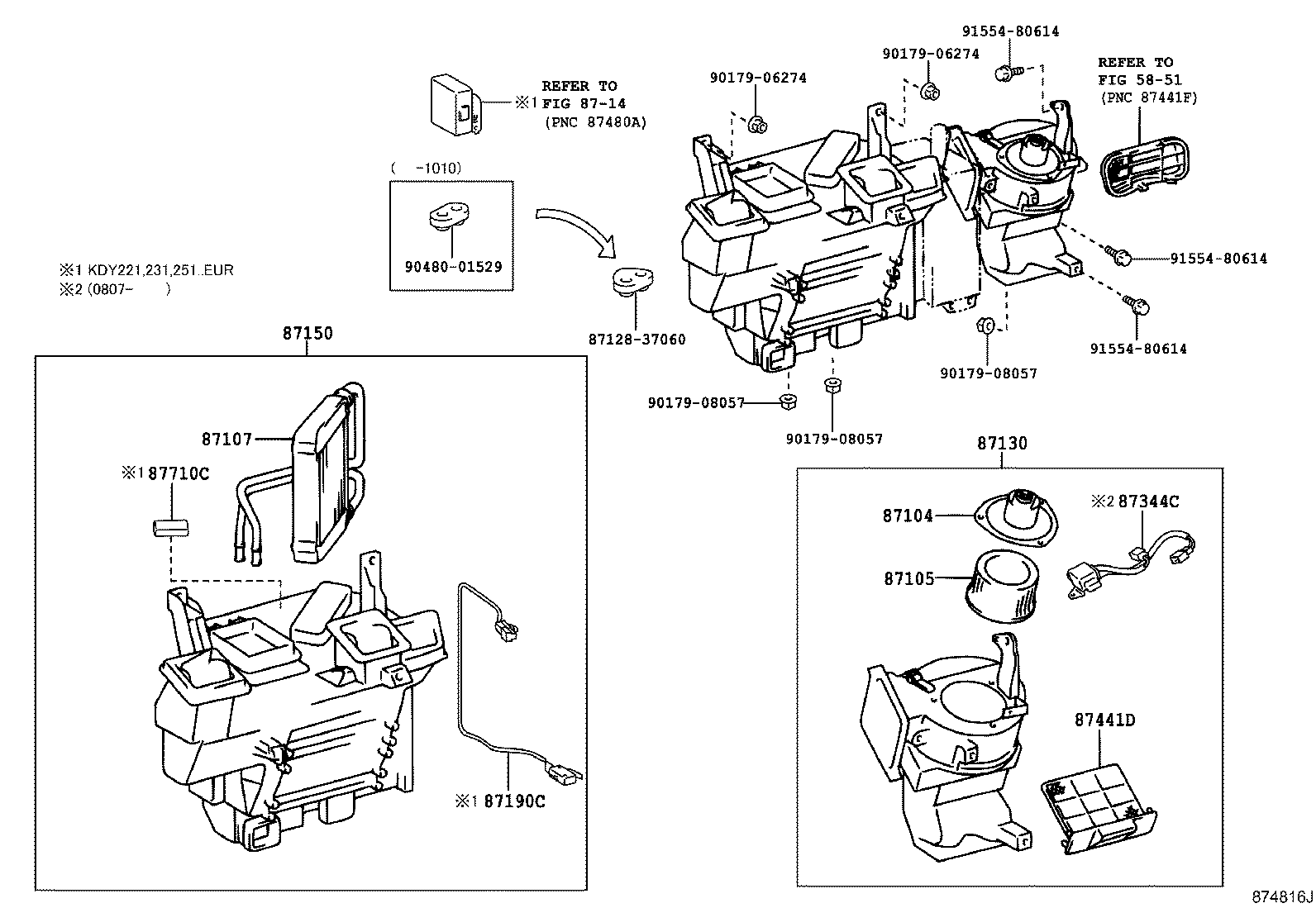

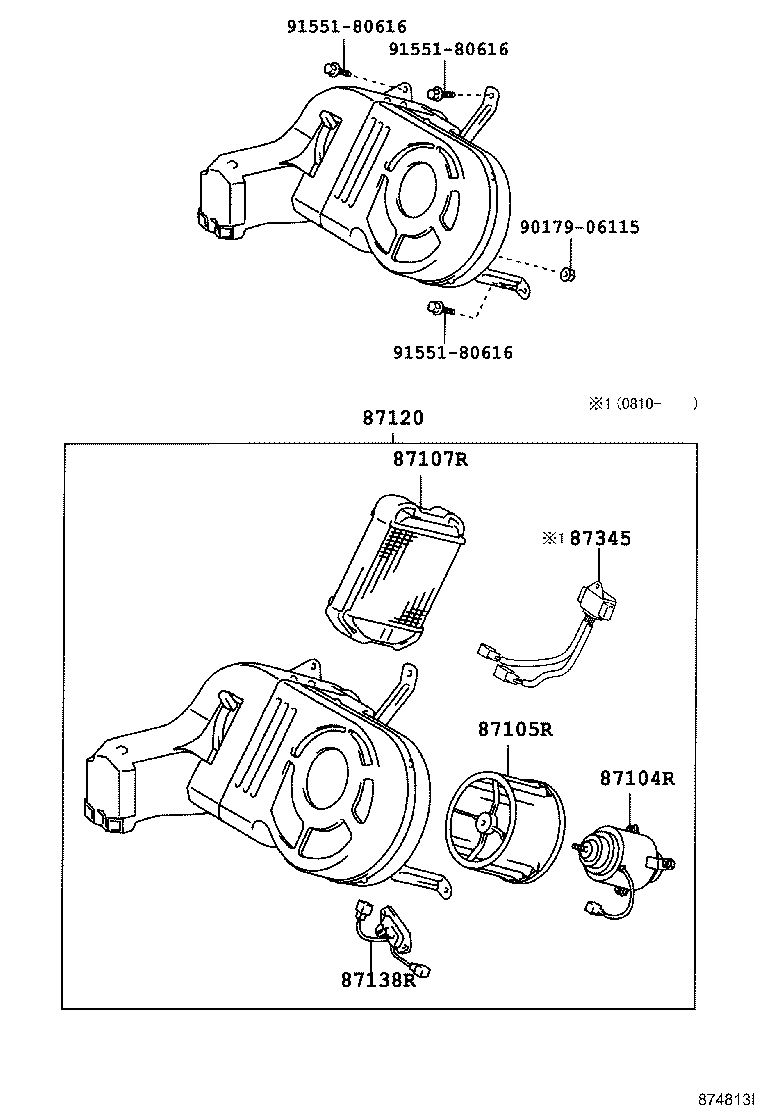

| PNC | Description |
|---|---|
| 87104 | Motor Sub-assy, Heater Blower |
| 87104R | Motor Sub-assy, Rear Heater Blower |
| 87105 | Fan Sub-assy, Heater Blower |
| 87105R | Fan Sub-assy, Rear Heater Blower |
| 87107 | Unit Sub-assy, Heater Radiator |
| 87107R | Unit Sub-assy, Rear Heater |
| 87120 | Heater Assy, Rear |
| 87130 | Blower Assy, Heater, Front |
| 87138R | Resistor, Rear Heater Blower |
| 87150 | Radiator Assy, Heater |
| 87190C | Switch Assy, Temperature Control |
| 87344C | Wire, Heater |
| 87345 | Wire, Heater |
| 87441D | Filter, Heater Air, NO.2 |
| 87710C | Heater Assy, Quick |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
