Toyota Dyna

2001-07 → 2021-11 · chassis KDY22#,23#,25#,26#,LY2## · catalogue 731270 · Europe

Discontinued model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

26 part groups · 11 illustrations

Illustrations

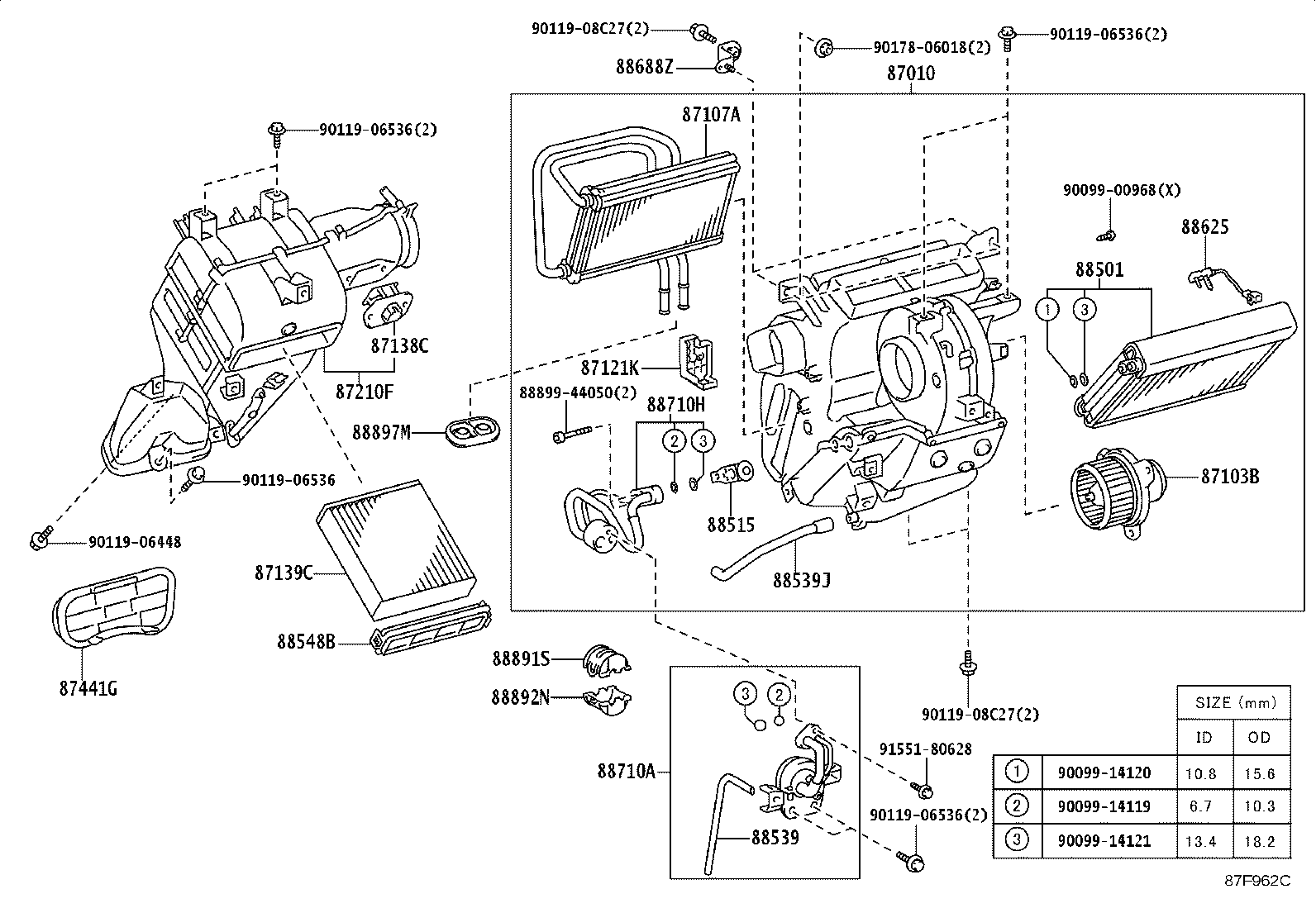

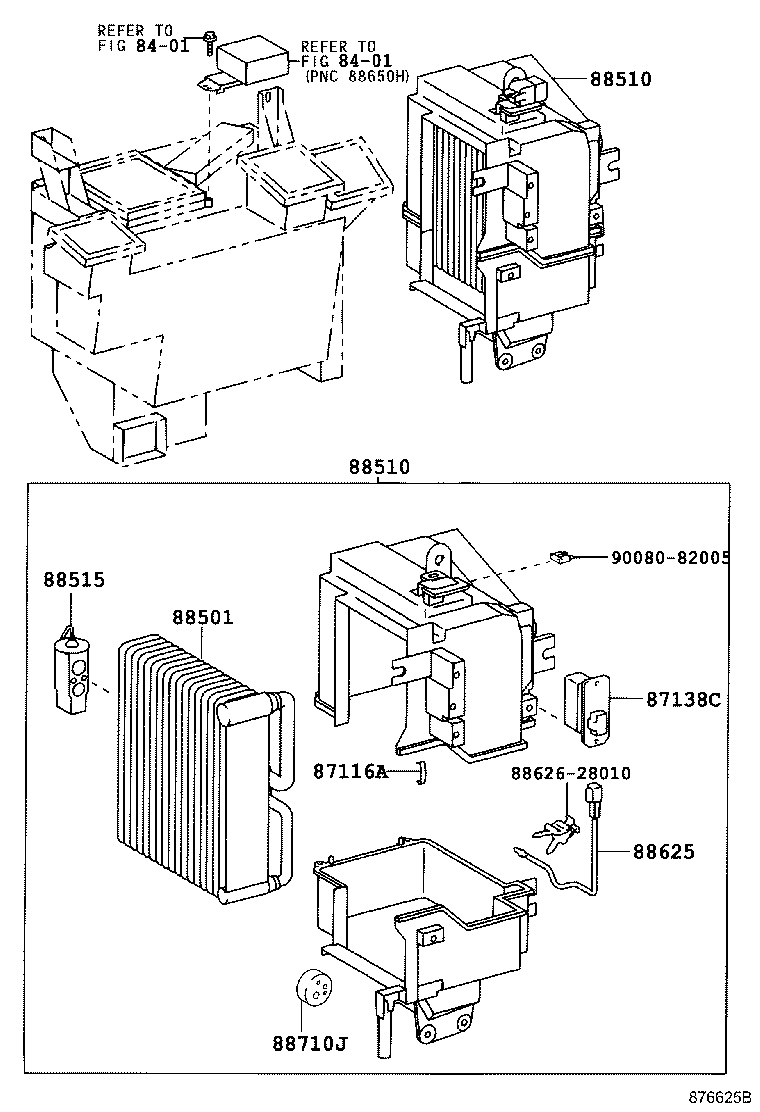

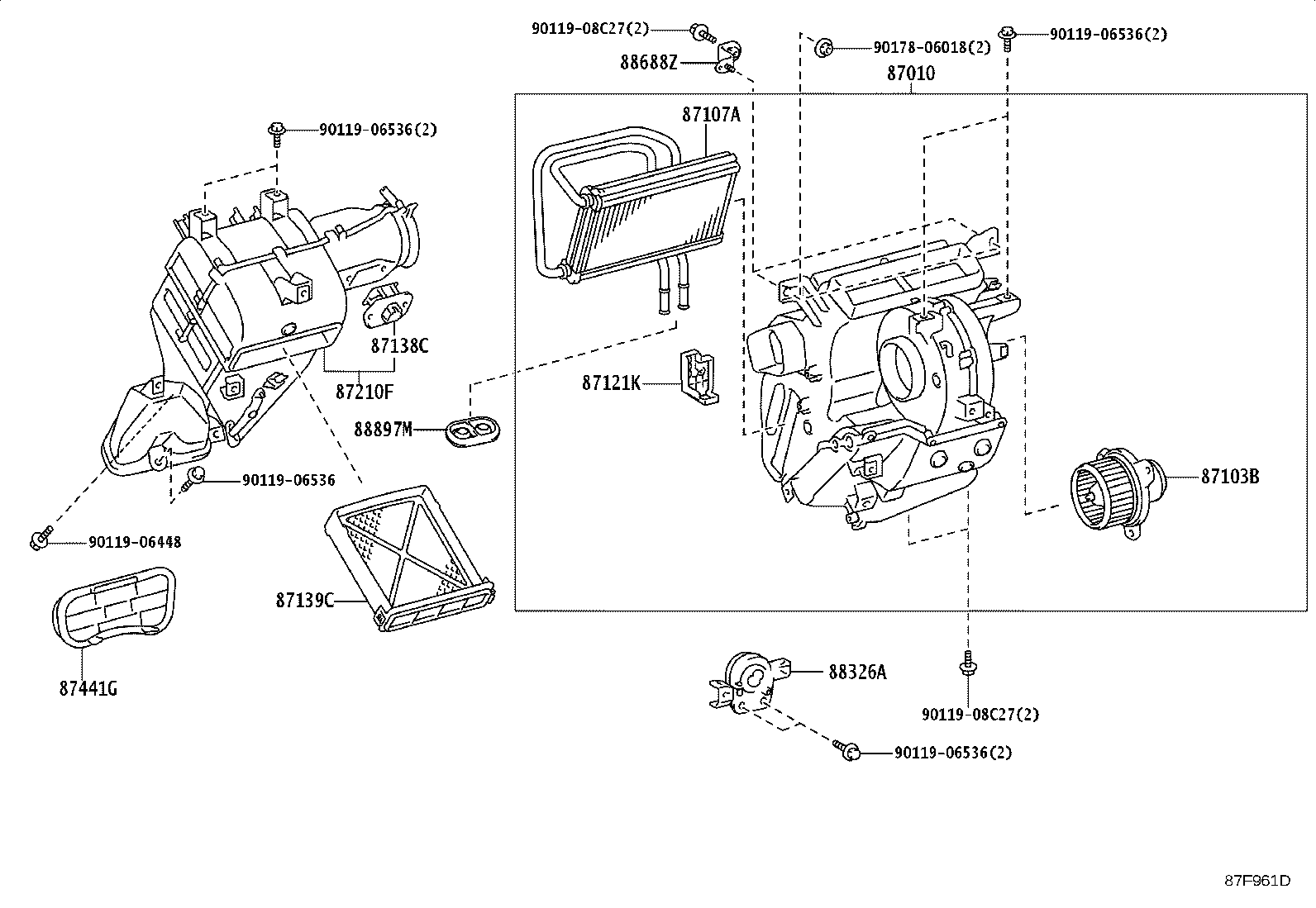

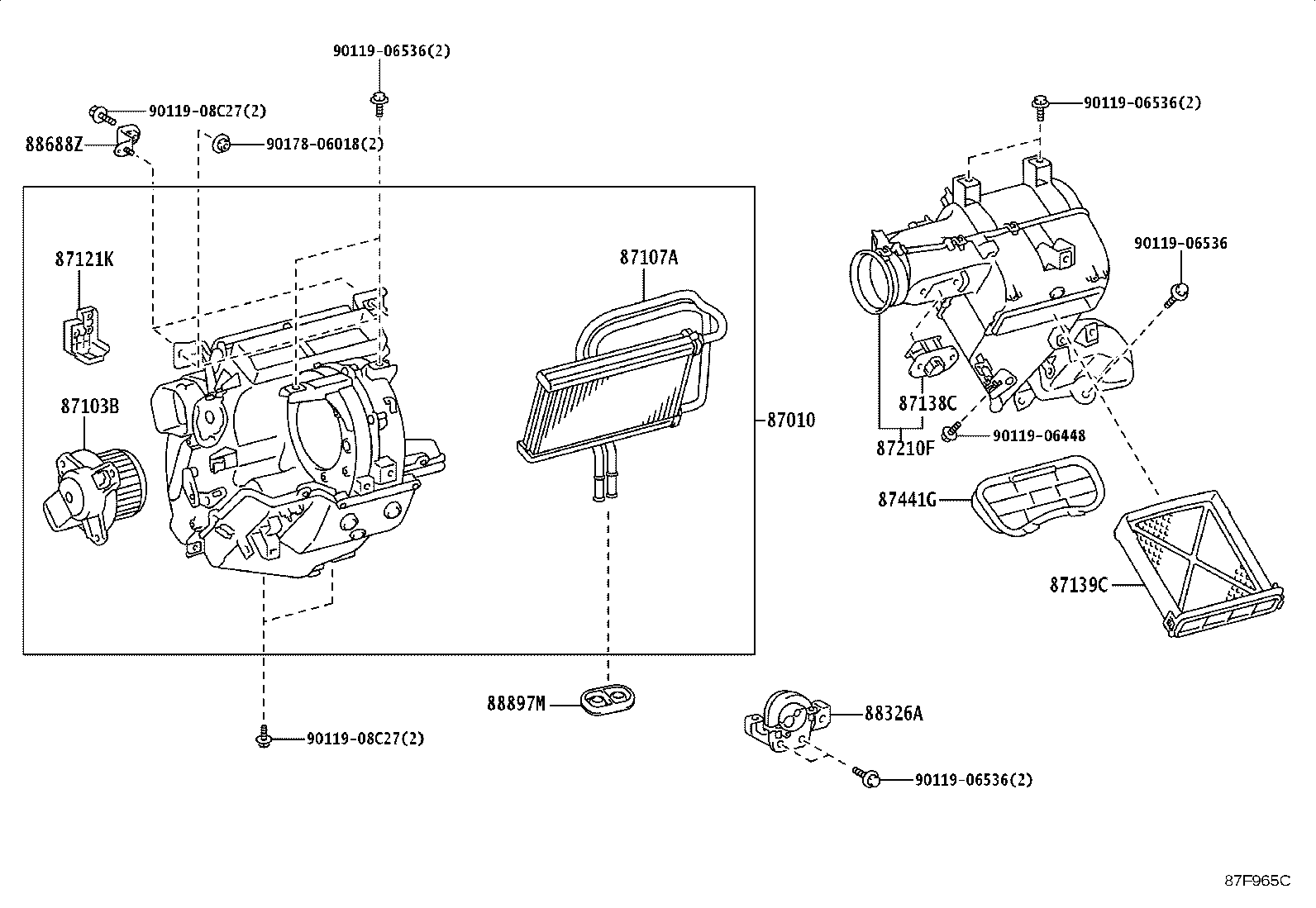

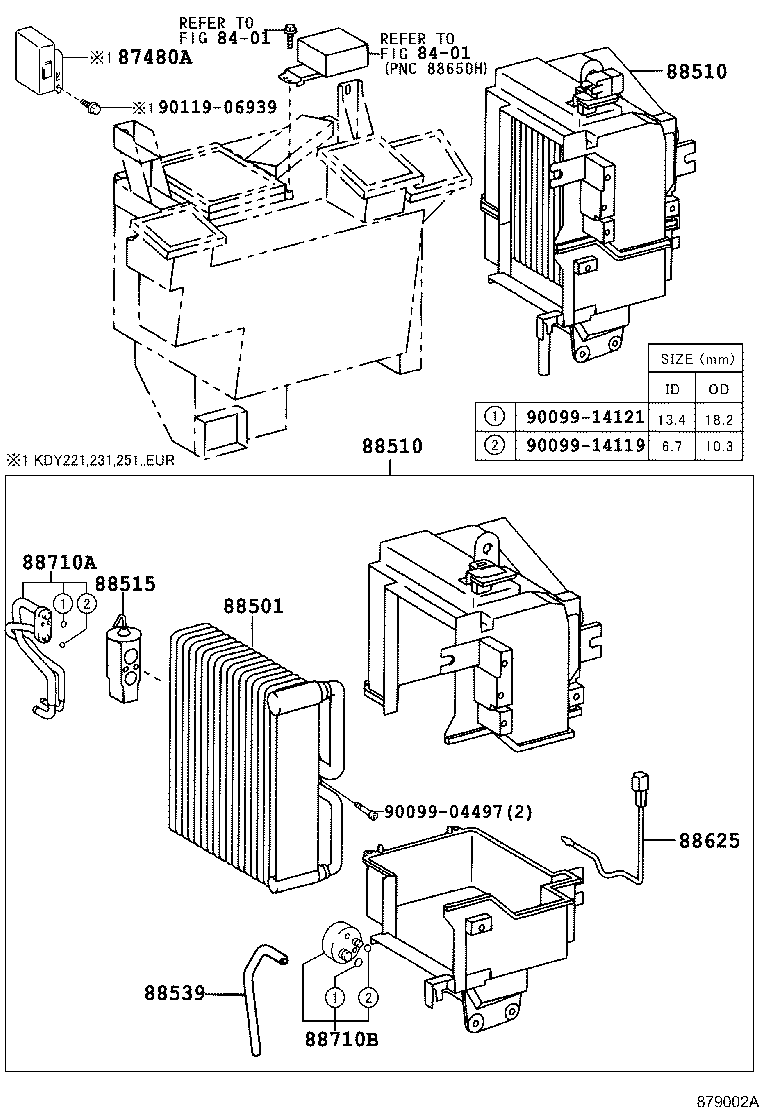

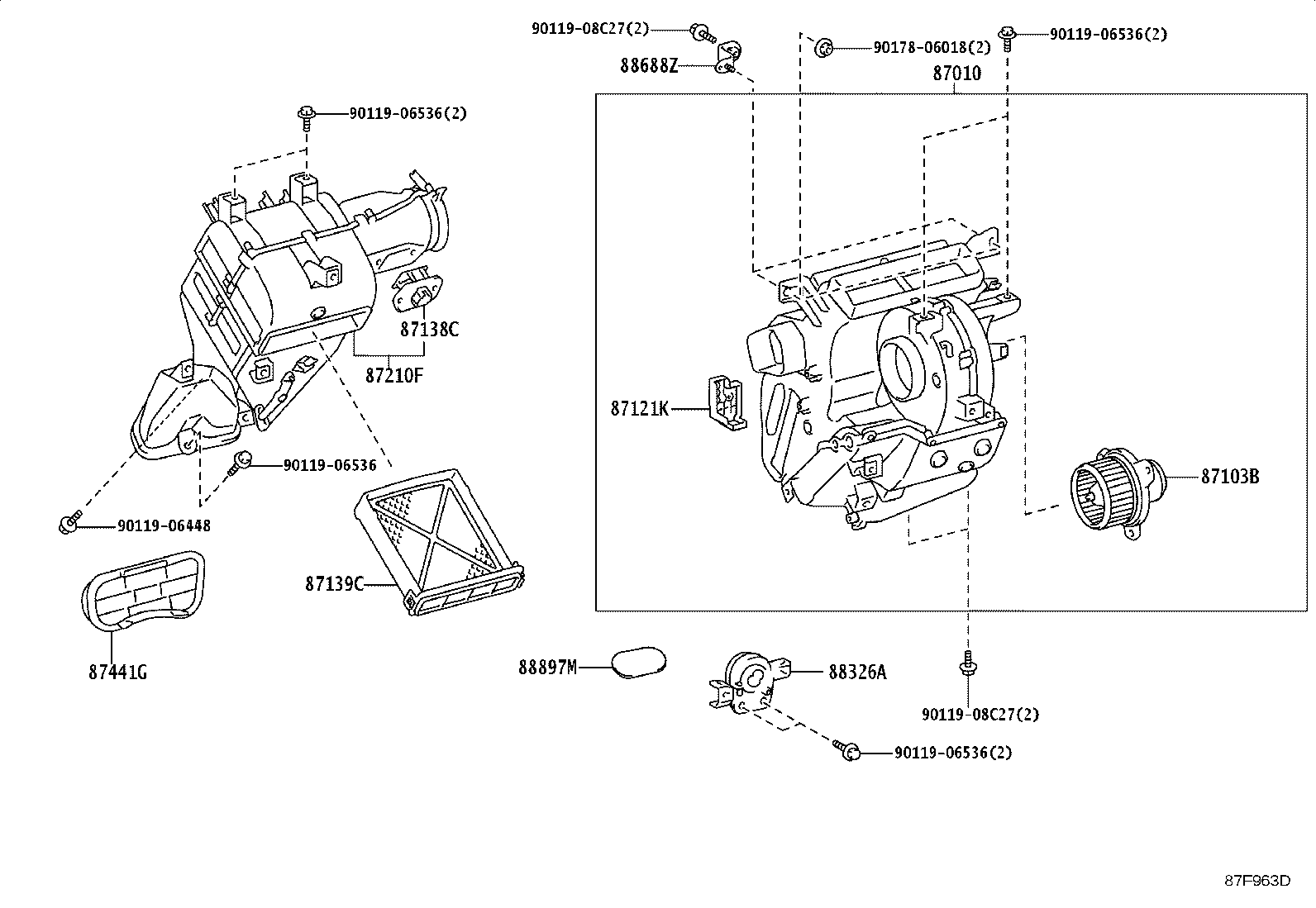

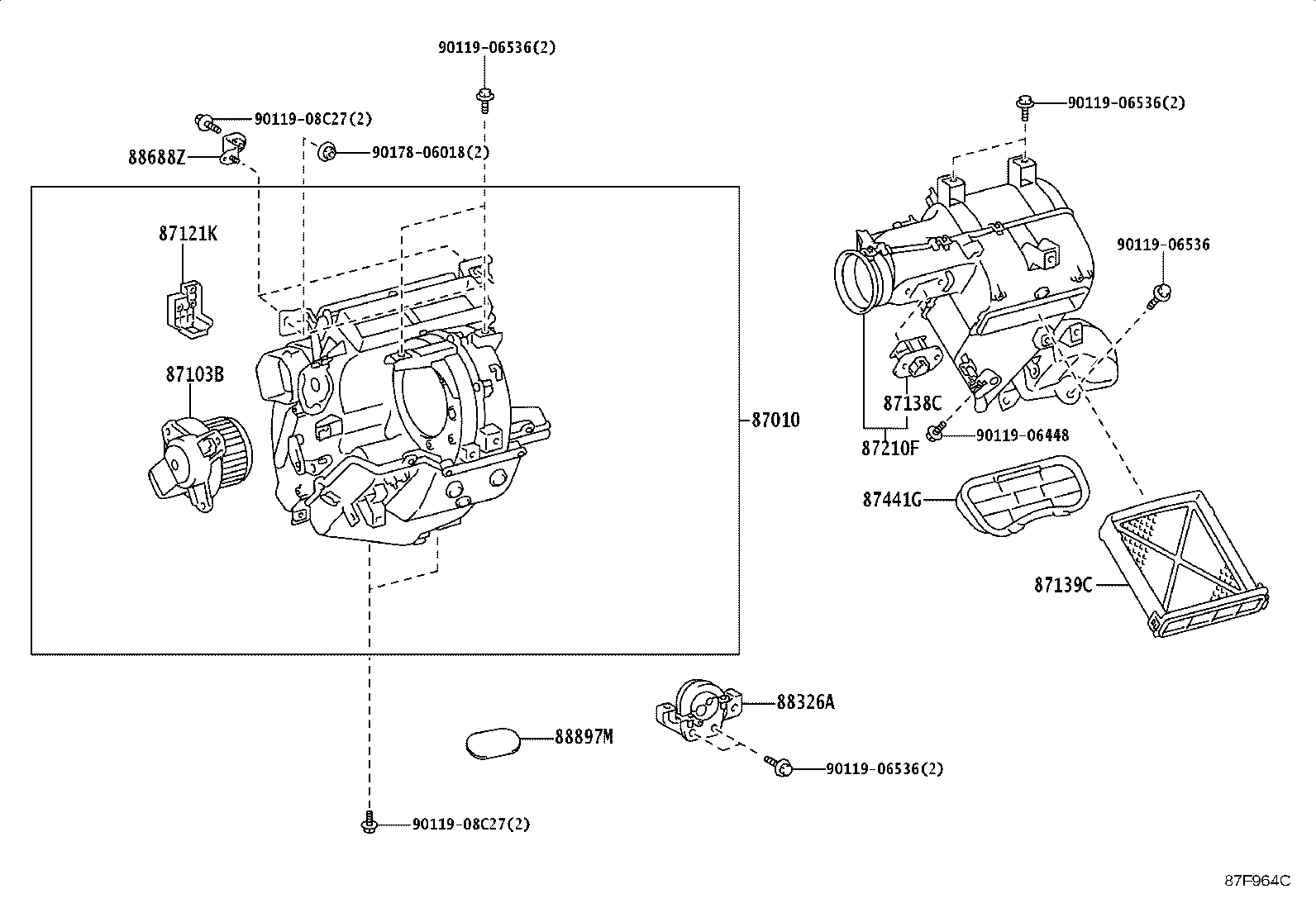

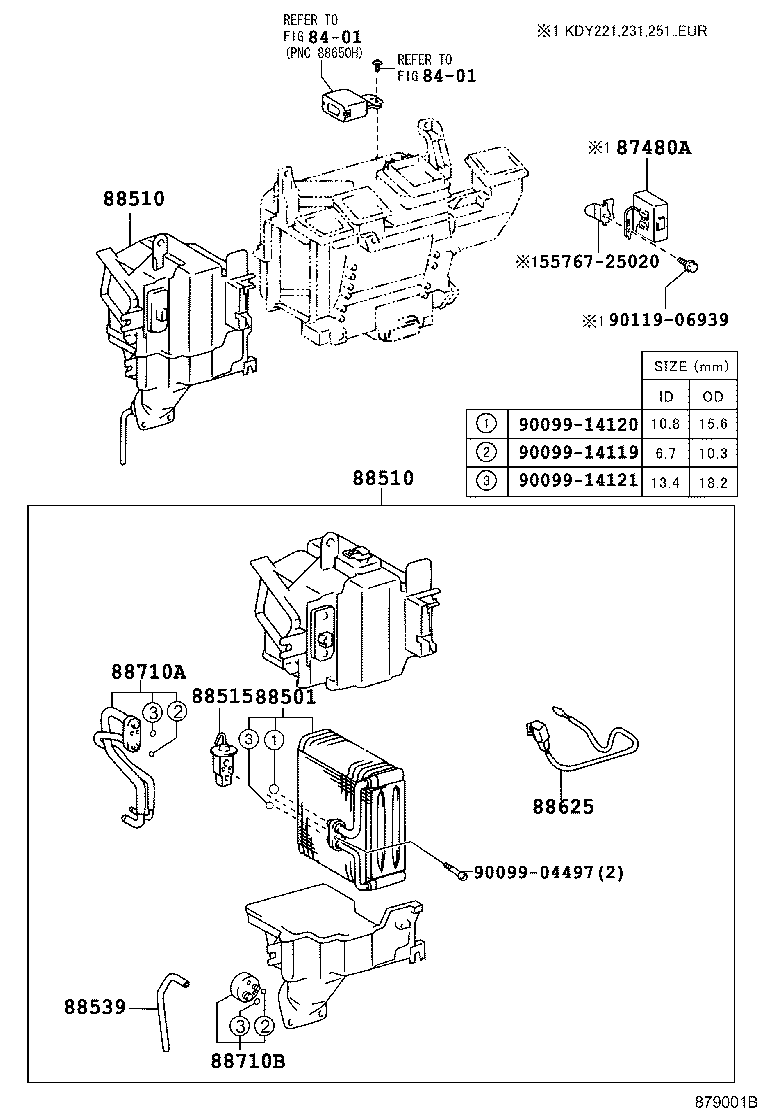

Figure 874858D 874858D 2001-07 → 2006-09 Figure 874858D 874858D 2003-12 → 2006-10 Figure 879001B 879001B 2006-09 → 2015-02 Figure 87F962C 87F962C 2016-10 → — Figure 87F961D 87F961D 2016-10 → — Figure 87F963D 87F963D 2016-10 → — Figure 876625B 876625B 2001-08 → 2006-09 Figure 879002A 879002A 2006-09 → 2015-02 Figure 87F964C 87F964C 2016-10 → — Figure 87F965C 87F965C 2016-10 → — Figure 87F588 87F588 2001-08 → —

Part groups

PNCDescription
87010 Unit Assy, Air Conditioner
87103B Motor Sub-assy, Blower W/Fan
87107A Unit Sub-assy, Heater Radiator
87116A Spring, Holding (FOR COOLER UNIT CASE)
87121K Bracket, Heater
87138C Resistor, Blower
87139C Filter, Clean Air
87210F Case Assy, Air Damper
87441G Filter, Heater Air
87480A Amplifier Assy, Heater
88326A Plate, Cover
88501 Evaporator Sub-assy, Cooler, NO.1
88510 Unit Assy, Cooler
88515 Valve, Cooler Expansion
88539 Hose, Cooler Unit Drain, NO.1
88539J Hose, Drain Cooler
88548B Case, Air Filter
88625 Thermistor, Cooler, NO.1
88688Z Bracket
88710A Tube Assy, Air Conditioner
88710B Tube Assy, Air Conditioner
88710H Tube & Accessory Assy, Air Conditioner
88710J Tube, Air Conditioner Connector
88891S Cover, Cooler, NO.1
88892N Cover, Cooler, NO.2
88897M Grommet (FOR HEATER PIPE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
