Toyota Dyna

2001-07 → 2021-11 · chassis KDY22#,23#,25#,26#,LY2## · catalogue 731270 · Europe

Discontinued model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

32 part groups · 10 illustrations

Illustrations

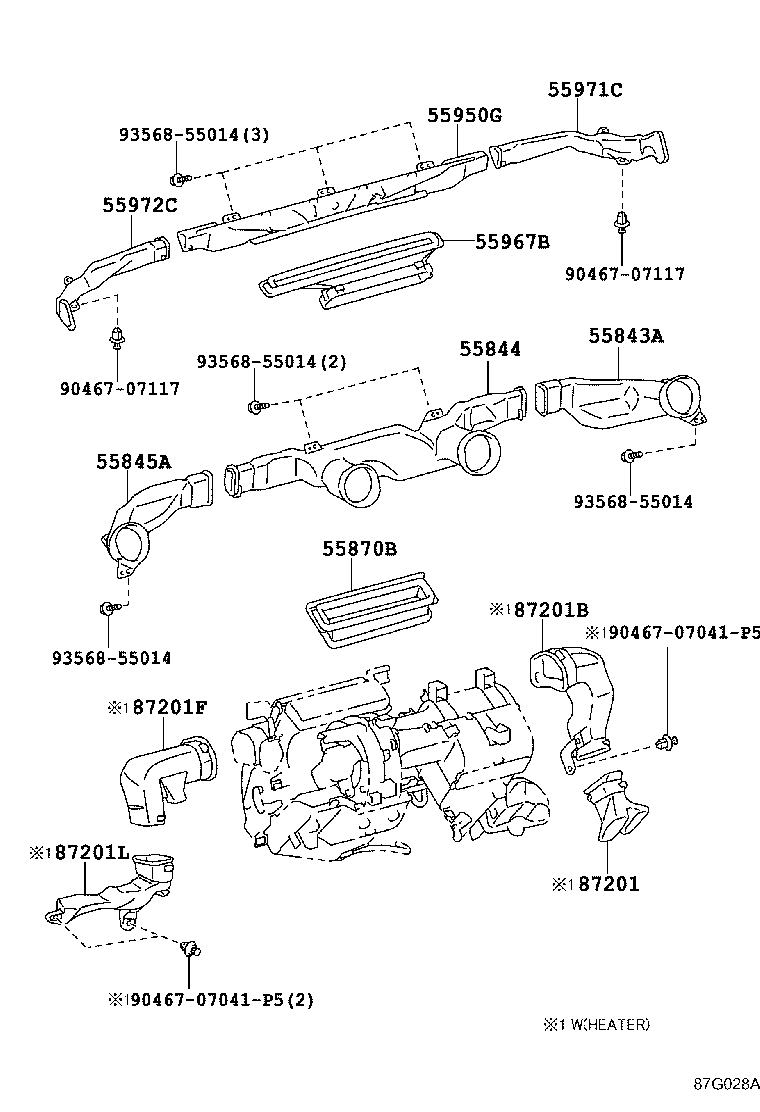

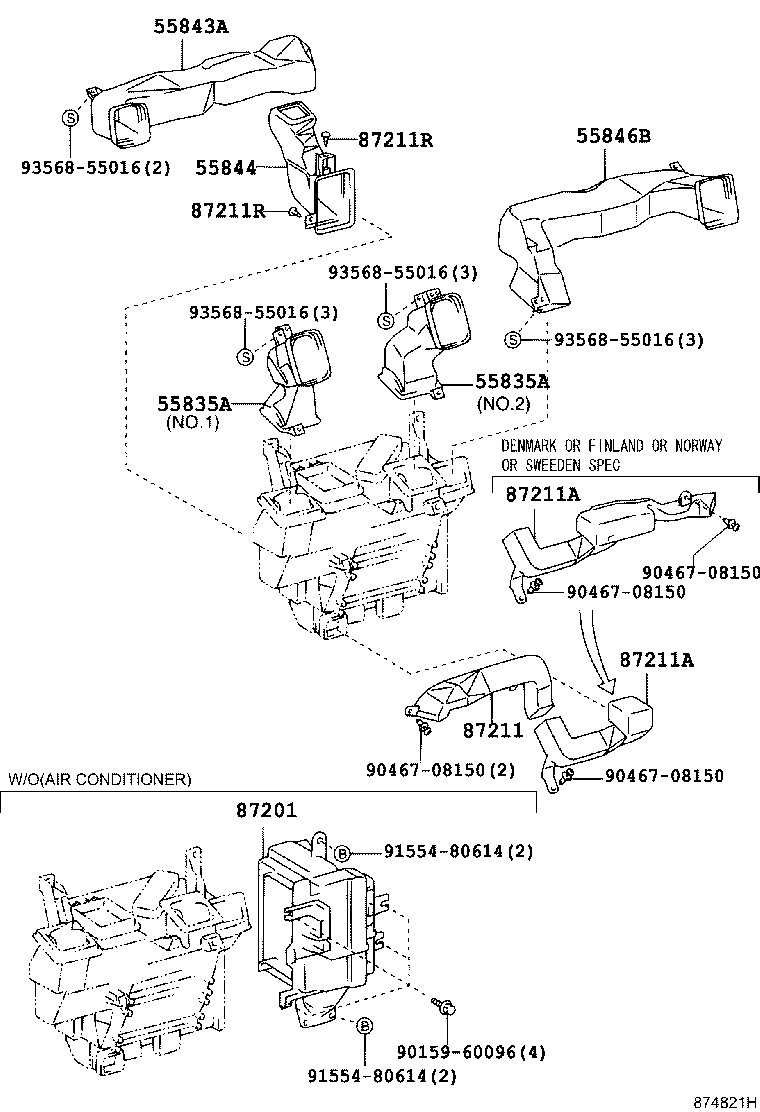

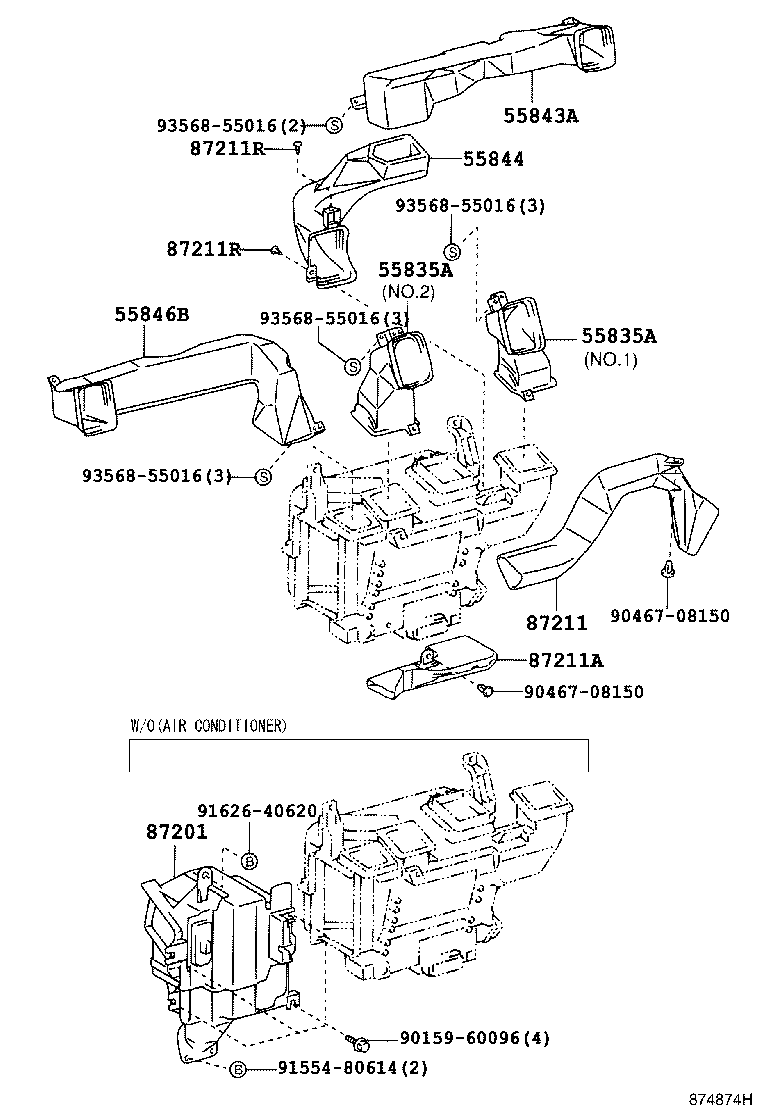

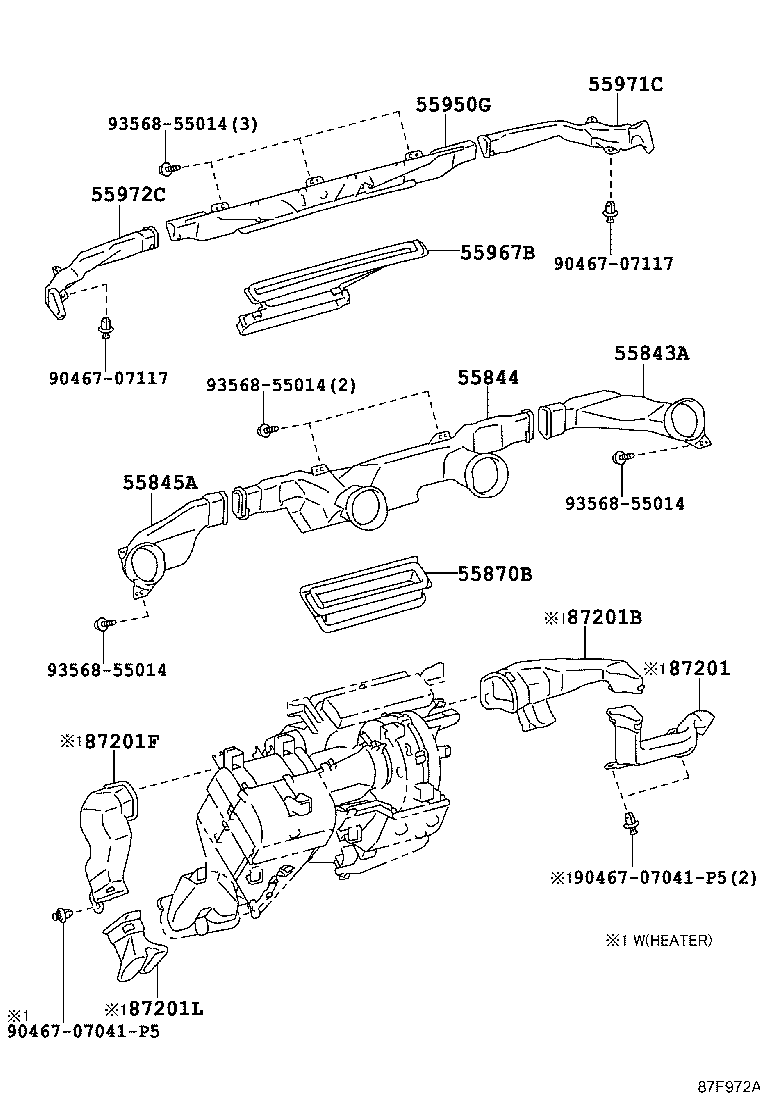

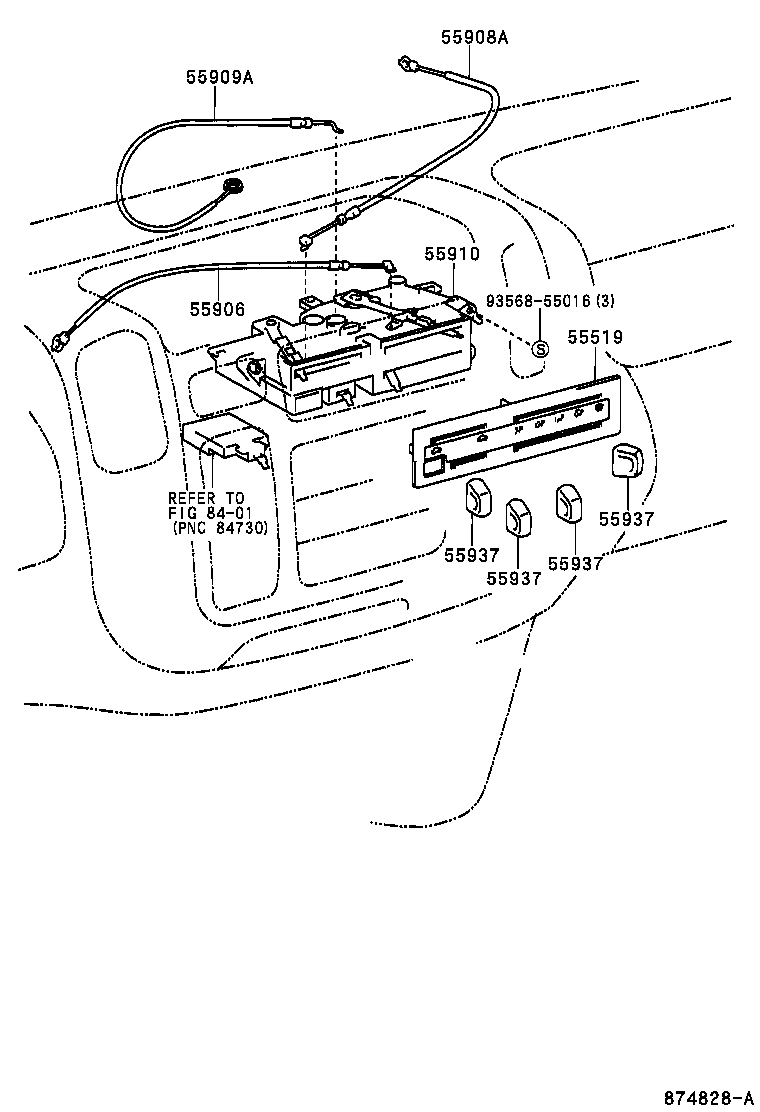

Figure 874827A 874827A 2001-07 → 2016-10 Figure 87F970A 87F970A 2016-10 → — Figure 874828A 874828A 2001-07 → 2016-10 Figure 87F971B 87F971B 2016-10 → — Figure 874874H 874874H 2001-07 → 2016-10 Figure 87F972A 87F972A 2016-10 → — Figure 874821H 874821H 2001-07 → 2016-10 Figure 87G028A 87G028A 2016-10 → — Figure 874822A 874822A 2001-07 → 2016-10 Figure 874823A 874823A 2001-07 → 2016-10

Part groups

PNCDescription
55519 Plate, Heater Control Name
55807B Cable Sub-assy, Air Control
55810G Ventilator Assy, Front
55835A Duct, Heater TO Register, Center
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55846B Duct, Heater TO Register, NO.4
55849D Duct, Heater TO Register, NO.7
55870B Duct Assy, Heater TO Register
55900 Control Assy, Air Conditioner
55905A Knob, Heater Control
55905B Knob, Heater Control, NO.2
55906 Cable Sub-assy, Heater Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
55937 Knob, Heater Control Lever
55950G Nozzle Assy, Defroster
55967B Nozzle, Defroster, Lower
55971C Duct, Side Defroster Nozzle, NO.1
55972C Duct, Side Defroster Nozzle, NO.2
84661A Knob, Cooler Control Switch
84732H Switch, Heater Blower
84732K Bulb, Heater Blower Switch
87201 Duct Sub-assy, Air, NO.1
87201B Duct Sub-assy, Air, NO.2
87201F Duct Sub-assy, Air, NO.3
87201L Duct Sub-assy, Air, NO.4
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87211R Clip, Air Duct
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
