Toyota Dyna
2001-07 → 2021-11 · chassis KDY22#,23#,25#,26#,LY2## · catalogue 731270 · Europe
Discontinued model
Data version 2022-11

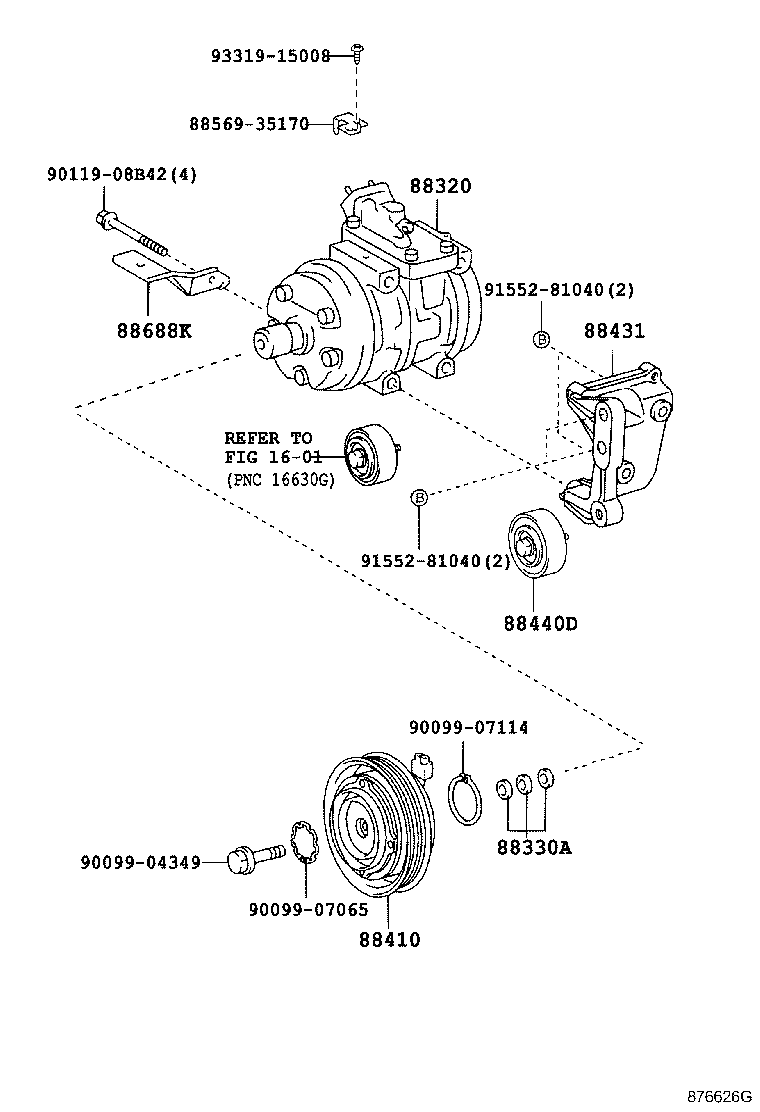

Heating & Air Conditioning - Compressor
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 88320 | Compressor Assy, Cooler |
| 88330A | Washer (FOR MAGNET CLUTCH) |
| 88410 | Clutch Assy, Magnet |
| 88431 | Bracket, Compressor Mounting, NO.1 |
| 88440B | Pulley Assy, Idle |
| 88440D | Pulley Assy, Idle NO.2 |
| 88444 | Bracket, Idle Pulley |
| 88446 | Bolt, Idle Pulley |
| 88469A | Collar, Adjusting |
| 88688K | Bracket, Cooler Compressor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
