Toyota DYNA150
1987-08 → 1995-05 · chassis YY61,LY6# · catalogue 731550 · Europe
Discontinued model
Data version 1995-10

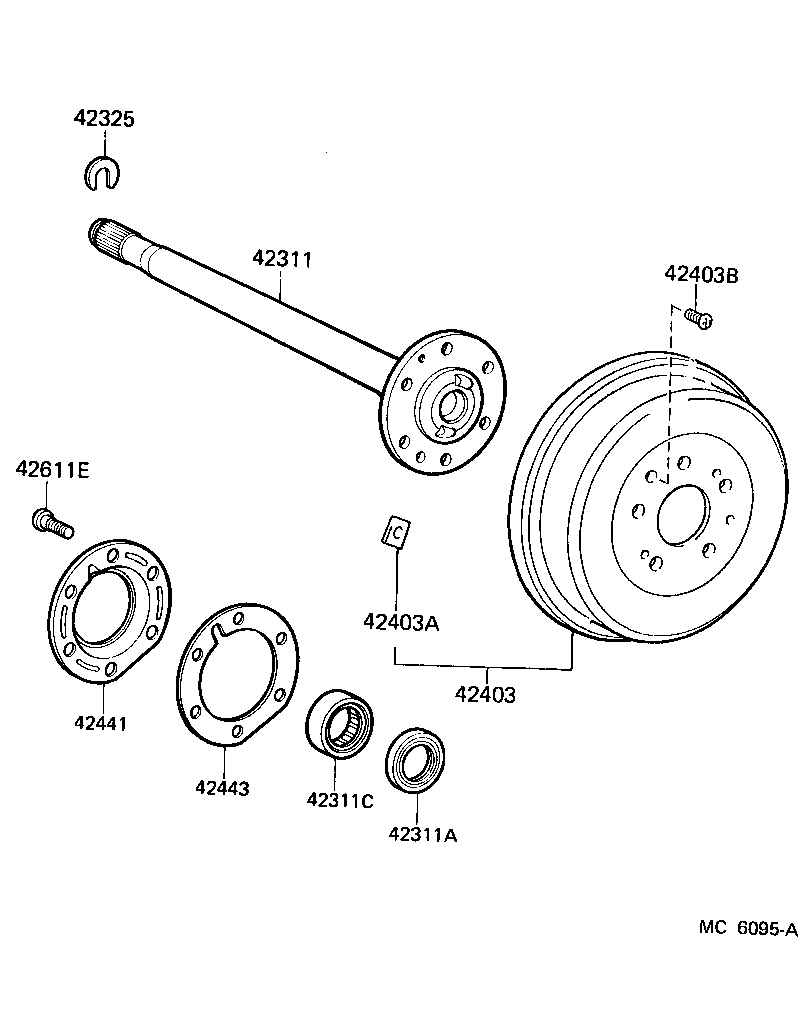

| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 42311 — Shaft, Rear Axle | ||||
| 42311-25061 |
Shaft, Rear Axle
1988-08 → 1991-05
ended
|
LY61 ST | — | |
| 42311-25062 |
Shaft, Rear Axle
1991-05 → 1995-05
ended
|
LY61 ST | — | |
| 42311-36160 |
Shaft, Rear Axle
1987-08 → 1988-05
ended
|
LY60,YY61 | — | |
| 42311-36161 |
Shaft, Rear Axle
1988-05 → 1995-05
ended
|
LY6#,YY61 WT | — | |
| 42311A — Seal, Oil(FOR REAR AXLE SHAFT) | ||||
| 90310-38033 |
Seal, Oil(FOR REAR AXLE SHAFT)
1987-08 → 1995-05
ended
|
LY6#,YY61 WT | — | |
| 90311-47001 |
Seal, Oil(FOR REAR AXLE SHAFT)
1988-08 → 1995-05
ended
|
LY61 ST | — | |
| 42311C — Bearing(FOR REAR AXLE SHAFT) | ||||
| 90365-47013 |
Bearing(FOR REAR AXLE SHAFT)
1988-08 → 1995-05
ended
|
LY61 ST | — | |
| 42325 — Lock, Rear Axle Shaft | ||||
| 42325-55010 |
Lock, Rear Axle Shaft
1988-08 → 1995-05
ended
|
LY61 ST | — | |
| 42403 — Drum Sub-assy, Rear Brake | ||||
| 42431-25050 |
Drum Sub-assy, Rear Brake
1988-08 → 1990-09
ended
|
LY61 ST | — | |
| 42431-25051 |
Drum Sub-assy, Rear Brake
1990-09 → 1991-06
ended
|
LY61 ST | — | |
| 42431-25052 |
Drum Sub-assy, Rear Brake
1991-06 → 1995-05
ended
|
LY61 ST | — | |
| 42431-36100 |
Drum Sub-assy, Rear Brake
1987-08 → 1995-05
ended
|
LY6#,YY61 WT | — | |
| 42403A — Piece, Balance (FOR REAR BRAKE DRUM) | ||||
| 90937-01117 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1990-09 → 1995-05
ended
|
LY61 ST | — | |
| 90937-01118 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1990-09 → 1995-05
ended
|
LY61 ST | — | |
| 90937-01119 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1990-09 → 1995-05
ended
|
LY61 ST | — | |
| 90937-01120 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1990-11 → 1995-05
ended
|
LY61 ST | — | |
| 90937-01121 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1990-11 → 1995-05
ended
|
LY61 ST | — | |
| 90937-01122 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1990-11 → 1995-05
ended
|
LY61 ST | — | |
| 90937-01195 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1990-09 → 1990-11
ended
|
LY61 ST | — | |
| 90937-01196 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1990-09 → 1990-11
ended
|
LY61 ST | — | |
| 90937-01197 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1990-09 → 1990-11
ended
|
LY61 ST | — | |
| 42403B — Bolt, Set (FOR REAR BRAKE DRUM SETTING) | ||||
| 90113-10035 |
Bolt, Set (FOR REAR BRAKE DRUM SETTING)
1988-08 → 1991-06
ended
|
LY61 ST | — | |
| 42441 — Deflector, Brake Drum Oil | ||||
| 42441-25030 |
Deflector, Brake Drum Oil
1988-08 → 1991-05
ended
|
LY61 ST | — | |
| 42441-25030 |
Deflector, Brake Drum Oil
1991-05 → 1995-05
ended
|
LY61 ST | — | |
| 42441-36050 |
Deflector, Brake Drum Oil
1987-08 → 1995-05
ended
|
LY6#,YY61 WT | — | |
| 42443 — Gasket, Brake Drum Oil Deflector | ||||
| 42443-25010 |
Gasket, Brake Drum Oil Deflector
1988-08 → 1991-05
ended
|
LY61 ST | — | |
| 42443-25010 |
Gasket, Brake Drum Oil Deflector
1991-05 → 1995-05
ended
|
LY61 ST | — | |
| 42611E — Bolt, Hub (FOR REAR AXLE) | ||||
| 90942-02030 |
Bolt, Hub (FOR REAR AXLE)
1988-08 → 1991-05
ended
|
LY61 ST | — | |
| 90942-02030 |
Bolt, Hub (FOR REAR AXLE)
1991-05 → 1995-05
ended
|
LY61 ST | — | |
| 90942-02050 note |
Bolt, Hub (FOR REAR AXLE)
1987-08 → 1995-05
ended
|
LY6#,YY61 WT | — | |
| 90942-02051 note |
Bolt, Hub (FOR REAR AXLE)
1987-08 → 1995-05
ended
|
LY6#,YY61 WT | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
