Toyota DYNA150
1987-08 → 1995-05 · chassis YY61,LY6# · catalogue 731550 · Europe
Discontinued model
Data version 1995-10

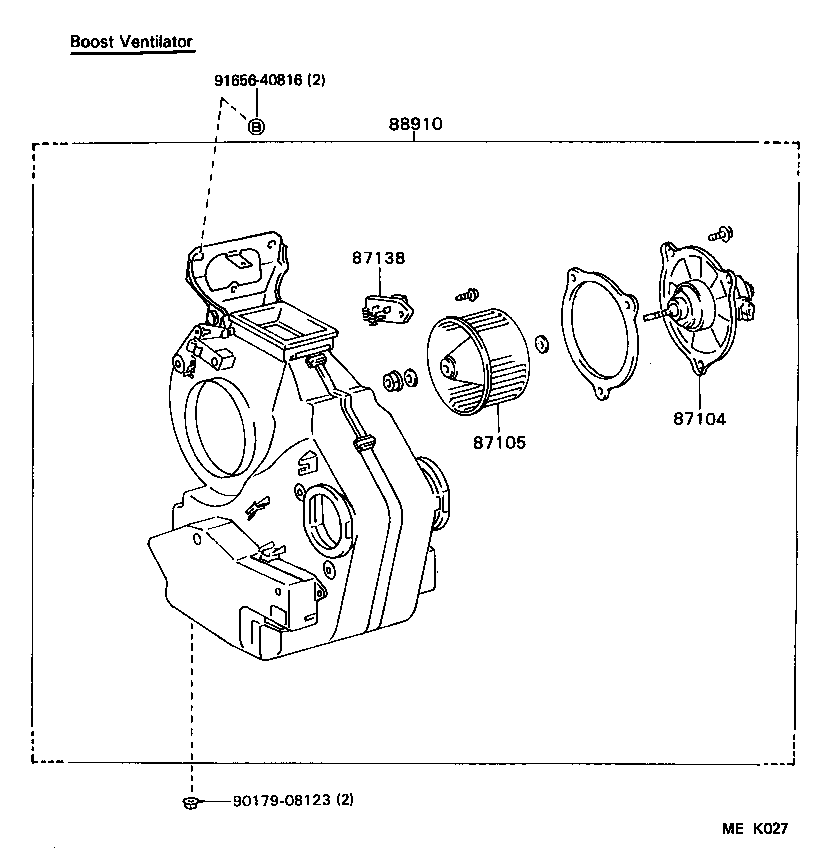

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 87104 — Motor Sub-assy, Heater Blower | ||||
| 87104-95404 |
Motor Sub-assy, Heater Blower
1987-08 → 1995-05
ended
|
LY6#,YY61 | — | |
| 87105 — Fan Sub-assy, Heater Blower | ||||
| 87105-12060 |
Fan Sub-assy, Heater Blower
1987-08 → 1988-08
ended
|
LY60,YY61 | — | |
| 87138 — Resistor, Heater Blower | ||||
| 87138-26020 |
Resistor, Heater Blower
1991-10 → 1995-05
ended
|
LY61 | — | |
| 87138-95409 |
Resistor, Heater Blower
1987-08 → 1991-10
ended
|
LY6#,YY61 | — | |
| 88910 — Ventilator Assy, Boost | ||||
| 88910-95401 |
Ventilator Assy, Boost
1987-08 → 1995-05
ended
|
LY6#,YY61 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
