Toyota DYNA150

1987-08 → 1995-05 · chassis YY61,LY6# · catalogue 731550 · Europe

Discontinued model Data version 1995-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

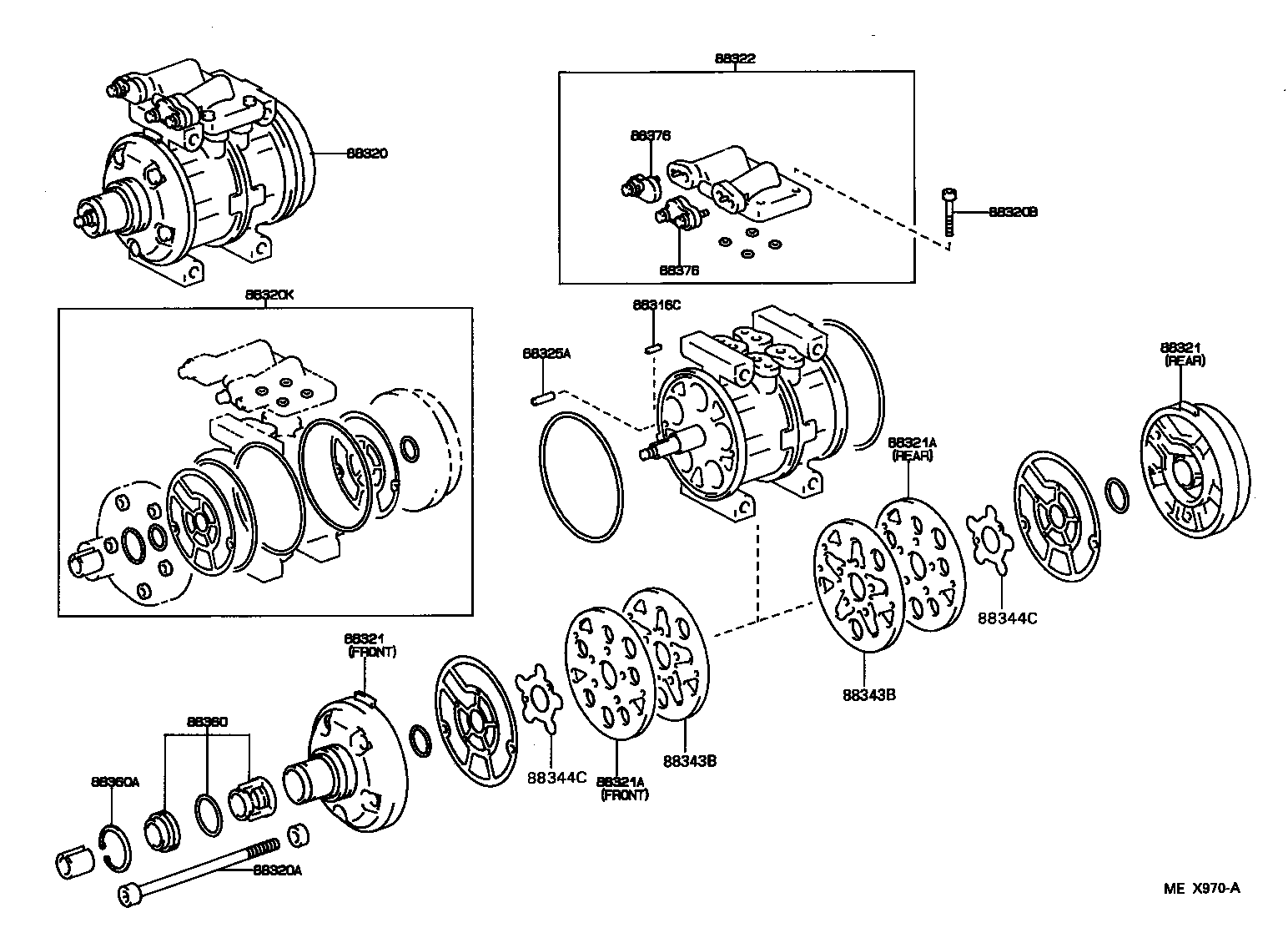

Exploded illustration MEX970A 88322 — VALVE, COOLER COMPRESSOR SUCTION SERVICE (1 parts) 88376 — CAP, BLIND (2 parts) 88320 — COMPRESSOR ASSY, COOLER (1 parts) 88320B — BOLT, SERVICE VALVE (1 parts) 88376 — CAP, BLIND (2 parts) 88320K — GASKET KIT, COOLER COMPRESSOR OVERHAUL (1 parts) 88316C — KEY, COMPRESSOR CRANKSHAFT (1 parts) 88321 — HEAD, COOLER COMPRESSOR CYLINDER (2 parts) 88325A — PIN, CYLINDER BLOCK (1 parts) 88321A — PLATE SUB-ASSY, VALVE (2 parts) 88344C — REED, DISCHARGE VALVE (1 parts) 88321 — HEAD, COOLER COMPRESSOR CYLINDER (2 parts) 88343B — REED, SUCTION VALVE (1 parts) 88360 — SEAL ASSY, COOLER COMPRESSOR SHAFT (1 parts) 88343B — REED, SUCTION VALVE (1 parts) 88360A — RING, COMPRESSOR SEAL PLATE SNAP (1 parts) 88344C — REED, DISCHARGE VALVE (1 parts) 88321A — PLATE SUB-ASSY, VALVE (2 parts) 88320A — BOLT, THROUGH (1 parts)
MEX970A · 19 callouts Full size ↗
17 parts on this figure
Part number Description Fitment Price
88316C — Key, Compressor Crankshaft
90099-13024 Key, Compressor Crankshaft
1988-08 → 1995-05 ended
LY61 ST —
88320 — Compressor Assy, Cooler
88320-26300 Compressor Assy, Cooler
1988-08 → 1995-05 ended
LY61 ST —
88320A — Bolt, Through
90099-04968 Bolt, Through
1988-08 → 1995-05 ended
LY61 ST —
88320B — Bolt, Service Valve
90099-04924 Bolt, Service Valve
1988-08 → 1995-05 ended
LY61 ST —
88320K — Gasket Kit, Cooler Compressor Overhaul
88335-12030 Gasket Kit, Cooler Compressor Overhaul
1988-08 → 1995-05 ended
LY61 ST —
88321 — Head, Cooler Compressor Cylinder
88321-14011 note Head, Cooler Compressor Cylinder
1988-08 → 1995-05 ended
LY61 ST —
88322-14011 note Head, Cooler Compressor Cylinder
1988-08 → 1995-05 ended
LY61 ST —
88321A — Plate Sub-assy, Valve
88341-14010 note Plate Sub-assy, Valve
1988-08 → 1995-05 ended
LY61 ST —
88342-14010 note Plate Sub-assy, Valve
1988-08 → 1995-05 ended
LY61 ST —
88322 — Valve, Cooler Compressor Suction Service
88371-26170 Valve, Cooler Compressor Suction Service
1988-08 → 1995-05 ended
LY61 ST —
88325A — Pin, Cylinder Block
90099-08058 Pin, Cylinder Block
1988-08 → 1995-05 ended
LY61 ST —
88343B — Reed, Suction Valve
88343-14011 Reed, Suction Valve
1988-08 → 1995-05 ended
LY61 ST —
88344C — Reed, Discharge Valve
88344-14011 Reed, Discharge Valve
1988-08 → 1995-05 ended
LY61 ST —
88360 — Seal Assy, Cooler Compressor Shaft
88360-40010 Seal Assy, Cooler Compressor Shaft
1988-08 → 1995-05 ended
LY61 ST —
88360A — Ring, Compressor Seal Plate Snap
90096-90022 Ring, Compressor Seal Plate Snap
1988-08 → 1995-05 ended
LY61 ST —
88376 — Cap, Blind
88376-17020 note Cap, Blind
1988-08 → 1995-05 ended
LY61 ST —
88376-22020 note Cap, Blind
1988-08 → 1995-05 ended
LY61 ST —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
