Toyota DYNA150

1987-08 → 1995-05 · chassis YY61,LY6# · catalogue 731550 · Europe

Discontinued model Data version 1995-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

11 part groups · 3 illustrations

Illustrations

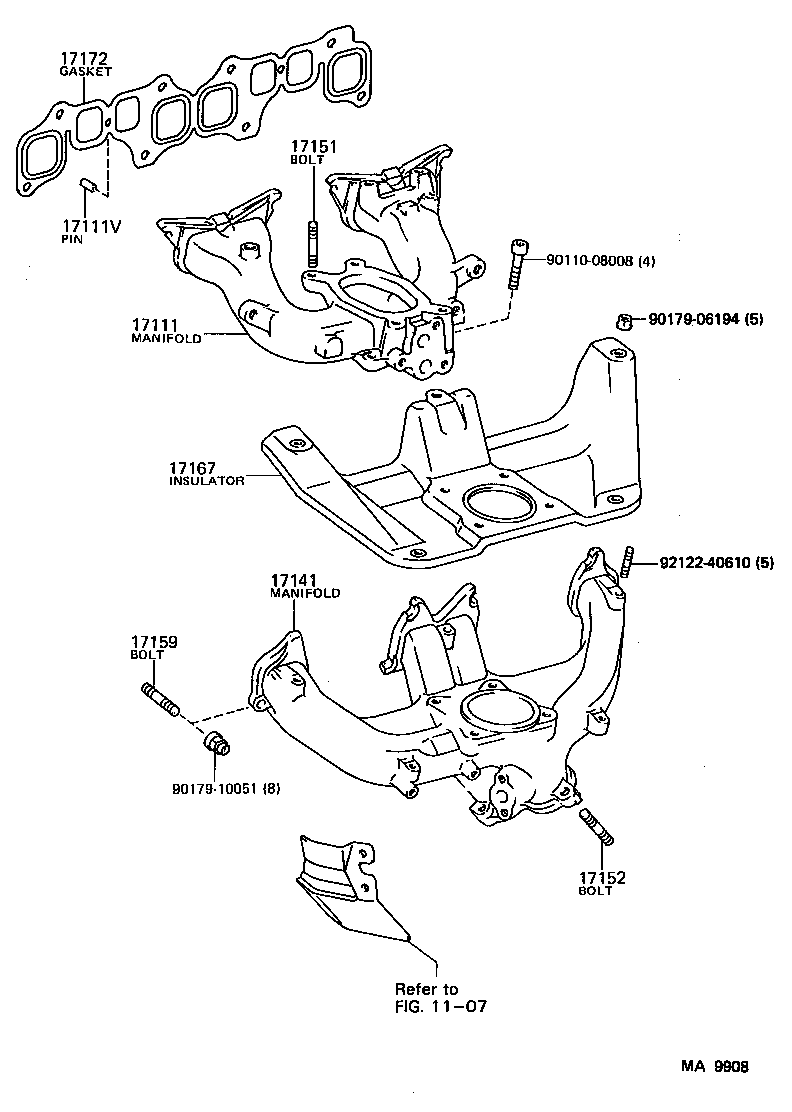

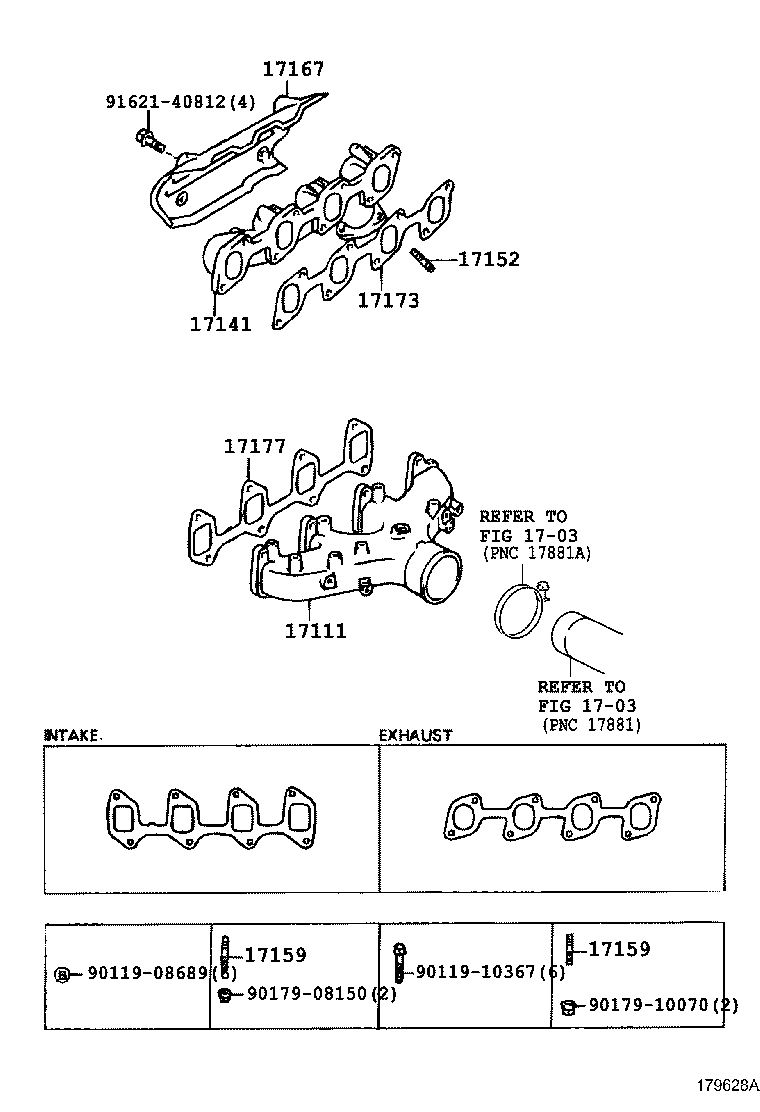

Figure 179627A 179627A 1987-08 → 1988-08 Figure 179628A 179628A 1988-08 → — Figure MA9908 MA9908 1987-08 → 1988-08

Part groups

PNCDescription
17111 Manifold, Intake
17111V Pin, Straight(FOR INTAKE MANIFOLD SETTING)
17141 Manifold, Exhaust
17151 Bolt, Stud(FOR MANIFOLD TO CARBURETOR)
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17172 Gasket, Manifold TO Cylinder Head
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
