Toyota DYNA150

1987-08 → 1995-05 · chassis YY61,LY6# · catalogue 731550 · Europe

Discontinued model Data version 1995-10

Brake Tube & Clamp

43 part groups · 3 illustrations

PNC	Description
04477	Bush & Boot Kit, Load Sensing Spring
47311	Tube, Front Brake, NO.1
47311B	Way, NO.1(FOR FRONT BRAKE TUBE)
47312	Tube, Front Brake, NO.2
47312E	Way, NO.2(FOR FRONT BRAKE TUBE)
47313	Tube, Front Brake, NO.3
47313A	Hose, Flexible, NO.1(FOR FRONT)
47313J	Hose, Flexible, NO.2(FOR FRONT)
47314	Tube, Front Brake, NO.4
47315	Tube, Front Brake, NO.5
47316	Tube, Front Brake, NO.6
47316A	Hose, Flexible(FOR REAR BRAKE TUBE)
47321	Tube, Rear Brake, NO.1
47321D	Way, NO.1(FOR REAR BRAKE TUBE)
47322	Tube, Rear Brake, NO.2
47322B	Way, NO.2(FOR REAR BRAKE TUBE)
47323	Tube, Rear Brake, NO.3
47324	Tube, Rear Brake, NO.4
47325	Tube, Rear Brake, NO.5
47326	Tube, Rear Brake, NO.6
47327	Tube, Rear Brake, NO.7
47345	Tube, Wheel Cylinder, Rear RH
47346	Tube, Wheel Cylinder, Rear LH
47351	Bracket, Flexible Hose(FOR FRONT RH)
47352	Bracket, Flexible Hose(FOR FRONT LH)
47353B	Bracket, Flexible Hose, NO.3

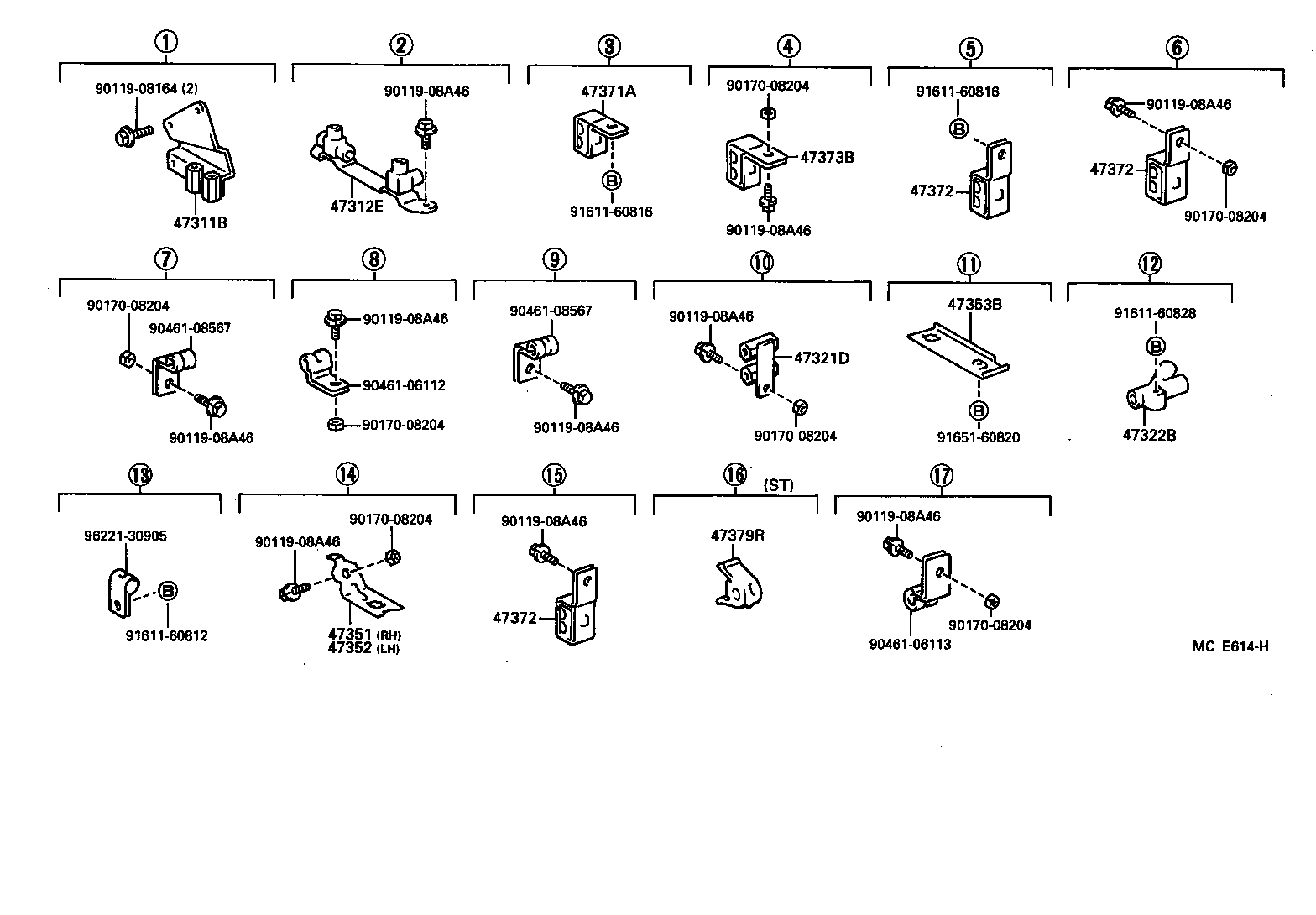

47371A	Clamp, Brake Tube, NO.1
47372	Clamp, Brake Tube, NO.2
47373B	Clamp, Brake Tube, NO.3
47379R	Damper, Tube(FOR REAR)

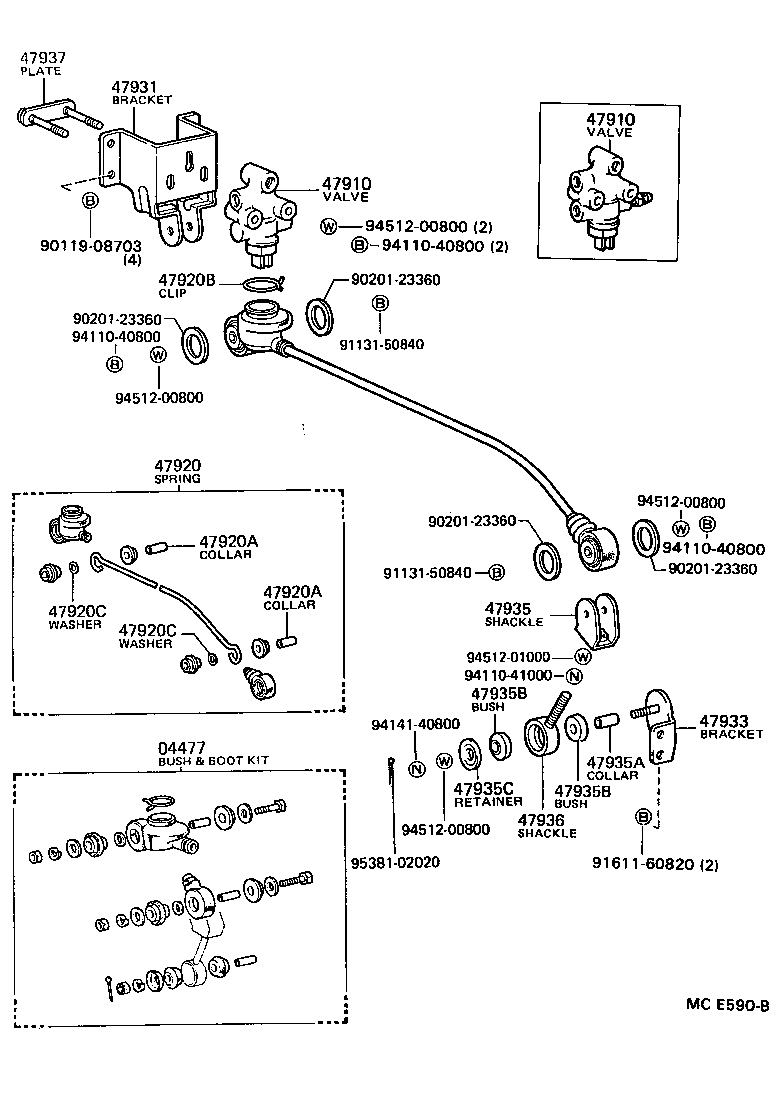

47910	Valve Assy, Load Sensing Proportioning
47920	Spring Assy, Load Sensing
47920A	Collar(FOR LOAD SENSING SPRING)
47920B	Clip(FOR LOAD SENSING VALVE BOOT)
47920C	Washer(FOR LOAD SENSING SPRING)
47931	Bracket, Load Sensing Valve
47933	Bracket, Load Sensing Shackle, NO.1
47935	Shackle, Load Sensing Spring, NO.1
47935A	Collar(FOR LOAD SENSING SPRING SHACKLE)
47935B	Bush(FOR LOAD SENSING SPRING SHACKLE)
47935C	Retainer(FOR LOAD SENSING SPRING SHACKLE)
47936	Shackle, Load Sensing Spring, NO.2
47937	Plate, Load Sensing Valve Set

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
