Toyota DYNA150

1987-08 → 1995-05 · chassis YY61,LY6# · catalogue 731550 · Europe

Discontinued model Data version 1995-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

8 part groups · 2 illustrations

Illustrations

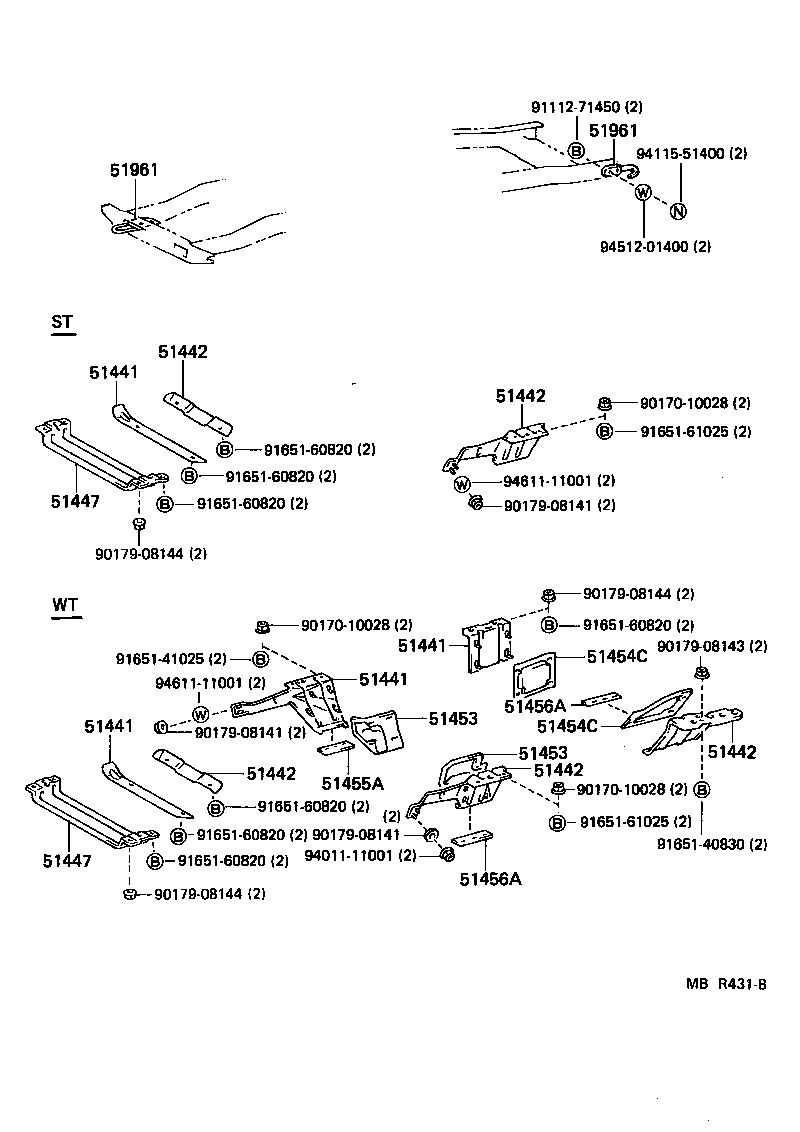

Figure MBN008B MBN008B 1987-08 → 1988-08 Figure MBR431B MBR431B 1988-08 → —

Part groups

PNCDescription
51441 Cover, Engine Under, NO.1
51442 Cover, Engine Under, NO.2
51447 Guide, Engine Under Cover Air
51453 Silencer, Engine Under Cover, Front
51454C Silencer, Engine Under Cover, Rear
51455A Seal, Engine Under Cover, NO.1
51456A Seal, Engine Under Cover, Rear
51961 Hook, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
