Toyota DYNA150

1987-08 → 1995-05 · chassis YY61,LY6# · catalogue 731550 · Europe

Discontinued model Data version 1995-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

15 part groups · 6 illustrations

Illustrations

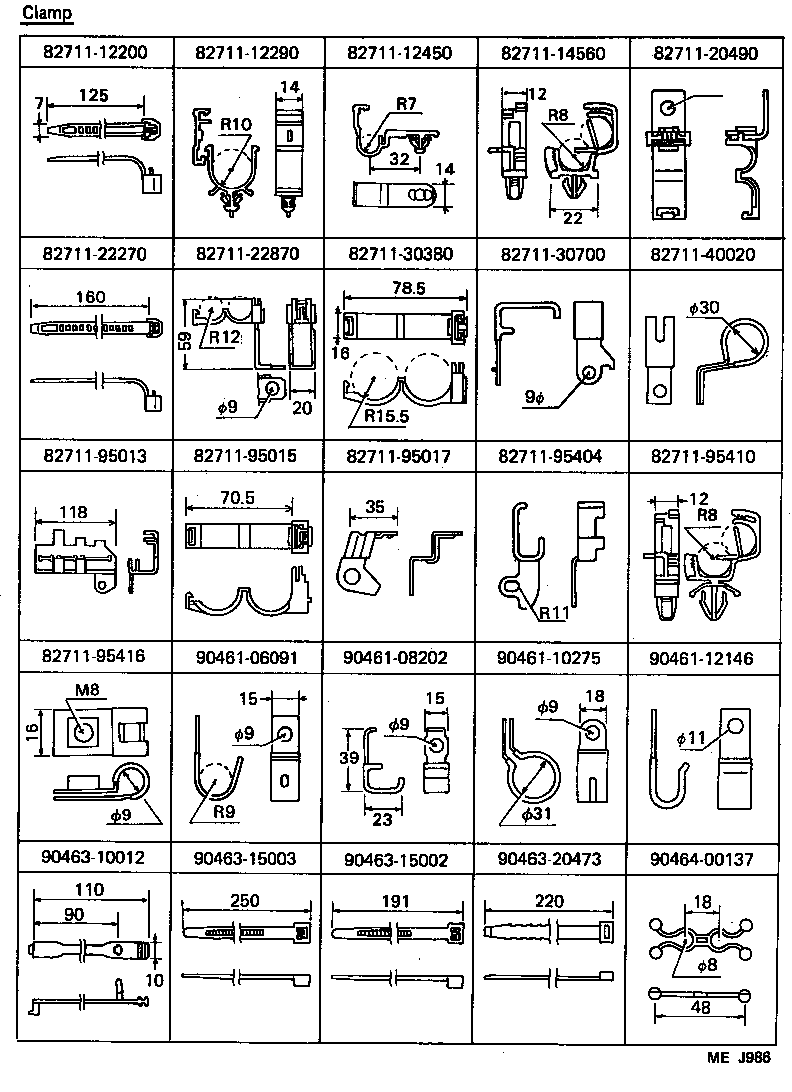

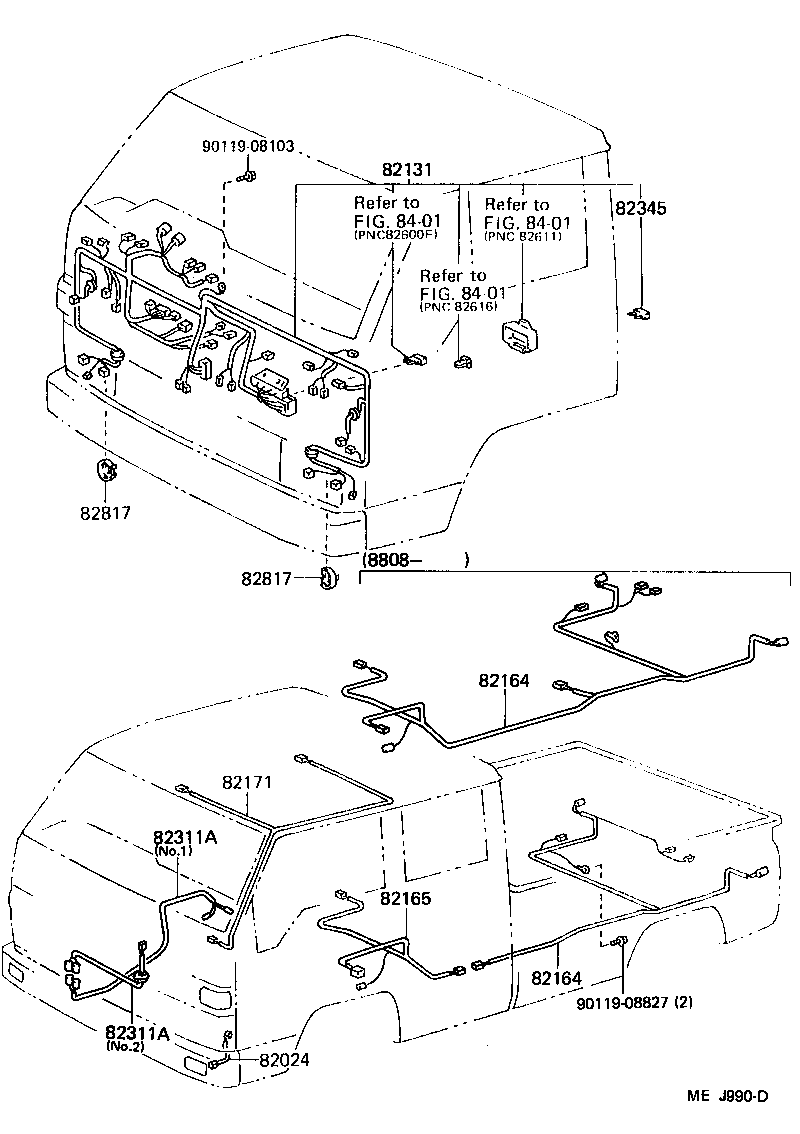

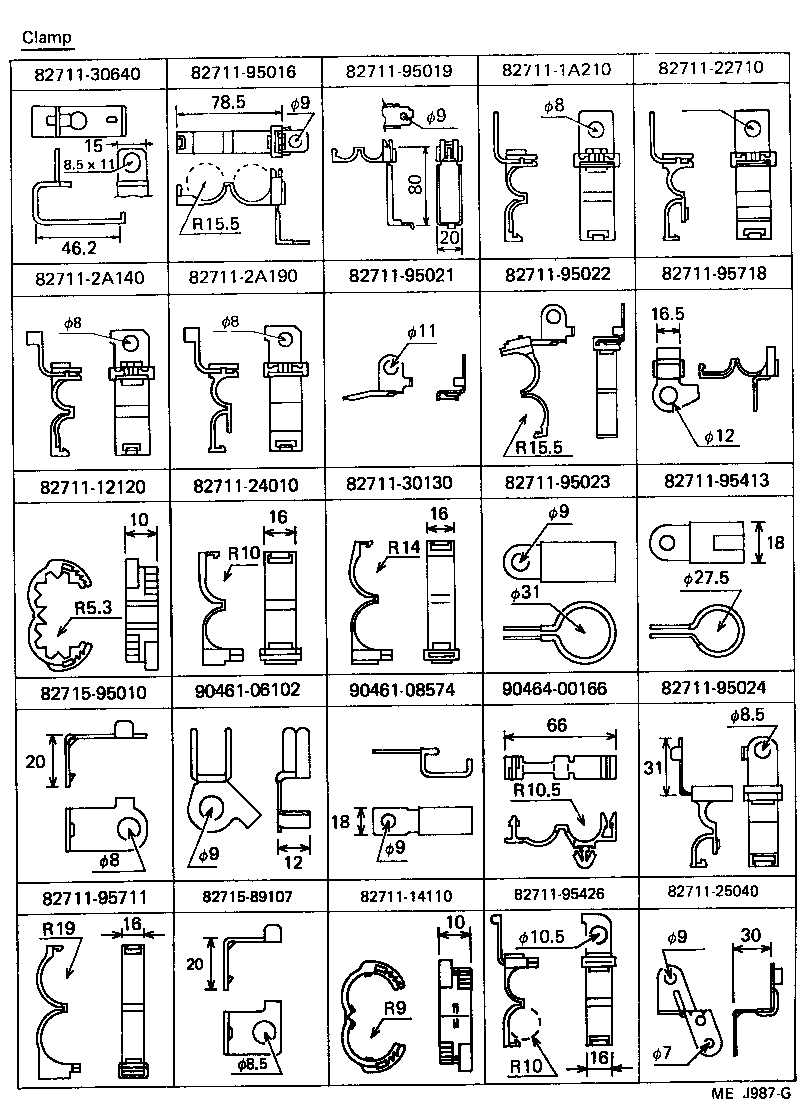

Figure MEJ988B MEJ988B 1987-08 → — Figure MEJ990D MEJ990D 1987-08 → — Figure MEJ986 MEJ986 1987-08 → — Figure MEJ987G MEJ987G 1987-08 → — Figure MES415A MES415A 1987-08 → — Figure MEL566 MEL566 1987-08 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82024 Wire Sub-assy, Fog Lamp Feed
82031 Wire Sub-assy, Ignition Coil
82060A Wire Assy, Engine, NO.2
82121 Wire, Engine
82122 Wire, Engine, NO.2
82131 Wire, Cowl
82164 Wire, Frame
82165 Wire, Frame, NO.2
82171 Wire, Roof, NO.1
82203 Wire Sub-assy, Alternator
82210C Fusible Link
82311A Wire, Air Conditioner
82345 Diode
82817 Protector, Wiring Harness, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
