Toyota DYNA150
1987-08 → 1995-05 · chassis YY61,LY6# · catalogue 731550 · Europe
Discontinued model
Data version 1995-10
Switch & Relay & Computer

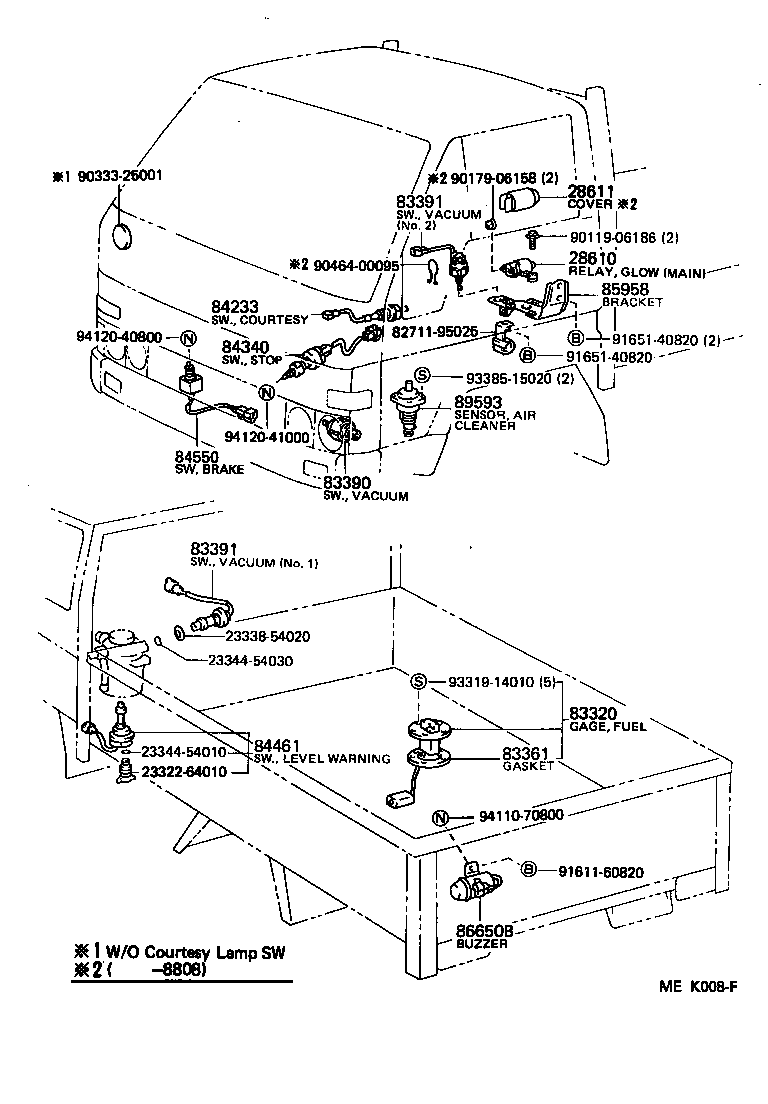

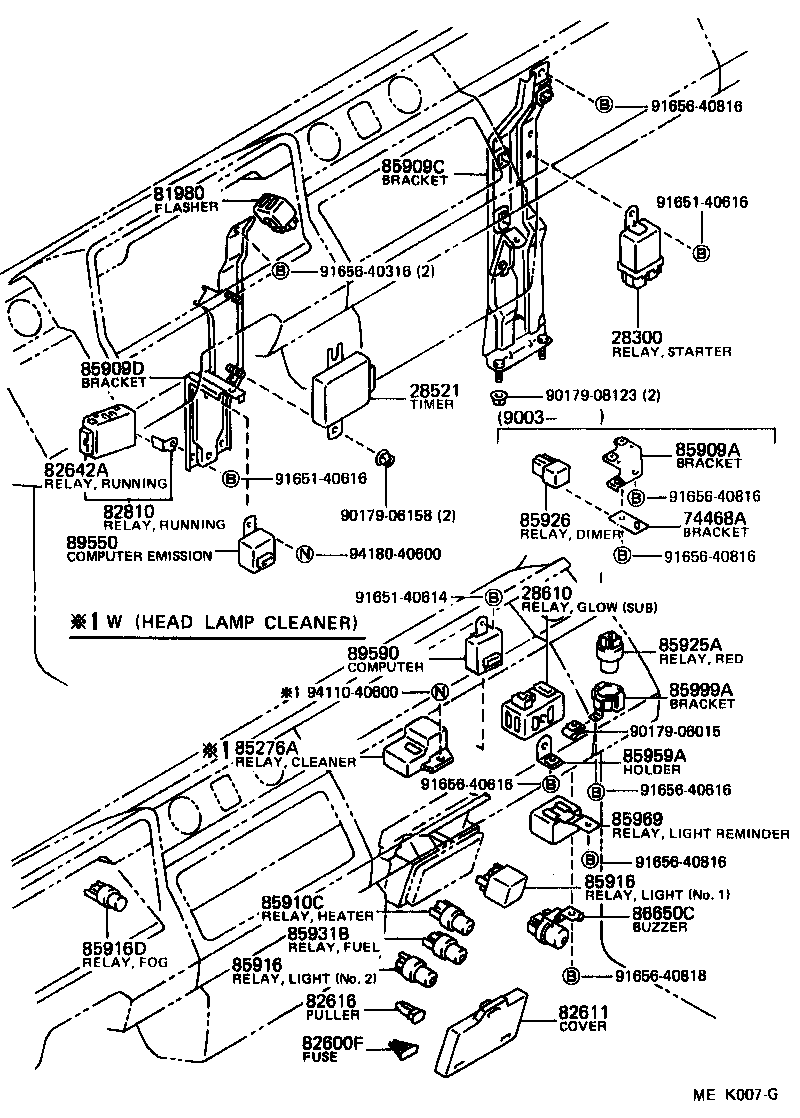

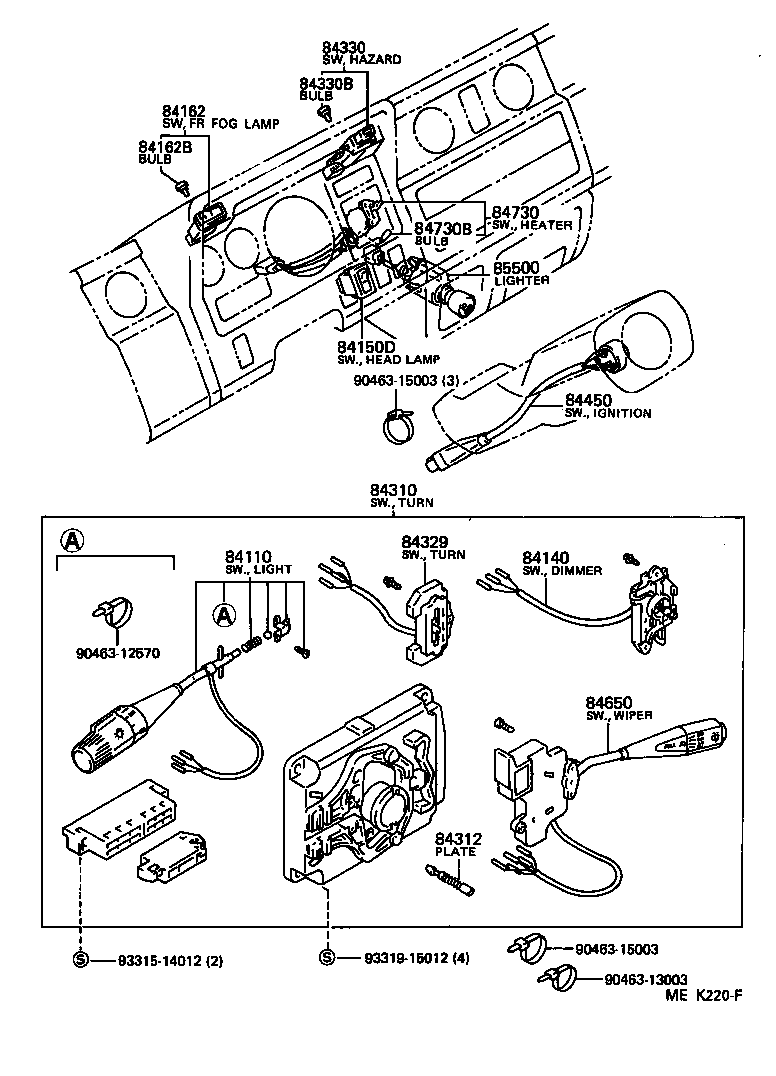

60 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 28300 | Relay Assy, Starter |
| 28521 | Timer, Preheating |
| 28610 | Relay Assy, Intake Heater OR Glow Plug |
| 28611 | Cover, Glow Plug Relay |
| 28621 | Resistor, Glow Plug |
| 28631 | Sensor, Glow Plug Current |
| 74468A | Bracket, Relay Block |
| 81980 | Flasher Assy, Turn Signal |
| 82600F | Fuse, Fuse Block |
| 82611 | Cover, Fuse Block |
| 82616 | Puller, Fuse |
| 82642A | Relay, Running Light |
| 82810 | Relay Assy, Running Light |
| 83320 | Gage Assy, Fuel Sender |
| 83361 | Gasket, Fuel Sender Gage |
| 83390 | Switch Assy, Vacuum Warning |
| 83391 | Switch, Vacuum |
| 83420 | Gage Assy, Water Temperature Sender |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 84110 | Switch Assy, Light Control, NO.1 |
| 84140 | Switch Assy, Headlamp Dimmer |
| 84150D | Switch Assy, Headlamp Cleaner |
| 84162 | Switch, Front Fog Lamp |
| 84162B | Bulb, Fog Lamp Switch |
| 84210 | Switch Assy, Back-up Lamp |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84310 | Switch Assy, Turn Signal |
| 84312 | Plate, Horn Contact |
| 84329 | Switch, Turn Signal |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84330B | Bulb, Hazard Warning Signal Switch |
| 84340 | Switch Assy, Stop Lamp |
| 84450 | Switch Assy, Ignition OR Starter |
| 84461 | Switch, Level Warning |
| 84550 | Switch Assy, Parking Brake |
| 84650 | Switch Assy, Windshield Wiper |
| 84730 | Switch Assy, Heater Blower |
| 84730B | Bulb, Heater Blower Switch |
| 85276A | Relay, Cleaner Control |
| 85500 | Lighter Assy, Cigarette |
| 85909A | Bracket Sub-assy, Relay Block |
| 85909C | Bracket Sub-assy, Relay, NO.1 |
| 85909D | Bracket Sub-assy, Relay, NO.2 |
| 85910C | Relay Assy (FOR HEATER BLOWER MOTOR) |
| 85916 | Relay, Light Control |
| 85916D | Relay, Fog Lamp |
| 85925A | Relay, Red Indicator |
| 85926 | Relay, Headlamp Dimmer |
| 85931B | Relay, Fuel Heater |
| 85958 | Bracket, Main Relay |
| 85959A | Holder, Relay |
| 85969 | Relay, Light Reminder |
| 85999A | Bracket, Relay, NO.2 |
| 86650B | Buzzer Assy, Reverse Warning |
| 86650C | Buzzer Assy, Sedimenter Warning |
| 89429 | Sensor, Oil Temperature |
| 89491 | Sensor, Engine Oil Level |
| 89550 | Computer Assy, Emission Control |
| 89590 | Computer Assy, Condition Indicator |
| 89593 | Sensor, Air Cleaner Warning |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
