Toyota DYNA150
1987-08 → 1995-05 · chassis YY61,LY6# · catalogue 731550 · Europe
Discontinued model
Data version 1995-10

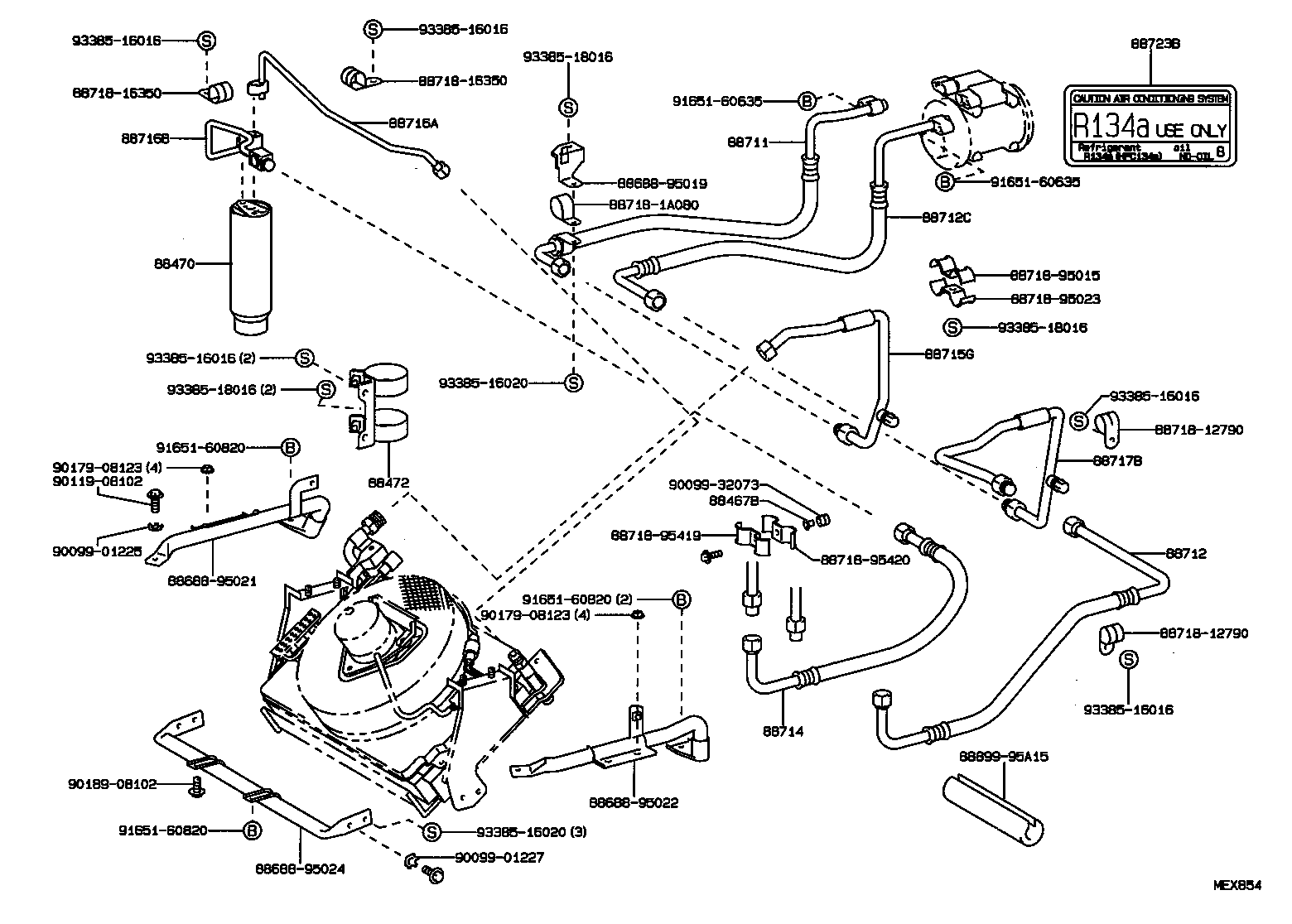

Heating & Air Conditioning - Cooler Piping
20 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 87138S | Resistor, Blower |
| 88453A | Fan, Cooling |

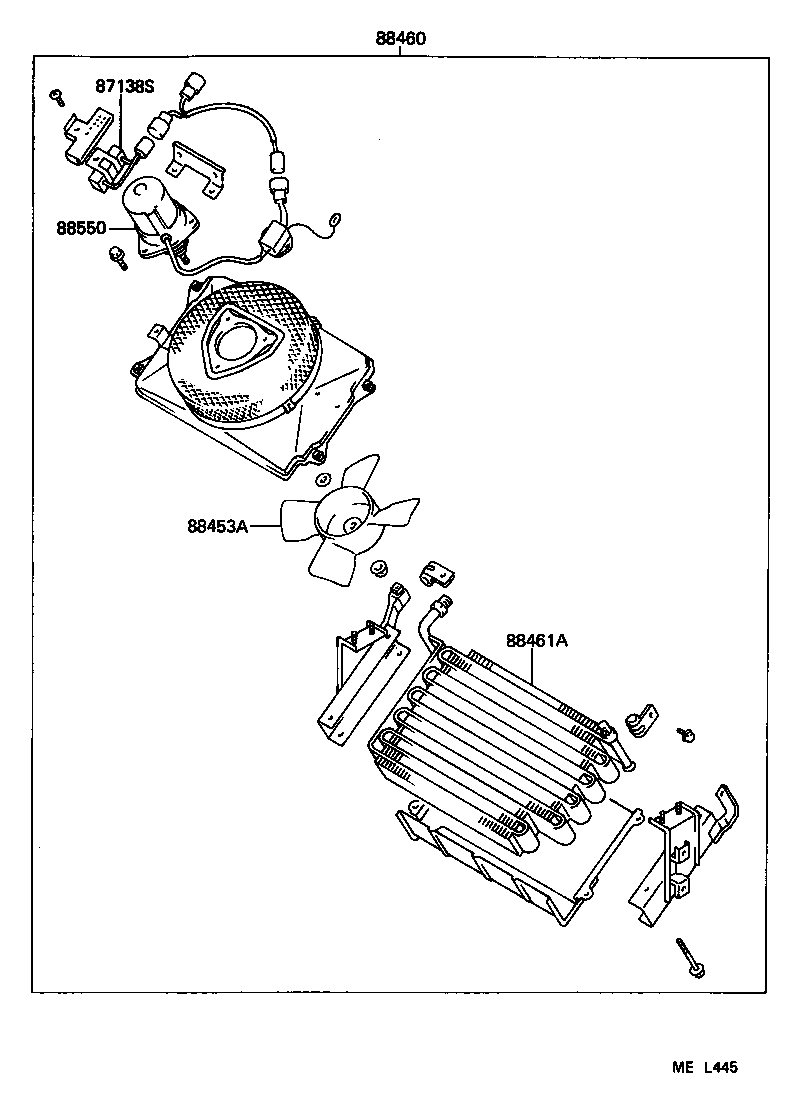

| 88460 | Condenser Assy, Cooler |
| 88461A | Core, Cooler Condenser |
| 88467B | Insulator, Cooler Condenser Mounting |
| 88470 | Receiver & Dryer Assy, Cooler |
| 88470C | Bolt, Fuse |
| 88472 | Bracket, Receiver Tank, NO.1 |
| 88479 | Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT) |
| 88481 | Glass, Sight |
| 88550 | Motor Assy, Blower (FOR CONDENSER) |
| 88711 | Hose, Cooler Refrigerant Discharge, NO.1 |
| 88712 | Hose, Cooler Refrigerant Suction, NO.1 |
| 88712C | Hose, Suction |
| 88714 | Hose, Cooler Refrigerant Liquid, NO.1 |
| 88715G | Tube, Discharge, G |
| 88716A | Pipe, Cooler Refrigerant Liquid, A |
| 88716B | Pipe, Cooler Refrigerant Liquid, B |
| 88717B | Pipe, Cooler Refrigerant Suction, B |
| 88723B | Label, Cooler Service Caution |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
