Toyota Dyna

1984-09 → 1987-08 · chassis BU6#,7#,8# · catalogue 751230 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

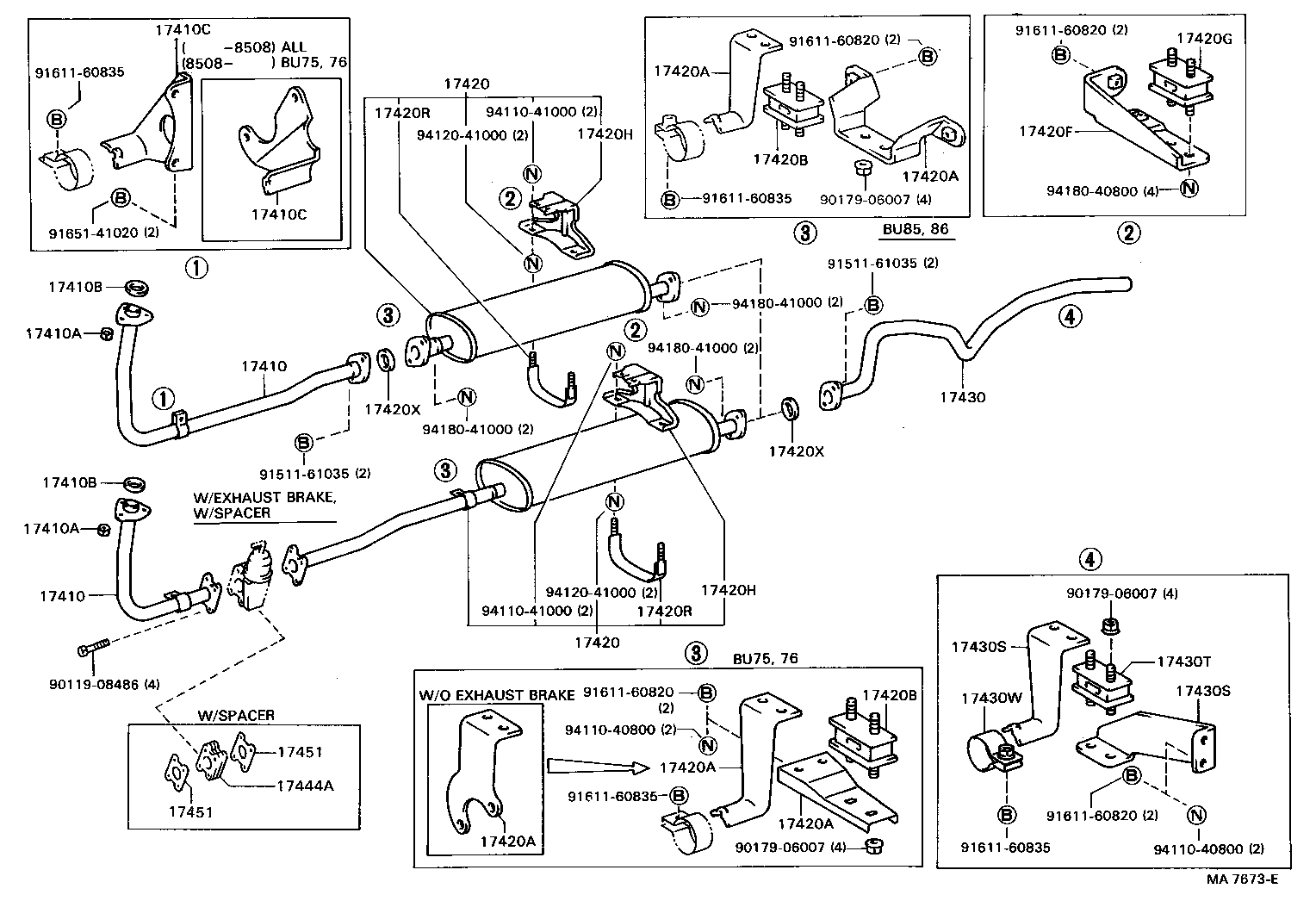

Exploded illustration MA7673E 17410C — BRACKET, EXHAUST PIPE FRONT (FOR FRONT) (9 parts) 9161160820 — not listed in this catalogue 17420G — CUSHION, EXHAUST PIPE CENTER, CENTER (2 parts) 9161160820 — not listed in this catalogue 9161160835 — not listed in this catalogue 17420A — BRACKET, EXHAUST PIPE CENTER, FRONT (5 parts) 17420 — PIPE ASSY, EXHAUST, CENTER (28 parts) 9411041000 — not listed in this catalogue 17420R — CLAMP NO.2, EXHAUST PIPE CENTER, CENTER (2 parts) 17420F — BRACKET, EXHAUST PIPE, CENTER (3 parts) 17420H — CLAMP NO.1, EXHAUST PIPE CENTER, CENTER (2 parts) 9412041000 — not listed in this catalogue 17420B — CUSHION, EXHAUST PIPE CENTER, FRONT (1 parts) 17420A — BRACKET, EXHAUST PIPE CENTER, FRONT (5 parts) 9418040800 — not listed in this catalogue 9161160835 — not listed in this catalogue 9017906007 — not listed in this catalogue 17410C — BRACKET, EXHAUST PIPE FRONT (FOR FRONT) (9 parts) 9165141020 — not listed in this catalogue 9151161035 — not listed in this catalogue 17410B — GASKET, EXHAUST PIPE (1 parts) 9418041000 — not listed in this catalogue 17410A — NUT, EXHAUST PIPE SET STUD BOLT (1 parts) 9418041000 — not listed in this catalogue 17410 — PIPE ASSY, EXHAUST, FRONT (18 parts) 17430 — PIPE ASSY, EXHAUST, TAIL (14 parts) 17420X — GASKET, EXHAUST PIPE, CENTER (5 parts) 9418041000 — not listed in this catalogue 17420X — GASKET, EXHAUST PIPE, CENTER (5 parts) 9151161035 — not listed in this catalogue 17410B — GASKET, EXHAUST PIPE (1 parts) 17410A — NUT, EXHAUST PIPE SET STUD BOLT (1 parts) 17420H — CLAMP NO.1, EXHAUST PIPE CENTER, CENTER (2 parts) 17410 — PIPE ASSY, EXHAUST, FRONT (18 parts) 9412041000 — not listed in this catalogue 9017906007 — not listed in this catalogue 9411041000 — not listed in this catalogue 17420R — CLAMP NO.2, EXHAUST PIPE CENTER, CENTER (2 parts) 17420 — PIPE ASSY, EXHAUST, CENTER (28 parts) 17430S — BRACKET, EXHAUST TAILPIPE (FOR REAR) (9 parts) 17430T — CUSHION, EXHAUST TAILPIPE (FOR REAR) (3 parts) 9011908486 — not listed in this catalogue 9161160820 — not listed in this catalogue 17430S — BRACKET, EXHAUST TAILPIPE (FOR REAR) (9 parts) 17420B — CUSHION, EXHAUST PIPE CENTER, FRONT (1 parts) 17430W — CLAMP NO.2, EXHAUST TAILPIPE (FOR REAR) (2 parts) 9411040800 — not listed in this catalogue 17451 — GASKET, EXHAUST PIPE (3 parts) 17420A — BRACKET, EXHAUST PIPE CENTER, FRONT (5 parts) 17444A — SPACER, EXHAUST FRONT PIPE (3 parts) 9161160835 — not listed in this catalogue 17451 — GASKET, EXHAUST PIPE (3 parts) 9161160820 — not listed in this catalogue 17420A — BRACKET, EXHAUST PIPE CENTER, FRONT (5 parts) 17420A — BRACKET, EXHAUST PIPE CENTER, FRONT (5 parts) 9017906007 — not listed in this catalogue 9161160835 — not listed in this catalogue 9411040800 — not listed in this catalogue
MA7673E · 33 callouts, 25 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
111 parts on this figure
Part number Description Fitment Price
17410 — Pipe Assy, Exhaust, Front
17401-58010 note Pipe Assy, Exhaust, Front
1984-09 → 1985-08 ended
13B BU85 EUR —
17401-58010 Pipe Assy, Exhaust, Front
1984-09 → 1987-08 ended
B BU75 EUR —
17401-58010 note Pipe Assy, Exhaust, Front
1984-09 → 1987-08 ended
13B BU85 ARL —
17401-58020 Pipe Assy, Exhaust, Front
1984-09 → 1987-08 ended
B,11B BU75,76 GEN —
17401-58040 note Pipe Assy, Exhaust, Front
1984-09 → 1985-08 ended
B,11B,13B BU75,76,85 GEN —
17401-58040 note Pipe Assy, Exhaust, Front
1985-08 → 1987-08 ended
B,11B BU75,76 GEN —
17401-58040 Pipe Assy, Exhaust, Front
1985-08 → 1987-08 ended
11B,13B BU85,86 GEN —
17401-58040 Pipe Assy, Exhaust, Front
1985-08 → 1987-08 ended
13B BU85 EUR —
17401-58080 Pipe Assy, Exhaust, Front
1984-09 → 1985-08 ended
13B BU85 EUR —
17401-58090 Pipe Assy, Exhaust, Front
1984-09 → 1985-08 ended
13B BU85 GEN —
17410-58050 note Pipe Assy, Exhaust, Front
1986-02 → 1987-08 ended
13B BU62 ST —
17410-58050 note Pipe Assy, Exhaust, Front
1984-09 → 1987-08 ended
B,11B,13B BU60,61,62,63,80,81,82 WT (GEN,GHD,SA) —
17410-58060 note Pipe Assy, Exhaust, Front
1984-09 → 1987-08 ended
B,11B,13B BU6# ARL —
17410-58070 Pipe Assy, Exhaust, Front
1984-09 → 1987-08 ended
B,11B,13B BU60,61,62,70,80,81,82 GEN,GHD,SA —
17410-58070 Pipe Assy, Exhaust, Front
1986-02 → 1987-08 ended
13B BU62 ST —
17410-58080 Pipe Assy, Exhaust, Front
1984-09 → 1987-08 ended
B,11B BU60,61 ARL —
17410-58090 Pipe Assy, Exhaust, Front
1984-09 → 1987-08 ended
B,11B BU63,65 GEN —
17410-58100 Pipe Assy, Exhaust, Front
1984-09 → 1987-08 ended
B BU63 ARL —
17410A — Nut, Exhaust Pipe Set Stud Bolt
90179-10070 Nut, Exhaust Pipe Set Stud Bolt
1984-09 → 1987-08 ended
B,11B,13B BU6#,7#,8# —
17410B — Gasket, Exhaust Pipe
90917-06012 Gasket, Exhaust Pipe
1984-09 → 1987-08 ended
B,11B,13B BU6#,7#,8# —
17410C — Bracket, Exhaust Pipe Front (FOR FRONT)
17571-58010 Bracket, Exhaust Pipe Front (FOR FRONT)
1984-09 → 1985-08 ended
B,11B,13B BU6#,70,80,81,82 —
17571-58010 Bracket, Exhaust Pipe Front (FOR FRONT)
1985-08 → 1987-08 ended
11B BU65 IV3 —
17571-58020 Bracket, Exhaust Pipe Front (FOR FRONT)
1985-10 → 1987-08 ended
13B BU62 ARL —
17571-58030 Bracket, Exhaust Pipe Front (FOR FRONT)
1985-08 → 1987-08 ended
11B,13B BU85,86 EUR,GEN —
17571-58050 note Bracket, Exhaust Pipe Front (FOR FRONT)
1984-09 → 1985-08 ended
13B BU85 EUR,GEN —
17571-58050 Bracket, Exhaust Pipe Front (FOR FRONT)
1984-09 → 1987-08 ended
B,11B BU75,76;13B BU85 ARL —
17571-58100 Bracket, Exhaust Pipe Front (FOR FRONT)
1984-09 → 1985-08 ended
13B BU85 EUR,GEN —
17571-58140 Bracket, Exhaust Pipe Front (FOR FRONT)
1985-08 → 1987-08 ended
11B BU65 CBU —
17571-58140 Bracket, Exhaust Pipe Front (FOR FRONT)
1985-08 → 1987-08 ended
B,11B,13B BU60,61,62,63,70,80,81,82 5F —
17420 — Pipe Assy, Exhaust, Center
17420-56120 note Pipe Assy, Exhaust, Center
1984-09 → 1985-08 ended
13B BU85 EUR —
17420-56130 Pipe Assy, Exhaust, Center
1984-09 → 1985-08 ended
B,11B BU75,76 GEN —
17420-56131 Pipe Assy, Exhaust, Center
1985-08 → 1987-08 ended
B,11B BU75,76 GEN —
17420-56140 note Pipe Assy, Exhaust, Center
1984-09 → 1985-08 ended
B,11B BU75,76 GEN —
17420-56141 note Pipe Assy, Exhaust, Center
1985-08 → 1987-08 ended
B,11B BU75,76 GEN —
17420-56150 Pipe Assy, Exhaust, Center
1984-09 → 1985-08 ended
13B BU85 ARL —
17420-56151 Pipe Assy, Exhaust, Center
1985-08 → 1987-08 ended
13B BU85 ARL —
17420-56170 Pipe Assy, Exhaust, Center
1984-09 → 1985-08 ended
B BU75 EUR —
17420-56171 Pipe Assy, Exhaust, Center
1985-08 → 1987-08 ended
B BU75 EUR —
17420-56230 Pipe Assy, Exhaust, Center
1984-09 → 1985-08 ended
13B BU85 GEN —
17420-56240 note Pipe Assy, Exhaust, Center
1984-09 → 1985-08 ended
13B BU85 GEN —
17420-56260 Pipe Assy, Exhaust, Center
1984-09 → 1985-08 ended
13B BU85 EUR —
17420-56290 Pipe Assy, Exhaust, Center
1985-08 → 1987-08 ended
13B BU85 EUR —
17420-56300 Pipe Assy, Exhaust, Center
1985-08 → 1987-08 ended
11B,13B BU85,86 GEN —
17420-58080 Pipe Assy, Exhaust, Center
1986-02 → 1987-08 ended
13B BU62 ST —
17420-58080 Pipe Assy, Exhaust, Center
1984-09 → 1987-08 ended
B,11B BU63,65 GEN;B,11B BU60,61,70 +2 —
17420-58090 Pipe Assy, Exhaust, Center
1984-09 → 1987-08 ended
B BU60 ST ARL;B,11B +2 —
17420-58110 Pipe Assy, Exhaust, Center
1984-09 → 1987-08 ended
B,11B,13B BU60,61,62 WT GEN —
17420-58120 note Pipe Assy, Exhaust, Center
1984-09 → 1987-08 ended
B,11B,13B BU60,61,62 WT GEN —
17420-58130 Pipe Assy, Exhaust, Center
1984-09 → 1987-08 ended
B,11B BU60,61 WT ARL —
17420-58150 note Pipe Assy, Exhaust, Center
1984-09 → 1987-08 ended
B,11B BU63,65 ARL —
17420-58160 note Pipe Assy, Exhaust, Center
1984-09 → 1987-08 ended
B BU63 GEN —
17420-58170 Pipe Assy, Exhaust, Center
1984-09 → 1987-08 ended
B,11B,13B BU80,81,82 —
17420-58180 note Pipe Assy, Exhaust, Center
1984-09 → 1987-08 ended
B,11B,13B BU80,81,82 —
17420-58210 note Pipe Assy, Exhaust, Center
1984-09 → 1987-08 ended
B BU60 ST ARL —
17420-58220 Pipe Assy, Exhaust, Center
1985-10 → 1987-08 ended
13B BU62 ARL —
17420-58220 note Pipe Assy, Exhaust, Center
1984-09 → 1987-08 ended
B,11B BU60,61 WT ARL —
17420-58250 note Pipe Assy, Exhaust, Center
1986-02 → 1987-08 ended
13B BU62 ST —
17420A — Bracket, Exhaust Pipe Center, Front
17561-47010 note Bracket, Exhaust Pipe Center, Front
1984-09 → 1987-08 ended
11B,13B BU85,86 EUR,GEN —
17561-56010 note Bracket, Exhaust Pipe Center, Front
1984-09 → 1987-08 ended
B,11B BU75,76 —
17561-58010 note Bracket, Exhaust Pipe Center, Front
1984-09 → 1987-08 ended
B,11B BU75,76 GEN —
17572-58030 note Bracket, Exhaust Pipe Center, Front
1984-09 → 1987-08 ended
11B,13B BU85,86 EUR,GEN —
17572-58040 note Bracket, Exhaust Pipe Center, Front
1984-09 → 1987-08 ended
B,11B BU75,76 —
17420B — Cushion, Exhaust Pipe Center, Front
17567-61030 Cushion, Exhaust Pipe Center, Front
1984-09 → 1987-08 ended
B,11B,13B BU75,76,85,86 EUR,GEN —
17420F — Bracket, Exhaust Pipe, Center
17573-58040 Bracket, Exhaust Pipe, Center
1984-09 → 1987-08 ended
B,11B,13B BU60,61,62,80,81,82 WT —
17573-58060 Bracket, Exhaust Pipe, Center
1984-09 → 1987-08 ended
B,11B,13B BU75,76,85,86 EUR,GEN —
17573-58070 Bracket, Exhaust Pipe, Center
1984-09 → 1987-08 ended
13B BU85 ARL —
17420G — Cushion, Exhaust Pipe Center, Center
17563-58010 Cushion, Exhaust Pipe Center, Center
1984-09 → 1987-08 ended
B,11B,13B BU6#,70,80,81,82 —
17567-58010 Cushion, Exhaust Pipe Center, Center
1984-09 → 1987-08 ended
B,11B,13B BU75,76,85,86 —
17420H — Clamp NO.1, Exhaust Pipe Center, Center
17576-56020 Clamp NO.1, Exhaust Pipe Center, Center
1984-09 → 1987-08 ended
B,11B,13B BU6#,70,80,81,82 —
17576-56040 Clamp NO.1, Exhaust Pipe Center, Center
1984-09 → 1987-08 ended
B,11B,13B BU75,76,85,86 —
17420R — Clamp NO.2, Exhaust Pipe Center, Center
17504-56010 Clamp NO.2, Exhaust Pipe Center, Center
1984-09 → 1987-08 ended
B,11B,13B BU6#,70,80,81,82 —
17504-56020 Clamp NO.2, Exhaust Pipe Center, Center
1984-09 → 1987-08 ended
B,11B,13B BU75,76,85,86 —
17420X — Gasket, Exhaust Pipe, Center
90917-06008 Gasket, Exhaust Pipe, Center
1984-09 → 1987-08 ended
B,11B,13B BU6#,70,80,81,82 —
90917-06008 Gasket, Exhaust Pipe, Center
1985-08 → 1987-08 ended
11B,13B BU85,86 —
90917-06008 note Gasket, Exhaust Pipe, Center
1985-08 → 1987-08 ended
B,11B BU75,76 —
90917-06012 Gasket, Exhaust Pipe, Center
1984-09 → 1985-08 ended
B,11B,13B BU75,76,85 —
90917-06012 note Gasket, Exhaust Pipe, Center
1985-08 → 1987-08 ended
B,11B BU75,76 GEN —
17430 — Pipe Assy, Exhaust, Tail
17405-58020 Pipe Assy, Exhaust, Tail
1984-09 → 1985-08 ended
B,11B BU75,76 —
17405-58021 Pipe Assy, Exhaust, Tail
1985-08 → 1987-08 ended
B,11B BU75,76 —
17405-58030 Pipe Assy, Exhaust, Tail
1984-09 → 1985-08 ended
13B BU85 EUR,GEN —
17405-58031 Pipe Assy, Exhaust, Tail
1985-08 → 1987-08 ended
13B BU85 EUR,GEN —
17430-58060 Pipe Assy, Exhaust, Tail
1984-09 → 1987-08 ended
B BU70 —
17430-58070 Pipe Assy, Exhaust, Tail
1984-09 → 1987-08 ended
B,11B,13B BU60,61,62 ST —
17430-58080 Pipe Assy, Exhaust, Tail
1984-09 → 1987-08 ended
B,11B,13B BU60,61,62 T3 WT —
17430-58090 Pipe Assy, Exhaust, Tail
1984-09 → 1987-08 ended
B BU60 TB —
17430-58120 Pipe Assy, Exhaust, Tail
1984-09 → 1987-08 ended
B BU63 —
17430-58130 Pipe Assy, Exhaust, Tail
1984-09 → 1987-08 ended
B,11B,13B BU80,81,82 T3 —
17430-58150 Pipe Assy, Exhaust, Tail
1984-09 → 1987-08 ended
B BU80 T2 —
17430-58160 Pipe Assy, Exhaust, Tail
1984-09 → 1985-08 ended
13B BU85 ARL —
17430-58161 Pipe Assy, Exhaust, Tail
1985-08 → 1987-08 ended
13B BU85 T3 ARL —
17430-58230 Pipe Assy, Exhaust, Tail
1985-08 → 1987-08 ended
13B BU85 TW1 —
17430S — Bracket, Exhaust Tailpipe (FOR REAR)
17561-47010 note Bracket, Exhaust Tailpipe (FOR REAR)
1984-09 → 1987-08 ended
11B,13B BU85,86 EUR,GEN —
17561-56010 note Bracket, Exhaust Tailpipe (FOR REAR)
1984-09 → 1987-08 ended
13B BU85 T3 ARL —
17561-56010 note Bracket, Exhaust Tailpipe (FOR REAR)
1984-09 → 1987-08 ended
B,11B,13B BU6#,7#,80,81,82 —
17574-58040 note Bracket, Exhaust Tailpipe (FOR REAR)
1984-09 → 1987-08 ended
11B,13B BU85,86 EUR,GEN —
17574-58040 note Bracket, Exhaust Tailpipe (FOR REAR)
1984-09 → 1987-08 ended
B,11B,13B BU60,61,62 WT —
17574-58040 note Bracket, Exhaust Tailpipe (FOR REAR)
1984-09 → 1987-08 ended
B,11B,13B BU75,76,80,81,82 T3 —
17574-58050 note Bracket, Exhaust Tailpipe (FOR REAR)
1984-09 → 1987-08 ended
B,11B,13B BU60,61,62,70 ST —
17574-58060 note Bracket, Exhaust Tailpipe (FOR REAR)
1984-09 → 1987-08 ended
B BU80 T2 —
17574-58090 note Bracket, Exhaust Tailpipe (FOR REAR)
1984-09 → 1987-08 ended
13B BU85 T3 ARL —
17430T — Cushion, Exhaust Tailpipe (FOR REAR)
17567-61030 Cushion, Exhaust Tailpipe (FOR REAR)
1984-09 → 1985-08 ended
B,11B,13B BU6#,7#,8# —
17567-61030 Cushion, Exhaust Tailpipe (FOR REAR)
1985-08 → 1987-08 ended
13B BU85 T3 —
17567-61030 Cushion, Exhaust Tailpipe (FOR REAR)
1985-08 → 1987-08 ended
B,11B,13B BU6#,7#,80,81,82,86 —
17430W — Clamp NO.2, Exhaust Tailpipe (FOR REAR)
90461-32005 Clamp NO.2, Exhaust Tailpipe (FOR REAR)
1984-09 → 1987-08 ended
B,11B,13B BU6#,7#,80,81,82 —
90461-32007 Clamp NO.2, Exhaust Tailpipe (FOR REAR)
1984-09 → 1987-08 ended
11B,13B BU85,86 EUR,GEN —
17444A — Spacer, Exhaust Front Pipe
17444-58010 Spacer, Exhaust Front Pipe
1984-09 → 1987-08 ended
11B,13B BU85,86 EUR,GEN —
17444-58010 Spacer, Exhaust Front Pipe
1984-09 → 1987-08 ended
B BU75 EUR —
17444-58010 Spacer, Exhaust Front Pipe
1985-10 → 1987-08 ended
13B BU62 ARL —
17451 — Gasket, Exhaust Pipe
46759-36030 Gasket, Exhaust Pipe
1984-09 → 1987-08 ended
11B,13B BU85,86 EUR,GEN —
46759-36030 Gasket, Exhaust Pipe
1984-09 → 1987-08 ended
B BU75 EUR —
46759-36030 Gasket, Exhaust Pipe
1985-10 → 1987-08 ended
13B BU62 ARL —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
