Toyota Dyna

1984-09 → 1987-08 · chassis BU6#,7#,8# · catalogue 751230 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Filter

12 part groups · 2 illustrations

Illustrations

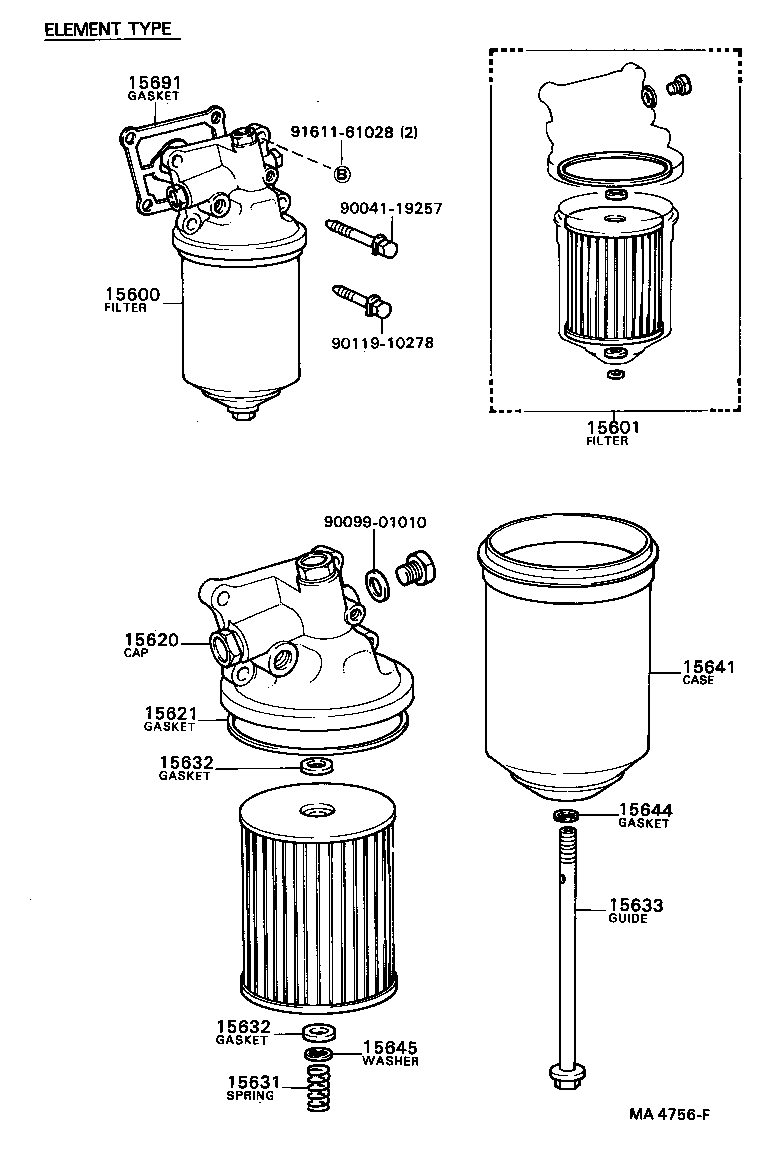

Figure MA7637A MA7637A 1984-09 → — Figure MA4756F MA4756F 1984-09 → —

Part groups

PNCDescription
15600 Filter Assy, Oil
15601 Filter Sub-assy, Oil
15609 Bracket Sub-assy, Oil Filter
15620 Cap Assy, Oil Filter
15621 Gasket, Oil Filter Body
15631 Spring, Oil Filter Element Support
15632 Gasket, Oil Filter Element
15633 Guide, Oil Filter Cartridge
15641 Case, Oil Filter
15644 Gasket, Oil Filter Cartridge Guide
15645 Washer, Oil Filter Cartridge Guide
15691 Gasket, Oil Filter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
