Toyota Dyna

1984-09 → 1987-08 · chassis BU6#,7#,8# · catalogue 751230 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

14 part groups · 3 illustrations

Illustrations

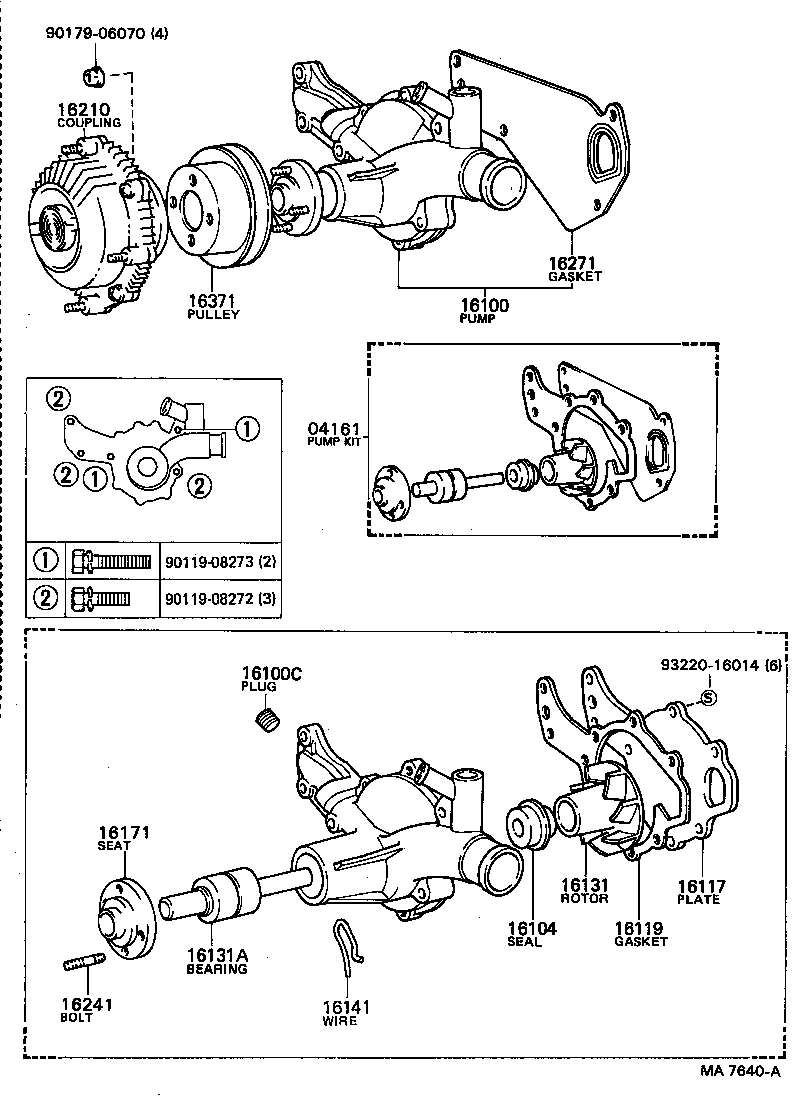

Figure MA7754A MA7754A 1984-09 → — Figure MA7640A MA7640A 1984-09 → — Figure MA7640A MA7640A 1986-02 → —

Part groups

PNCDescription
04161 Pump Kit, Water
16100 Pump Assy, Engine Water
16100C Plug, W/Head Taper Screw
16104 Seal Set, Water Pump
16117 Plate, Water Pump
16119 Gasket, Water Pump Body
16131 Rotor, Water Pump
16131A Bearing, Water Pump
16141 Wire, Water Pump Bearing Retaining
16171 Seat, Water Pump Pulley
16210 Coupling Assy, Fluid
16241 Bolt, Stud(FOR WATER PUMP COUPLING)
16271 Gasket, Water Pump
16371 Pulley, Fan
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
