Toyota Dyna

1984-09 → 1987-08 · chassis BU6#,7#,8# · catalogue 751230 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

48 part groups · 16 illustrations

Illustrations

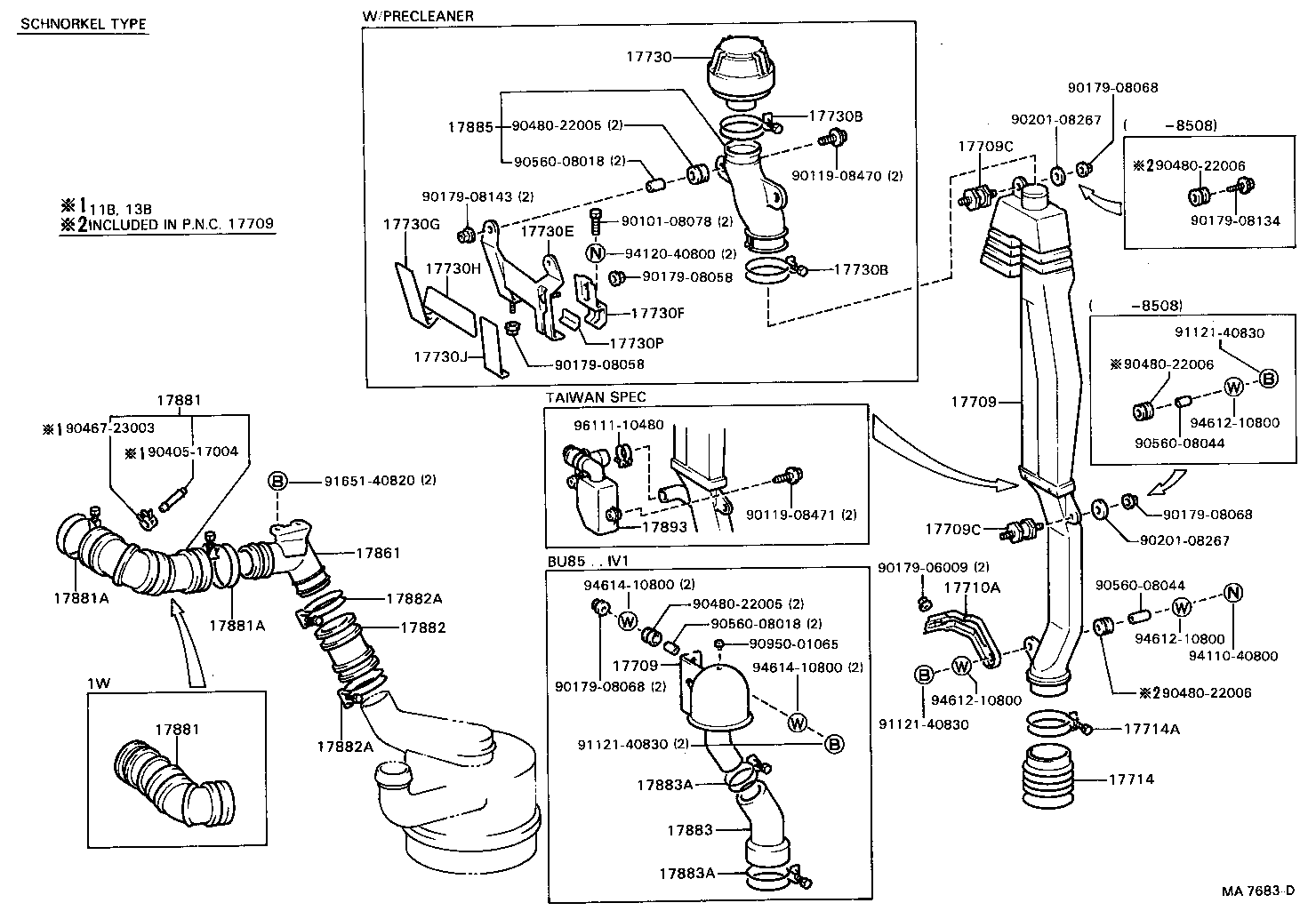

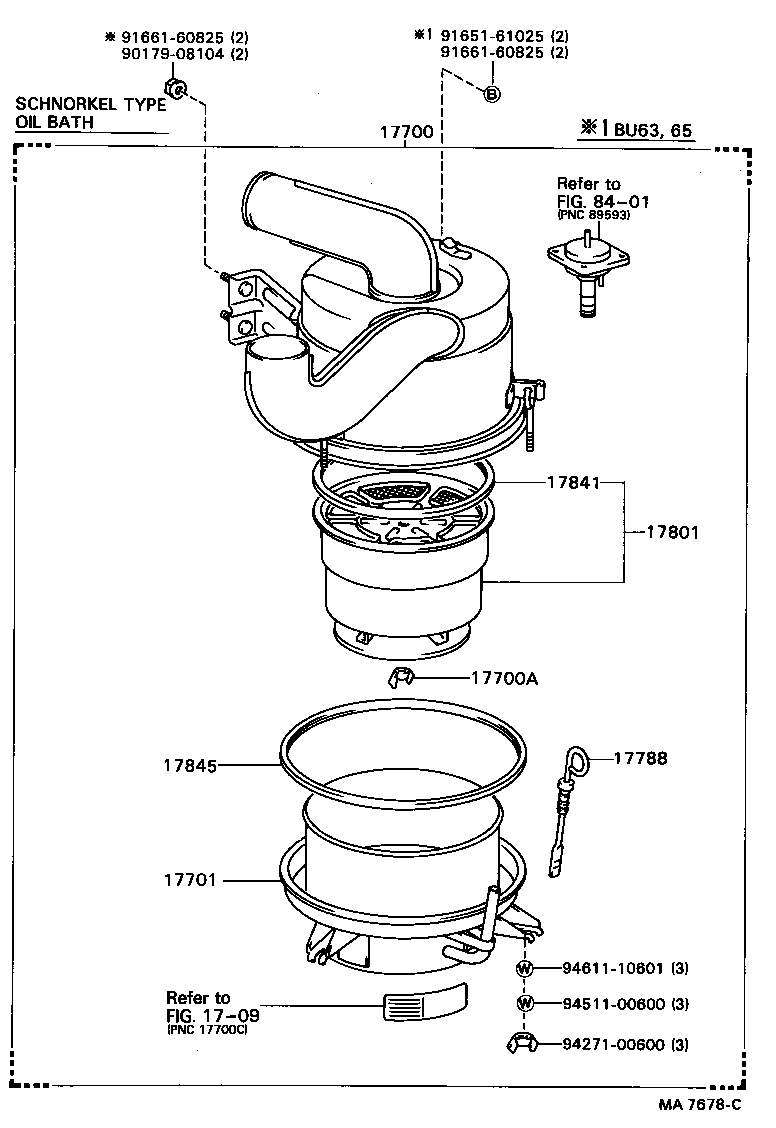

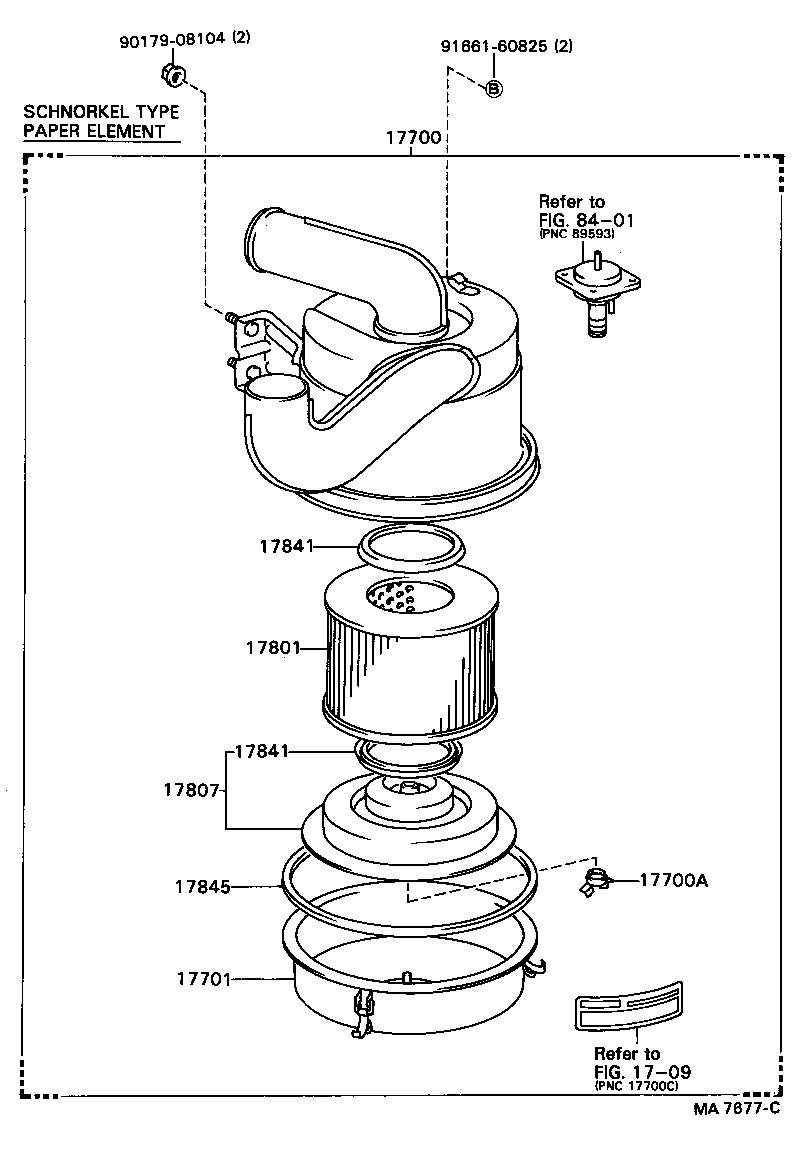

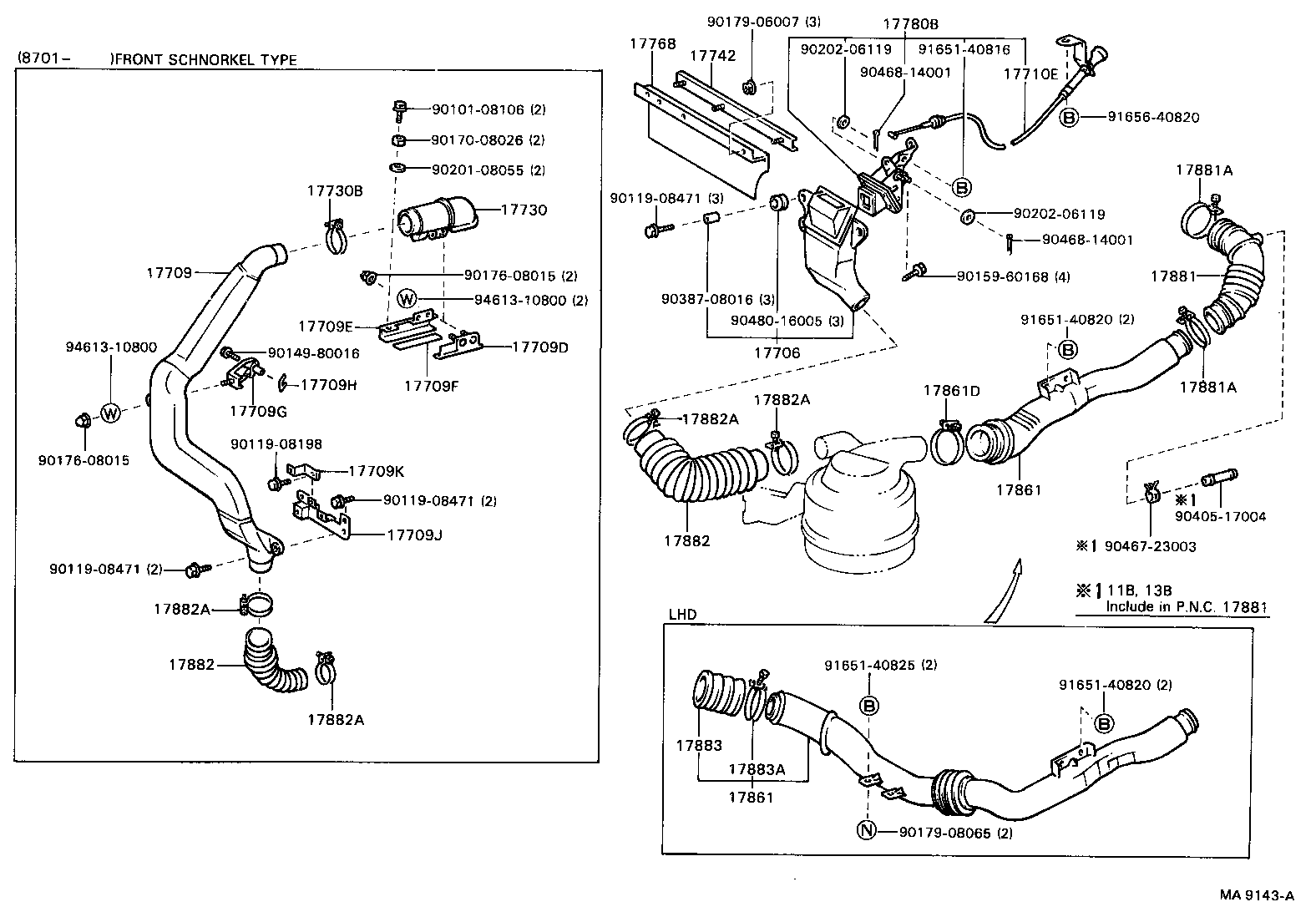

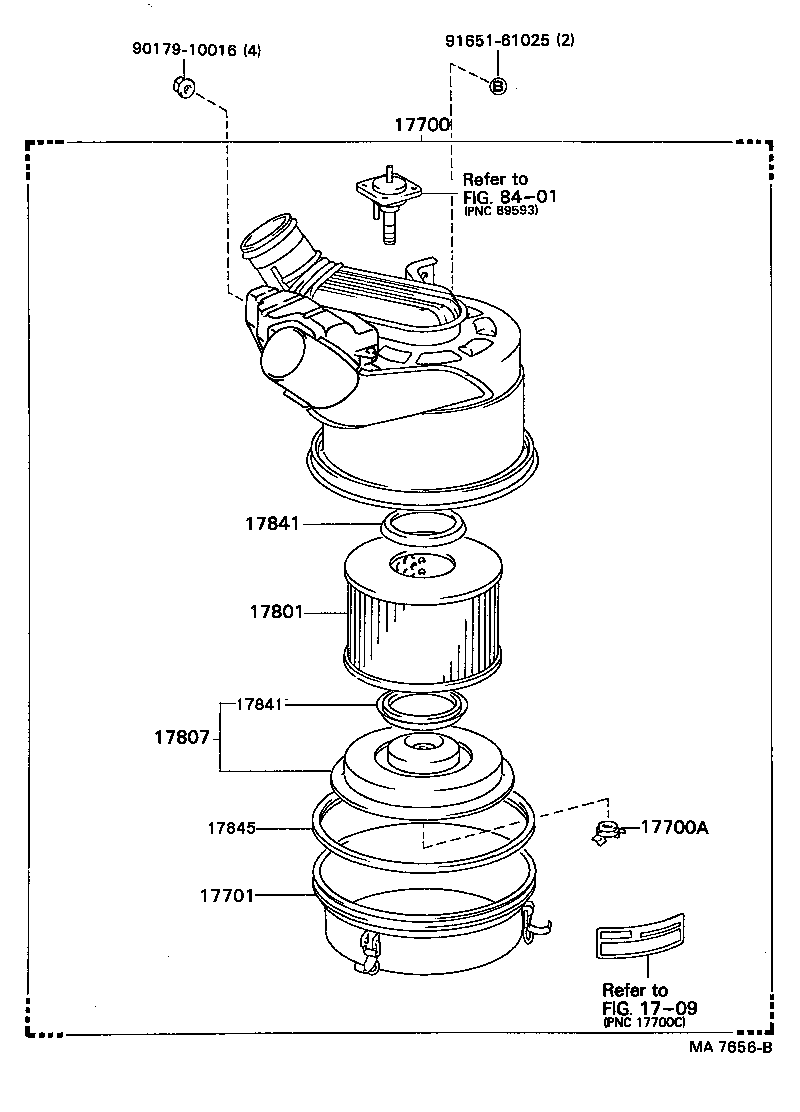

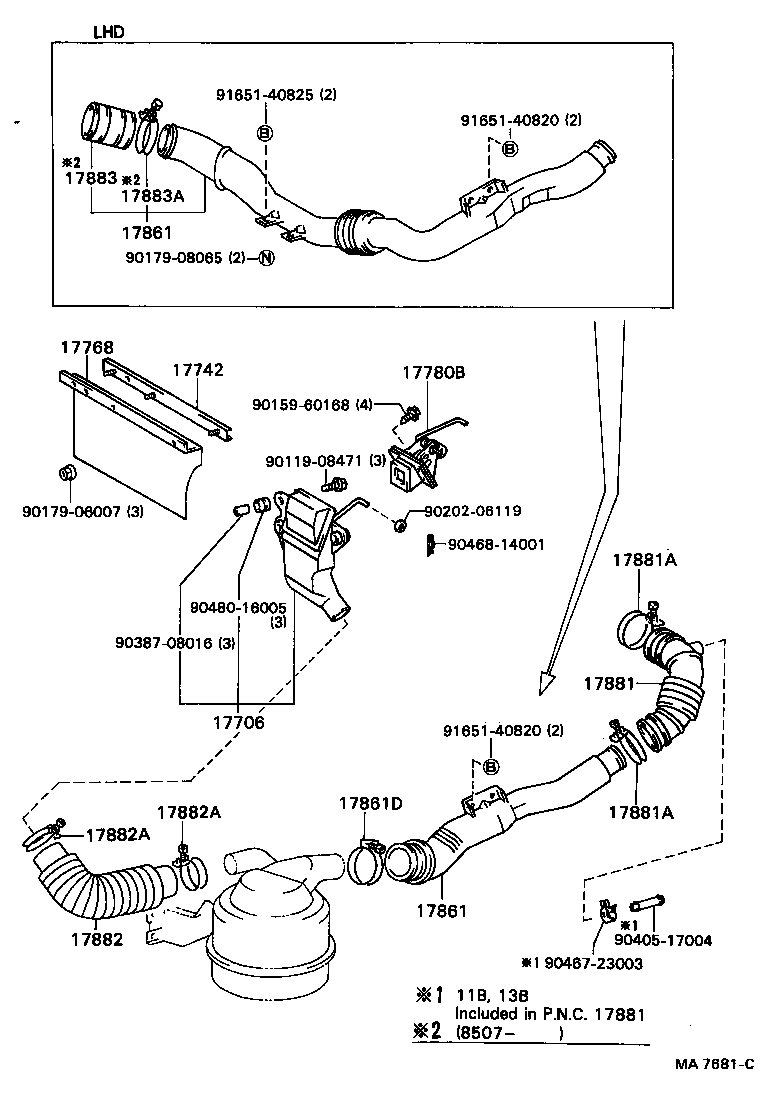

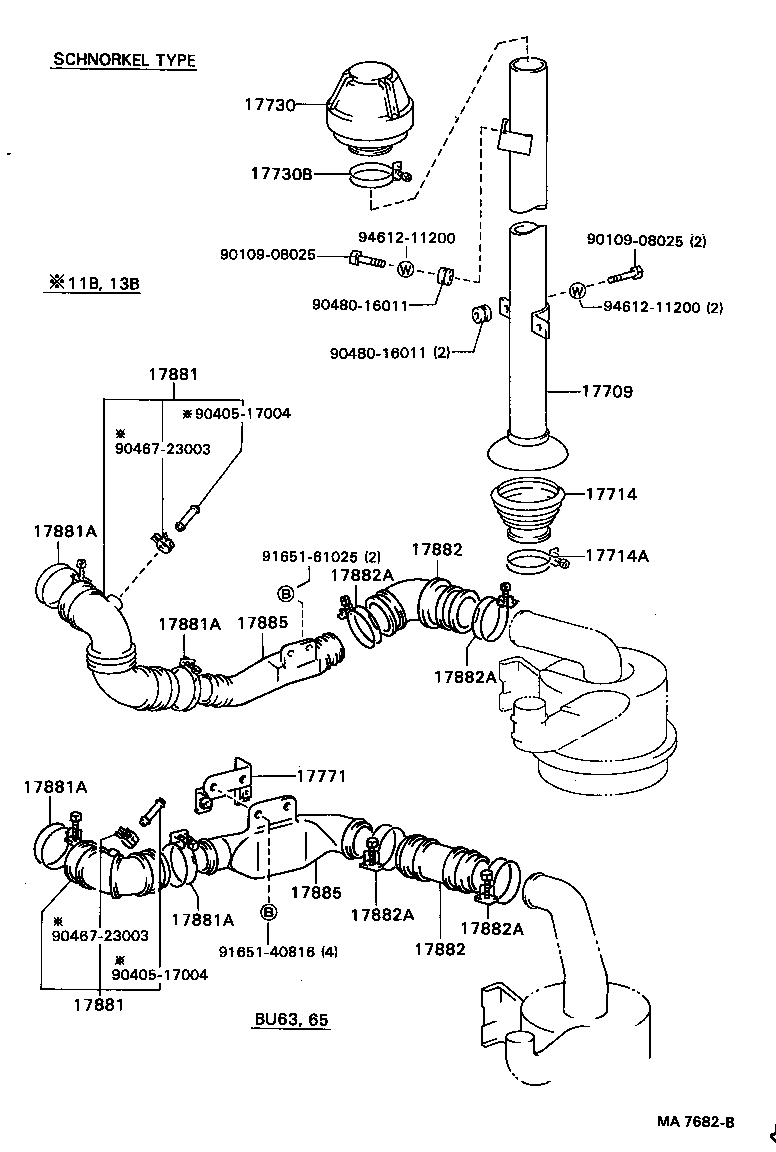

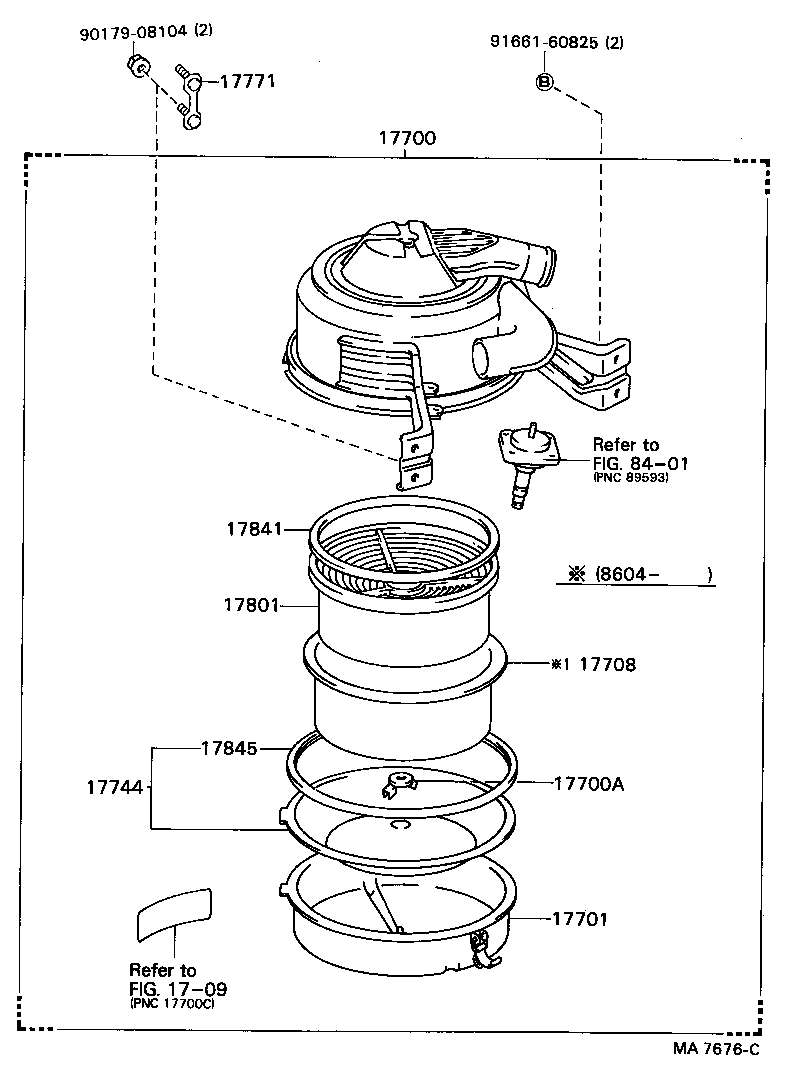

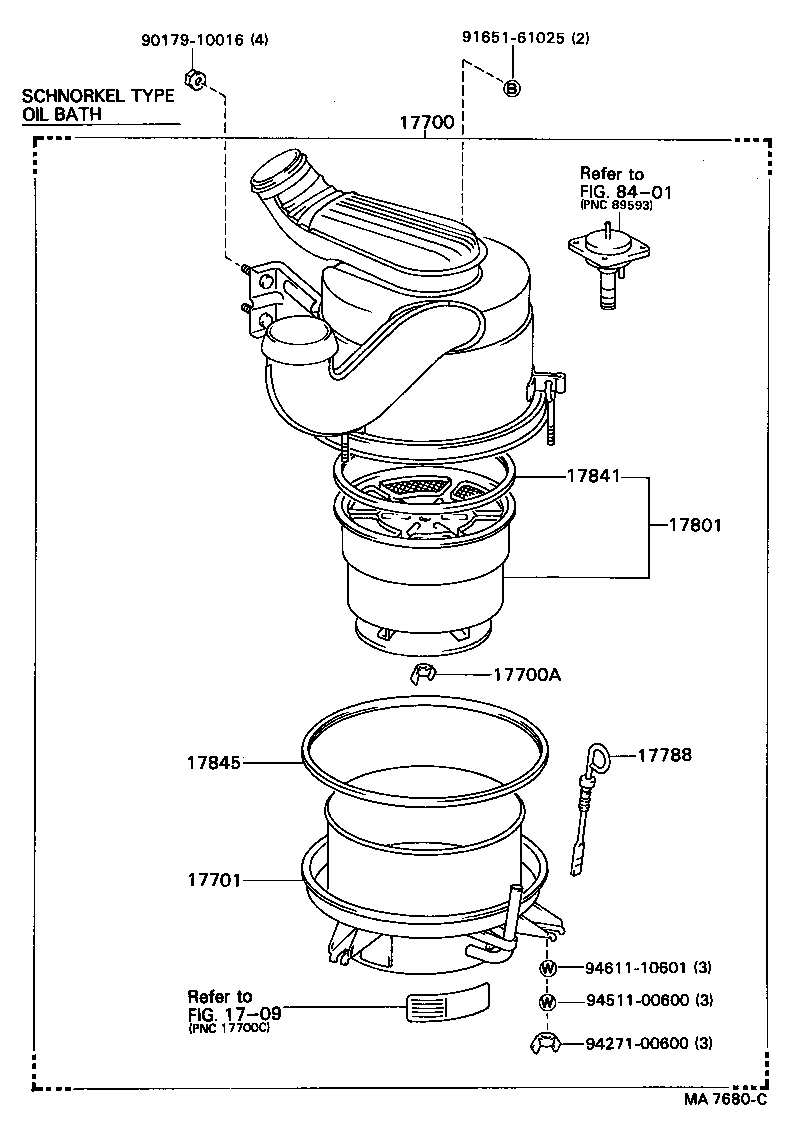

Figure MA7761D MA7761D 1984-09 → — Figure MA7676C MA7676C 1984-09 → — Figure MA7677C MA7677C 1984-09 → — Figure MA7677C MA7677C 1985-08 → — Figure MA7678C MA7678C 1984-09 → — Figure MA7678C MA7678C 1985-08 → — Figure MA7657C MA7657C 1984-09 → — Figure MA7680C MA7680C 1984-09 → — Figure MA7656B MA7656B 1985-08 → — Figure MA7681C MA7681C 1984-09 → 1985-08 Figure MA7681C MA7681C 1985-08 → 1986-08 Figure MA9143A MA9143A 1986-08 → — Figure MA7682B MA7682B 1984-09 → — Figure MA7682B MA7682B 1985-08 → — Figure MA7683D MA7683D 1984-09 → — Figure MA8583 MA8583 1985-08 → —

Part groups

PNCDescription
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17701 Case Sub-assy, Air Cleaner
17706 Inlet Sub-assy, Air Cleaner, NO.2
17708 Baffle Sub-assy, Air Cleaner
17709 Inlet Sub-assy, Air Cleaner
17709C Cushion, Air Cleaner Inlet
17709D Bracket, Air Cleaner Inlet, NO.1
17709E Bracket, Air Cleaner Inlet, NO.2
17709F Pad, Air Cleaner Inlet, NO.2
17709G Bracket Sub-assy, Air Cleaner Inlet Pipe
17709H Pad, Air Cleaner Inlet, NO.1
17709J Bracket, Air Cleaner Inlet, NO.3
17709K Bracket, Air Cleaner Inlet, NO.4
17710A Bracket Sub-assy, Air Cleaner Inlet Duct
17710E Cable Sub-assy
17714 Rubber Seal, Air Intake
17714A Clamp(FOR AIR INTAKE RUBBER SEAL)
17730 Precleaner Assy, Air W/Hose
17730B Clamp, Hose(FOR PRECLEANER HOSE)
17730E Bracket, Precleaner, NO.1
17730F Bracket, Precleaner, NO.2
17730G Pad, Precleaner
17730H Pad, Precleaner, NO.2
17730J Pad, Precleaner, NO.3
17730P Pad, Precleaner, NO.4
17742 Plate, Air Cleaner Inlet Cover
17744 Cup, Precleaner
17768 Cover, Air Cleaner Inlet
17771 Bracket, Air Cleaner Inlet Duct
17780B Bracket Sub-assy, Air Cleaner Shutter
17788 Gage, Air Cleaner Oil Level
17801 Element Sub-assy, Air Cleaner Filter
17807 Plate Sub-assy, Air Cleaner Filter Set
17841 Gasket, Filter Element
17845 Gasket, Air Cleaner Cap
17861 Connector, Intake Air
17861D Clamp(FOR INTAKE AIR CONNECTOR)
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17883 Hose, Air Cleaner, NO.3
17883A Clamp(FOR AIR CLEANER HOSE, NO.3)
17884 Hose, Air Cleaner, NO.4
17884A Clamp(FOR AIR CLEANER HOSE, NO.4)
17885 Pipe, Air Cleaner
17893 Resonator, Intake Air
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
