Toyota Dyna

1984-09 → 1987-08 · chassis BU6#,7#,8# · catalogue 751230 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

3 part groups · 3 illustrations

Illustrations

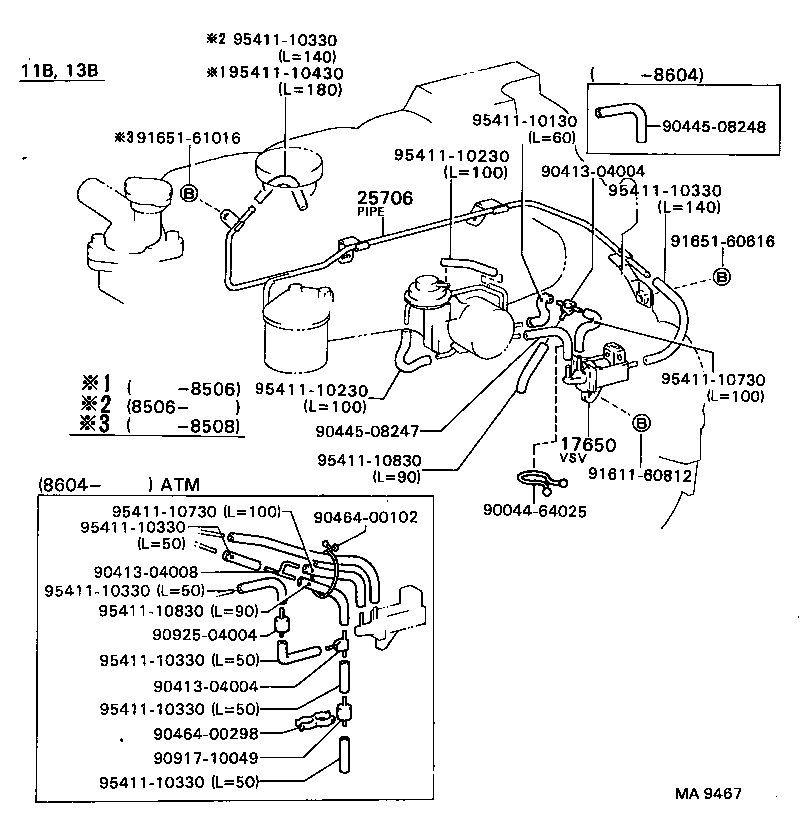

Figure MA9504A MA9504A 1984-09 → — Figure MA7757C MA7757C 1984-09 → — Figure MA9467 MA9467 1984-09 → —

Part groups

PNCDescription
17650 Valve Assy, Vacuum Switching
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
