Toyota Dyna

1984-09 → 1987-08 · chassis BU6#,7#,8# · catalogue 751230 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Cooler & Tube (ATM)

17 part groups · 2 illustrations

Illustrations

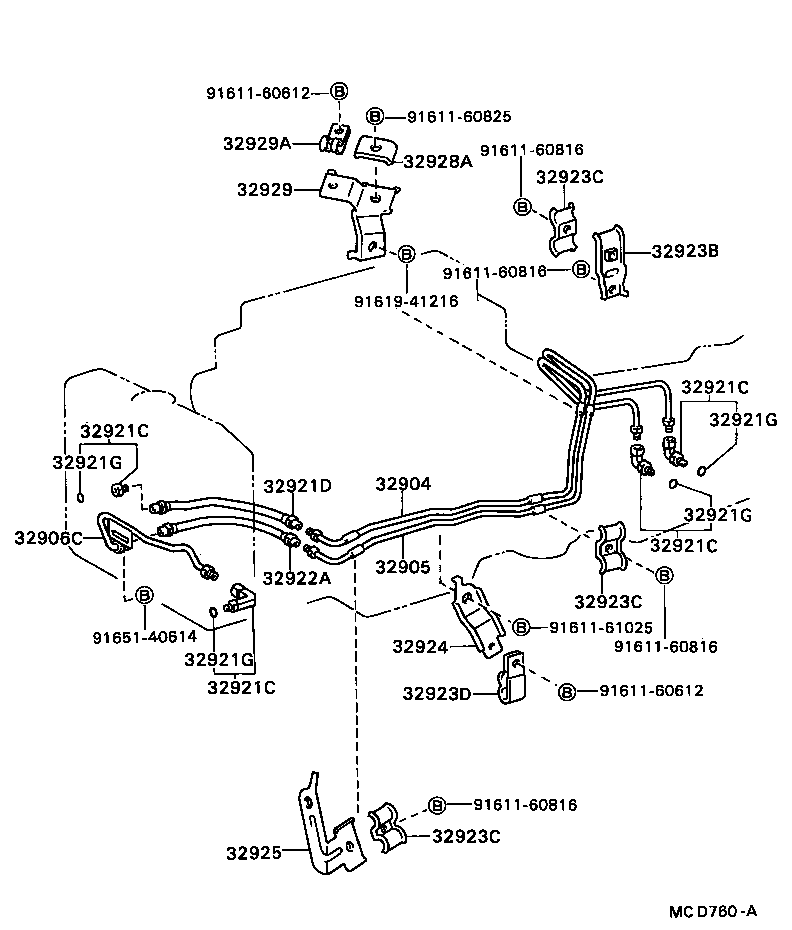

Figure MCC615B MCC615B 1985-10 → 1986-08 Figure MCD760A MCD760A 1986-08 → —

Part groups

PNCDescription
32904 Tube Sub-assy, Oil Cooler Inlet, NO.1
32905 Tube Sub-assy, Oil Cooler Outlet, NO.1
32906C Tube Sub-assy, Oil Cooler Inlet, NO.2
32907 Tube Sub-assy, Oil Cooler Outlet, NO.2
32921C Union(FOR OIL COOLER TUBE)
32921D Hose(FOR OIL COOLER INLET)
32921G Ring, O(FOR OIL COOLER TUBE UNION)
32922A Hose(FOR OIL COOLER OUTLET)
32923B Clamp, Automatic Transmission Oil Cooler Tube, NO.1
32923C Clamp, Automatic Transmission Oil Cooler Tube, NO.4
32923D Clamp, Automatic Transmission Oil Cooler Tube, NO.5
32924 Clamp, Oil Cooler Tube, NO.2
32925 Clamp, Oil Cooler Tube, NO.3
32928 Clamp, Flexible Hose, NO.1
32928A Clamp(FOR FLEXIBLE HOSE CLAMP)
32929 Clamp, Flexible Hose, NO.2
32929A Clamp(FOR FLEXIBLE HOSE CLAMP)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
