Toyota Dyna

1984-09 → 1987-08 · chassis BU6#,7#,8# · catalogue 751230 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Take-off Lever & Link

24 part groups · 8 illustrations

Illustrations

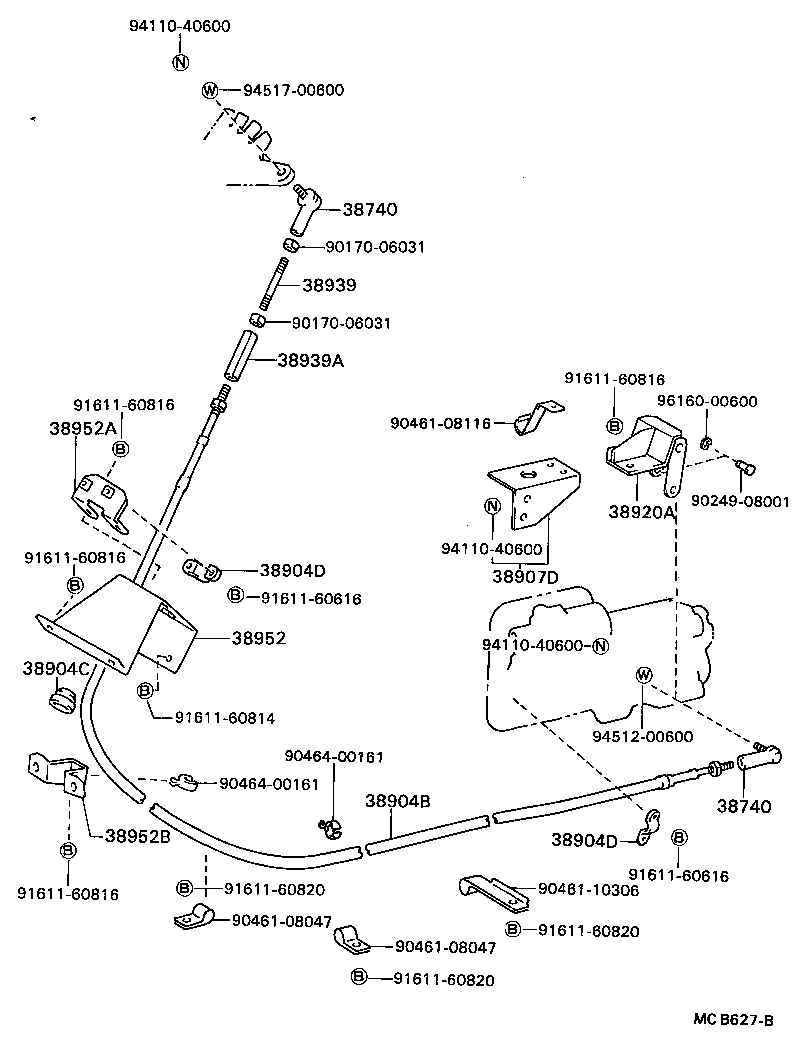

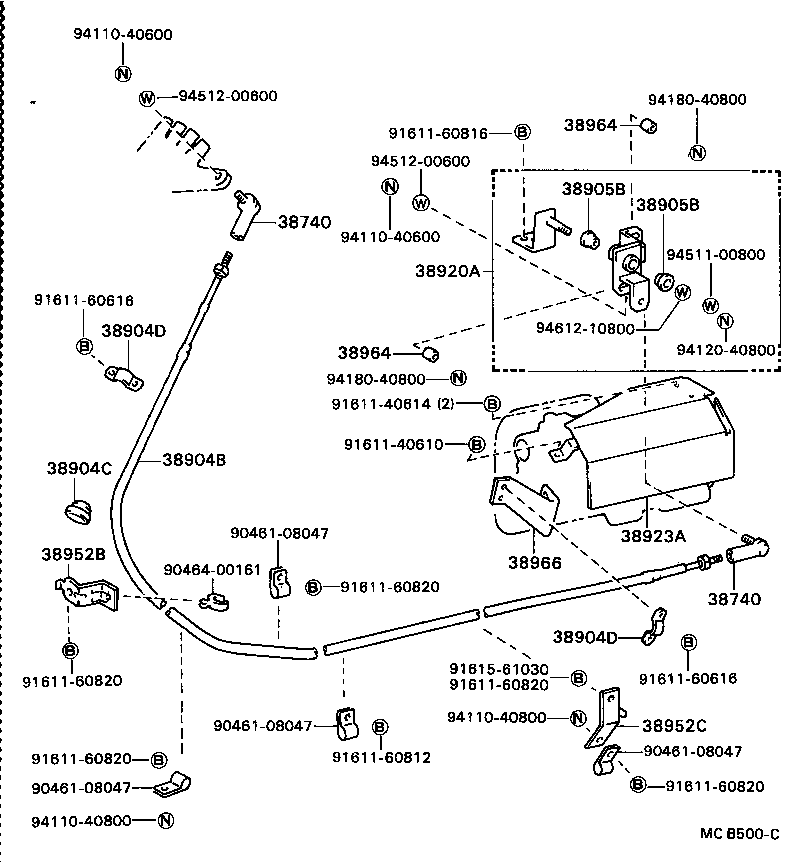

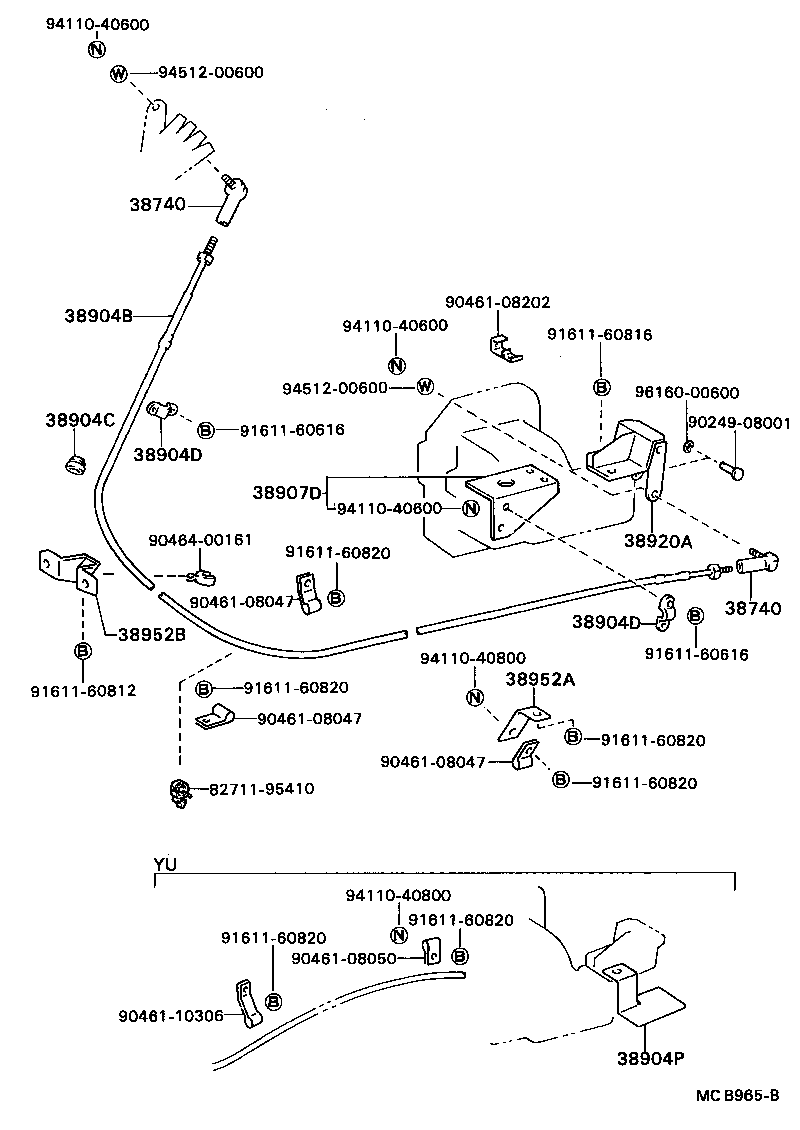

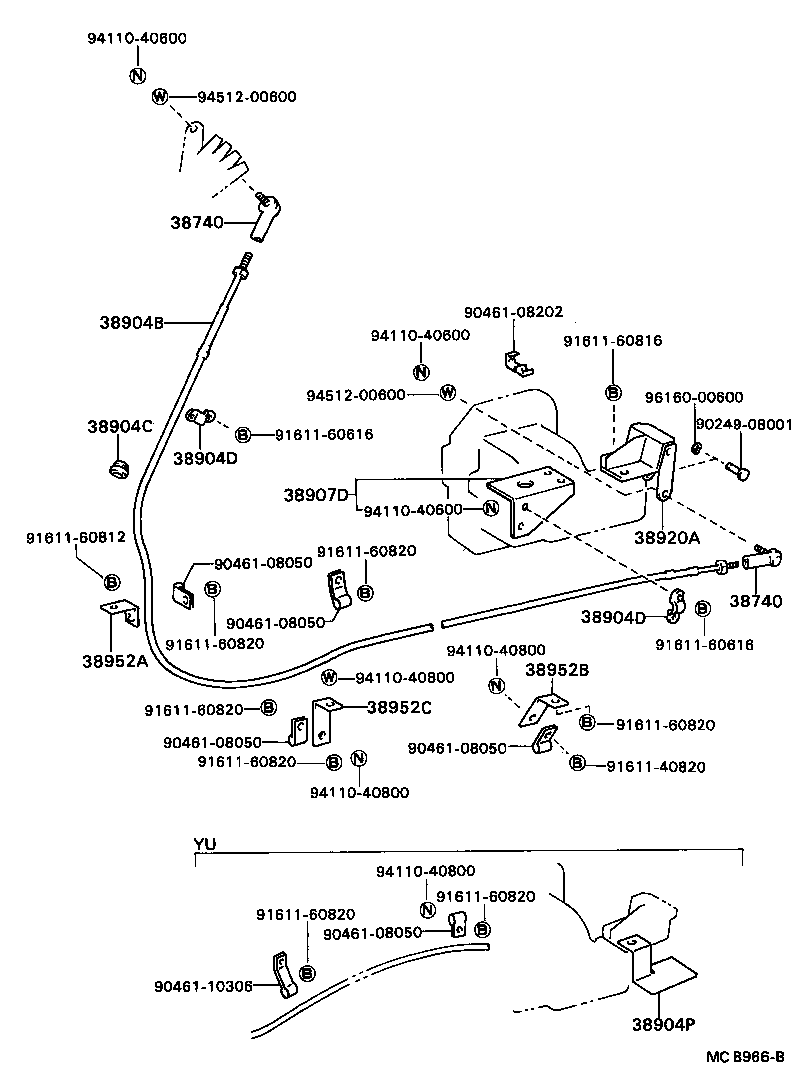

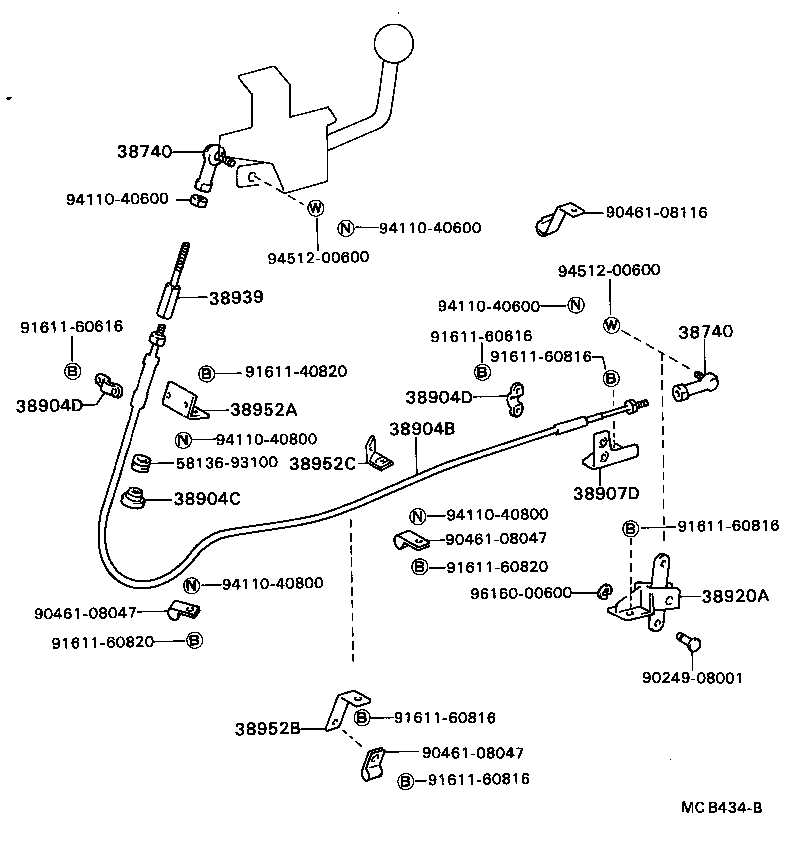

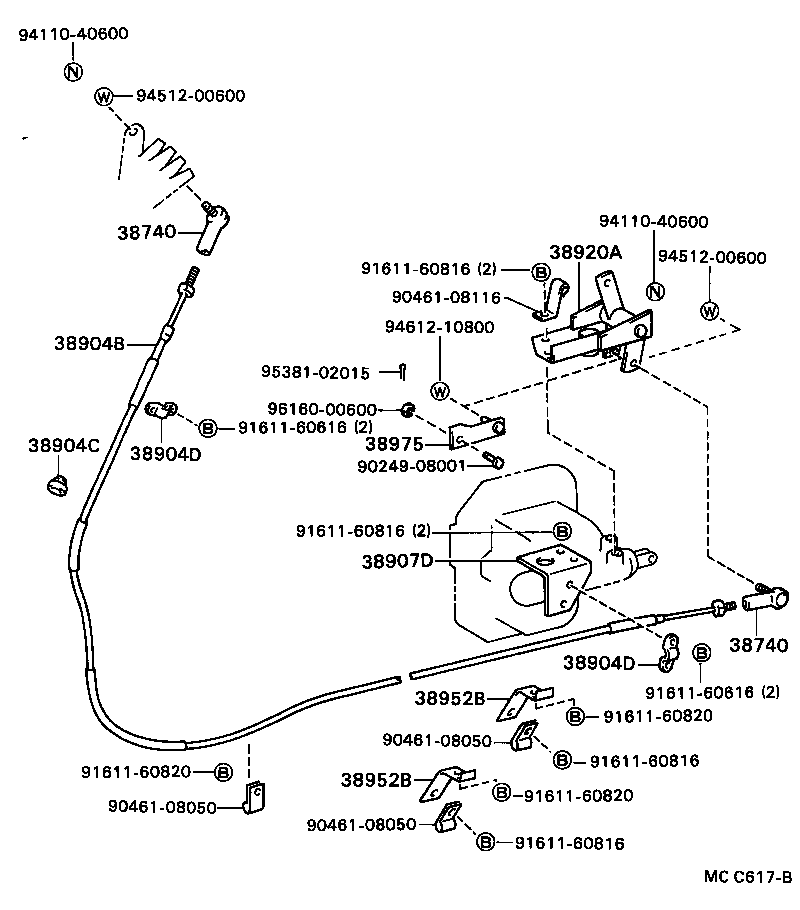

Figure MCB401C MCB401C 1984-09 → — Figure MCB965B MCB965B 1984-09 → — Figure MCB500C MCB500C 1984-09 → — Figure MCB966B MCB966B 1984-09 → — Figure MCC617B MCC617B 1985-08 → — Figure MCB627B MCB627B 1984-09 → — Figure MCB433 MCB433 1984-09 → — Figure MCB434B MCB434B 1984-09 → —

Part groups

PNCDescription
38740 End Assy, Connecting Rod
38902 Bracket Sub-assy, Control Shaft, Upper
38902A Bush, Control Shaft Upper Bracket
38903 Knob Sub-assy, Control
38904B Cable Assy, Push Pull
38904C Grommet, Push Pull Cable
38904D Clamp, Cable Push Pull
38905B Bush (FOR POWER TAKE-OFF CONTROL ARM)
38906 Bracket Sub-assy, Control Shaft, Lower
38907D Stay Sub-assy, Power Take-off Control
38910 Lever Assy, Dump
38910B Shaft, Control Lever
38920A Lever Assy, Power Take-off Control, NO.1
38923A Protector, Power Take-off Control
38939 Rod, Cable Connecting
38939A Turnbuckle(FOR CABLE CONNECTING ROD)
38946A Knob, Valve Lock Lever
38952 Bracket, Control Link
38952A Bracket, Control Cable Clamp, NO.1
38952B Bracket, Control Cable Clamp, NO.2
38952C Bracket, Control Cable Clamp, NO.3
38964 Collar, Control Lever
38966 Bracket, Cable Clamp, NO.6
38975 End, Power Take-off Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
