Toyota Dyna

1984-09 → 1987-08 · chassis BU6#,7#,8# · catalogue 751230 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

29 part groups · 8 illustrations

Illustrations

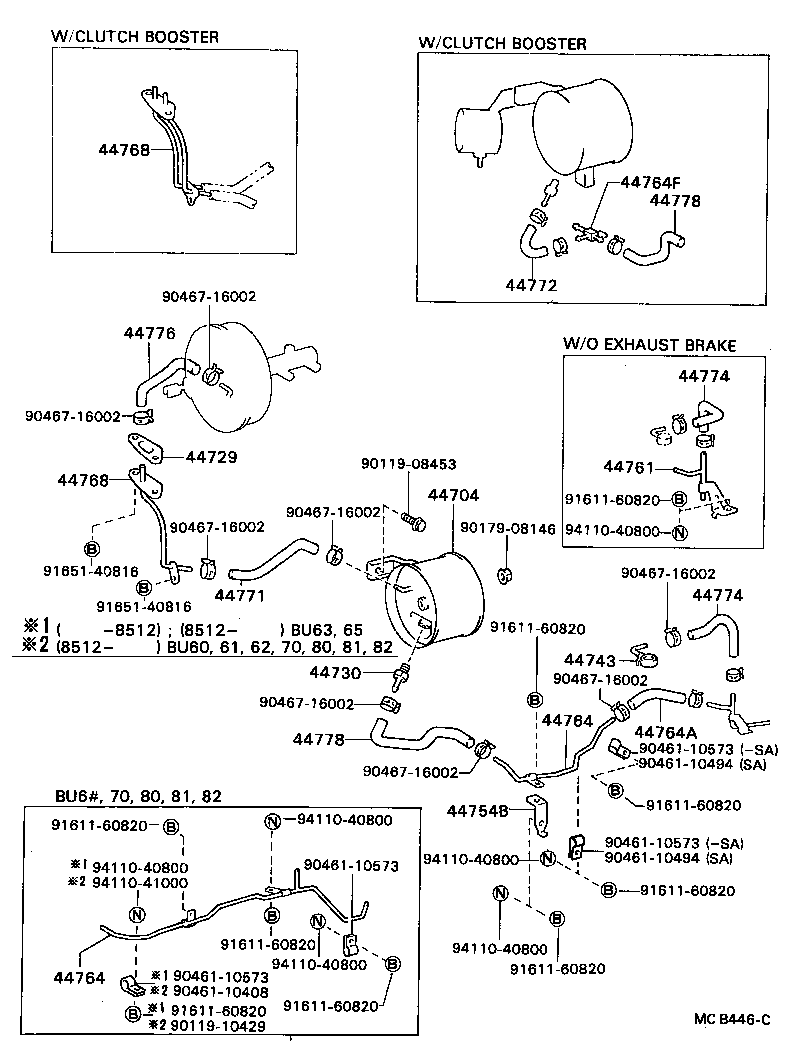

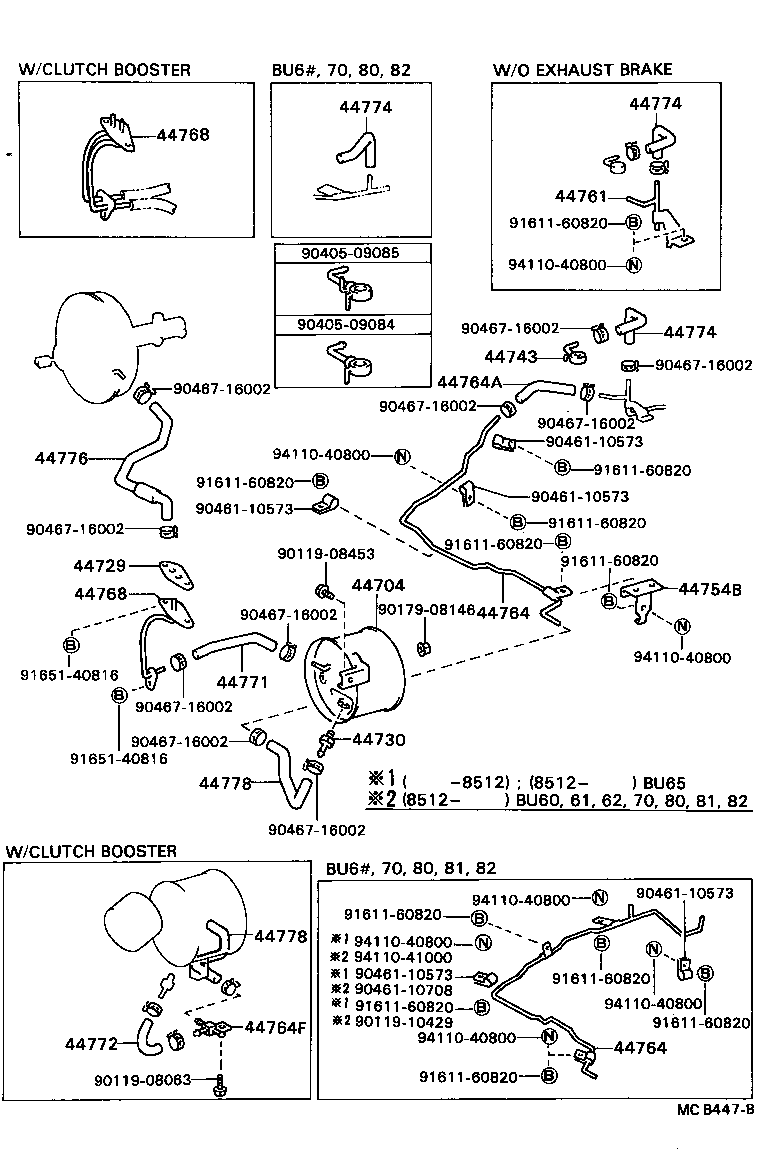

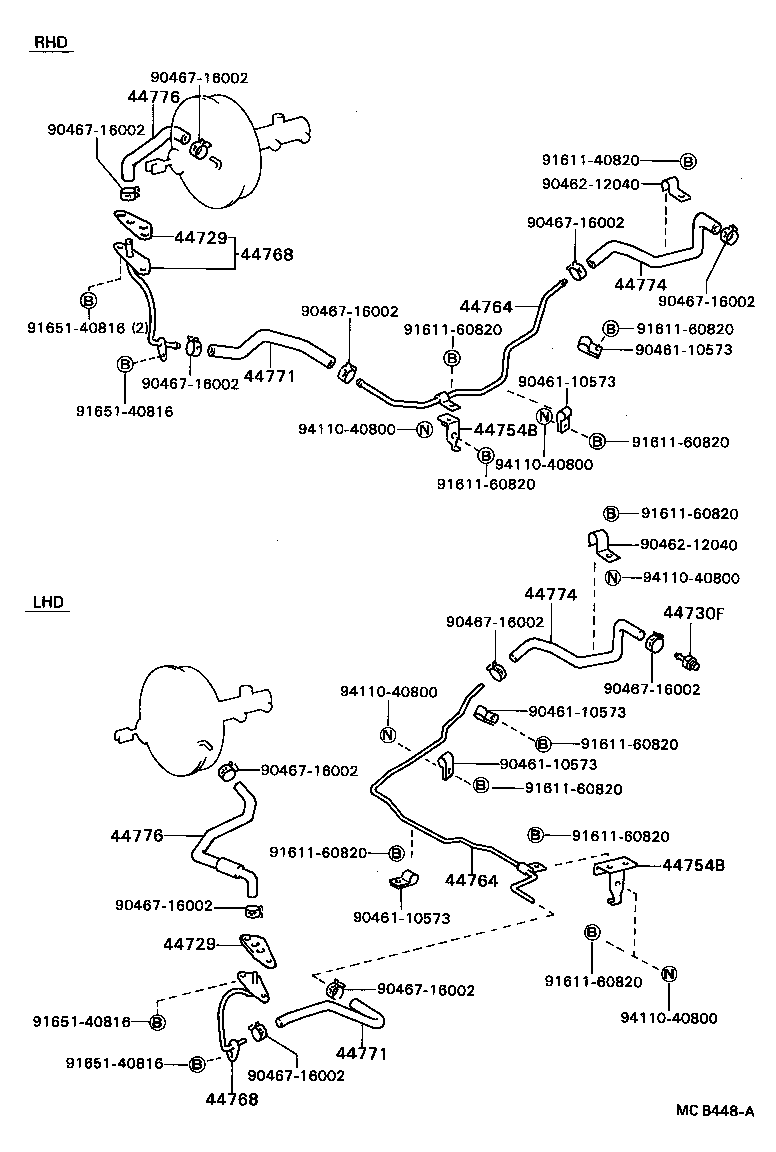

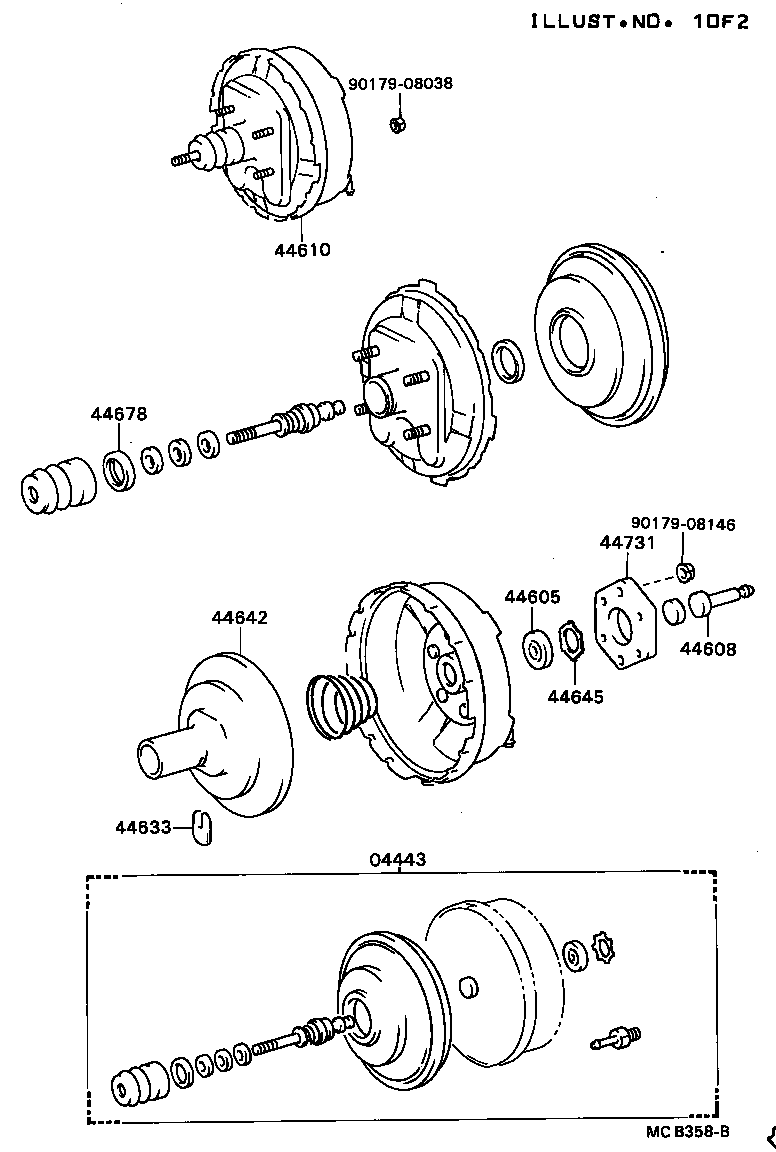

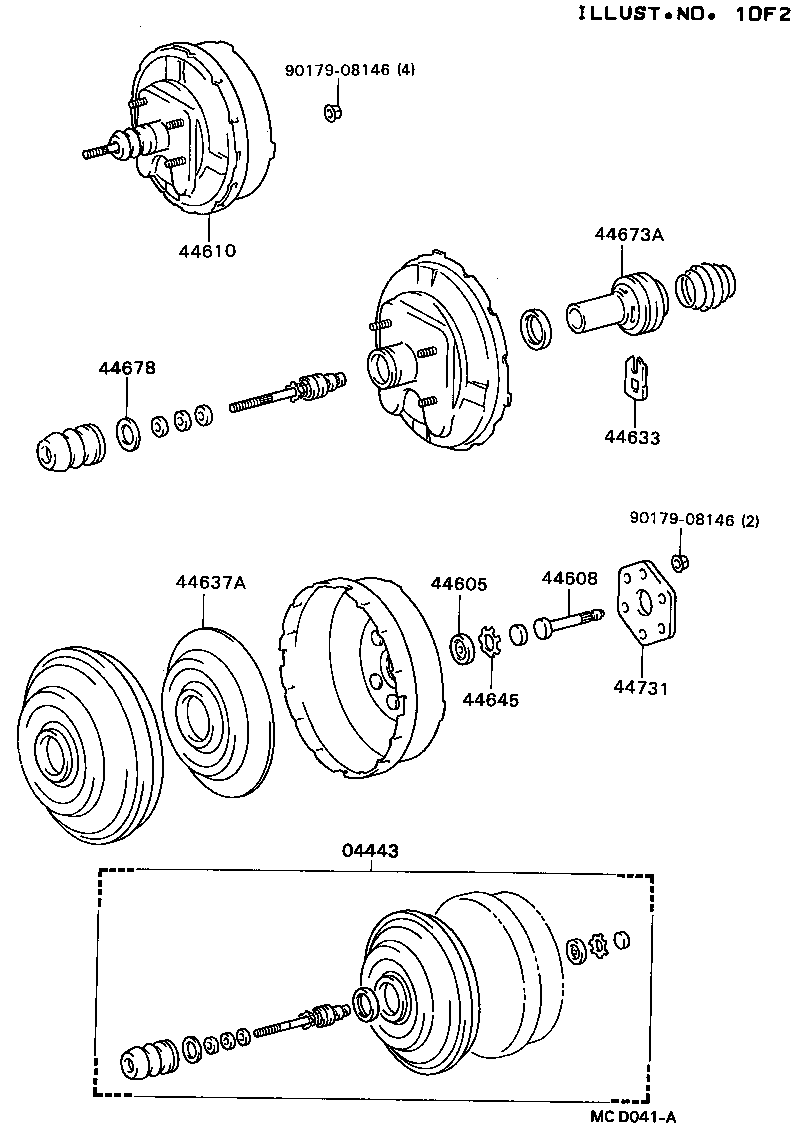

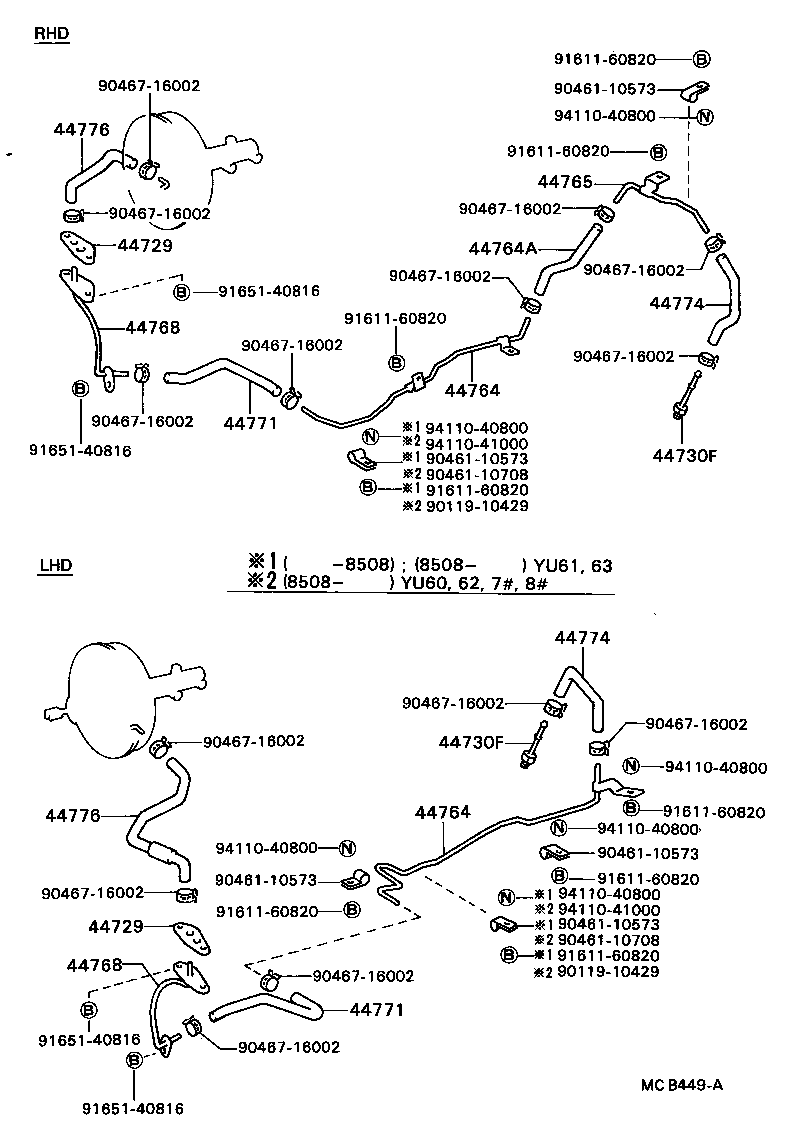

Figure MCB445B MCB445B 1984-09 → — Figure MCD041A MCD041A 1984-09 → — Figure MCD041A MCD041A 1985-08 → — Figure MCB358B MCB358B 1984-09 → 1985-08 Figure MCB446C MCB446C 1984-09 → — Figure MCB447B MCB447B 1984-09 → — Figure MCB448A MCB448A 1984-09 → — Figure MCB449A MCB449A 1984-09 → —

Part groups

PNCDescription
04443 Booster Kit, Brake
44605 Plate & Seal Sub-assy, Booster
44608 Push Rod Sub-assy, Booster
44610 Booster Assy, Brake
44618 Seal, Booster Body
44629 Ring, Circular Internal
44633 Key, Booster Valve Plunger
44635 Retainer, Hydraulic Valve
44637A Plate, Booster Diaphragm
44642 Piston, Brake Booster
44645 Retainer, Booster Push Rod Seal
44673A Body, Booster Valve
44678 Retainer, Booster Air Cleaner
44704 Reservoir Sub-assy, Vacuum
44729 Gasket, Vacuum Tube
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44731 Bracket, Brake Booster, Front
44743 Union(FOR VACUUM PUMP)
44754B Bracket, Vacuum Tube
44761 Tube, Intake Manifold OR Vacuum Pump TO Connector
44764 Tube, Booster Vacuum
44764A Hose, Booster Vacuum
44764F Way(FOR BOOSTER VACUUM TUBE)
44768 Tube, Booster Vacuum
44771 Hose, Vacuum Tube Connector
44772 Hose, Check Valve TO Connector Tube
44774 Hose, Union TO Connector Tube
44776 Hose, Brake Booster
44778 Hose, Connector TO Check Valve
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
