Toyota Dyna

1984-09 → 1987-08 · chassis BU6#,7#,8# · catalogue 751230 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Spring & Shock Absorber

51 part groups · 9 illustrations

Illustrations

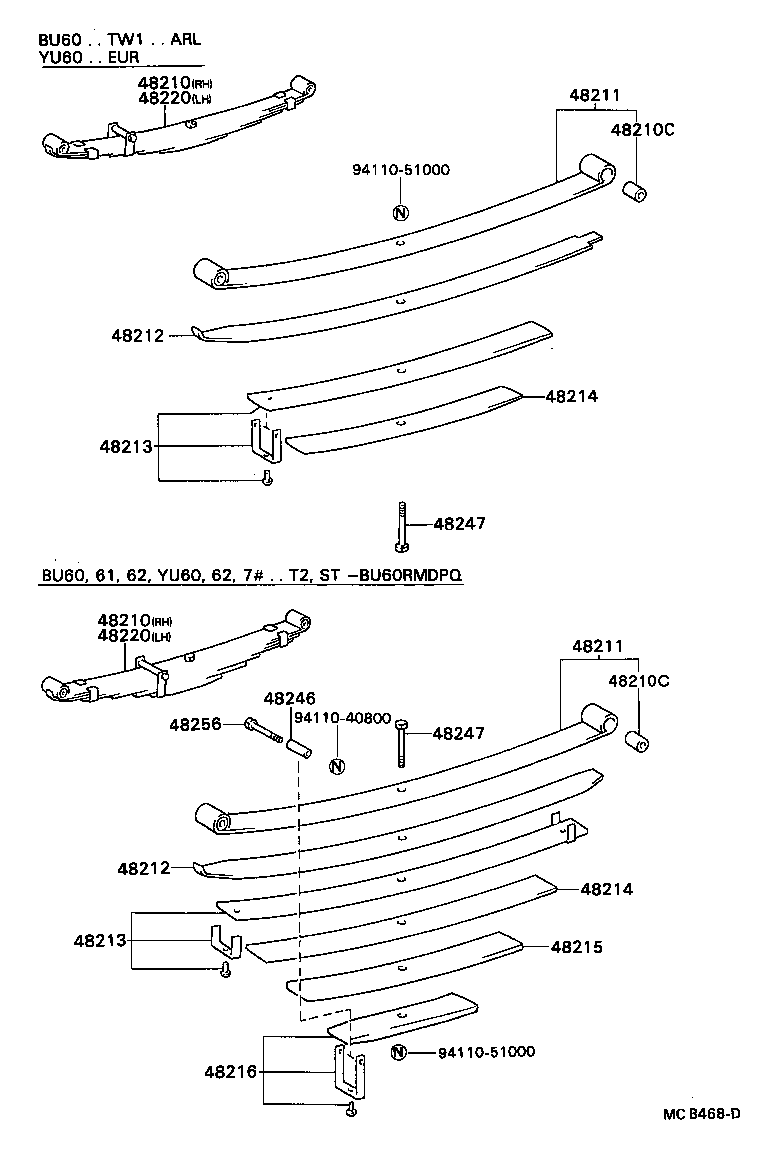

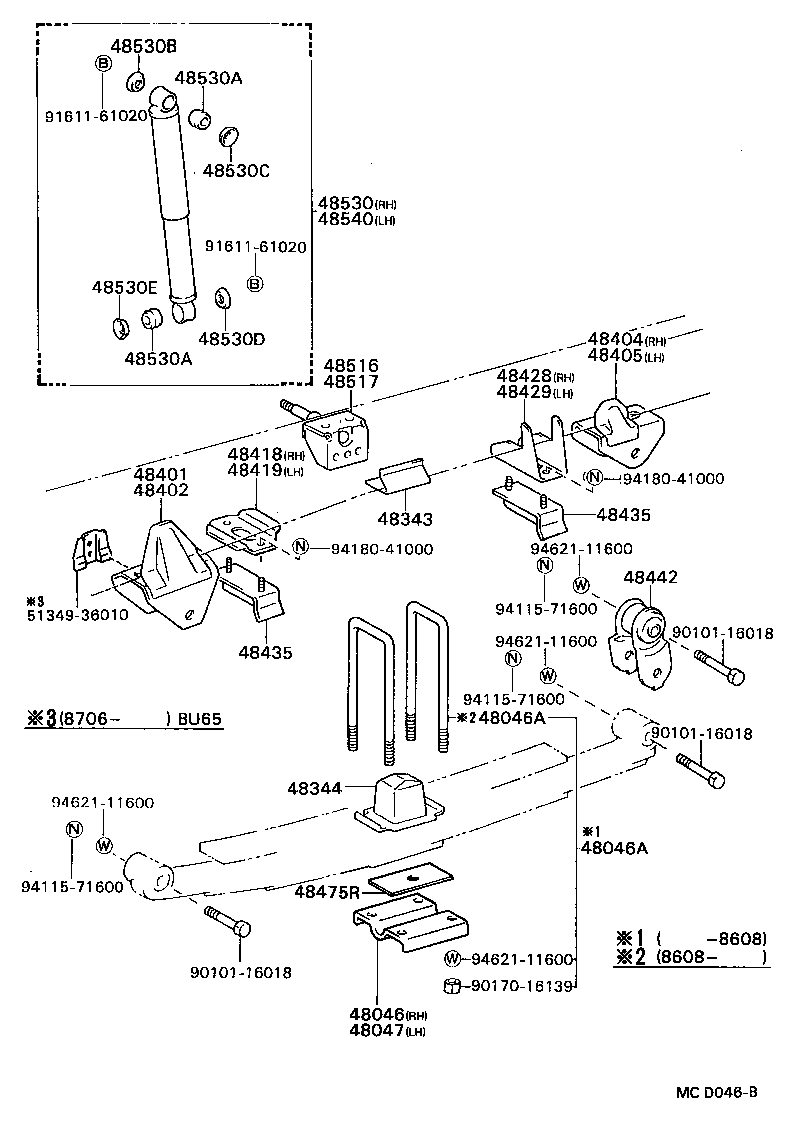

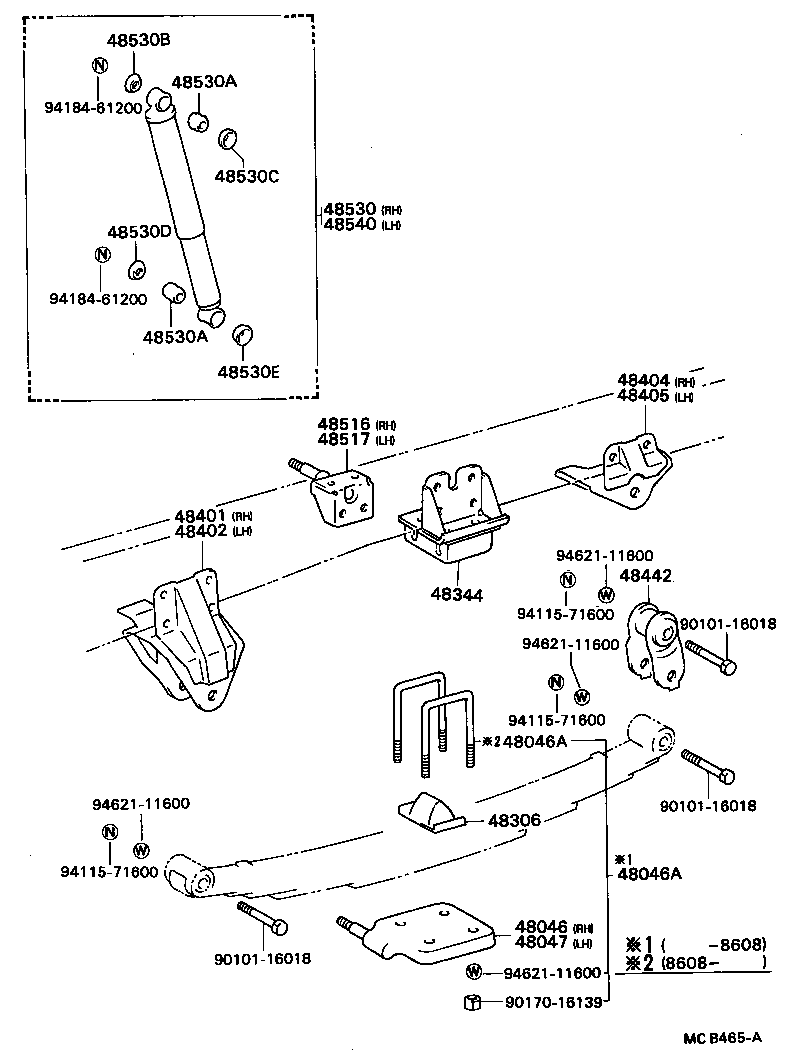

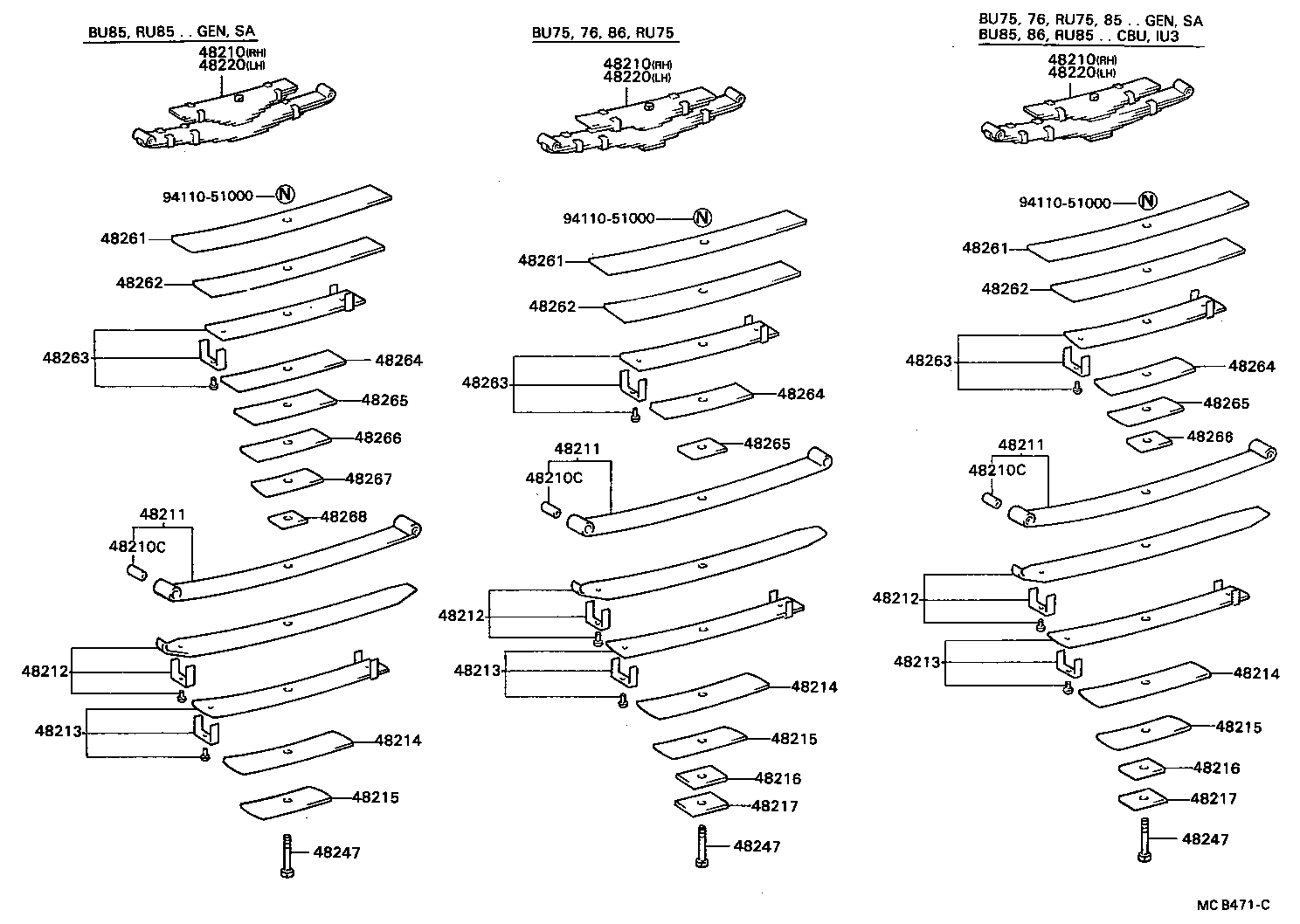

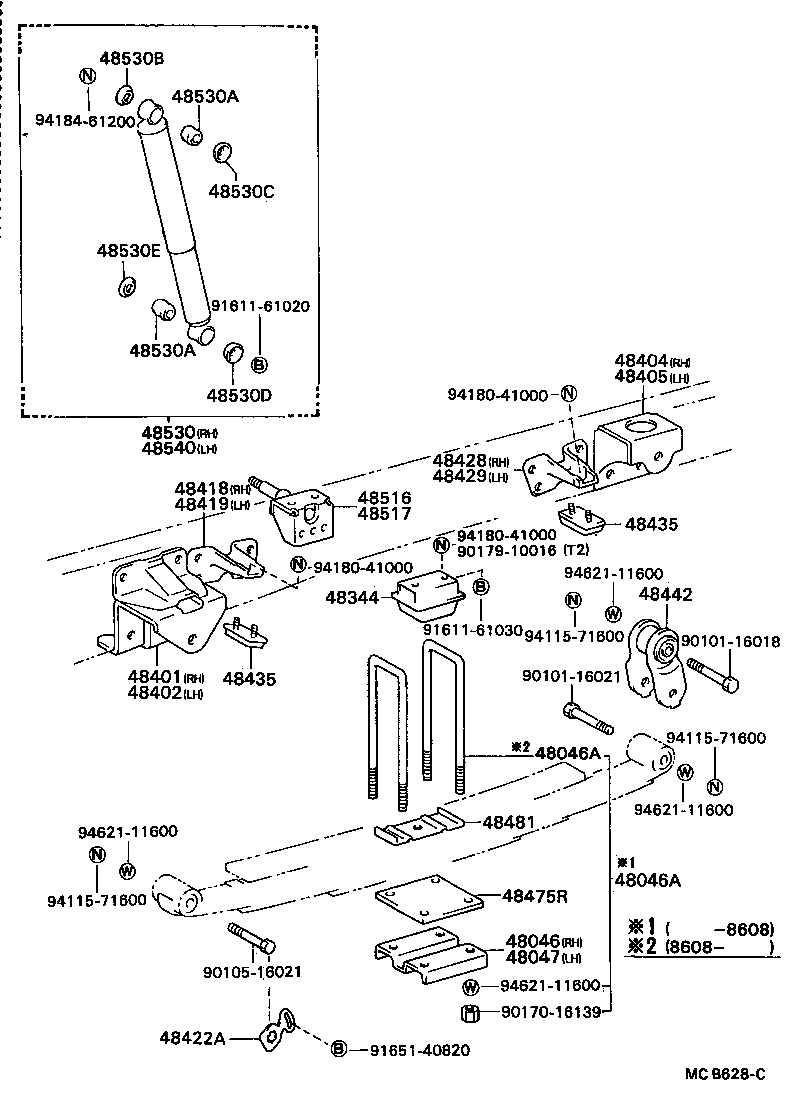

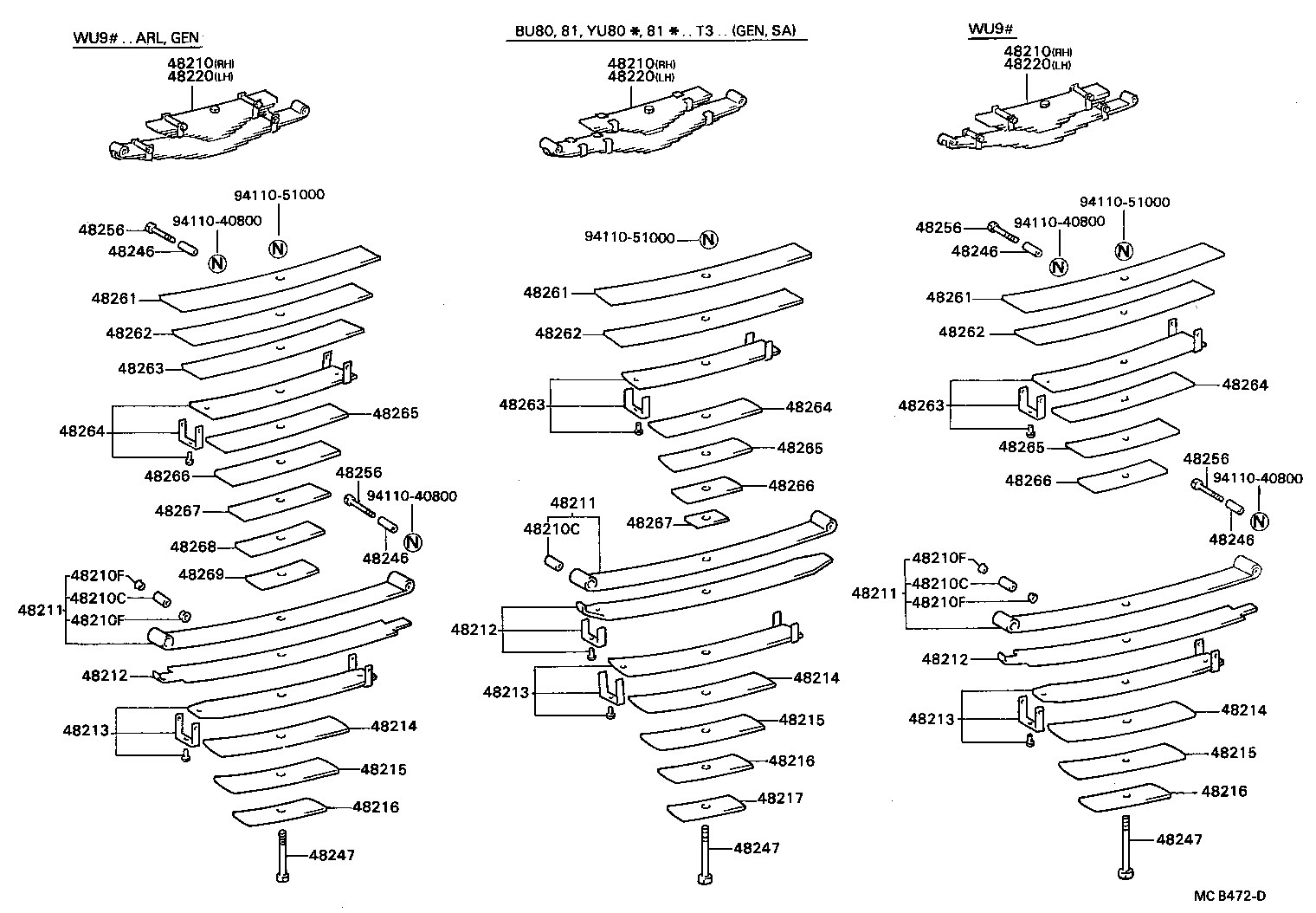

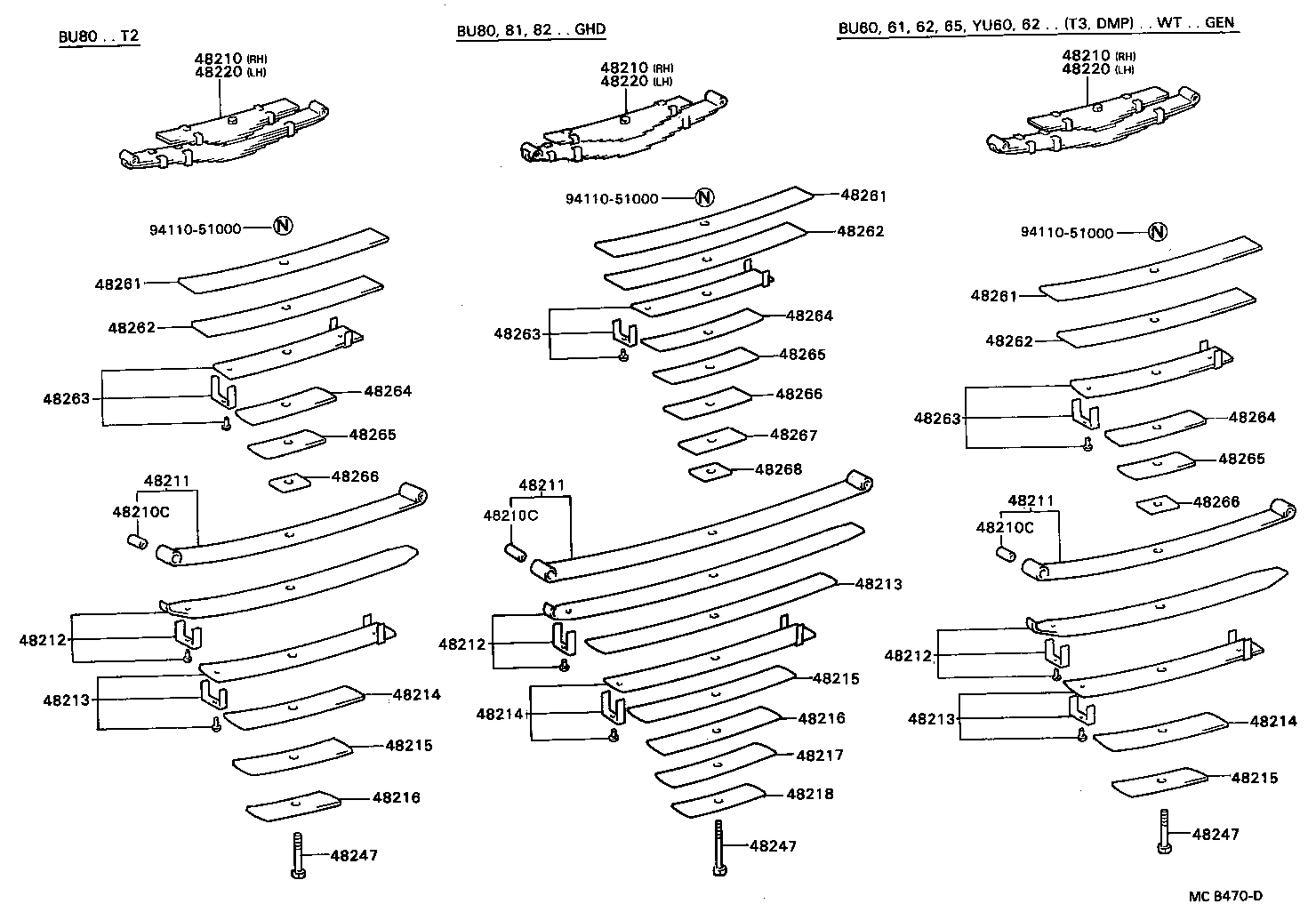

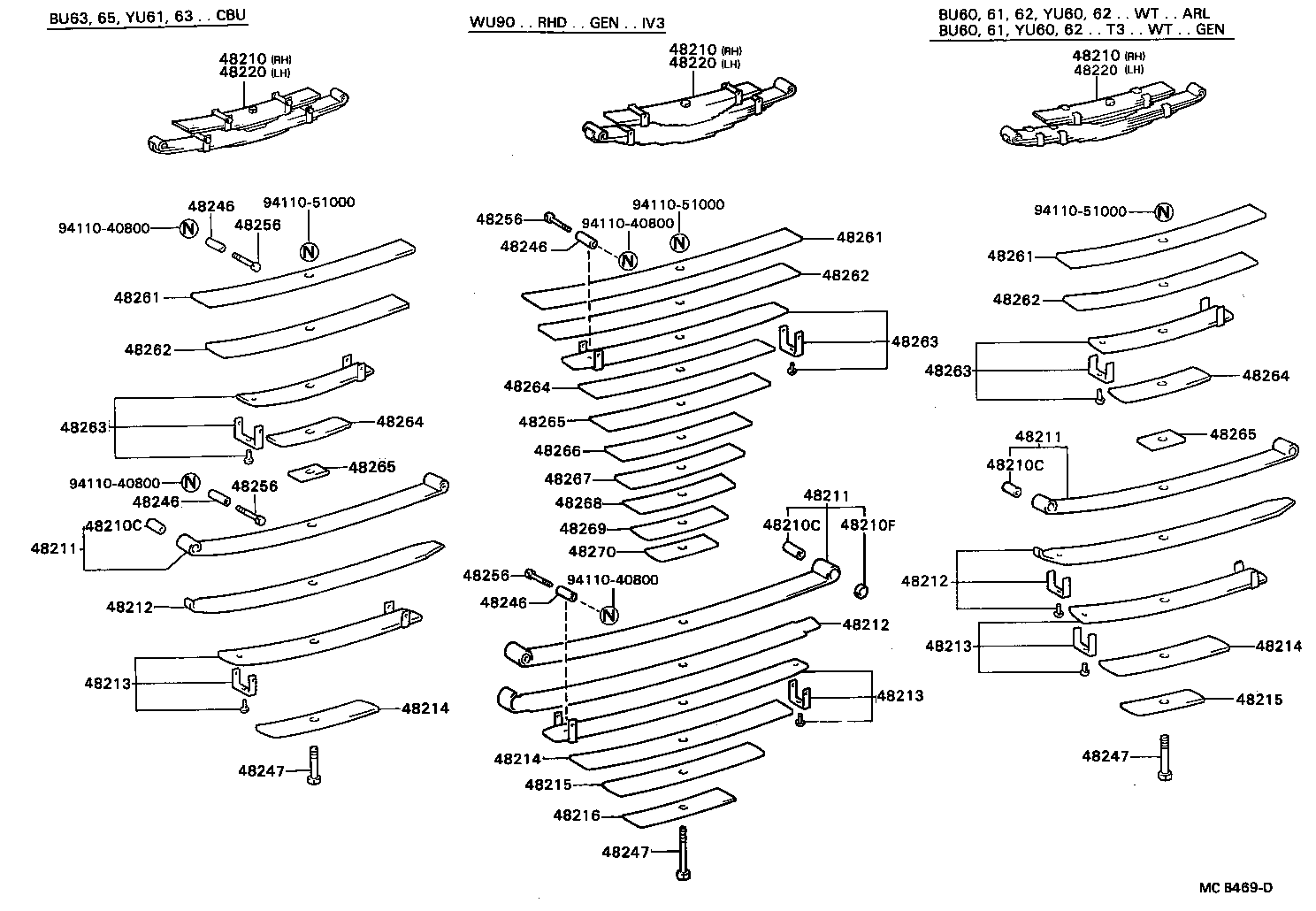

Figure MCB379A MCB379A 1984-09 → — Figure MCB465A MCB465A 1984-09 → — Figure MCB628C MCB628C 1984-09 → — Figure MCD046B MCD046B 1984-09 → — Figure MCB468D MCB468D 1984-09 → — Figure MCB469D MCB469D 1984-09 → — Figure MCB470D MCB470D 1984-09 → — Figure MCB471C MCB471C 1984-09 → — Figure MCB472D MCB472D 1984-09 → —

Part groups

PNCDescription
48046 Seat Sub-assy, Spring U Bolt, RH
48046A Bolt, U(FOR REAR SPRING)
48047 Seat Sub-assy, Spring U Bolt, LH
48210 Spring Assy, Rear RH
48210C Bush(FOR REAR SPRING LEAF)
48211 Leaf, Rear Spring, NO.1
48212 Leaf, Rear Spring, NO.2
48213 Leaf, Rear Spring, NO.3
48214 Leaf, Rear Spring, NO.4
48215 Leaf, Rear Spring, NO.5
48216 Leaf, Rear Spring, NO.6
48217 Leaf, Rear Spring, NO.7
48218 Leaf, Rear Spring, NO.8
48220 Spring Assy, Rear LH
48246 Case, Rear Spring Clip Bolt
48247 Bolt, Rear Spring, Center
48256 Bolt, Hexagon(FOR REAR SPRING CLIP SET)
48261 Leaf, Rear Helper Spring, NO.1
48262 Leaf, Rear Helper Spring, NO.2
48263 Leaf, Rear Helper Spring, NO.3
48264 Leaf, Rear Helper Spring, NO.4
48265 Leaf, Rear Helper Spring, NO.5
48266 Leaf, Rear Helper Spring, NO.6
48267 Leaf, Rear Helper Spring, NO.7
48268 Leaf, Rear Helper Spring, NO.8
48306 Bumper Sub-assy, Rear Spring
48343 Bracket, Rear Axle Cushion
48344 Stopper, Bumper, Rear
48401 Bracket Sub-assy, Rear Spring, Front RH
48402 Bracket Sub-assy, Rear Spring, Front LH
48404 Bracket Sub-assy, Rear Spring, Rear RH
48405 Bracket Sub-assy, Rear Spring, Rear LH
48418 Bracket, Helper Spring, Front RH
48419 Bracket, Helper Spring, Front LH
48422A Support, Rear Spring Pin
48428 Bracket, Helper Spring, Rear RH
48429 Bracket, Helper Spring, Rear LH
48435 Attachment, Helper Spring Bracket, NO.1
48442 Shackle, Spring, NO.2
48475R Plate, Distance(FOR REAR)
48481 Seat, Rear Spring, Upper
48516 Bracket, Rear Shock Absorber, Upper RH
48517 Bracket, Rear Shock Absorber, Upper LH
48530 Absorber Assy, Shock, Rear RH
48530A Bush(FOR REAR SHOCK ABSORBER)
48530B Washer, Rear Shock Absorber Cushion, NO.1
48530C Washer, Rear Shock Absorber Cushion, NO.2
48530D Washer, Rear Shock Absorber Cushion, NO.3
48530E Washer, Rear Shock Absorber Cushion, NO.4
48540 Absorber Assy, Shock, Rear LH
48542 Pin, Shock Absorber Upper Pivot, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
