Toyota Dyna

1984-09 → 1987-08 · chassis BU6#,7#,8# · catalogue 751230 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Spare Wheel Carrier

7 part groups · 4 illustrations

Illustrations

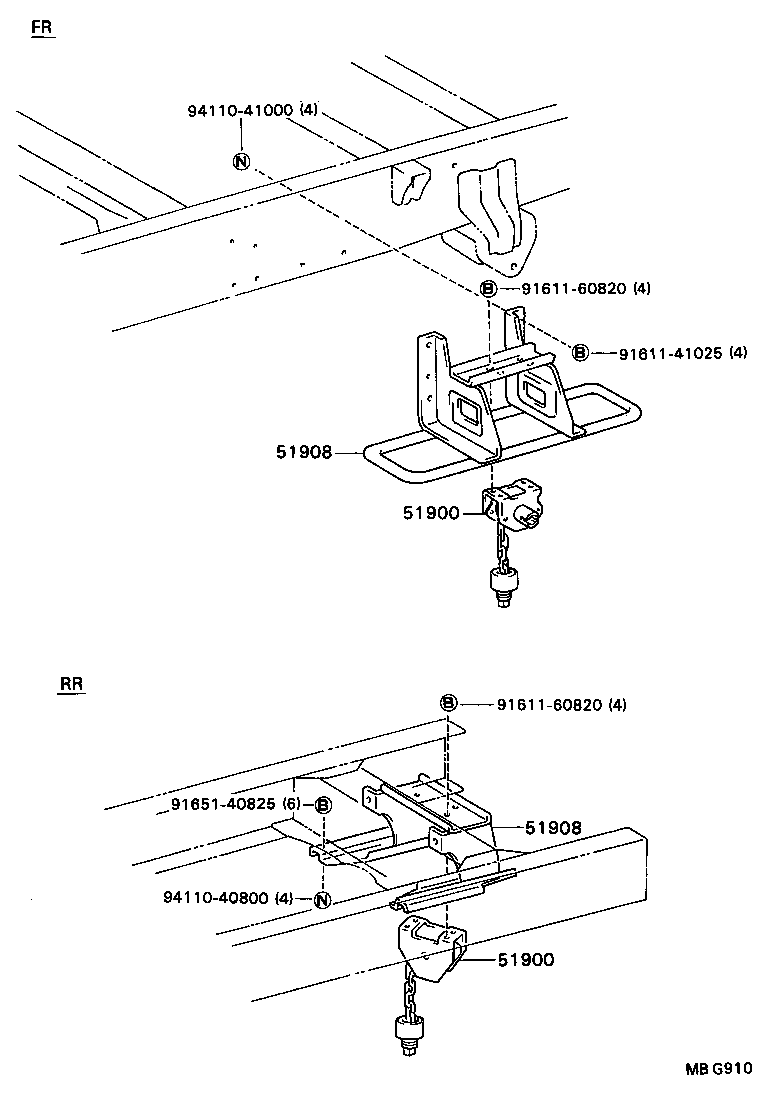

Figure MBH324 MBH324 1984-09 → — Figure MBG910 MBG910 1984-09 → — Figure MBG907A MBG907A 1984-09 → — Figure MBG911A MBG911A 1984-09 → —

Part groups

PNCDescription
51208A Member Sub-assy, Spare Wheel Set
51900 Carrier Assy, Spare Wheel
51908 Bracket Sub-assy, Spare Wheel Carrier
51933A Stopper, Spare Wheel, NO.1
51941 Stopper, Spare Wheel Carrier
51943 Bracket, Spare Wheel Carrier, NO.1
66273 Guide, Spare Tire Carrier
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
