Toyota Dyna
1984-09 → 1987-08 · chassis BU6#,7#,8# · catalogue 751230 · Europe
Discontinued model
Data version 1988-01

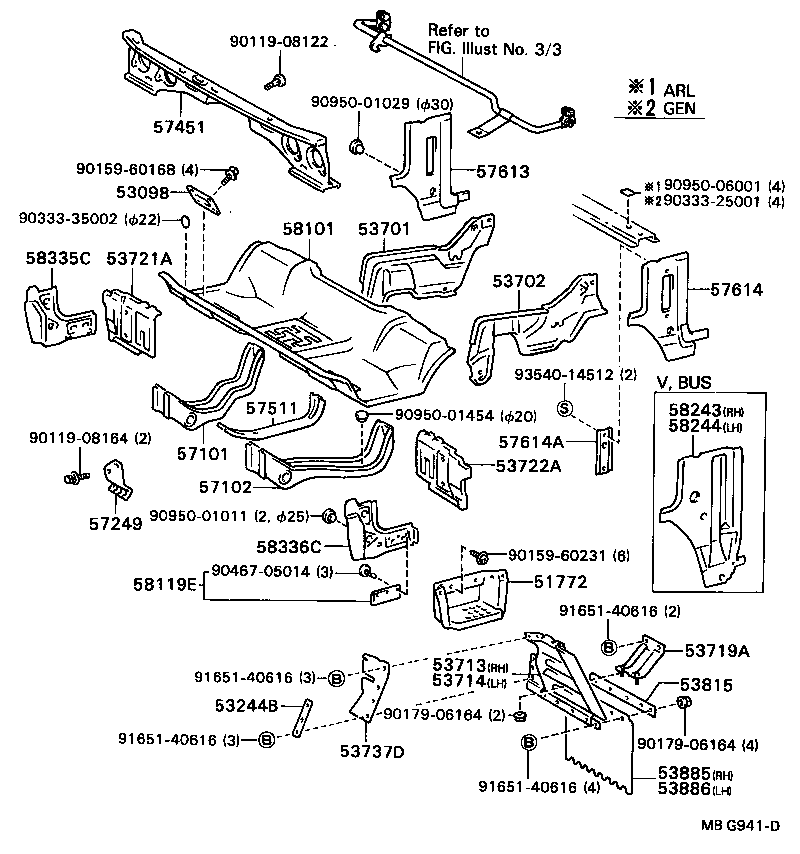

Front Floor Panel & Front Floor Member
50 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 51772 | Plate, Step |
| 53089A | Mudguard Sub-assy, Front |
| 53089B | Clip, Front Mudguard |
| 53098 | Cover Sub-assy, Air Cleaner Inlet Hole |
| 53244B | Plate, Seal Set |
| 53713 | Apron, Fender Side, RH |
| 53713D | Extension, Front Fender Apron, RH |
| 53713E | Protector(FOR FENDER SIDE APRON) |
| 53714 | Apron, Fender Side, LH |
| 53714D | Extension, Front Fender Apron, LH |
| 53719A | Brace, Fender Apron |
| 53721A | Apron, Front Fender, NO.2 RH |
| 53722A | Apron, Front Fender, NO.2 LH |
| 53728A | Bracket, Fender Apron, RH |
| 53729A | Bracket, Fender Apron, LH |
| 53737D | Seal, Front Fender Apron, LH |
| 53815 | Plate, Mudguard Rubber Set, Front |
| 53885 | Mudguard, Front RH |
| 53886 | Mudguard, Front LH |
| 57102 | Member Sub-assy, Front Side, LH |
| 57249 | Bracket, Flexible Hose, NO.1 |
| 57451 | Member, Front Floor Cross |
| 57511 | Reinforcement, Front Floor, Center |
| 57613 | Plate, Floor Side Rail, Front RH |
| 57614 | Plate, Floor Side Rail Front, LH |
| 57614A | Cover, Floor Side Rail |
| 58101 | Pan Sub-assy, Front Floor |
| 58119E | Cover, Front Floor Side, Front |
| 58139 | Cover, Front Floor Side, Rear |
| 58223A | Reinforcement, Floor Side Panel, RH |
| 58223D | Reinforcement, Floor Panel Side, RH |
| 58224A | Reinforcement, Floor Side Panel, LH |
| 58224D | Reinforcement, Floor Panel Side, LH |
| 58243 | Panel, Rear Floor Side, RH |
| 58244 | Panel, Rear Floor Side, LH |
| 58335C | Plate, Floor Side, Front RH |
| 58336C | Plate, Floor Side, Front LH |
| 58410 | Cover, Engine Service Hole |
| 58424 | Packing, Engine Service Hole Cover, NO.1 |
| 58424A | Packing, Engine Service Hole Cover Sub, NO.1 |
| 58426A | Protector, Engine Service Hole |
| 58430 | Cover Assy, Sub-floor Service Hole |
| 58445A | Cushion, Engine Service Hole Cover |
| 58474A | Packing, Engine Sub Cover, NO.2 |
| 58805 | Catch Sub-assy, Engine Service Hole Cover |
| 59260 | Lock Assy, Engine Cover |
| 64017 | Reinforce Sub-assy, Rear Mounting Bracket |
| 64018 | Bar Sub-assy, Body |
| 64177A | Stopper, Rear Mounting Bracket, RH |
| 64178A | Stopper, Rear Mounting Bracket, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
