Toyota Dyna

1984-09 → 1987-08 · chassis BU6#,7#,8# · catalogue 751230 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Floor & Fender

23 part groups · 7 illustrations

Illustrations

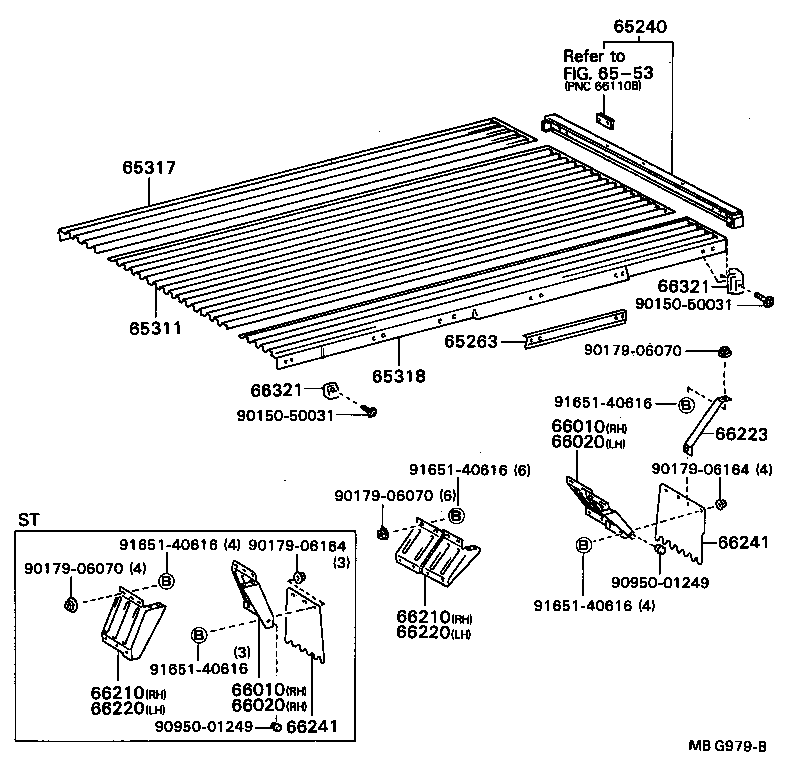

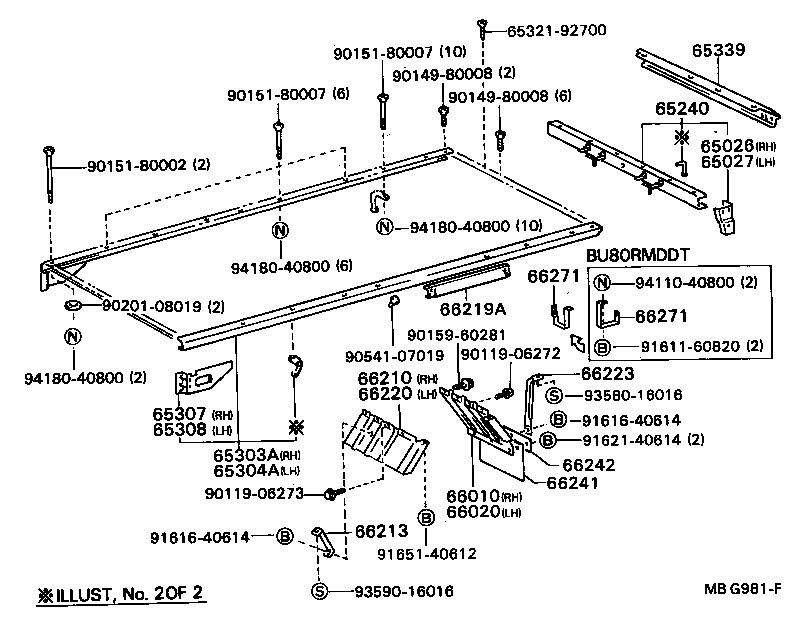

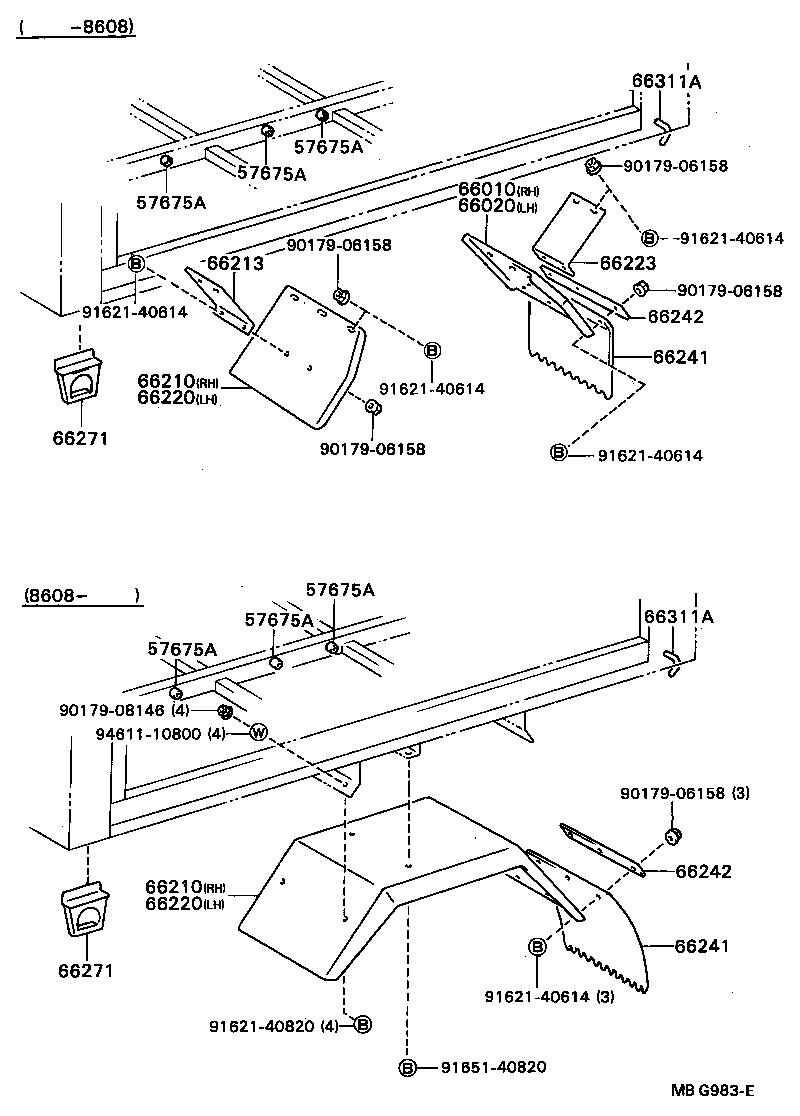

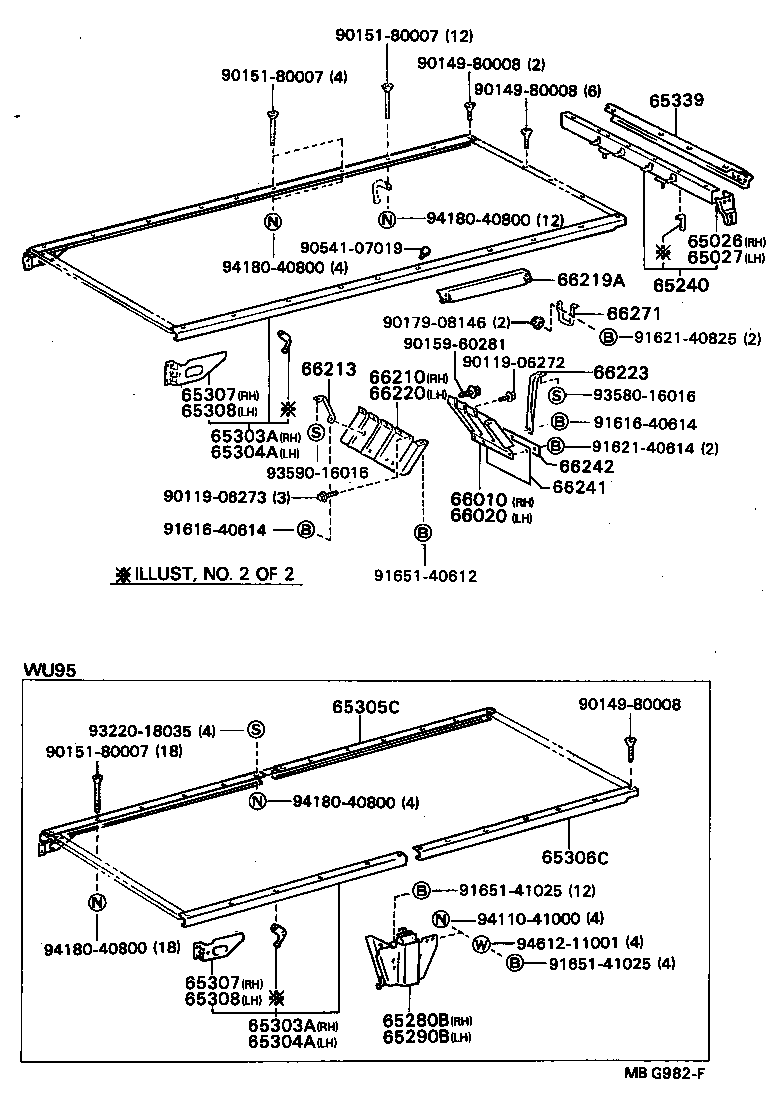

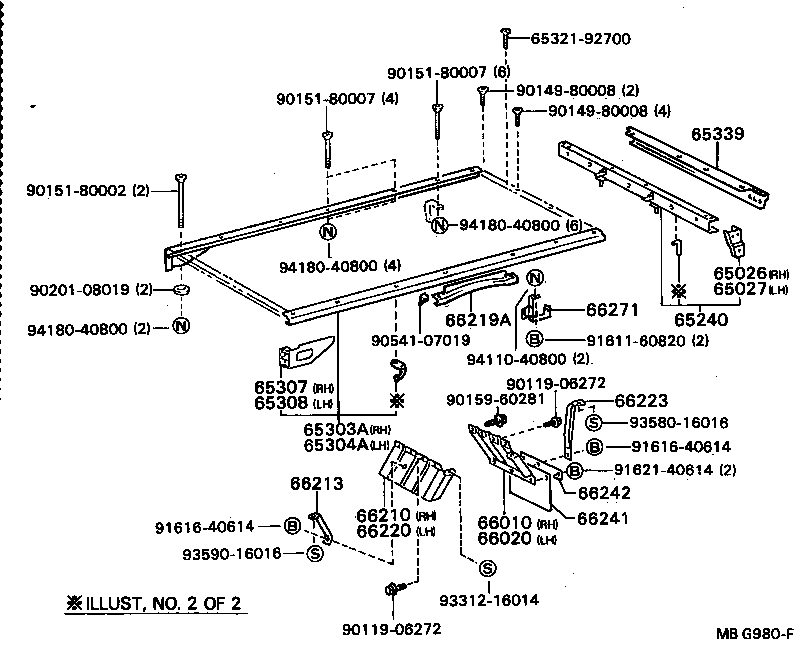

Figure MBG978A MBG978A 1984-09 → — Figure MBG979B MBG979B 1984-09 → — Figure MBG980F MBG980F 1984-09 → — Figure MBG981F MBG981F 1984-09 → — Figure MBG982F MBG982F 1984-09 → — Figure MBG983E MBG983E 1984-09 → — Figure MBG977 MBG977 1984-09 → —

Part groups

PNCDescription
65026 Bracket Sub-assy, Gate Rubber Bumper, RH
65027 Bracket Sub-assy, Gate Rubber Bumper, LH
65240 Crossmember, Rear Body Floor, Tail
65263 Reinforcement, Floor Side Frame
65303A Frame Sub-assy, Floor Side, RH
65304A Frame Sub-assy, Floor Side, LH
65307 Bracket Sub-assy, Guad Frame, RH
65308 Bracket Sub-assy, Guad Frame, LH
65311 Panel, Floor, Center
65317 Panel, Floor Side, RH
65318 Panel, Floor Side, LH
65339 Frame, Floor, Rear
66010 Fender Assy, Rear Body, Rear RH
66020 Fender Assy, Rear Body, Rear LH
66210 Fender Assy, Rear Body, Front RH
66213 Stay, Rear Fender Front Plate
66219A Extension, Rear Fender
66220 Fender Assy, Rear Body, Front LH
66223 Stay, Rear Fender Rear Plate
66241 Mudguard, Rear
66242 Plate, Rear Mudguard Set Retainer
66271 Step, Rear Body
66311A Hook, Rope, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
