Toyota Dyna
1984-09 → 1987-08 · chassis BU6#,7#,8# · catalogue 751230 · Europe
Discontinued model
Data version 1988-01

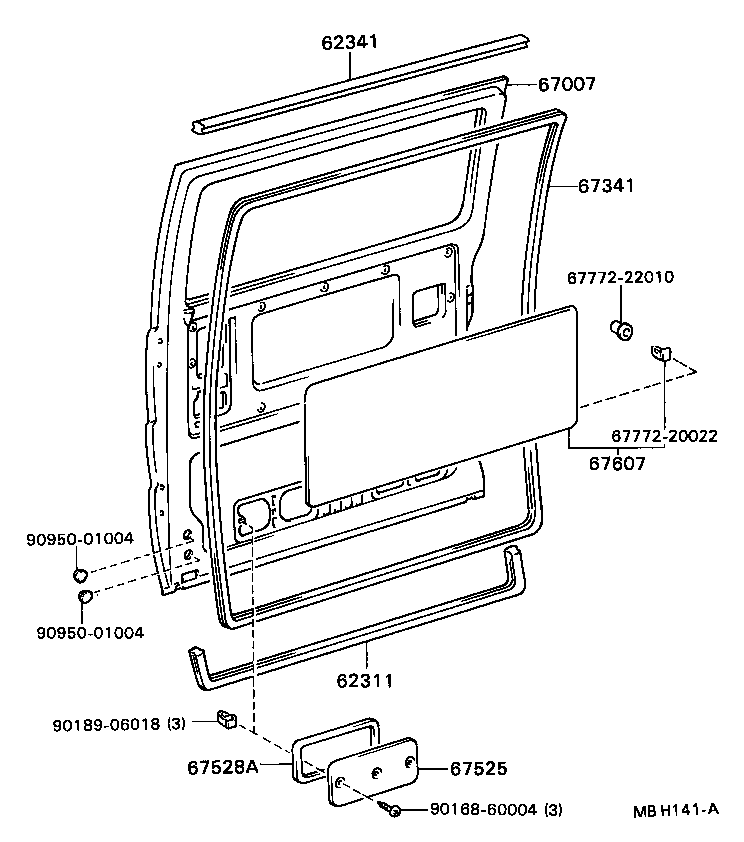

Rear Door Panel & Glass
26 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62311 | Weatherstrip, Door Opening Trim, Lower RH |
| 62341 | Weatherstrip, Door Opening, Upper RH |
| 67003 | Panel Sub-assy, Rear Door, RH |
| 67004 | Panel Sub-assy, Rear Door, LH |
| 67007 | Panel Sub-assy, Slide Door, RH |
| 67311 | Bracket, Rear Door Lower Hole |
| 67341 | Weatherstrip, Slide Door, RH |
| 67435 | Frame, Rear Door Window Lower, RH |
| 67436 | Frame, Rear Door Window, Lower LH |
| 67525 | Cover, Slide Door Panel, Lower |
| 67528A | Packing, Slide Door Lower Cover |
| 67603 | Board Sub-assy, Rear Door Trim, RH |
| 67603A | Retainer(FOR REAR DOOR TRIM BOARD) |
| 67604 | Board Sub-assy, Rear Door Trim, LH |
| 67607 | Board Sub-assy, Slide Door Trim, RH |
| 67833 | Cover, Rear Door Service Hole |
| 67835A | Cover, Rear Door Hole, Lower |
| 67867B | Clip, Door Weatherstrip(FOR REAR DOOR) |
| 67868B | Clip, Door Glass Weatherstrip(FOR REAR DOOR) |
| 67871 | Weatherstrip, Rear Door, RH |
| 67872 | Weatherstrip, Rear Door, LH |
| 68103 | Glass Sub-assy, Rear Door, RH |
| 68104 | Glass Sub-assy, Rear Door, LH |
| 68142 | Run, Rear Door Glass |
| 68163 | Weatherstrip, Rear Door Glass, Outer |
| 68190 | Weatherstrip Assy, Rear Door Glass, Inner |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
