Toyota Dyna

1984-09 → 1987-08 · chassis BU6#,7#,8# · catalogue 751230 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

12 part groups · 2 illustrations

Illustrations

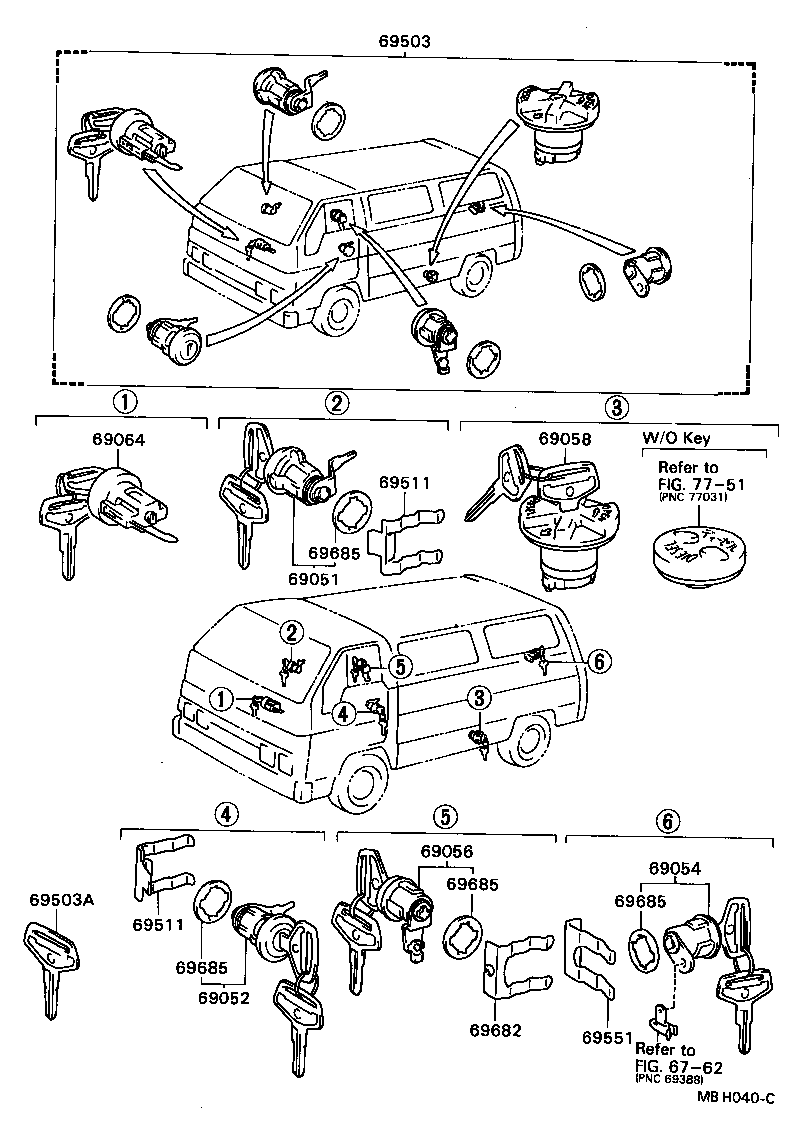

Figure MBJ109A MBJ109A 1984-09 → — Figure MBH040C MBH040C 1984-09 → —

Part groups

PNCDescription
69051 Cylinder & Key Set, Door Lock, RH
69052 Cylinder & Key Set, Door Lock, LH
69054 Cylinder & Key Set, Back Door Lock
69056 Cylinder & Key Set, Rear Door Lock, RH
69058 Cylinder & Key Set, Fuel Filler Lid
69064 Cylinder & Key Set, Ignition Switch Lock
69503 Cylinder Set, Lock
69503A Key, Blank
69511 Retainer, Front Door Lock Cylinder
69551 Retainer, Back Door Lock Cylinder
69682 Retainer, Lock Cylinder
69685 Pad, Lock Cylinder
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
