Toyota Dyna
1984-09 → 1987-08 · chassis BU6#,7#,8# · catalogue 751230 · Europe
Discontinued model
Data version 1988-01
Seat & Seat Track
101 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|

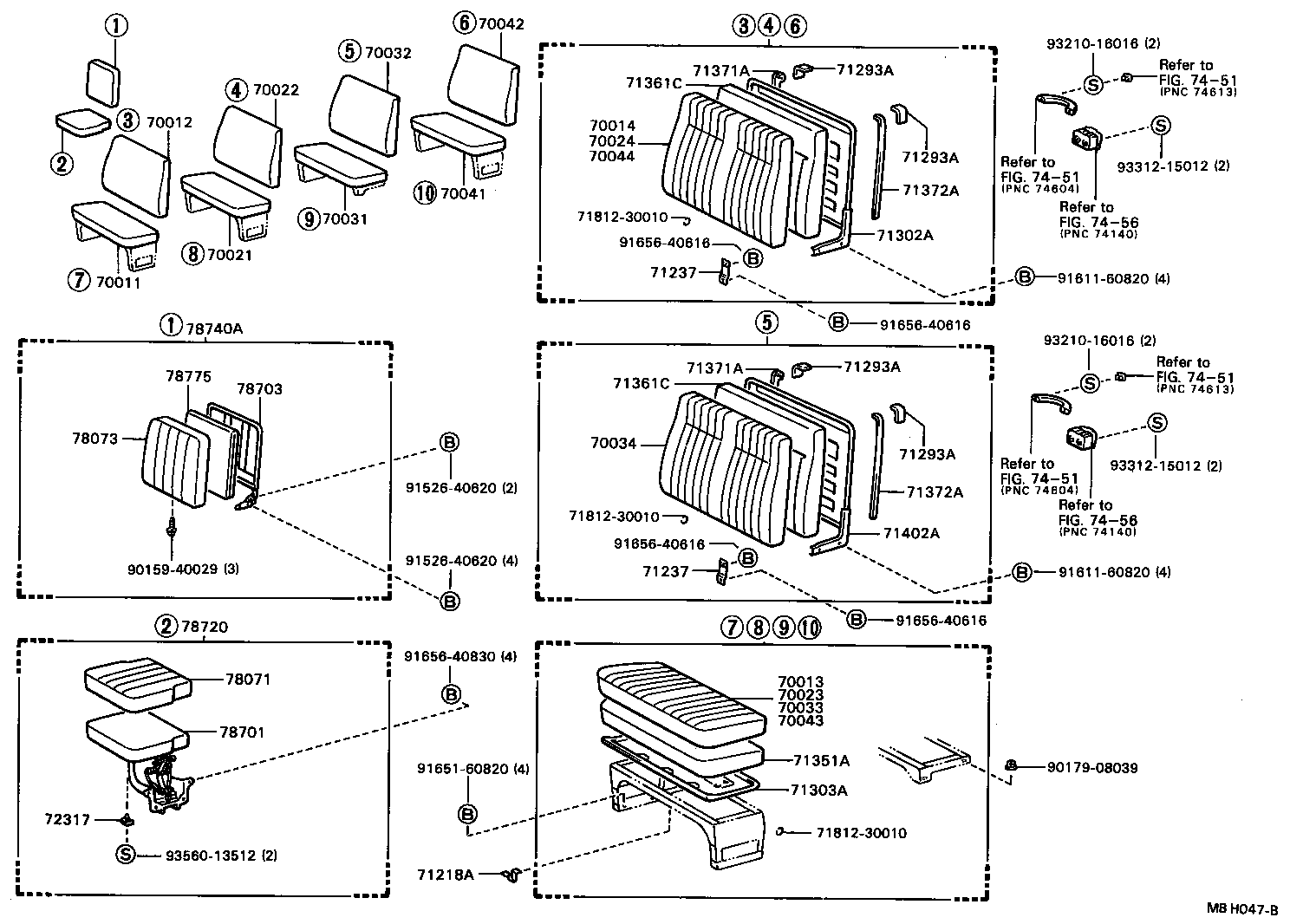

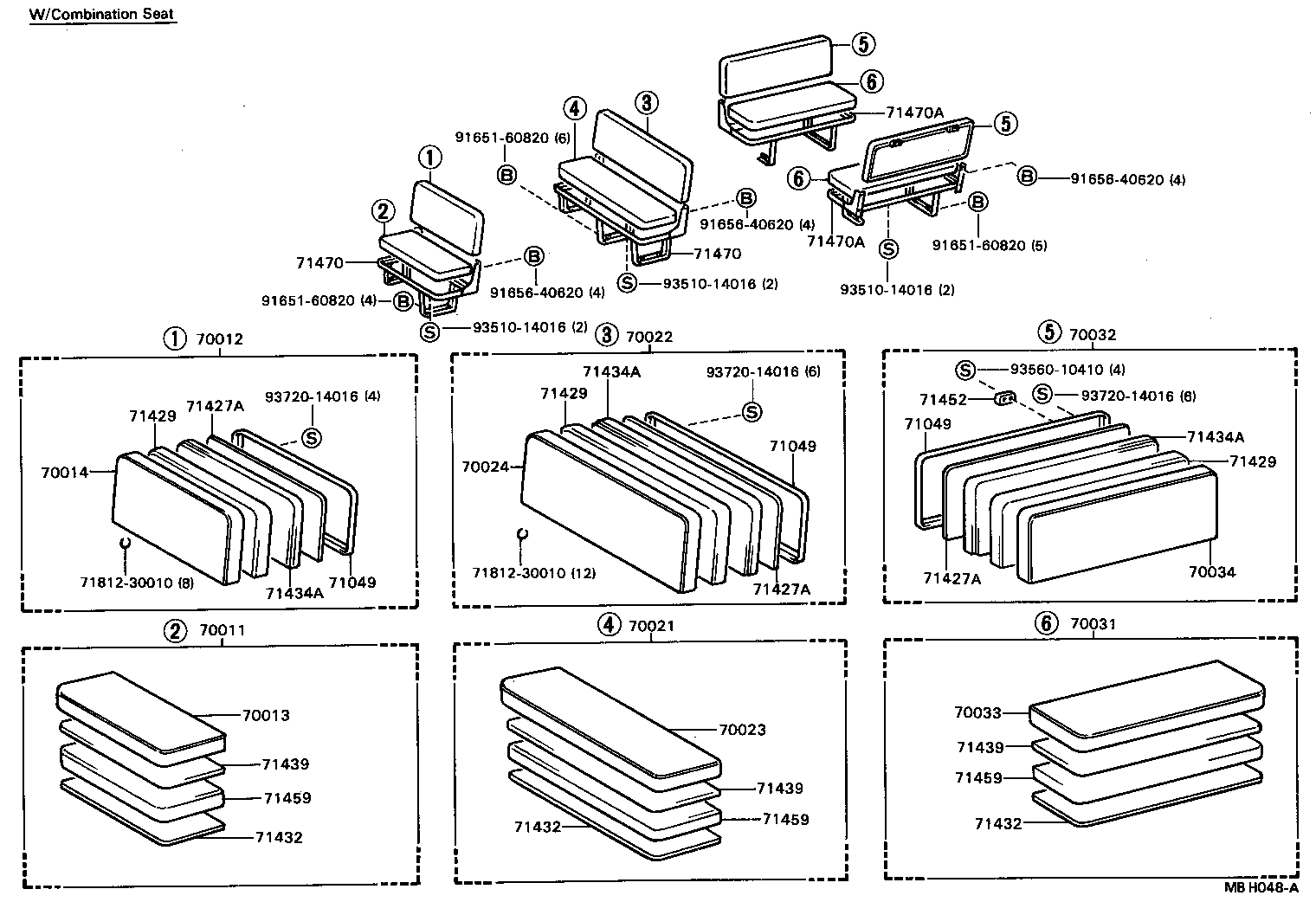

| 70011 | Cushion Assy, NO.1 Seat |
| 70012 | Back Assy, NO.1 Seat |
| 70012B | Band, Engine Service Hole Cover Support |
| 70013 | Cover Assy, NO.1 Seat Cushion |
| 70014 | Cover Assy, NO.1 Seatback |
| 70021 | Cushion Assy, NO.2 Seat |
| 70022 | Back Assy, NO.2 Seat |
| 70023 | Cover Assy, NO.2 Seat Cushion |
| 70024 | Cover Assy, NO.2 Seatback |
| 70031 | Cushion Assy, NO.3 Seat |
| 70032 | Back Assy, NO.3 Seat |
| 70033 | Cover Assy, NO.3 Seat Cushion |
| 70034 | Cover Assy, NO.3 Seatback |
| 70041 | Cushion Assy, NO.4 Seat |
| 70042 | Back Assy, NO.4 Seat |
| 70043 | Cover Assy, NO.4 Seat Cushion |
| 70044 | Cover Assy, NO.4 Seatback |
| 71049 | Frame Sub-assy, Rear Seatback, NO.5 |
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71072S | Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71075B | Cover, Rear Seat Cushion (FOR BENCH TYPE) |
| 71077B | Cover, Rear Seatback (FOR BENCH TYPE) |
| 71218A | Spring, Passenger Seat Lock |
| 71237 | Bracket, Rear Seat |
| 71293A | Plate, Rear Seatback, Upper |
| 71302A | Frame Sub-assy, Passenger Seat, NO.1 |
| 71303A | Panel Sub-assy, Passenger Seat Cushion |
| 71307 | Hinge Sub-assy, Driver Seat, RH |
| 71319A | Striker, Front Seatback |
| 71351A | Pad, Passenger Seat Cushion |
| 71361C | Pad, Passenger Seatback |
| 71371A | Pad, Passenger Seatback Safety Side, RH |
| 71372A | Pad, Passenger Seatback Safety Side, LH |
| 71373B | Cover, Front Seatback Lock |
| 71402A | Frame Sub-assy, Passenger Seat, NO.2 |

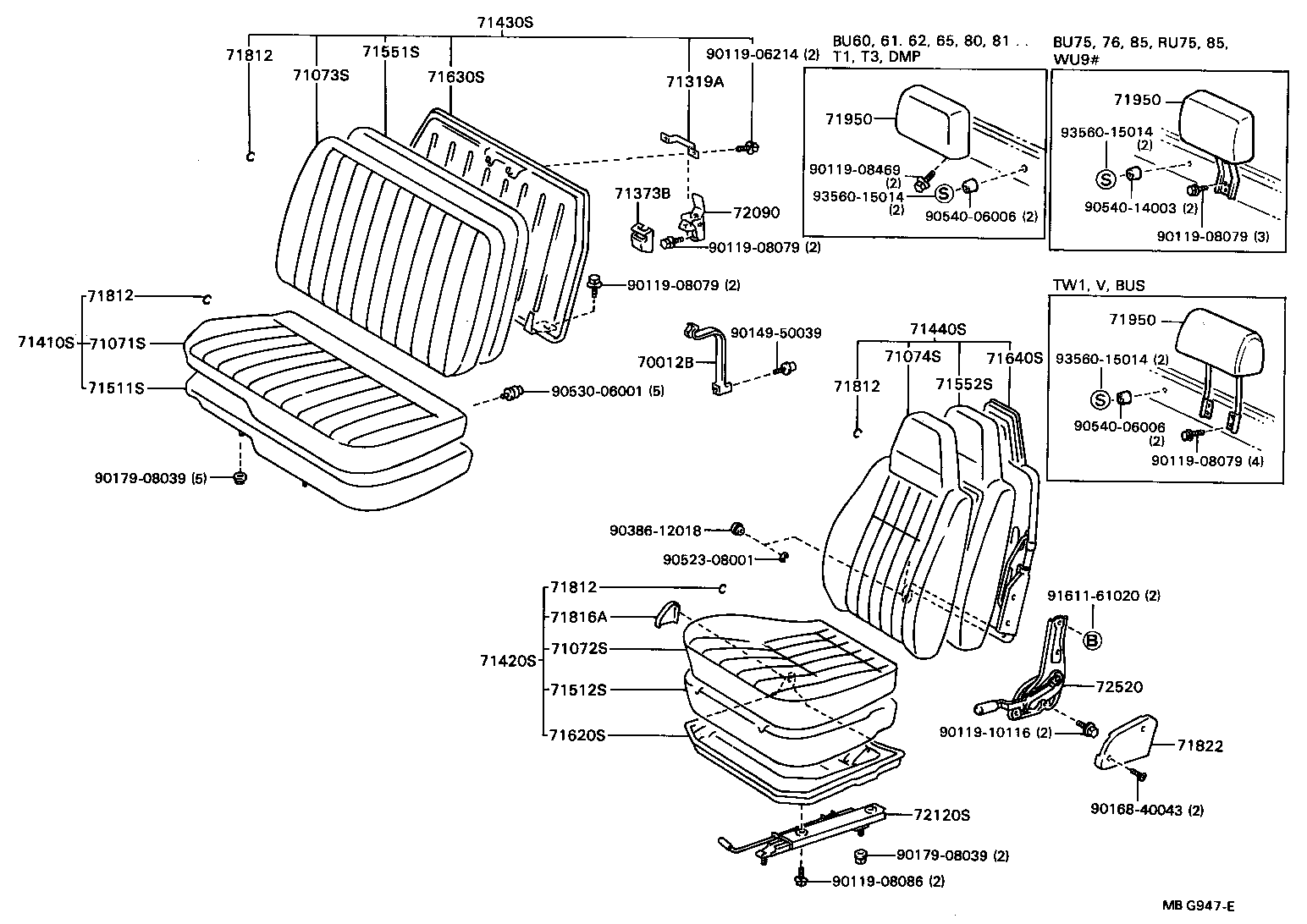

| 71410S | Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71420S | Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE) |
| 71427A | Board, Rear Seatback, NO.5 |
| 71429 | Cushion, Rear Seatback, A NO.5 |
| 71430S | Back Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71432 | Board, Rear Seat Cushion, NO.5 |
| 71434A | Cushion, Rear Seatback, B NO.5 |
| 71439 | Cushion, Rear Seet Cushion, A NO.5 |
| 71440S | Back Assy, Front Seat, LH(FOR SEPARATE TYPE) |
| 71452 | Stop, Rear Seatback |
| 71459 | Cushion, Rear Seat Cushion, B NO.5 |
| 71460B | Cushion Assy, Rear Seat (FOR BENCH TYPE) |
| 71466 | Pad, Rear Seat Cushion Under |
| 71467 | Pad, Corner |
| 71468 | Protector, Rear Seat, NO.1 (FOR SEAT CUSHION) |
| 71468A | Protector, Rear Seat, NO.1 (FOR SEATBACK) |
| 71469 | Protector, Rear Seat, NO.2 |
| 71470 | Frame Assy, Rear Seat Cushion, Front |
| 71470A | Frame Assy, Rear Seat Cushion, Rear |

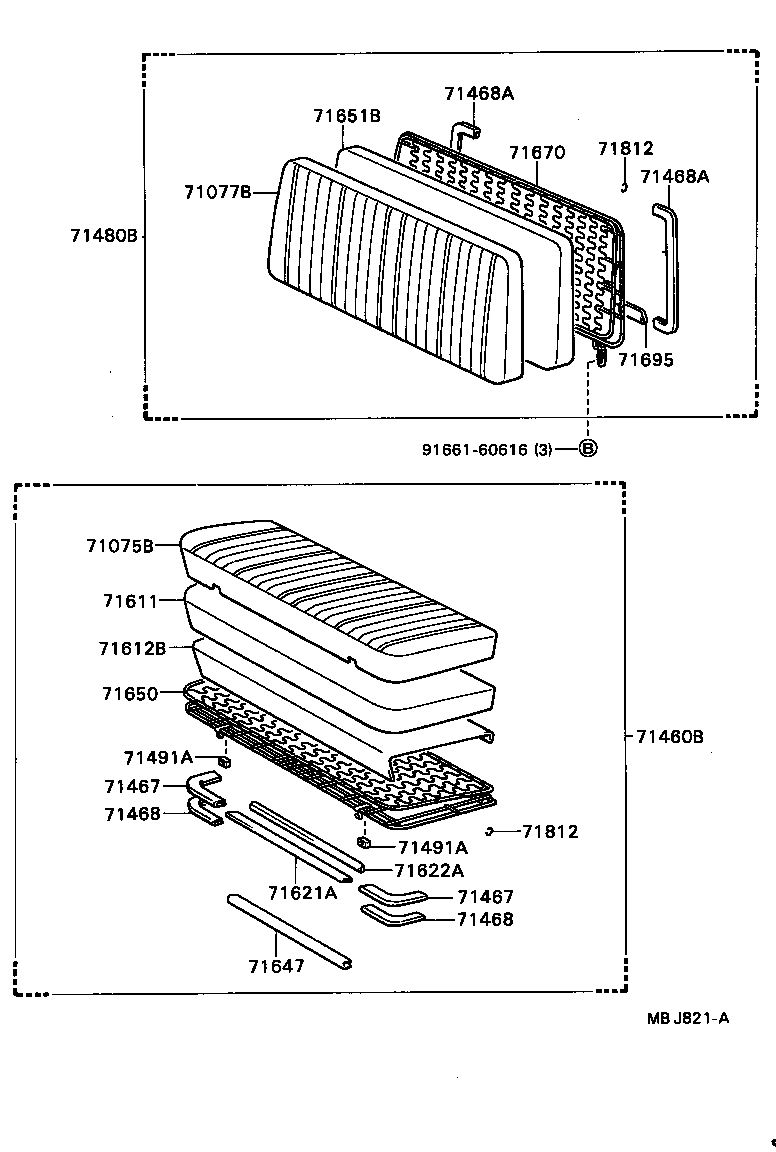

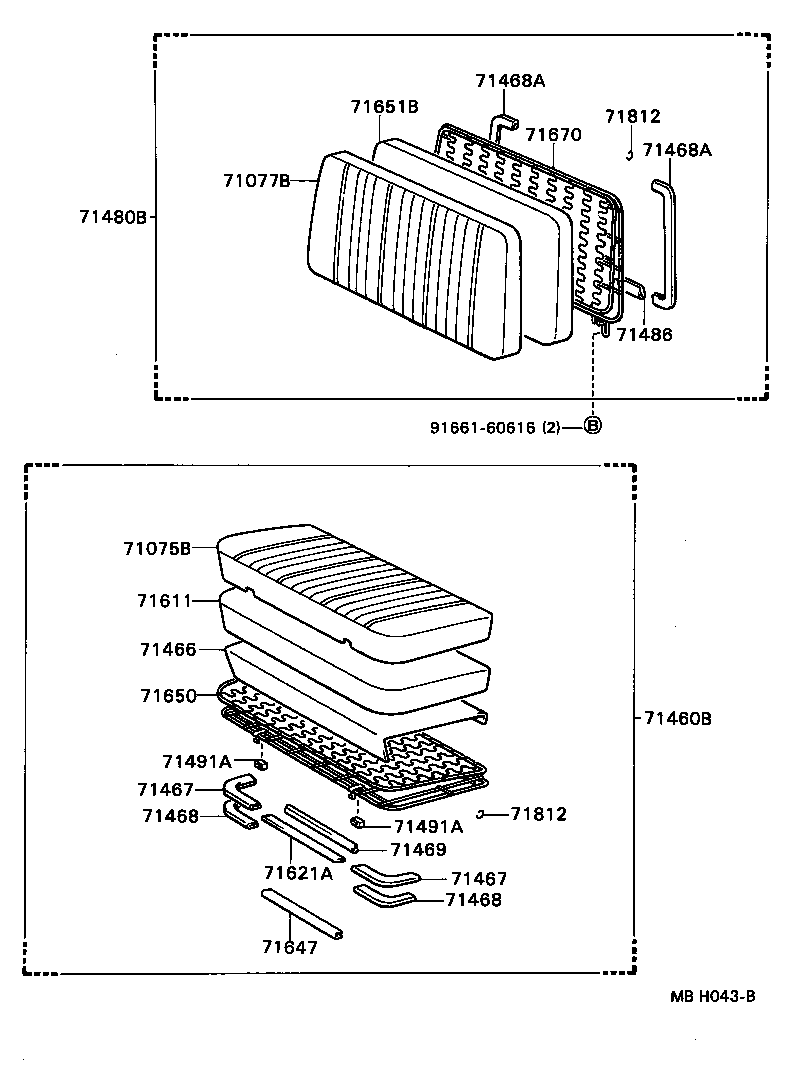

| 71480B | Back Assy, Rear Seat (FOR BENCH TYPE) |
| 71486 | Protector, Rear Seat, NO.3 |
| 71491A | Cushion, Rear Seat Set |
| 71511S | Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71512S | Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71551S | Pad, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71552S | Pad, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71587 | Protector, Front Seatback Edge |
| 71610S | Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71611 | Pad, Rear Seat Cushion |
| 71612B | Pad, Rear Seat Cushion, B |
| 71620S | Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71621A | Pad, Rear Seat Cushion Silencer, A |
| 71622A | Pad, Rear Seat Cushion Silencer, B |
| 71630S | Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71640S | Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71647 | Protector, Rear Seat Cushion Edge |
| 71650 | Spring Assy, Rear Seat Cushion |
| 71651B | Pad, Rear Seatback(FOR BENCH TYPE) |
| 71670 | Spring Assy, Rear Seatback(FOR BENCH SEAT) |
| 71695 | Protector, Rear Seatback |
| 71787 | Band, Front Seatback Pocket |
| 71791A | Retainer, Front Seatback Pocket |
| 71812 | Clip (FOR FRONT SEAT CUSHION COVER) |
| 71815A | Cover, Front Seat Cushion Hinge, RH |
| 71816A | Cover, Front Seat Cushion Hinge, LH |
| 71821 | Shield, Front Seat Side, RH |
| 71822 | Shield, Front Seat Side, LH |
| 71950 | Headrest Assy, Front Seat |
| 72090 | Lock Assy, Front Seatback |
| 72110S | Track Assy, RH Seat, Outer (FOR SEPARATE SEAT) |
| 72111 | Rail, Seat Track Upper |
| 72120S | Track Assy, LH Seat, Outer (FOR SEPARATE SEAT) |
| 72317 | Grommet, Sub Seat Cushion |
| 72510 | Adjuster Assy, Reclining Seatback, RH |
| 72520 | Adjuster Assy, Reclining Seatback, LH |
| 73800 | Suspension Assy, Seat, RH |
| 73888 | Handle, Seat Suspension Control |
| 78071 | Cover Sub-assy, Sub Seat Cushion, RH |
| 78073 | Cover Sub-assy, Sub Seatback, RH |
| 78701 | Frame Sub-assy, Sub Seat Cushion, RH |
| 78703 | Frame Sub-assy, Sub Seatback |
| 78720 | Cushion Assy, Sub Seat, RH |
| 78740A | Back Assy, Sub Seat, RH |
| 78775 | Pad, Sub Seatback |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
