Toyota Dyna

1984-09 → 1987-08 · chassis BU6#,7#,8# · catalogue 751230 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Tank & Tube

43 part groups · 13 illustrations

Illustrations

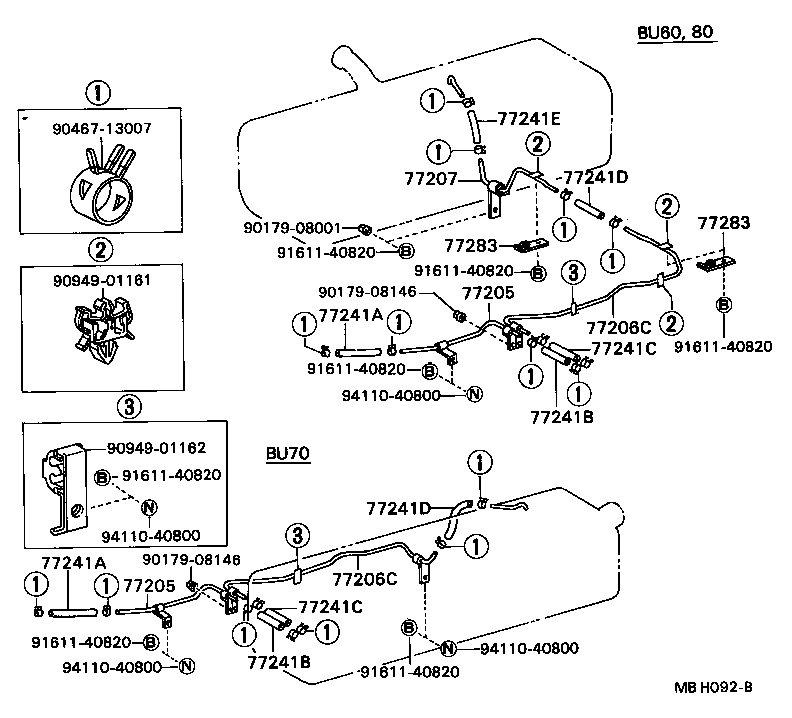

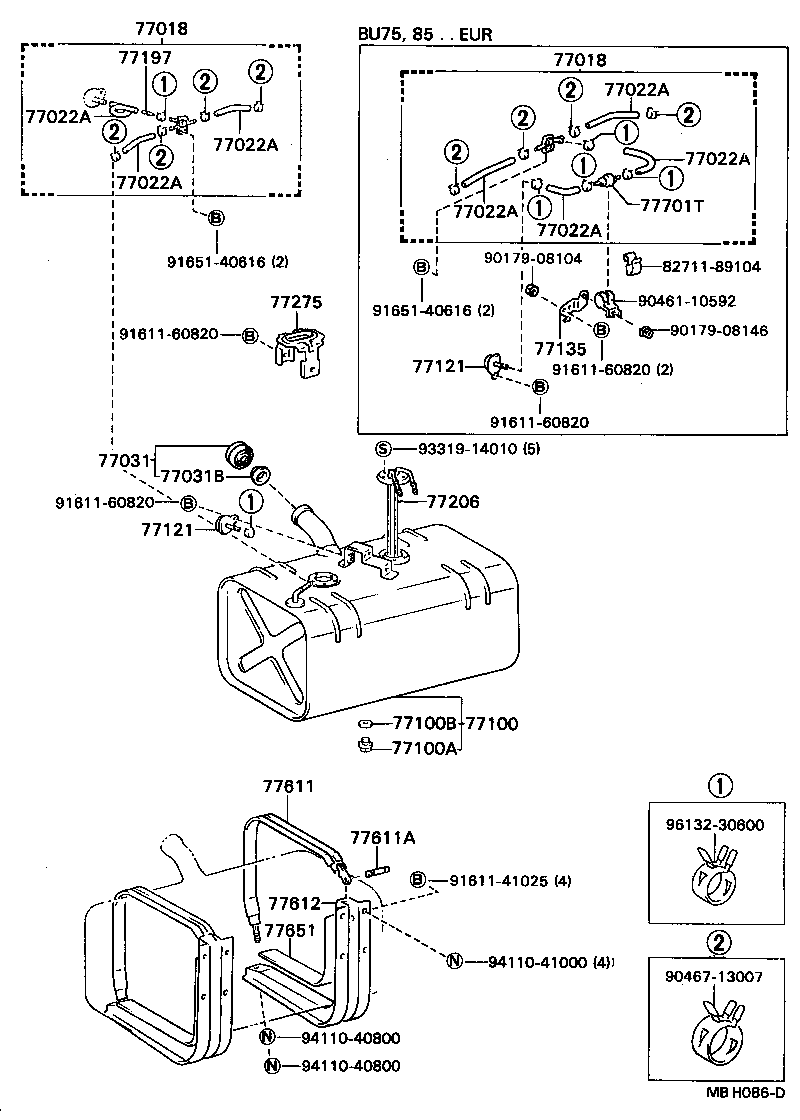

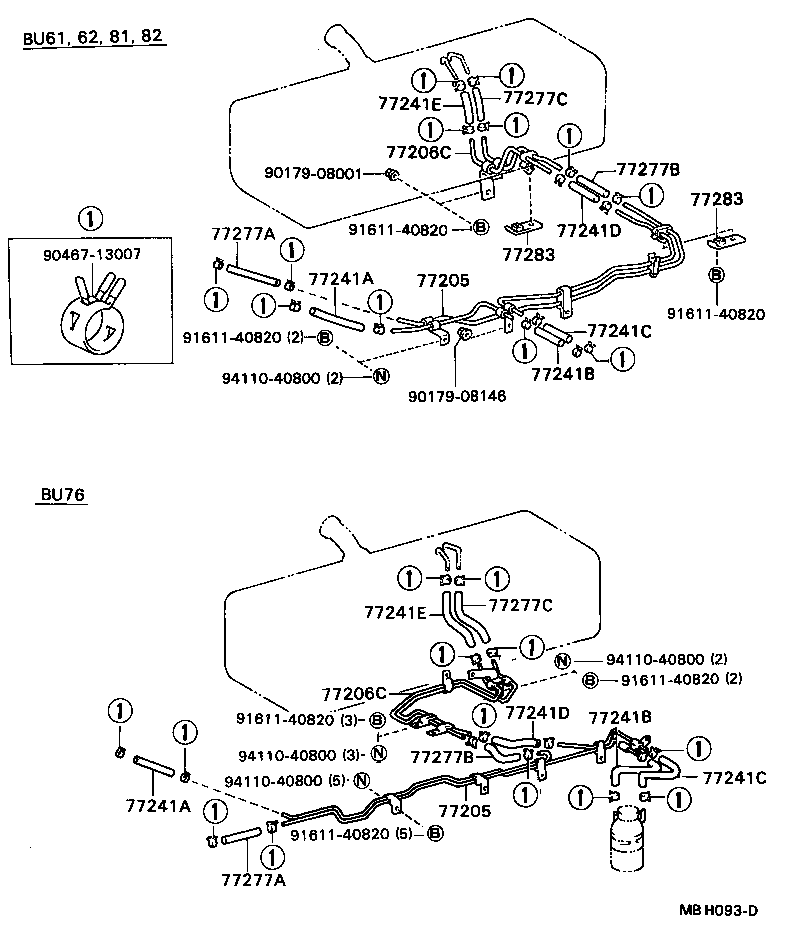

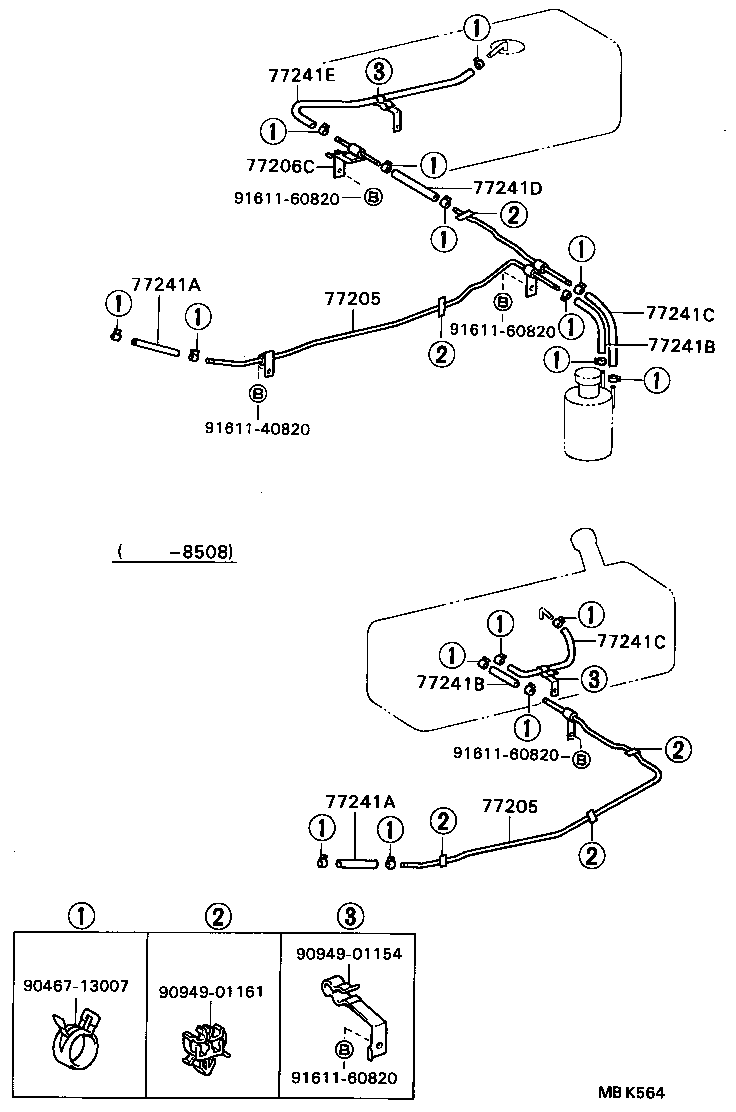

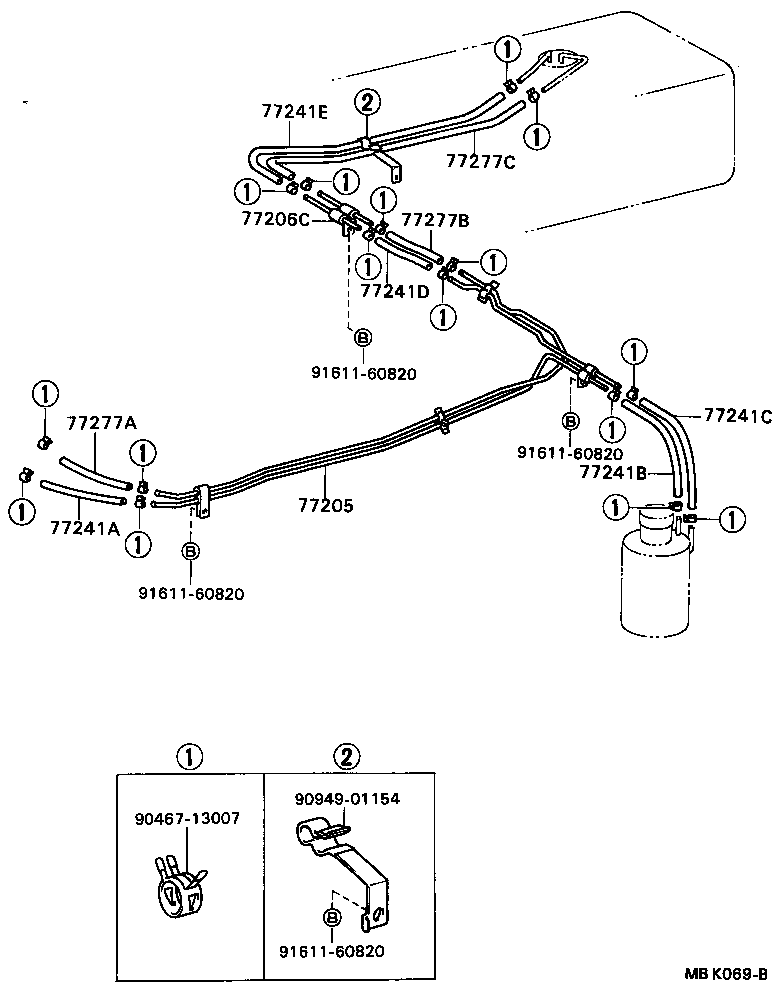

Figure MBH085B MBH085B 1984-09 → — Figure MBH086D MBH086D 1984-09 → — Figure MBH086D MBH086D 1985-08 → — Figure MBH087A MBH087A 1984-09 → — Figure MBH088A MBH088A 1984-09 → — Figure MBH089A MBH089A 1984-09 → — Figure MBH090B MBH090B 1984-09 → — Figure MBH092B MBH092B 1984-09 → — Figure MBH093D MBH093D 1984-09 → — Figure MBH094B MBH094B 1984-09 → 1984-10 Figure MBH094B MBH094B 1984-10 → — Figure MBK069B MBK069B 1985-08 → — Figure MBK564 MBK564 1984-08 → —

Part groups

PNCDescription
77018 Valve Sub-assy, Fuel Vapour Separate
77022A Hose, Fuel(FOR FUEL EVAPORATIVE SEPARATOR)
77031 Cap Assy, Fuel Tank
77031B Gasket (FOR FUEL TANK CAP)
77100 Tank Assy, Fuel
77100A Plug(FOR FUEL TANK)
77100B Gasket(FOR FUEL TANK)
77100D Hose, Fuel, NO.1(FOR FUEL TANK)
77100T Union(FOR FUEL SUB-TANK)
77121 Protector, Fuel Tube
77135 Bracket, Check Valve
77197 Orifice, Fuel Vapor
77205 Tube Sub-assy, Fuel Main
77206 Tube Sub-assy, Fuel Tank Suction
77206C Tube Sub-assy, Fuel Main, NO.2
77207 Tube Sub-assy, Fuel
77241A Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1)
77241B Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.1)
77241C Hose, Fuel, NO.3 (FOR MAIN TUBE, NO.1)
77241D Hose, Fuel, NO.4 (FOR MAIN TUBE, NO.1)
77241E Hose, Fuel, NO.5 (FOR MAIN TUBE, NO.1)
77242B Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.2)
77275 Protector, Fuel Evaporative Separator
77277A Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
77277B Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1)
77277C Hose, Fuel, NO.3(FOR RETURN TUBE, NO.1)
77283 Bracket, Fuel Tube
77308 Cover Sub-assy, Fuel Inlet Box
77308A Cushion(FOR FUEL INLET BOX COVER)
77310 Stopper, Fuel Inlet Box
77411 Protector, Fuel Inlet Box
77608 Band Sub-assy, Fuel Tank, NO.2
77611 Band, Fuel Tank
77611A Pin (FOR FUEL TANK BAND)
77612 Bracket Sub-assy, Fuel Tank
77641A Protector, Fuel Tank, NO.1
77651 Packing, Fuel Tank Bracket
77701T Valve, Check (FOR MAIN FUEL TANK)
77701U Hose, Fuel (FOR CHECK VALVE)
77710 Cock Assy, Fuel Change
77712 Valve, Fuel Change Cock
77713 Lever, Fuel Change Cock
77714 Cap, Fuel Change Cock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
