Toyota Dyna

1984-09 → 1987-08 · chassis BU6#,7#,8# · catalogue 751230 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

10 part groups · 4 illustrations

Illustrations

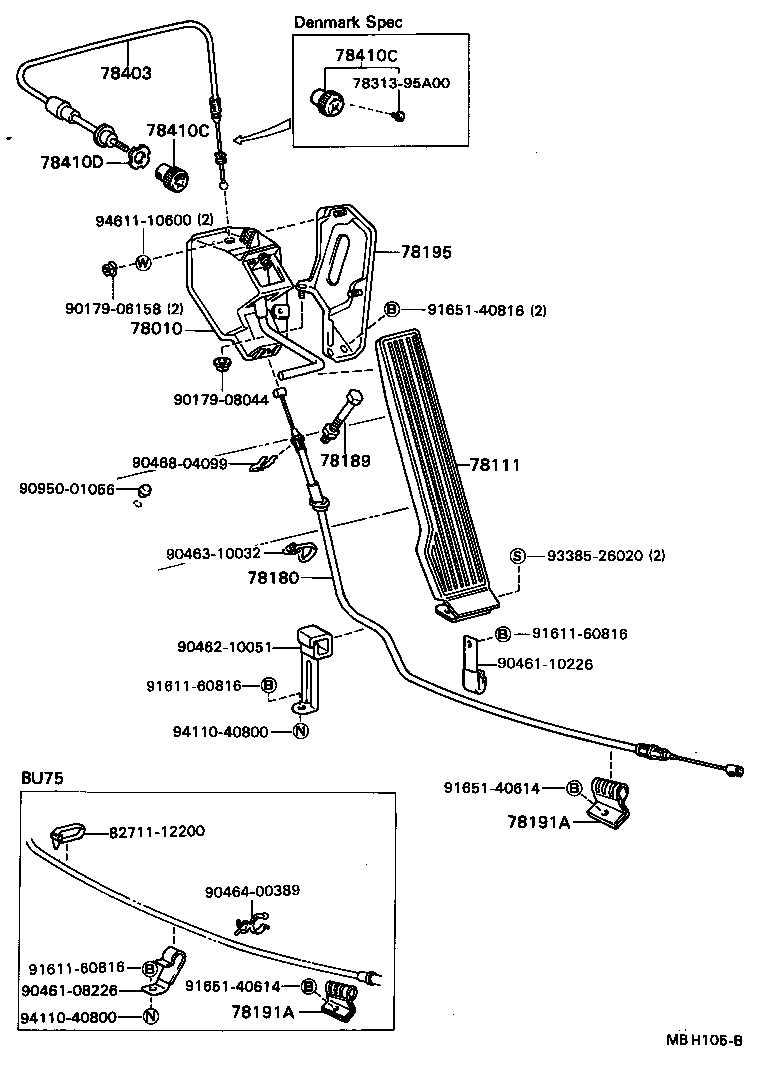

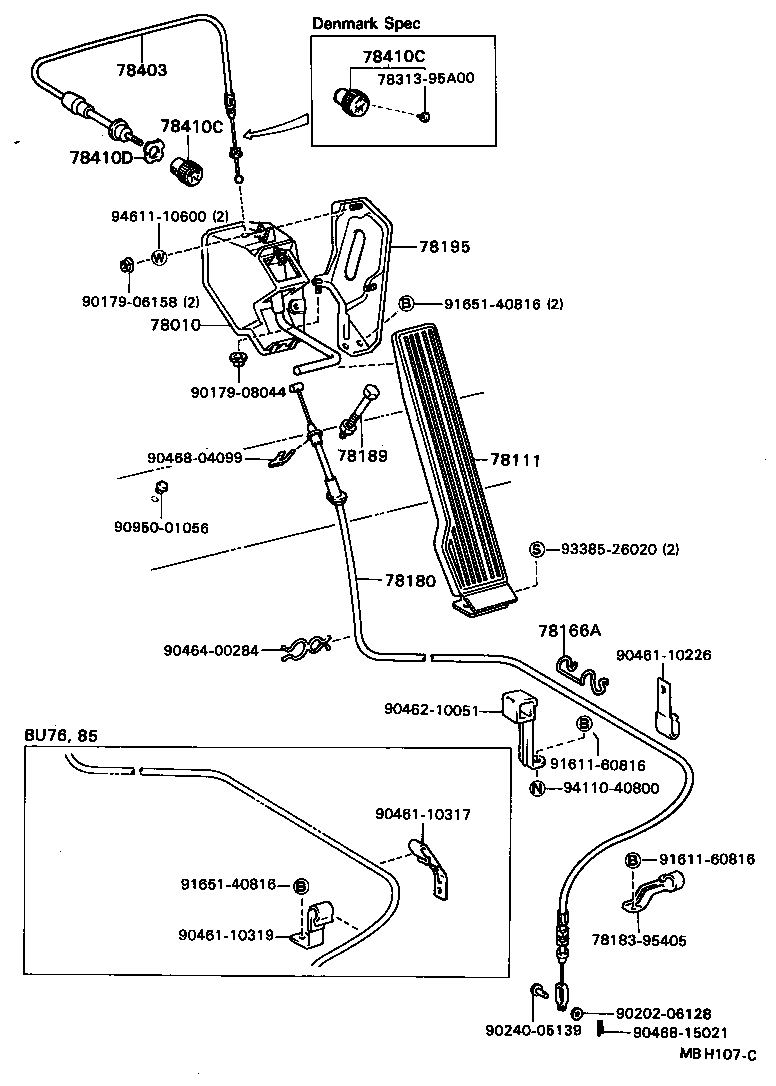

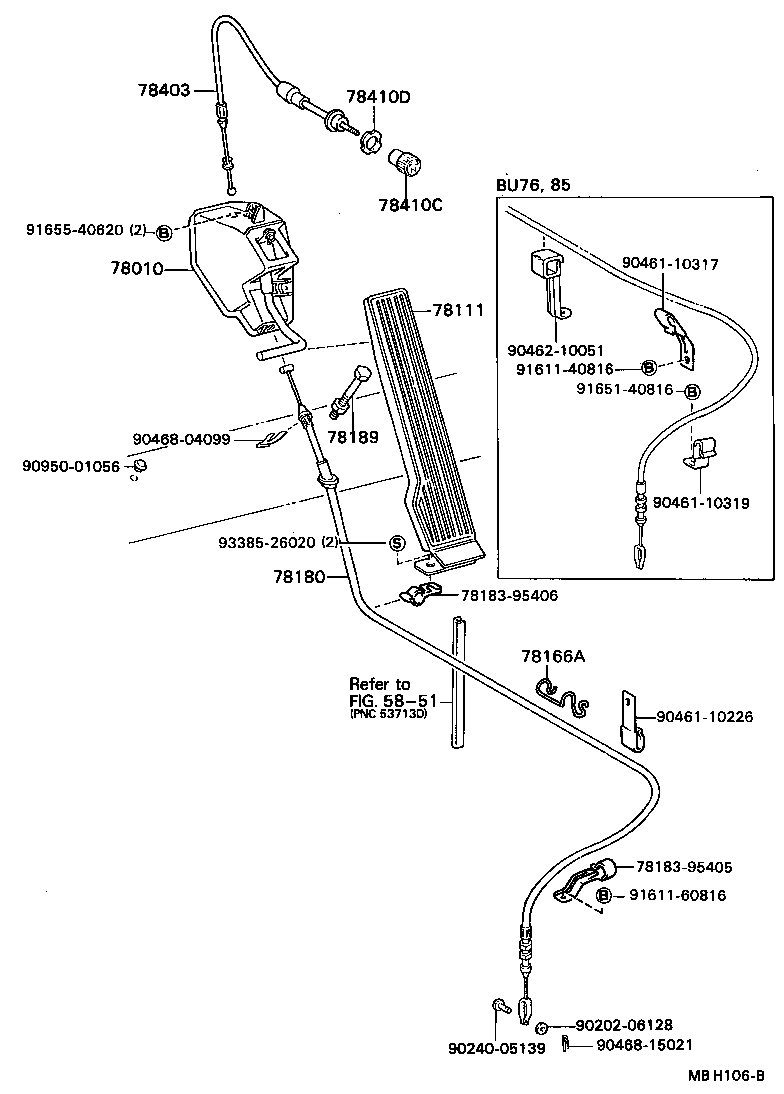

Figure MBH104B MBH104B 1984-09 → — Figure MBH105B MBH105B 1984-09 → — Figure MBH106B MBH106B 1984-09 → — Figure MBH107C MBH107C 1984-09 → —

Part groups

PNCDescription
78010 Link, Accelerator
78111 Pedal, Accelerator
78166A Spring, Clamp, NO.1
78180 Wire Assy, Accelerator
78189 Bolt, Accelerator Pedal Stopper
78191A Clamp (FOR ACCELERATOR WIRE SET)
78195 Bracket, Accelerator Link
78403 Cable Sub-assy, Throttle Control
78410C Knob, Throttle Cable
78410D Nut, Throttle
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
