Toyota DYNA200

1995-05 → 2003-12 · chassis BU10#,11#,14#,21#,22#,YU210,RZU100 · catalogue 751260 · Europe

Discontinued model Data version 2004-06

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

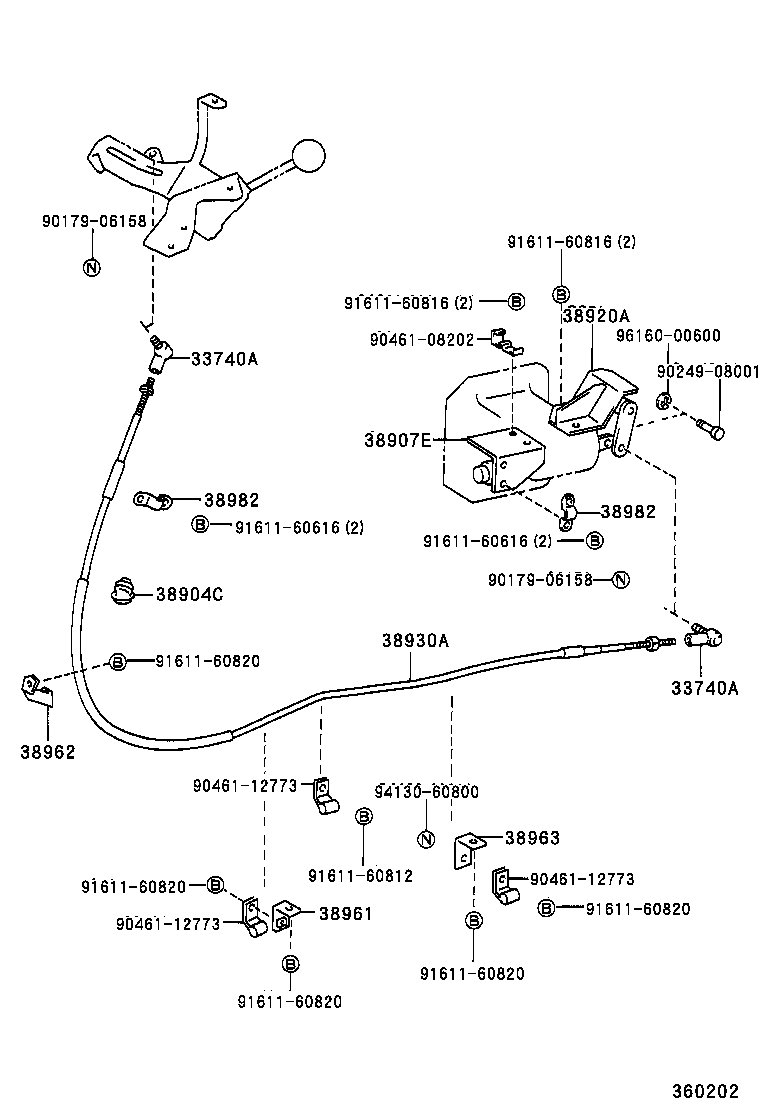

22 parts on this figure

Part number	Description	Fitment	Price
33740A — End Assy, Push-pull Control Cable
33740-96301	End Assy, Push-pull Control Cable 1995-05 → —	BU141 LHD;BU111,112 IV3;BU100,101,140 WT +2	—
33740-96301	End Assy, Push-pull Control Cable 1995-05 → —	BU110,111 CBU	—
38904C — Grommet, Push Pull Cable
90480-22023	Grommet, Push Pull Cable 1995-05 → 1997-08 ended	BU141 LHD;BU111,112 IV3;BU100,101,140 WT +2	—
90480-22023	Grommet, Push Pull Cable 1997-08 → —	BU111,112 IV3;BU101,140 RHD WT +1	—
38907E — Stay Sub-assy, Power Teke-off Control
38907-93115	Stay Sub-assy, Power Teke-off Control 1995-05 → —	BU111,112 IV3	—
38907-93116	Stay Sub-assy, Power Teke-off Control 1995-05 → —	BU141 LHD;BU100,101,140 WT (20T,25T) +1	—
38920A — Lever Assy, Power Take-off Control, NO.1
38920-93107	Lever Assy, Power Take-off Control, NO.1 1995-05 → —	BU111,112 IV3	—
38920-93108	Lever Assy, Power Take-off Control, NO.1 1995-05 → —	BU141 LHD;BU100,101,140 WT (20T,25T) +1	—
38930A — Cable Assy, Push Pull
38930-37010	Cable Assy, Push Pull 1995-05 → —	BU110,111 RHD	—
38930-37060	Cable Assy, Push Pull 1995-05 → —	BU111 LHD CBU	—
38930-93127	Cable Assy, Push Pull 1995-05 → —	BU111,112 IV3	—
38930-93128	Cable Assy, Push Pull 1995-05 → —	BU101,140 RHD WT GEN	—
38930-93129	Cable Assy, Push Pull 1995-05 → —	BU100,101,140,141 LHD WT (20T,25T) +1	—
38961 — Bracket, Cable Clamp, NO.1
38961-37040	Bracket, Cable Clamp, NO.1 1995-05 → —	BU110,111,140 RHD;BU101 RHD WT +1	—
38961-93101	Bracket, Cable Clamp, NO.1 1995-05 → —	BU100,101,140,141 LHD WT (20T,25T) +1	—
38962 — Bracket, Cable Clamp, NO.2
38962-37010	Bracket, Cable Clamp, NO.2 1995-05 → —	BU110,111,140 RHD;BU101 RHD WT +1	—
38962-93103	Bracket, Cable Clamp, NO.2 1995-05 → —	BU100,101,140,141 LHD WT (20T,25T) +1	—
38963 — Bracket, Cable Clamp, NO.3
38963-37010	Bracket, Cable Clamp, NO.3 1995-05 → —	BU111,112 20T IV3	—
38963-37010	Bracket, Cable Clamp, NO.3 1995-05 → —	BU110,111 CBU	—
38963-93301	Bracket, Cable Clamp, NO.3 1995-05 → —	BU141 LHD;BU100,101,140 WT (20T,25T) +1	—
38982 — Clamp, Push Pull Cable, NO.1
38982-96302	Clamp, Push Pull Cable, NO.1 1995-05 → —	BU110,111 CBU	—
38982-96302	Clamp, Push Pull Cable, NO.1 1995-05 → —	BU141 LHD;BU111,112 IV3;BU100,101,140 WT +2	—

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
