Toyota DYNA200
1995-05 → 2003-12 · chassis BU10#,11#,14#,21#,22#,YU210,RZU100 · catalogue 751260 · Europe
Discontinued model
Data version 2004-06

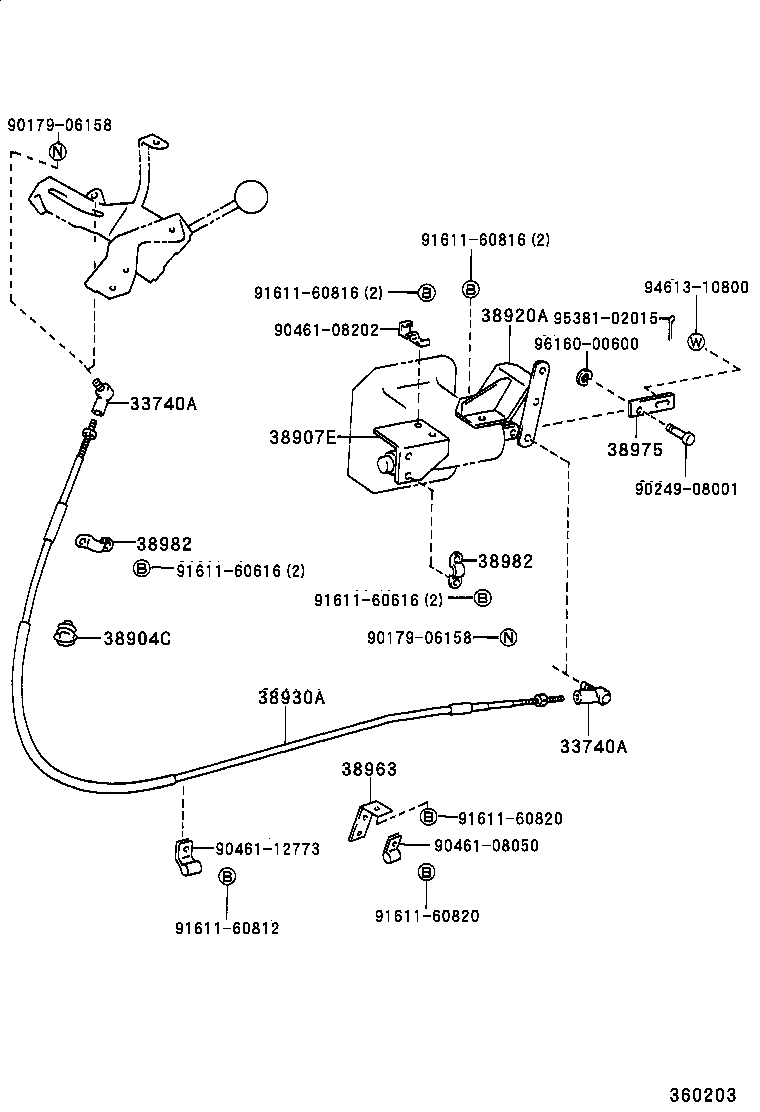

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 33740A — End Assy, Push-pull Control Cable | ||||
| 33740-96301 |
End Assy, Push-pull Control Cable
1995-05 → —
|
BU141 LHD;BU111,112 IV3;BU100,101,140 WT +2 | — | |
| 33740-96301 |
End Assy, Push-pull Control Cable
1995-05 → —
|
BU110,111 CBU | — | |
| 38904C — Grommet, Push Pull Cable | ||||
| 90480-22023 |
Grommet, Push Pull Cable
1995-05 → 1997-08
ended
|
BU141 LHD;BU111,112 IV3;BU100,101,140 WT +2 | — | |
| 90480-22023 |
Grommet, Push Pull Cable
1997-08 → —
|
BU111,112 IV3;BU101,140 RHD WT +1 | — | |
| 38907E — Stay Sub-assy, Power Teke-off Control | ||||
| 38907-93115 |
Stay Sub-assy, Power Teke-off Control
1995-05 → —
|
BU111,112 IV3 | — | |
| 38907-93116 |
Stay Sub-assy, Power Teke-off Control
1995-05 → —
|
BU141 LHD;BU100,101,140 WT (20T,25T) +1 | — | |
| 38920A — Lever Assy, Power Take-off Control, NO.1 | ||||
| 38920-93107 |
Lever Assy, Power Take-off Control, NO.1
1995-05 → —
|
BU111,112 IV3 | — | |
| 38920-93108 |
Lever Assy, Power Take-off Control, NO.1
1995-05 → —
|
BU141 LHD;BU100,101,140 WT (20T,25T) +1 | — | |
| 38930A — Cable Assy, Push Pull | ||||
| 38930-37010 |
Cable Assy, Push Pull
1995-05 → —
|
BU110,111 RHD | — | |
| 38930-37060 |
Cable Assy, Push Pull
1995-05 → —
|
BU111 LHD CBU | — | |
| 38930-93127 |
Cable Assy, Push Pull
1995-05 → —
|
BU111,112 IV3 | — | |
| 38930-93128 |
Cable Assy, Push Pull
1995-05 → —
|
BU101,140 RHD WT GEN | — | |
| 38930-93129 |
Cable Assy, Push Pull
1995-05 → —
|
BU100,101,140,141 LHD WT (20T,25T) +1 | — | |
| 38963 — Bracket, Cable Clamp, NO.3 | ||||
| 38963-37010 |
Bracket, Cable Clamp, NO.3
1995-05 → —
|
BU111,112 20T IV3 | — | |
| 38963-37010 |
Bracket, Cable Clamp, NO.3
1995-05 → —
|
BU110,111 CBU | — | |
| 38963-93301 |
Bracket, Cable Clamp, NO.3
1995-05 → —
|
BU141 LHD;BU100,101,140 WT (20T,25T) +1 | — | |
| 38975 — End, Power Take-off Control | ||||
| 38975-93101 |
End, Power Take-off Control
1995-05 → —
|
BU111,112 IV3 | — | |
| 38982 — Clamp, Push Pull Cable, NO.1 | ||||
| 38982-96302 |
Clamp, Push Pull Cable, NO.1
1995-05 → —
|
BU110,111 CBU | — | |
| 38982-96302 |
Clamp, Push Pull Cable, NO.1
1995-05 → —
|
BU141 LHD;BU111,112 IV3;BU100,101,140 WT +2 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
