Toyota DYNA200

1995-05 → 2003-12 · chassis BU10#,11#,14#,21#,22#,YU210,RZU100 · catalogue 751260 · Europe

Discontinued model Data version 2004-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 12 illustrations

Illustrations

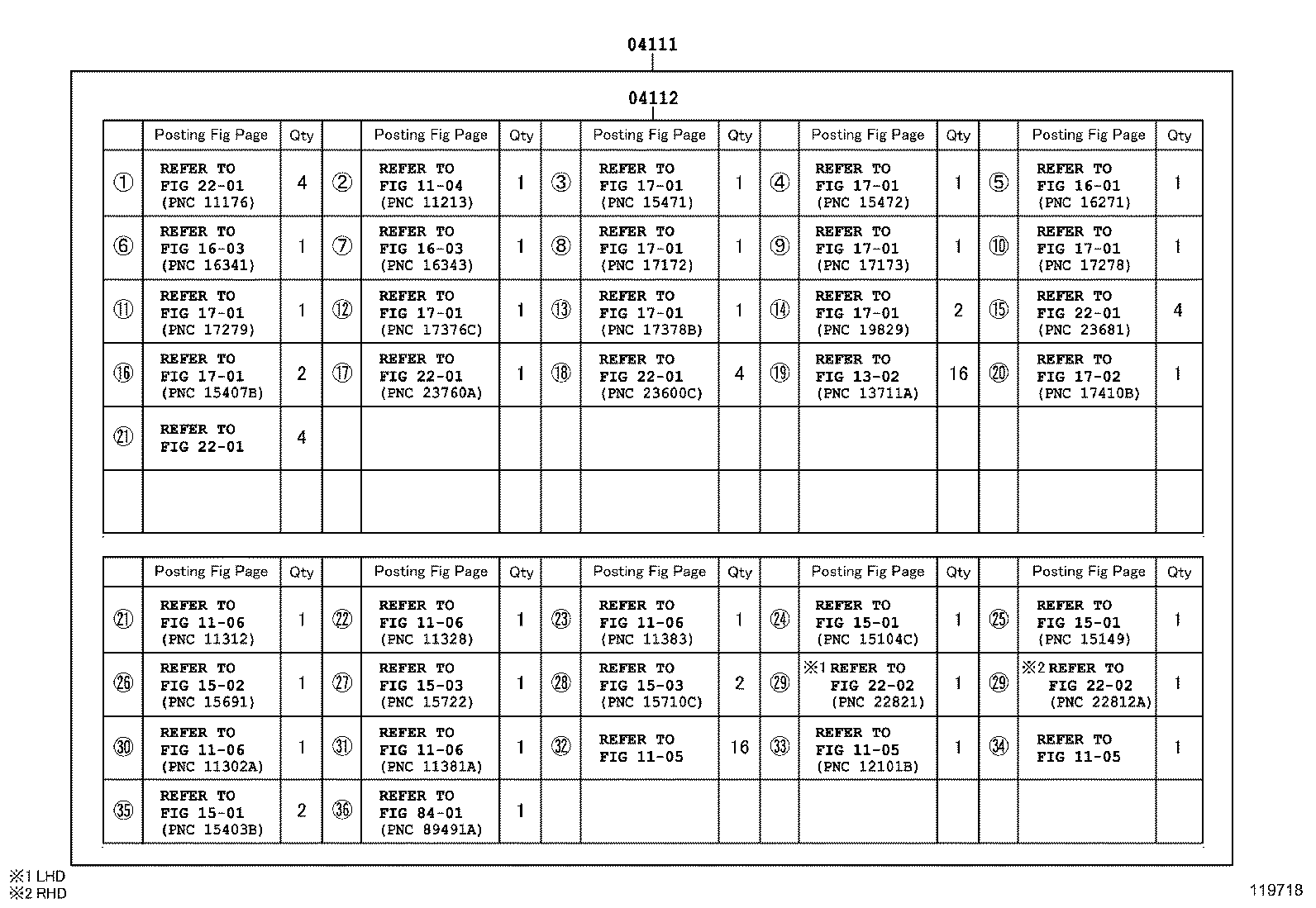

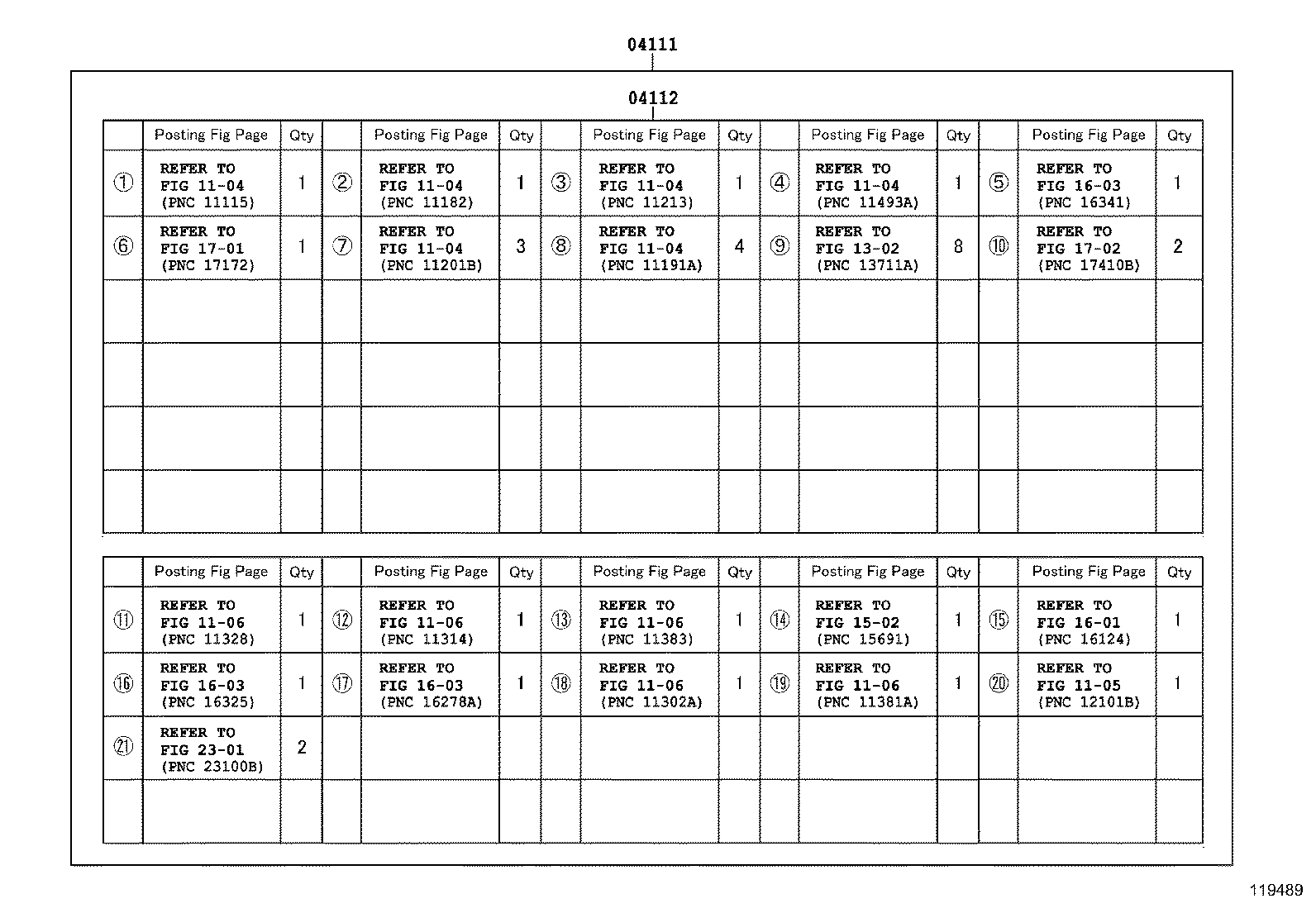

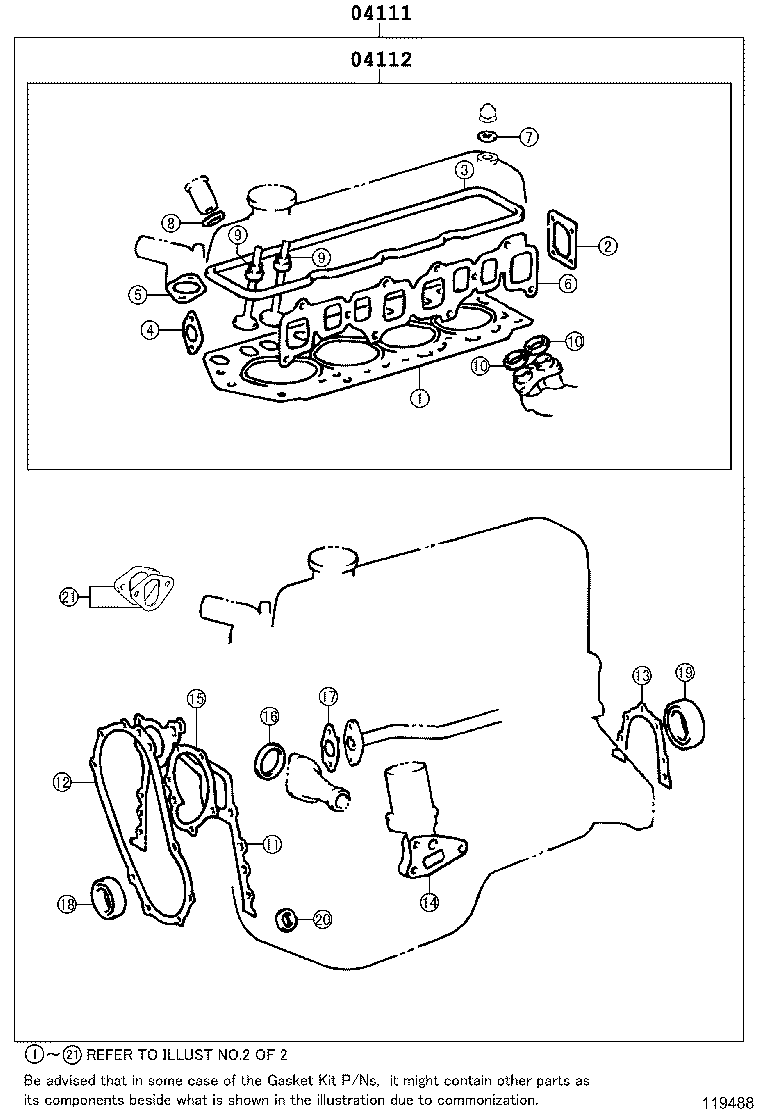

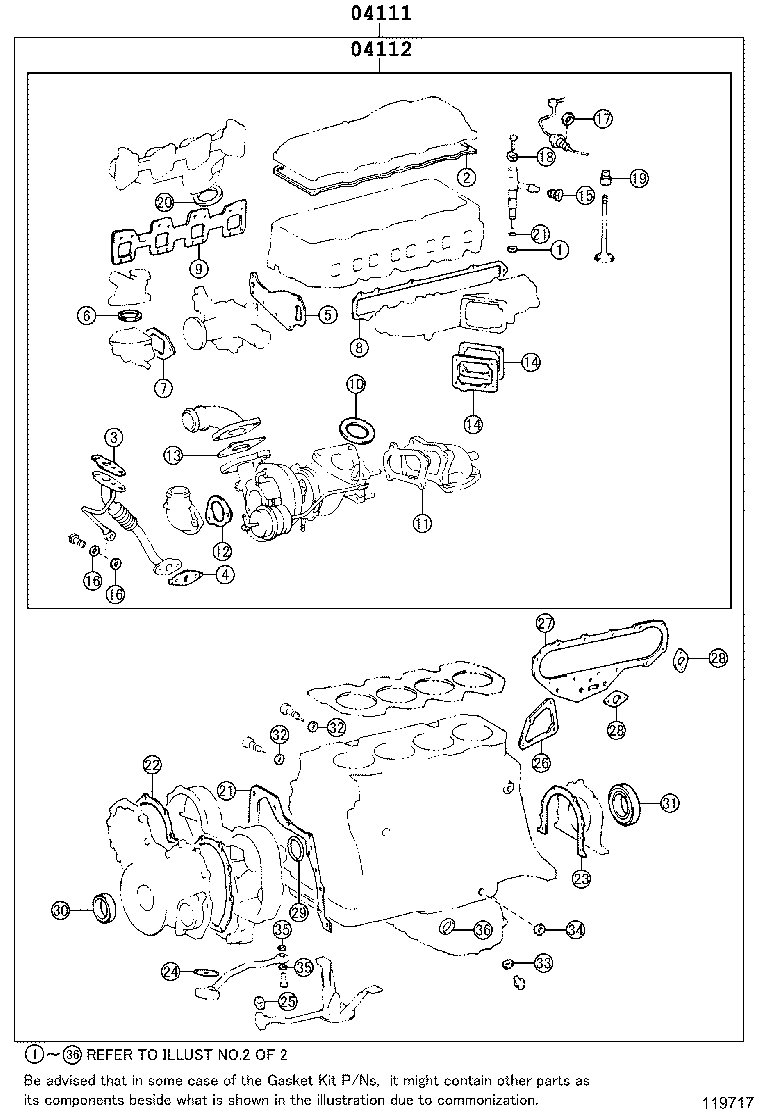

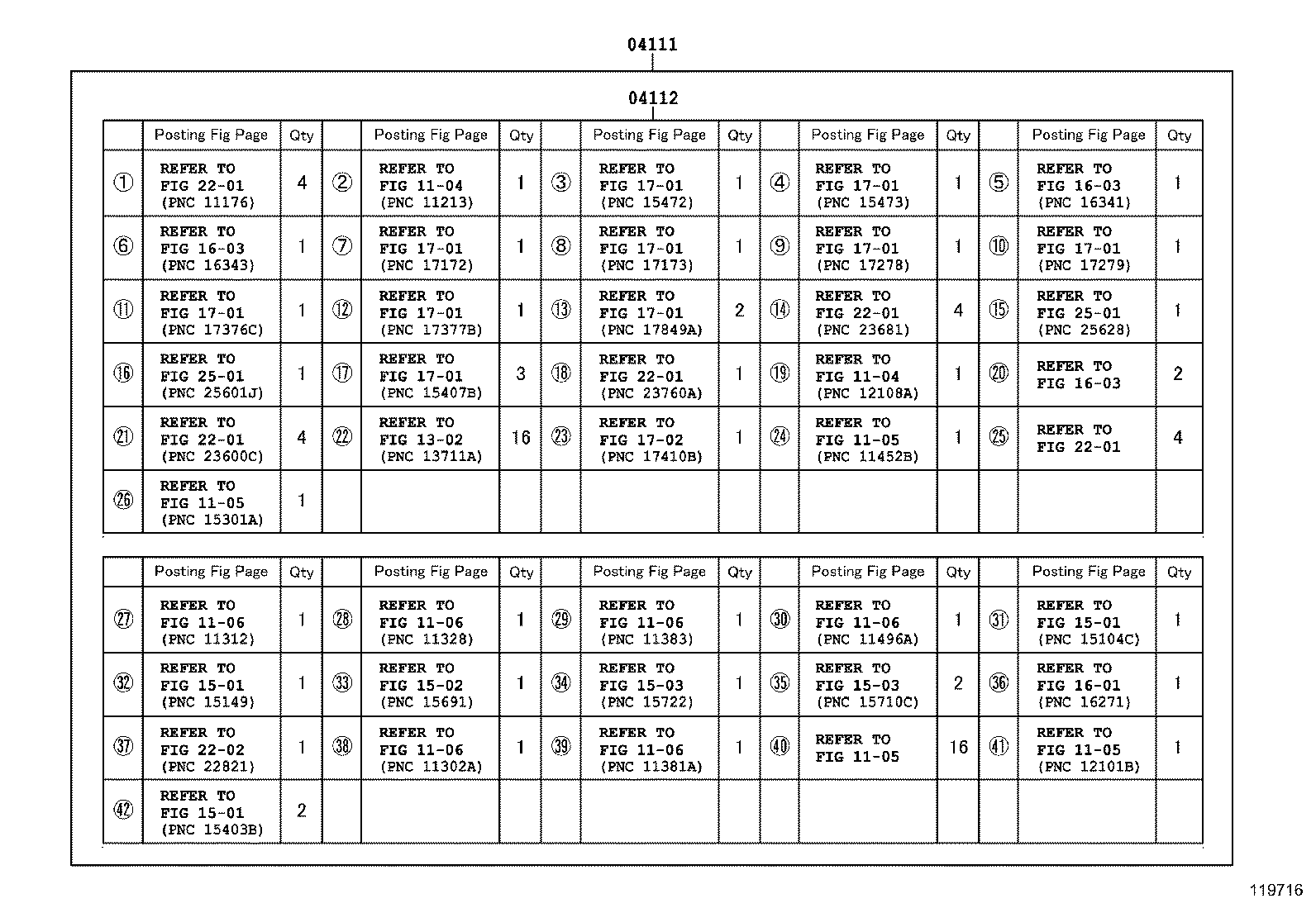

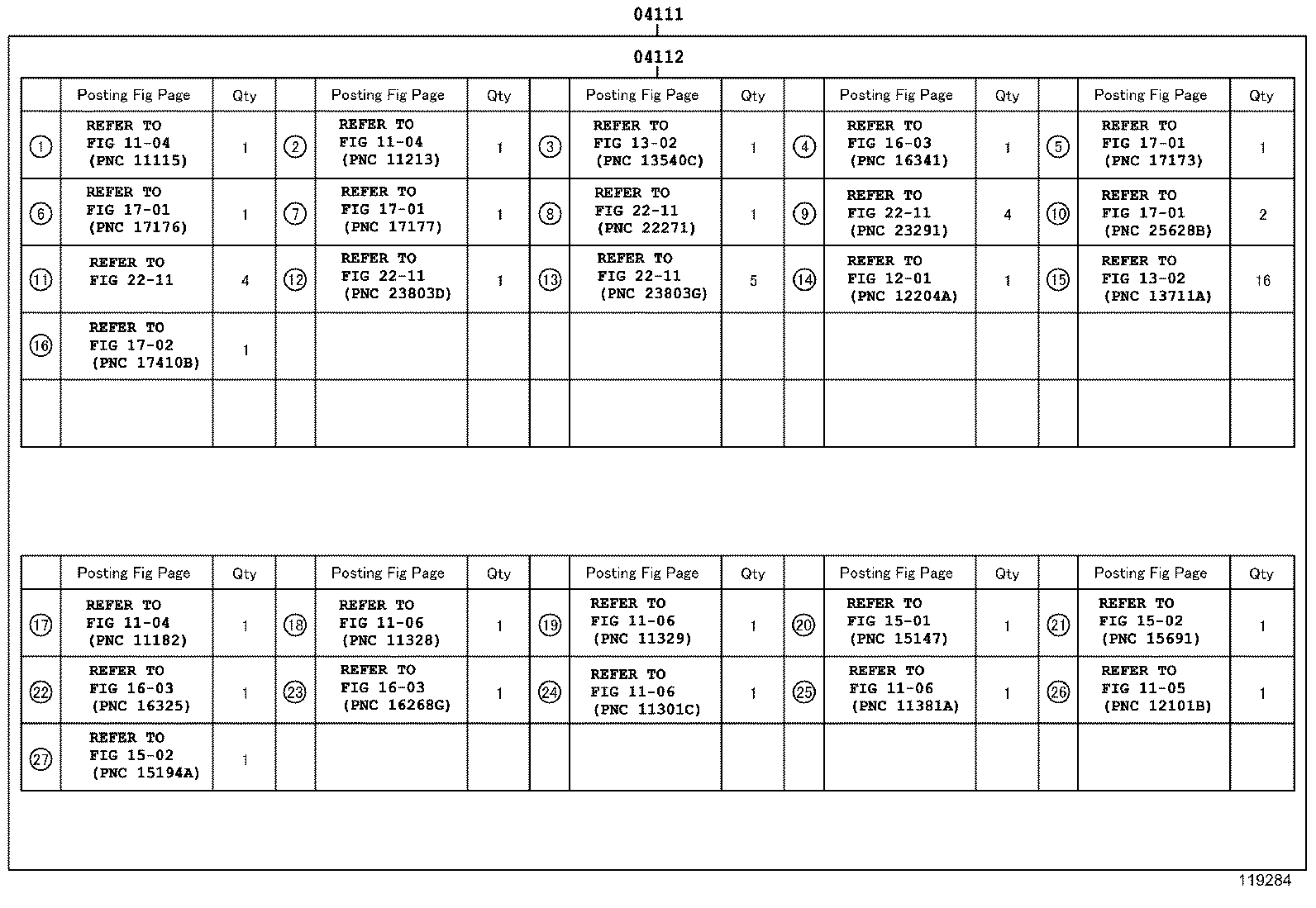

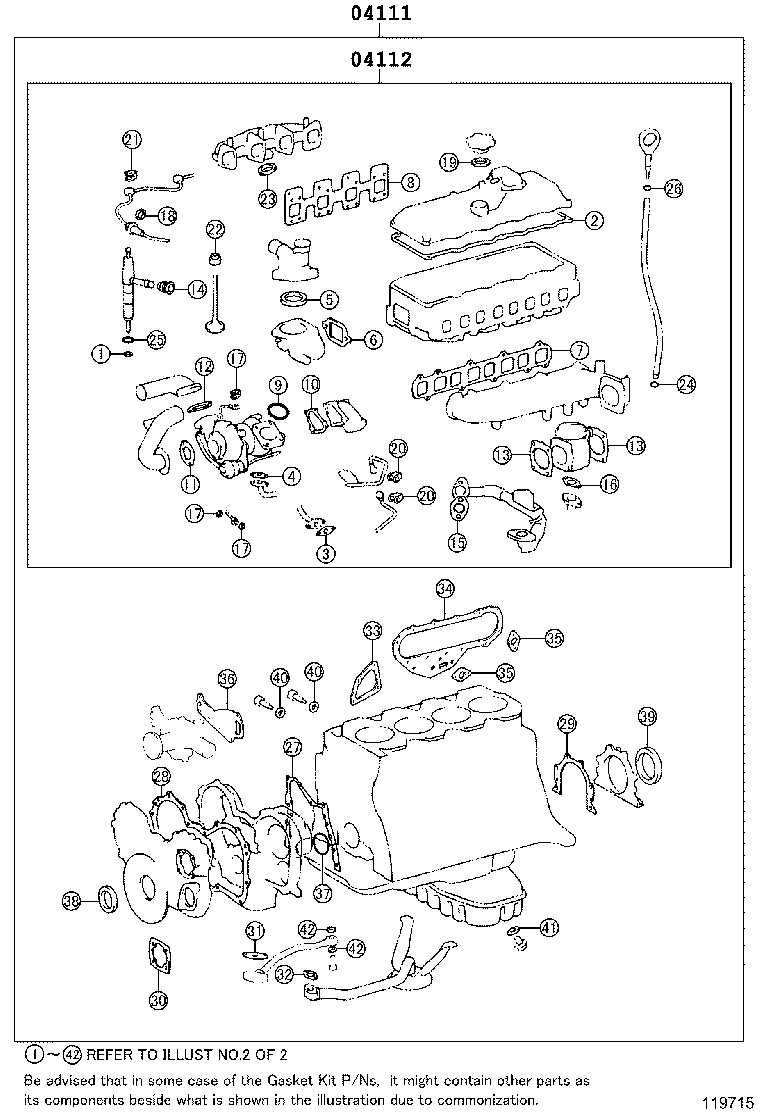

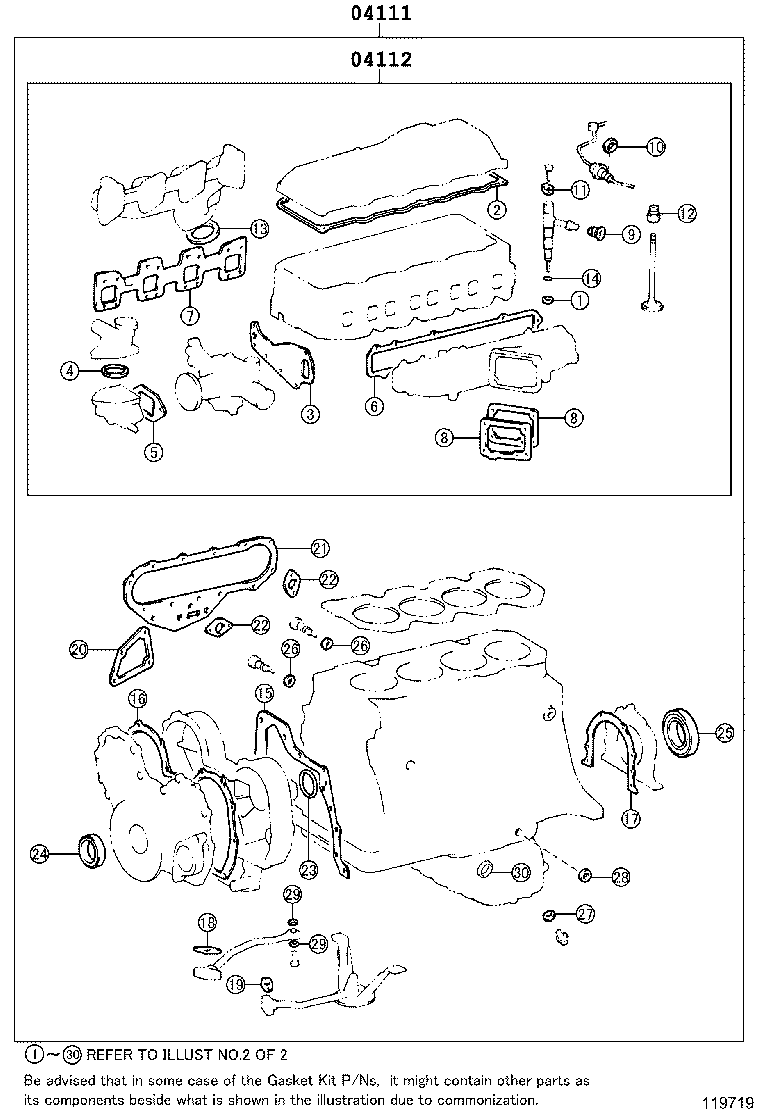

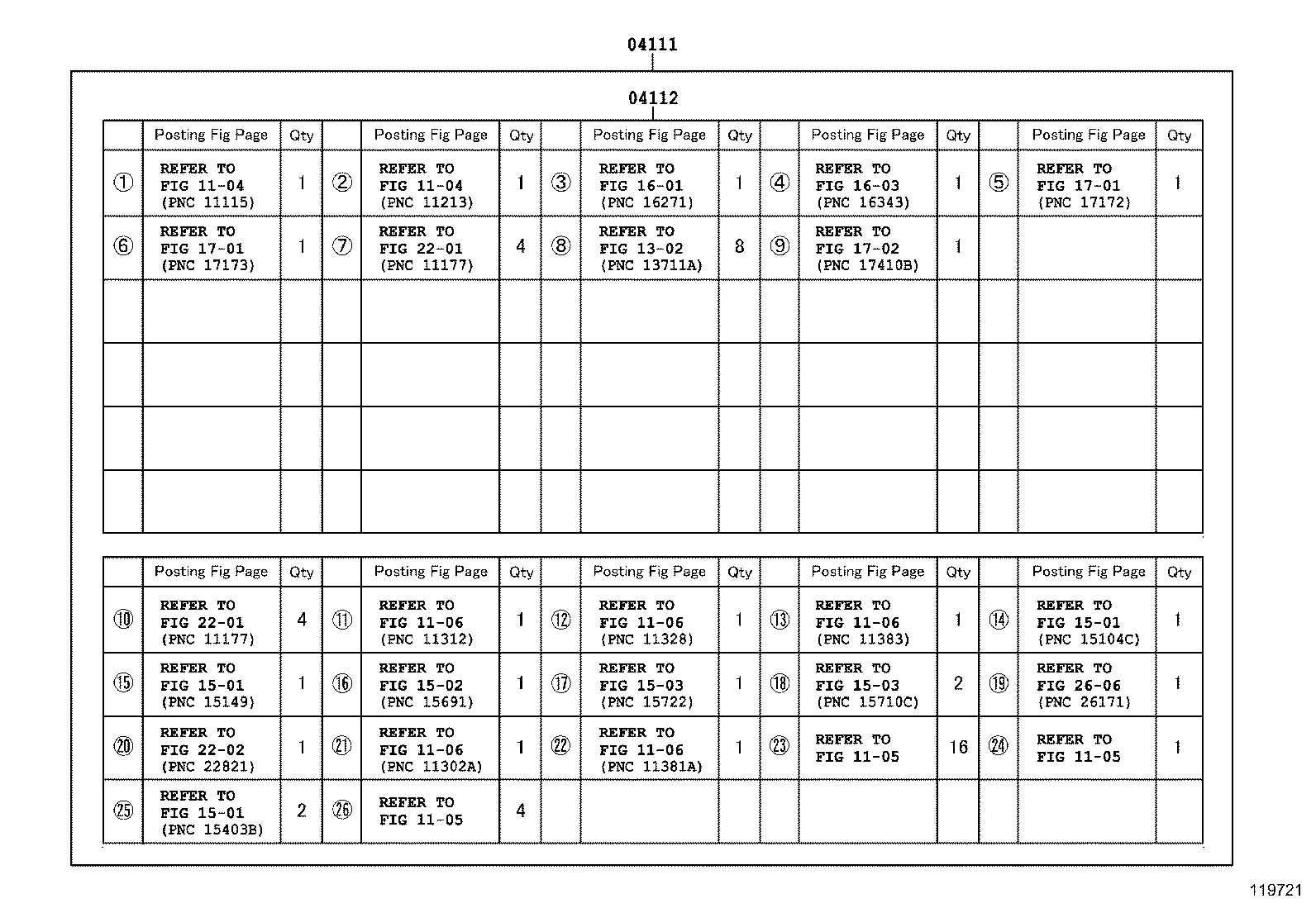

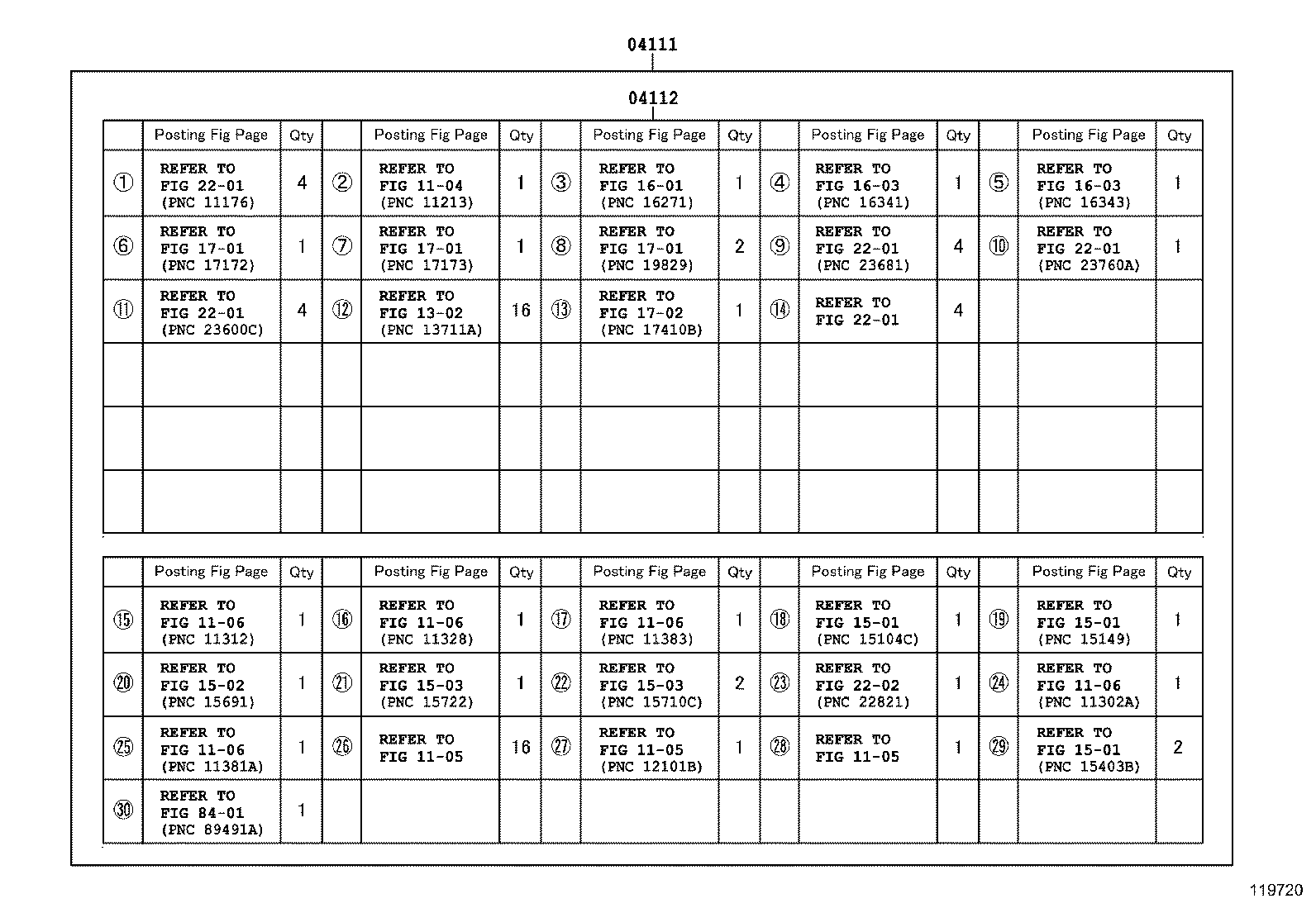

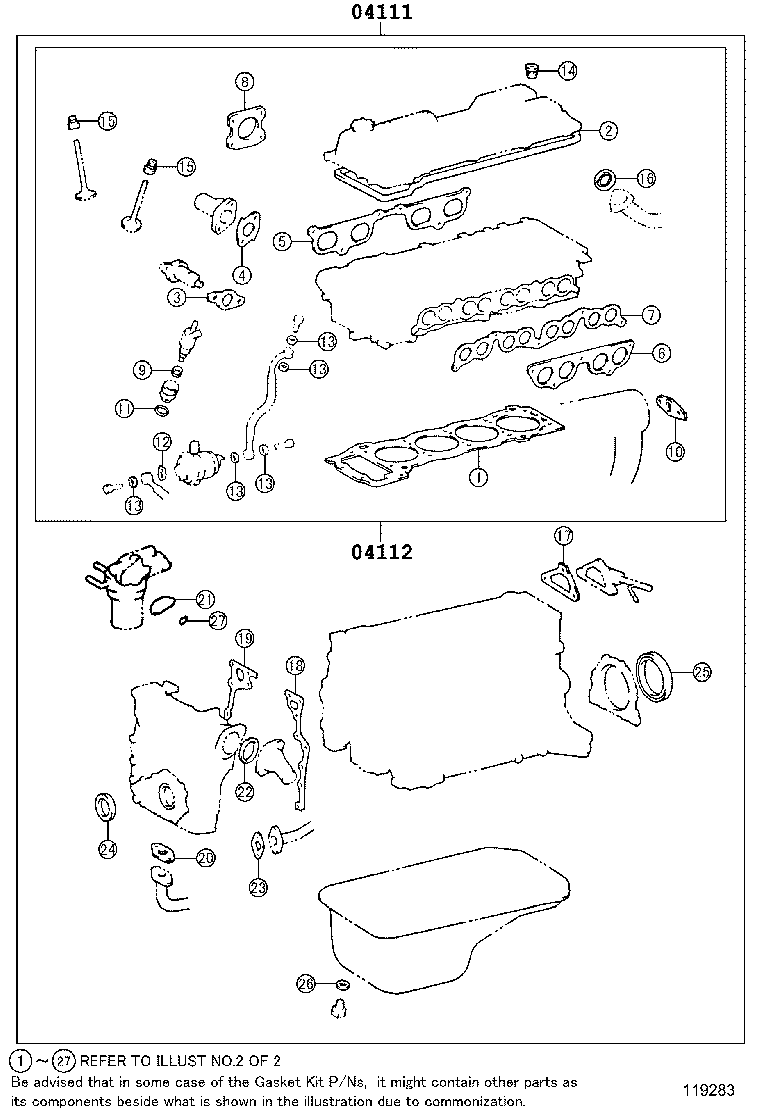

Figure 111321A 111321A 1995-05 → — Figure 119721 119721 1995-05 → — Figure 119719 119719 1995-05 → — Figure 119720 119720 1995-05 → — Figure 119717 119717 1995-05 → — Figure 119718 119718 1995-05 → — Figure 119715 119715 1999-08 → — Figure 119716 119716 1999-08 → — Figure 119283 119283 1997-03 → — Figure 119284 119284 1997-03 → — Figure 119488 119488 1995-05 → — Figure 119489 119489 1995-05 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
