Toyota DYNA200
1995-05 → 2003-12 · chassis BU10#,11#,14#,21#,22#,YU210,RZU100 · catalogue 751260 · Europe
Discontinued model
Data version 2004-06

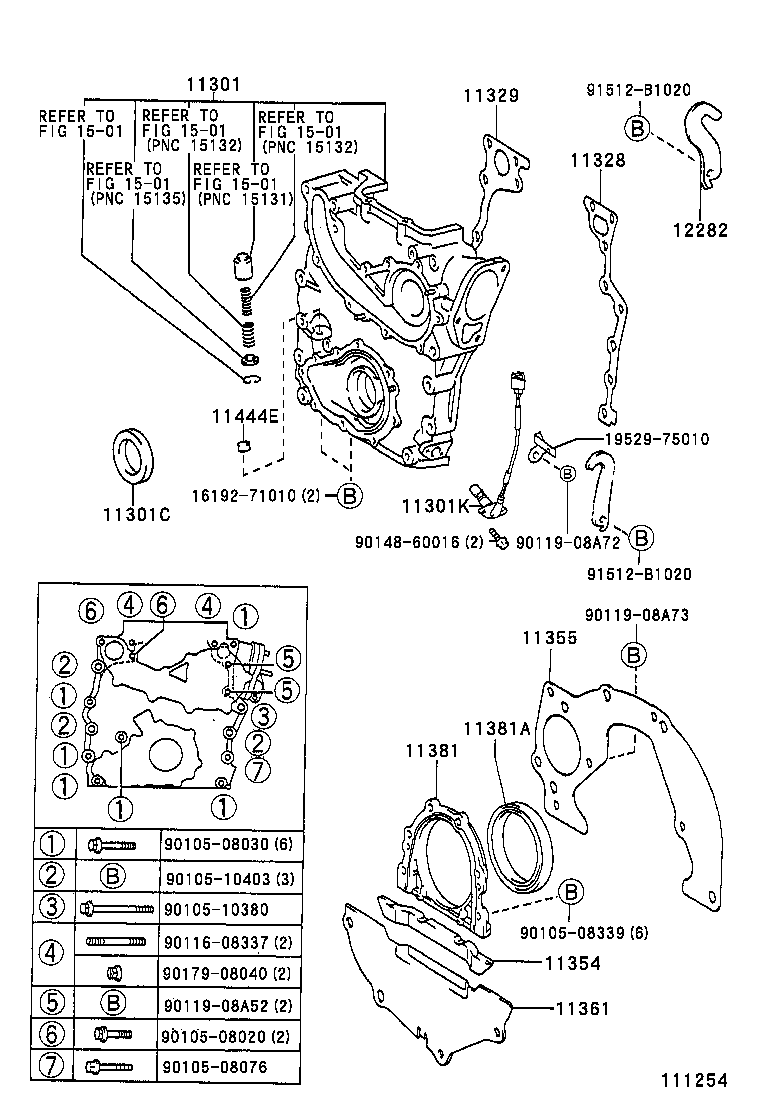

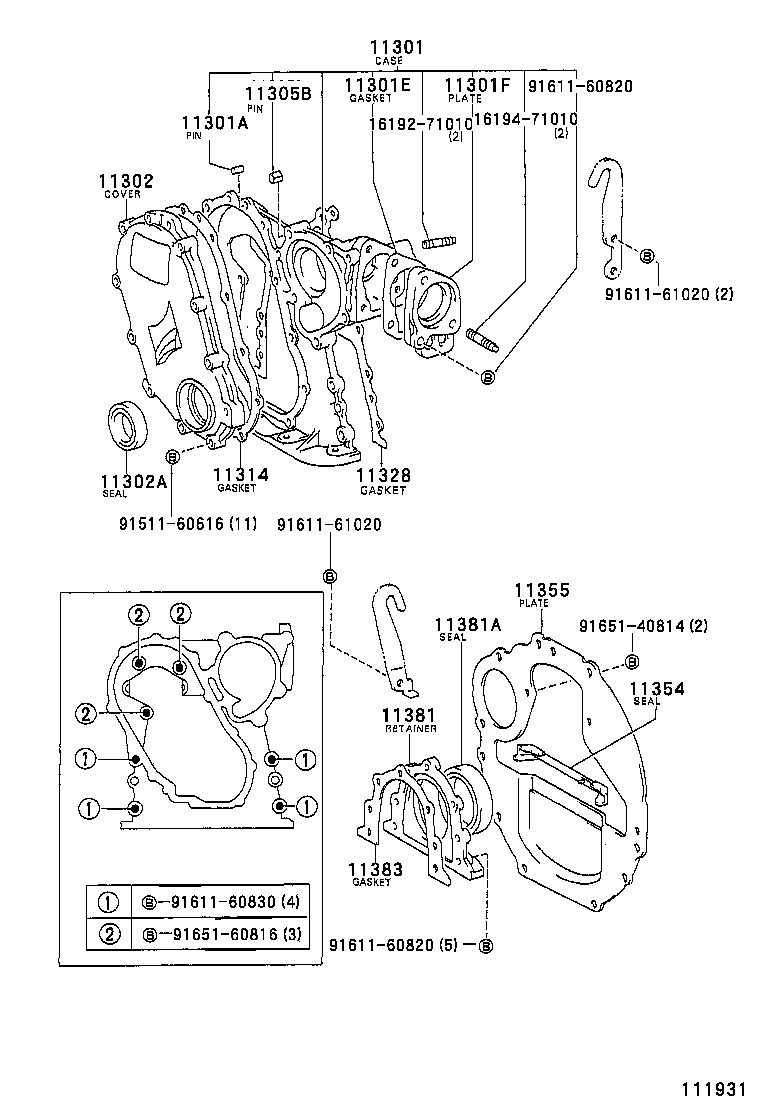

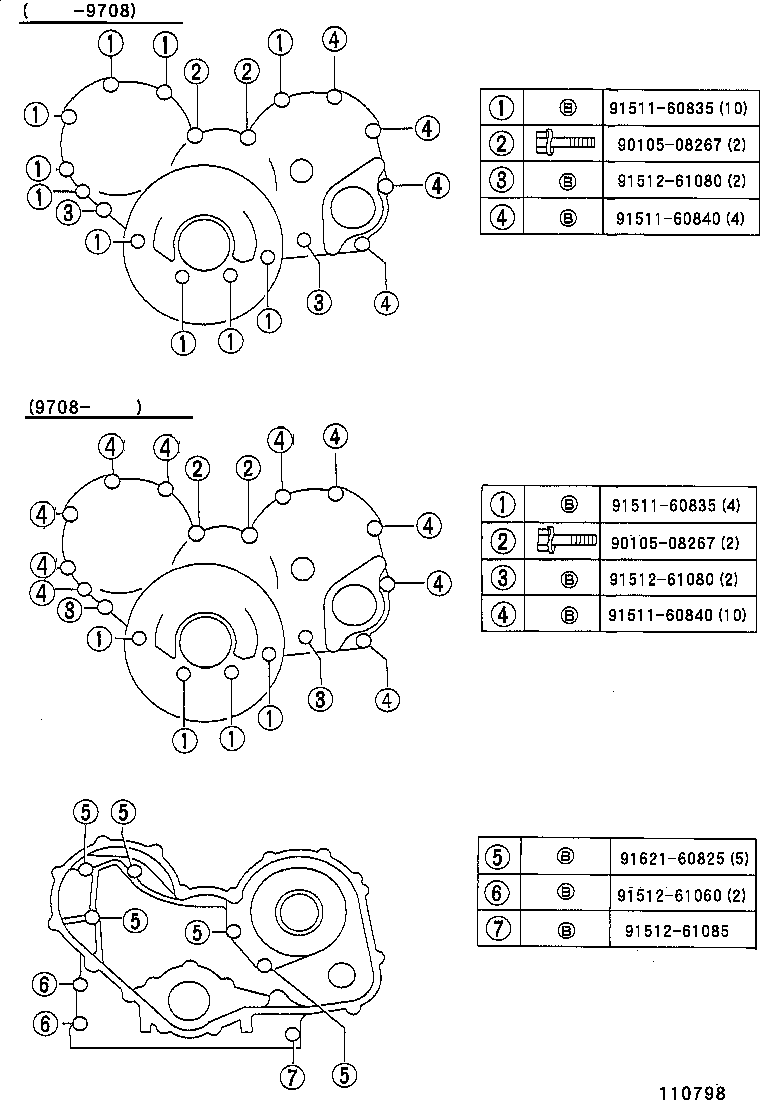

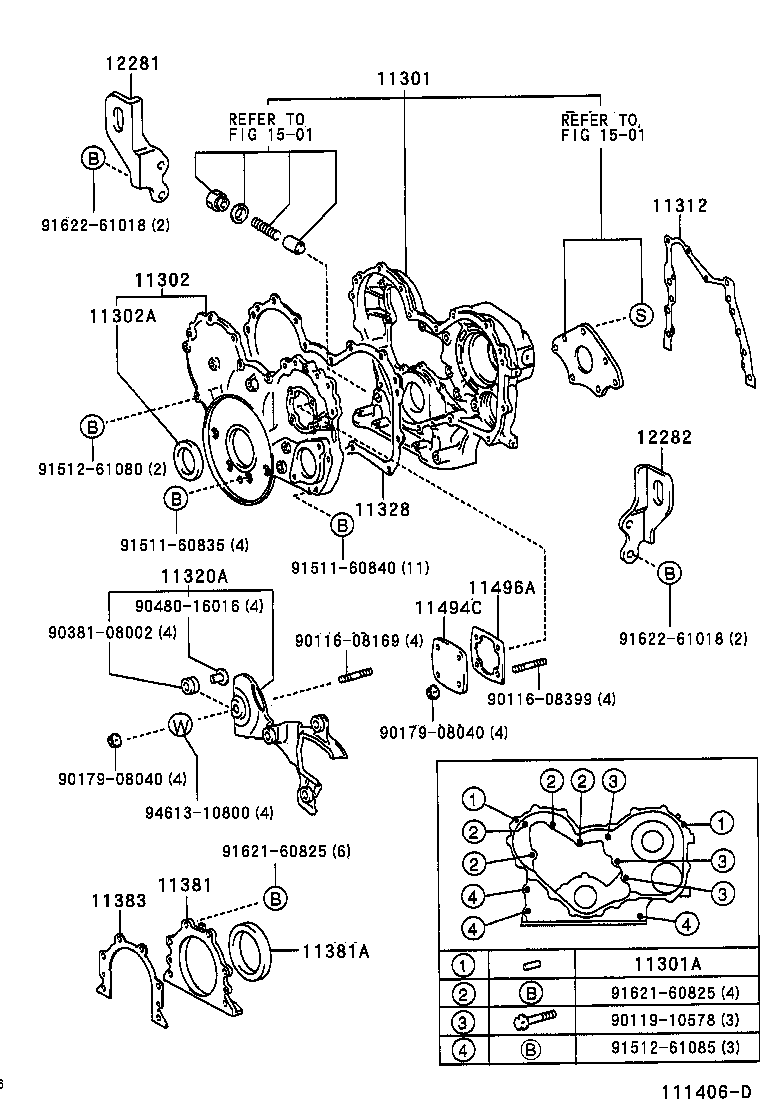

Timing Gear Cover & Rear End Plate
29 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 11301 | Case Sub-assy, Timing Gear |
| 11301A | Pin, Straight(FOR TIMING GEAR CASE) |
| 11301B | Bolt,Stud(FOR TIMING GEAR CASE) |
| 11301C | Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE) |
| 11301E | Gasket, Thermostat Guide |
| 11301F | Plate, Water Pump Thermostat Guide |
| 11301K | Sensor, Crank Position |
| 11302 | Cover Sub-assy, Timing Chain OR Belt |
| 11302A | Seal, Oil(FOR TIMING CHAIN OR BELT COVER) |
| 11305B | Pin, Ring(FOR OIL SEAL RETAINER, NO.2) |
| 11312 | Gasket, Front End Plate |
| 11314 | Gasket, Timing Chain NO.2 Cover |
| 11320A | Cover Assy, Timing Gear, NO.2 |
| 11328 | Gasket, Timing Gear OR Chain Cover |
| 11329 | Gasket, Timing Gear Rear Cover |
| 11336A | Insulator, Timing Gear Cover |
| 11345 | Bearing, Injection Pump Gear Thrust |
| 11354 | Seal, Flywheel Housing Dust |
| 11355 | Plate, Rear End |
| 11361 | Cover, Flywheel Housing Under |
| 11381 | Retainer, Engine Rear Oil Seal |
| 11381A | Seal, Engine Rear Oil |
| 11383 | Gasket, Engine Rear Oil Seal Retainer |
| 11444E | Plug, Hole |
| 11494C | Plate, Oil Hole Cover |
| 11496A | Gasket, Oil Hole Cover |
| 12281 | Hanger, Engine, NO.1 |
| 12282 | Hanger, Engine, NO.2 |
| 21928C | Support, Throttle Wire |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
