Toyota DYNA200

1995-05 → 2003-12 · chassis BU10#,11#,14#,21#,22#,YU210,RZU100 · catalogue 751260 · Europe

Discontinued model Data version 2004-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

14 part groups · 4 illustrations

Illustrations

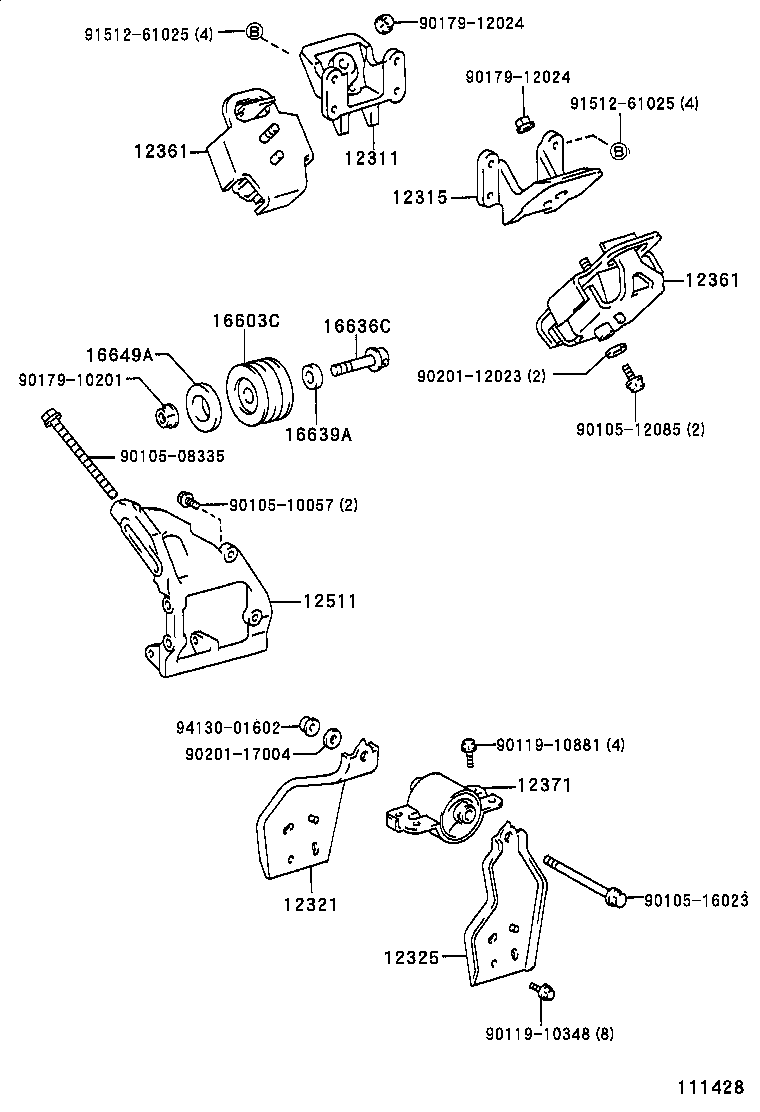

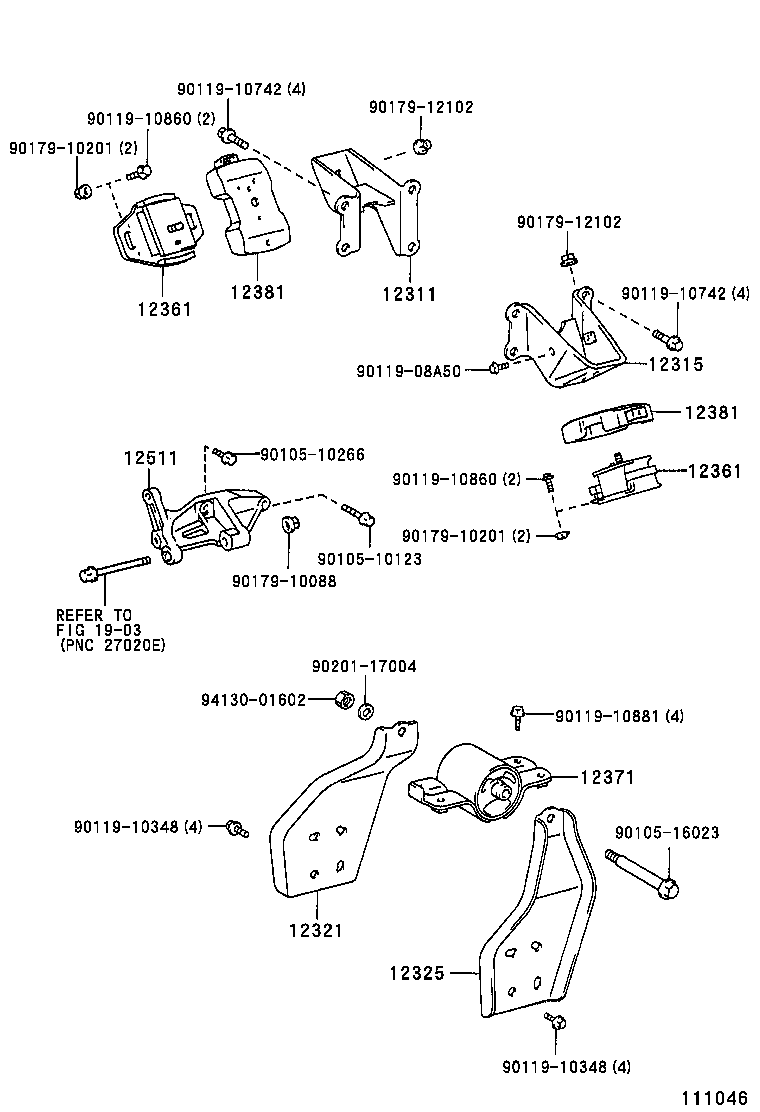

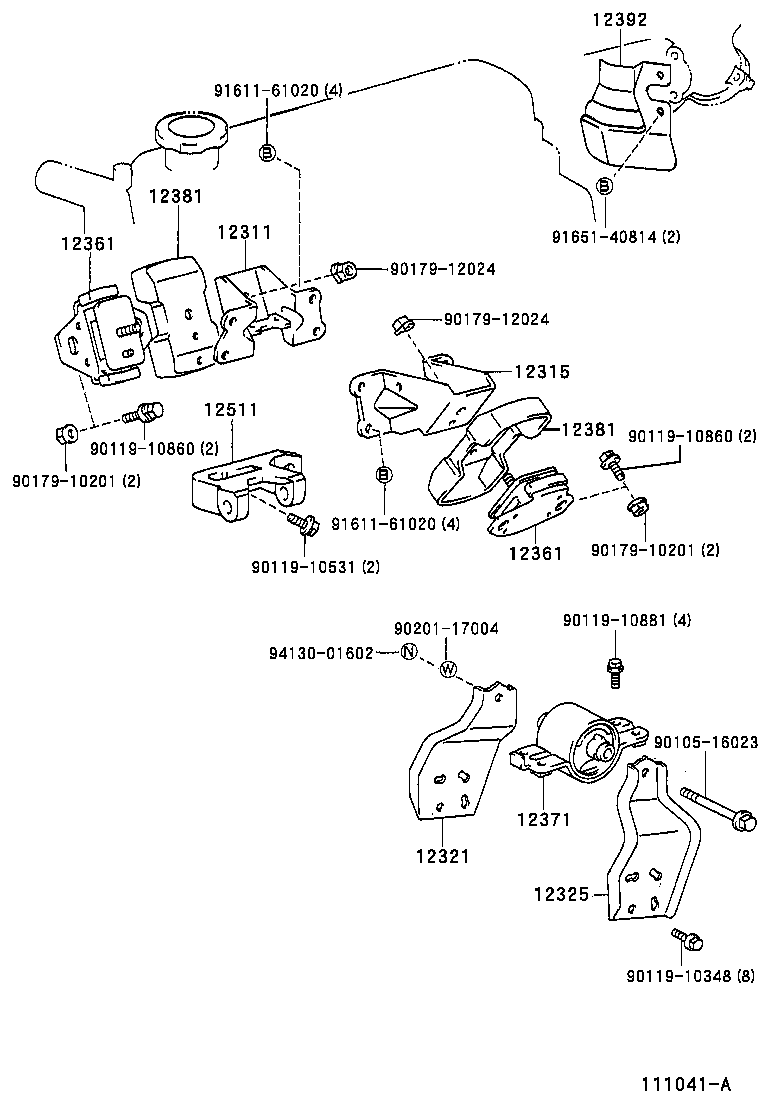

Figure 110600B 110600B 1995-05 → — Figure 111428 111428 1999-08 → — Figure 111046A 111046A 1997-03 → — Figure 111041A 111041A 1995-05 → —

Part groups

PNCDescription
12311 Bracket, Engine Mounting, Front NO.1 RH
12315 Bracket, Engine Mounting, Front NO.1 LH
12321 Bracket, Engine Mounting, Rear, NO.1
12325 Bracket, Engine Mounting, NO.3
12361 Insulator, Engine Mounting, Front
12371 Insulator, Engine Mounting, Rear NO.1
12381 Stabilizer, Engine Mounting
12392 Insulator, Engine Mounting Heat, Front LH
12501 Bracket Sub-assy, Alternator
12511 Bracket, Alternator, NO.1
16603C Pulley Sub-assy, Idler
16636C Shaft, Idler Pulley, NO.1
16639A Spacer, Idler Pulley
16649A Plate, Idler Pulley Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
