Toyota DYNA200

1995-05 → 2003-12 · chassis BU10#,11#,14#,21#,22#,YU210,RZU100 · catalogue 751260 · Europe

Discontinued model Data version 2004-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Injection Pump Assembly

20 part groups · 9 illustrations

Illustrations

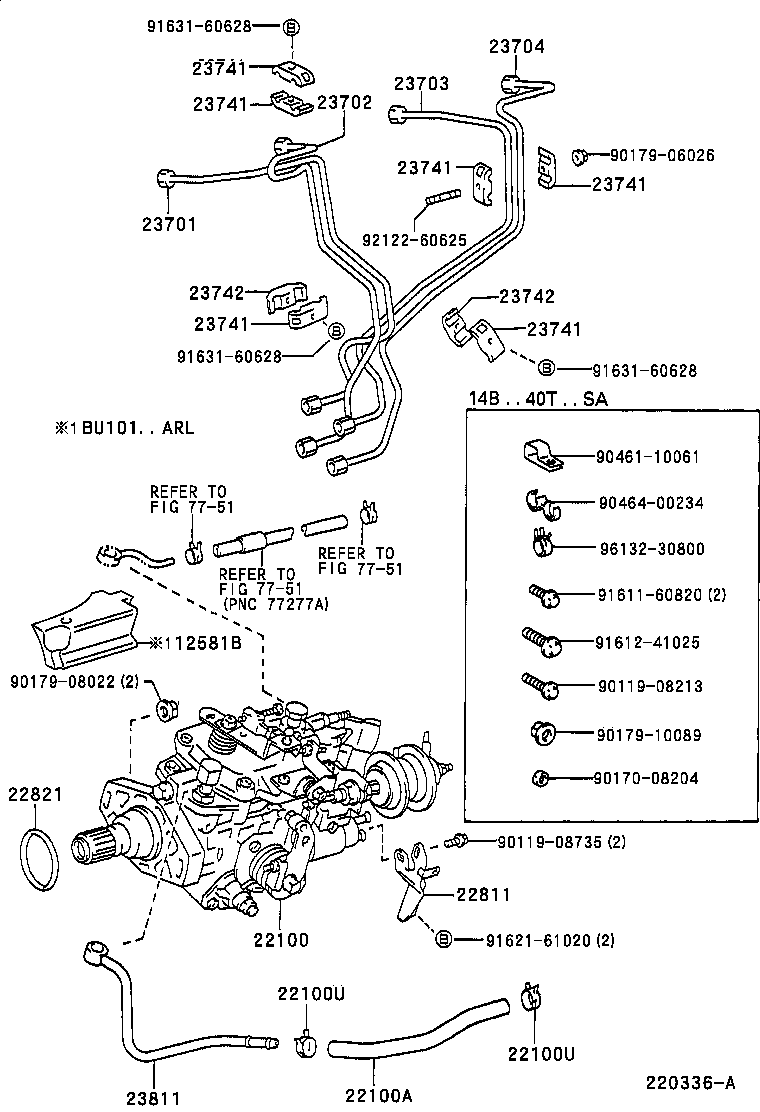

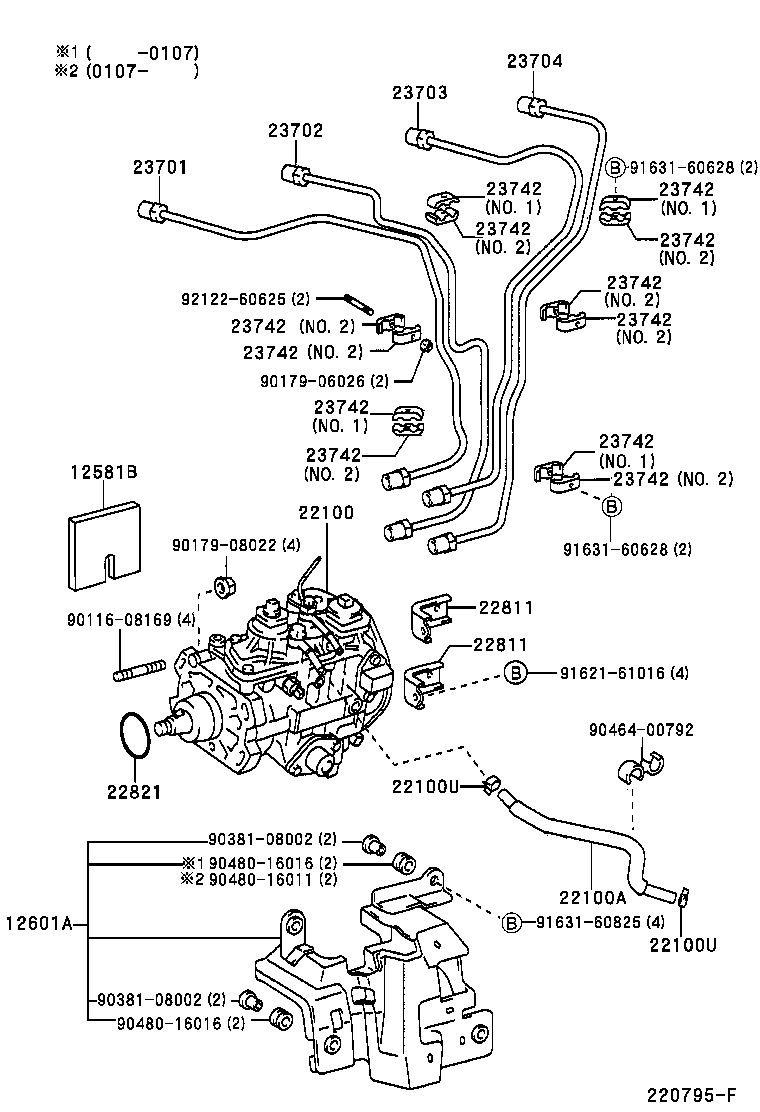

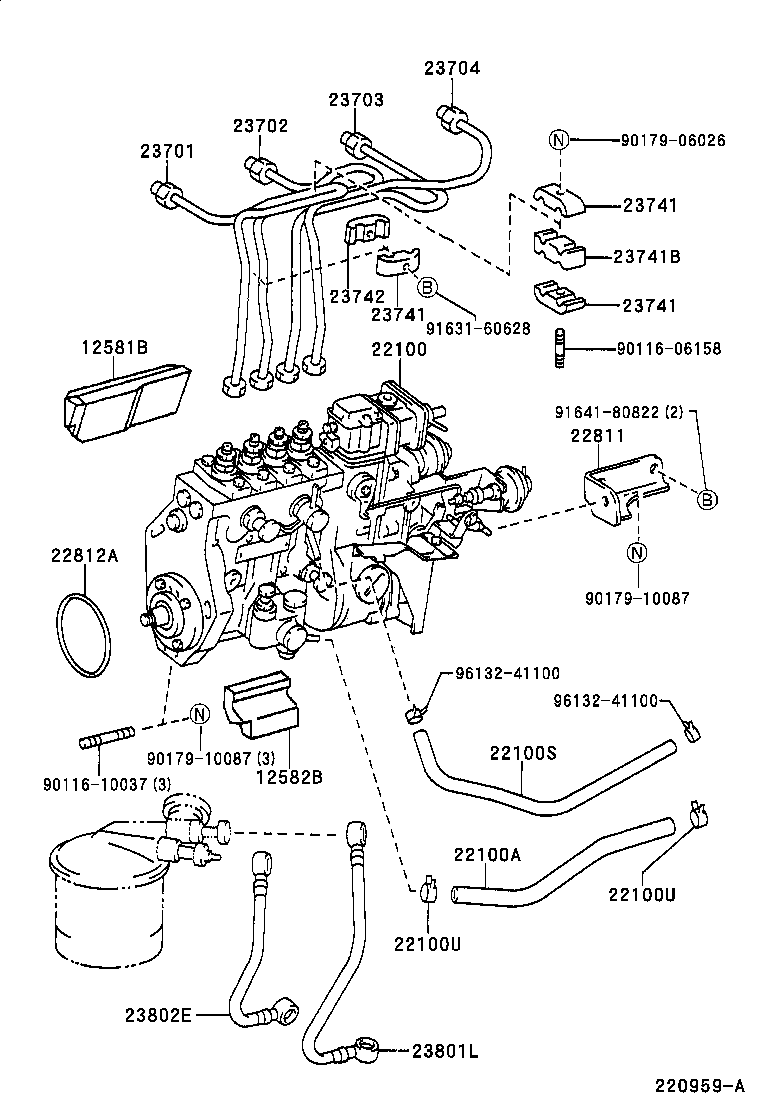

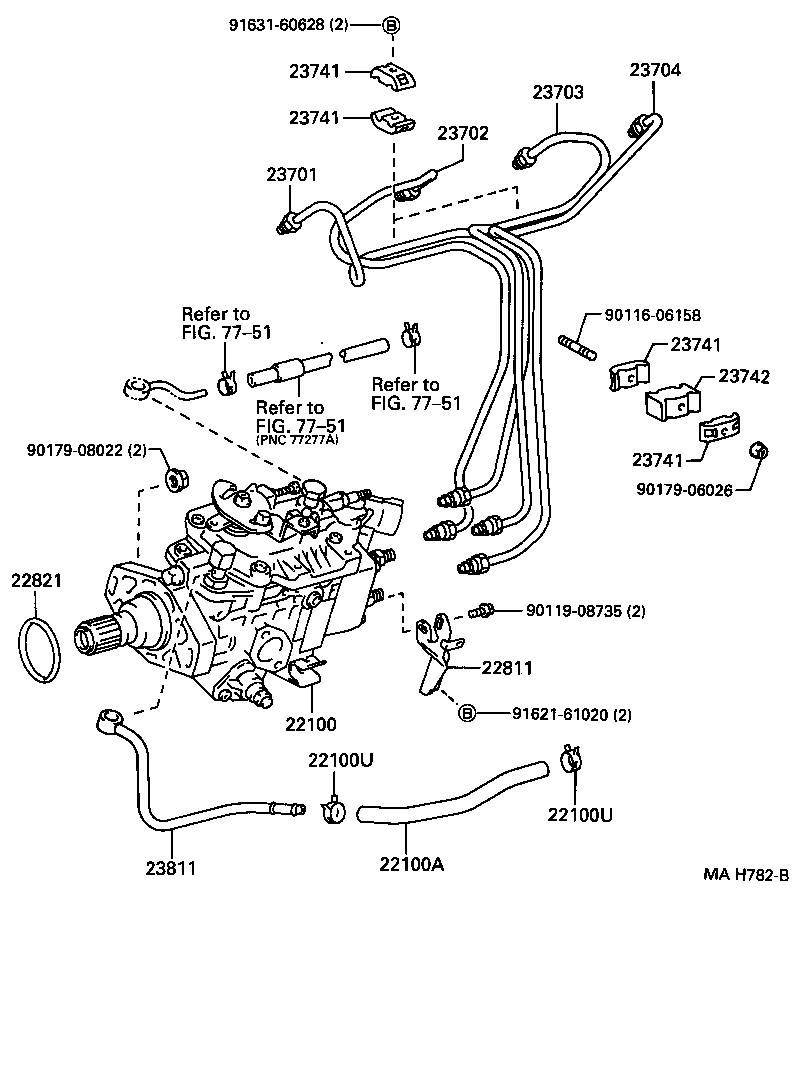

Figure 220487 220487 1995-05 → — Figure 220487 220487 1999-02 → — Figure 220336A 220336A 1995-05 → — Figure MAH782B MAH782B 1995-05 → — Figure 220959A 220959A 1996-05 → — Figure 220959A 220959A 1997-03 → — Figure 220959A 220959A 1998-08 → — Figure 220959A 220959A 1999-02 → — Figure 220795F 220795F 1999-08 → —

Part groups

PNCDescription
12581B Insulator, Cylinder Block, NO.1
12582B Insulator, Cylinder Block, NO.2
12601A Insulator, Cylinder Block
22100 Pump Assy, Injection OR Supply
22100A Hose OR Pipe, Fuel(FOR INJECTION PUMP TO FUEL FILTER)
22100S Hose, Fuel(FOR INJECTION PUMP TO FUEL PIPE)
22100U Clip, Hose Fuel(FOR INJECTION PUMP)
22811 Stay, Injection Pump, NO.1
22812A Ring, O
22821 Gasket, Injection Pump
23701 Pipe Sub-assy, Injection, NO.1
23702 Pipe Sub-assy, Injection, NO.2
23703 Pipe Sub-assy, Injection, NO.3
23704 Pipe Sub-assy, Injection, NO.4
23741 Clamp, Injection Pipe, NO.1
23741B Clamp, Injection Pipe
23742 Clamp, Injection Pipe, NO.2
23801L Pipe Sub-assy, Fuel(FOR FUEL FILTER TO INJECTION PUMP)
23802E Pipe Sub-assy, Fuel
23811 Pipe, Fuel(FOR FUEL FILTER TO INJECTION PUMP)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
