Toyota DYNA200

1995-05 → 2003-12 · chassis BU10#,11#,14#,21#,22#,YU210,RZU100 · catalogue 751260 · Europe

Discontinued model Data version 2004-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Shift Lever & Retainer

34 part groups · 28 illustrations

Illustrations

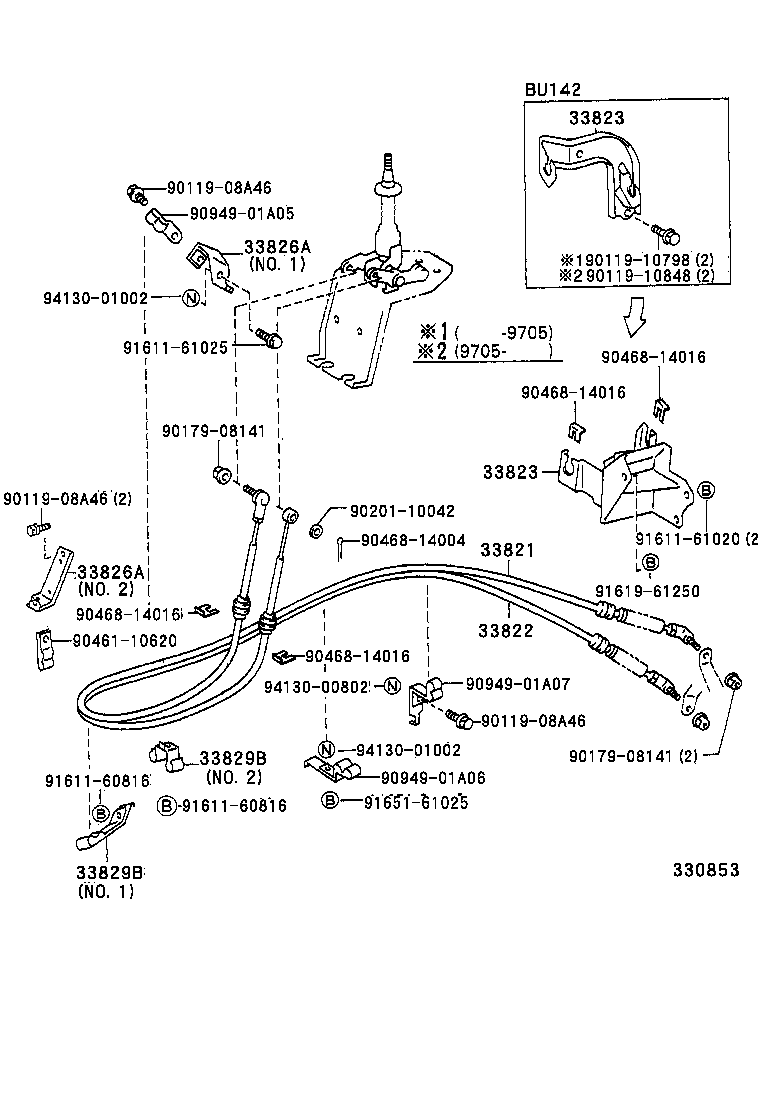

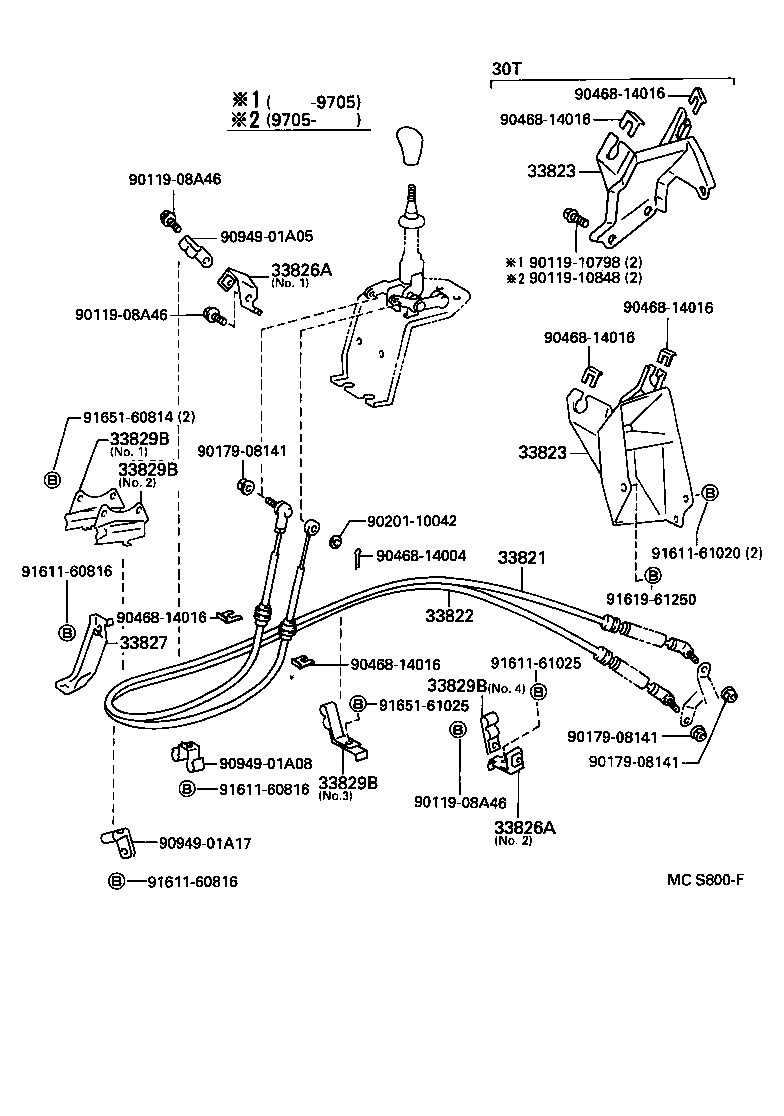

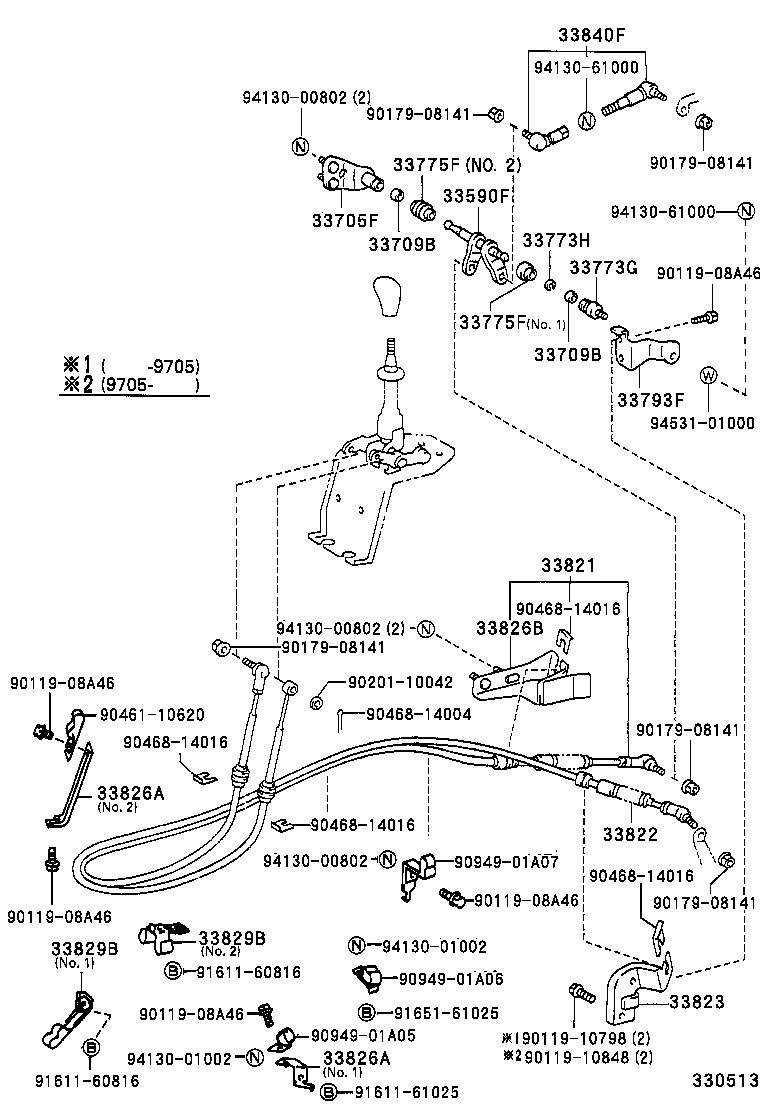

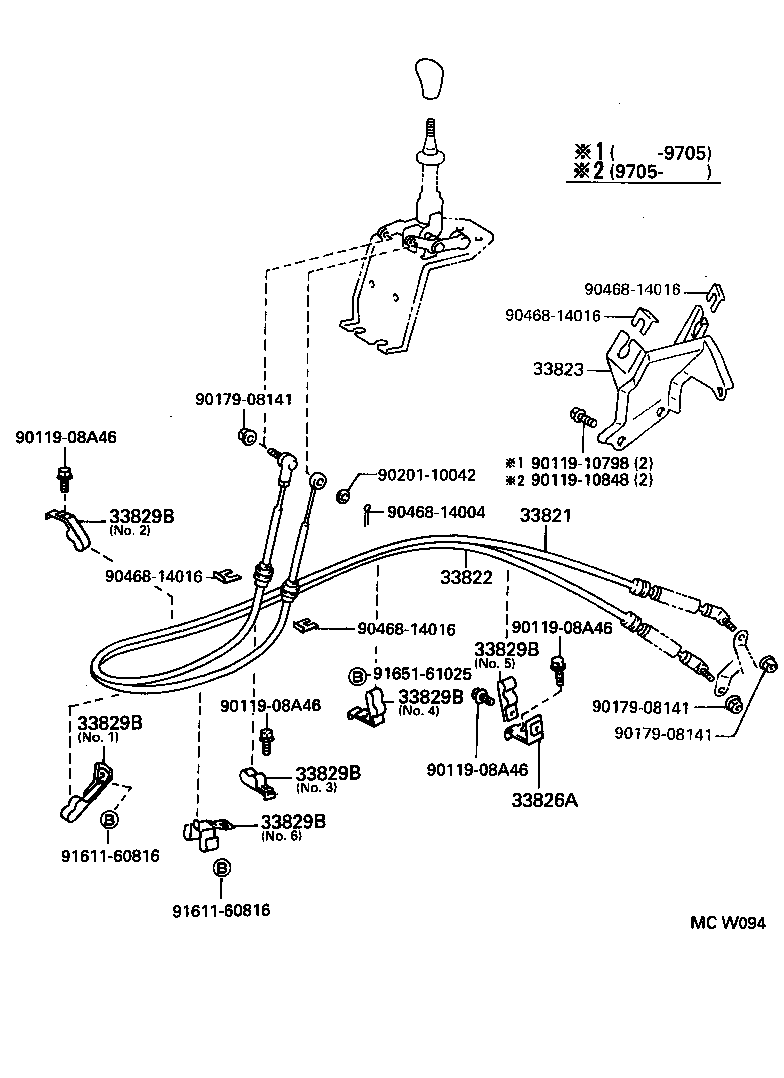

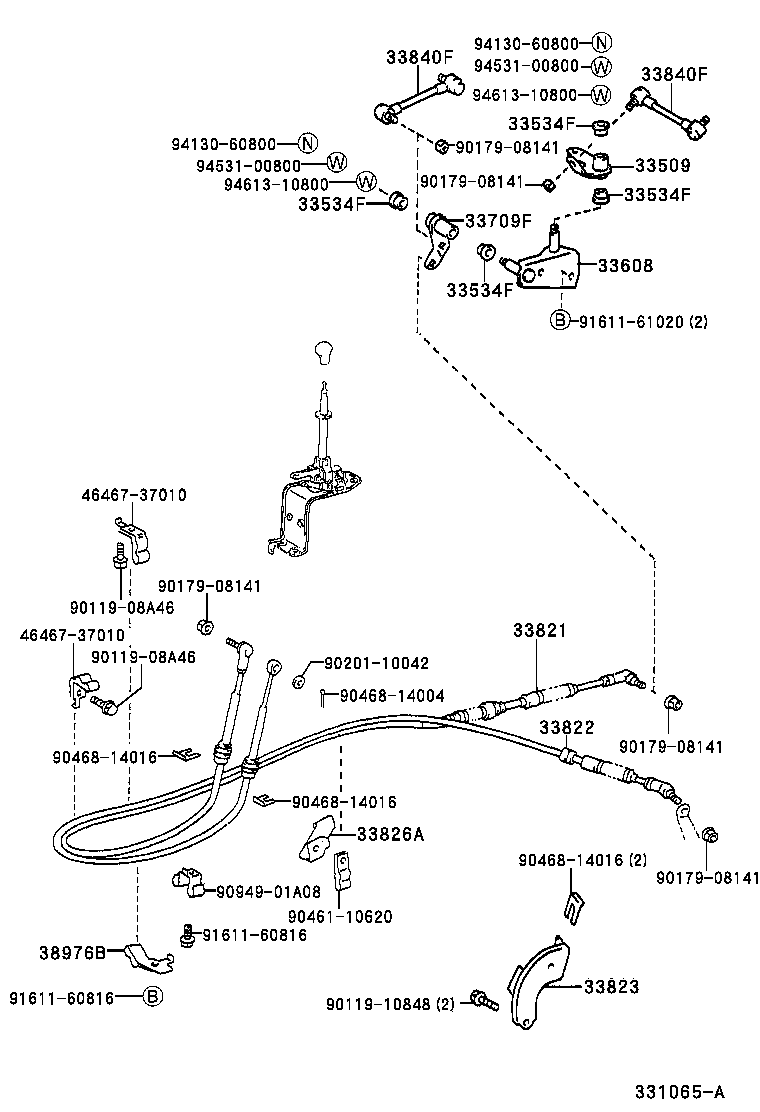

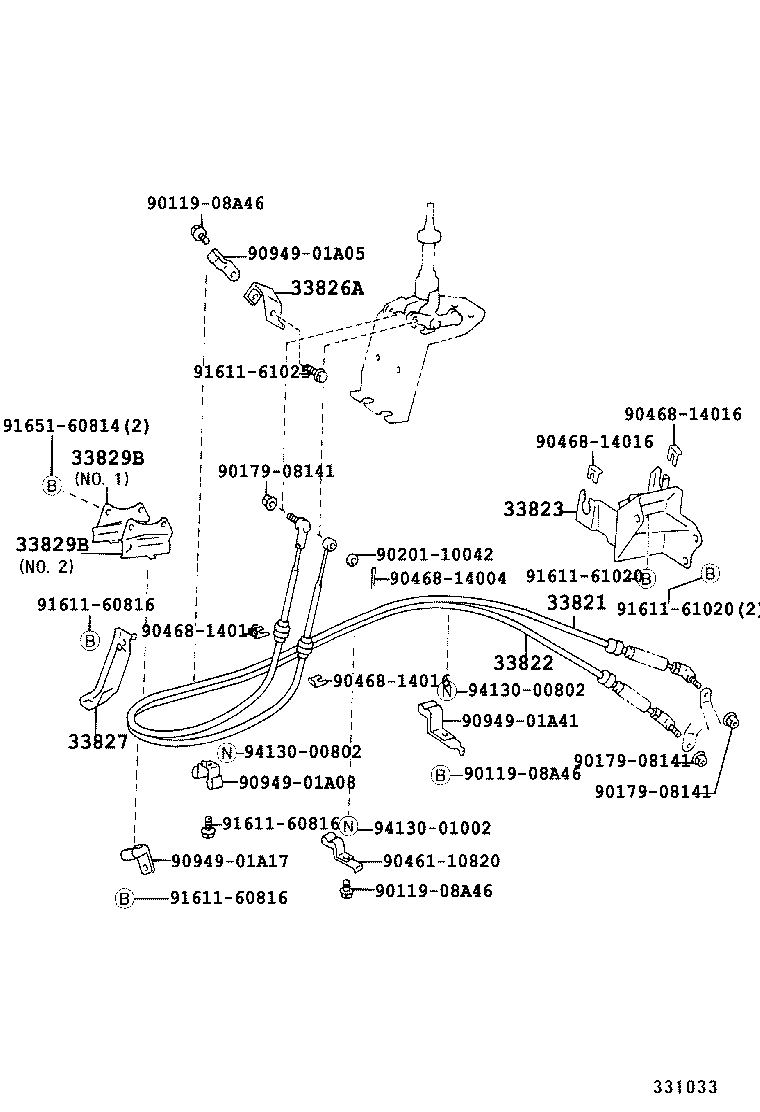

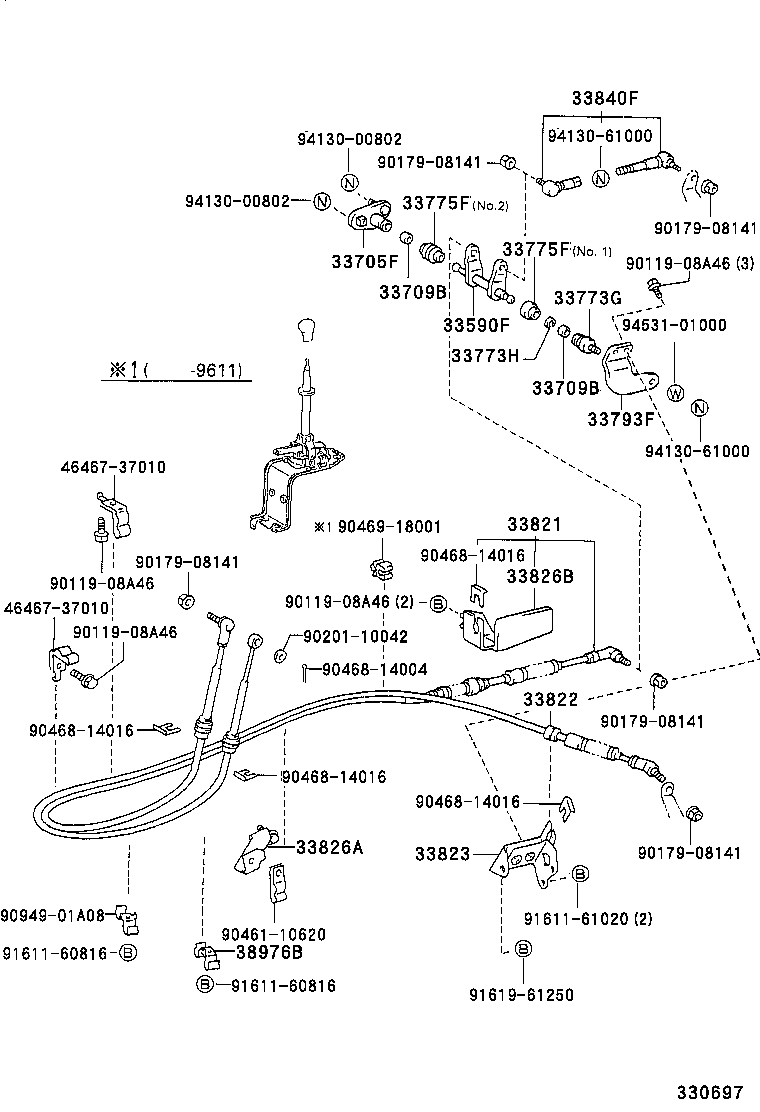

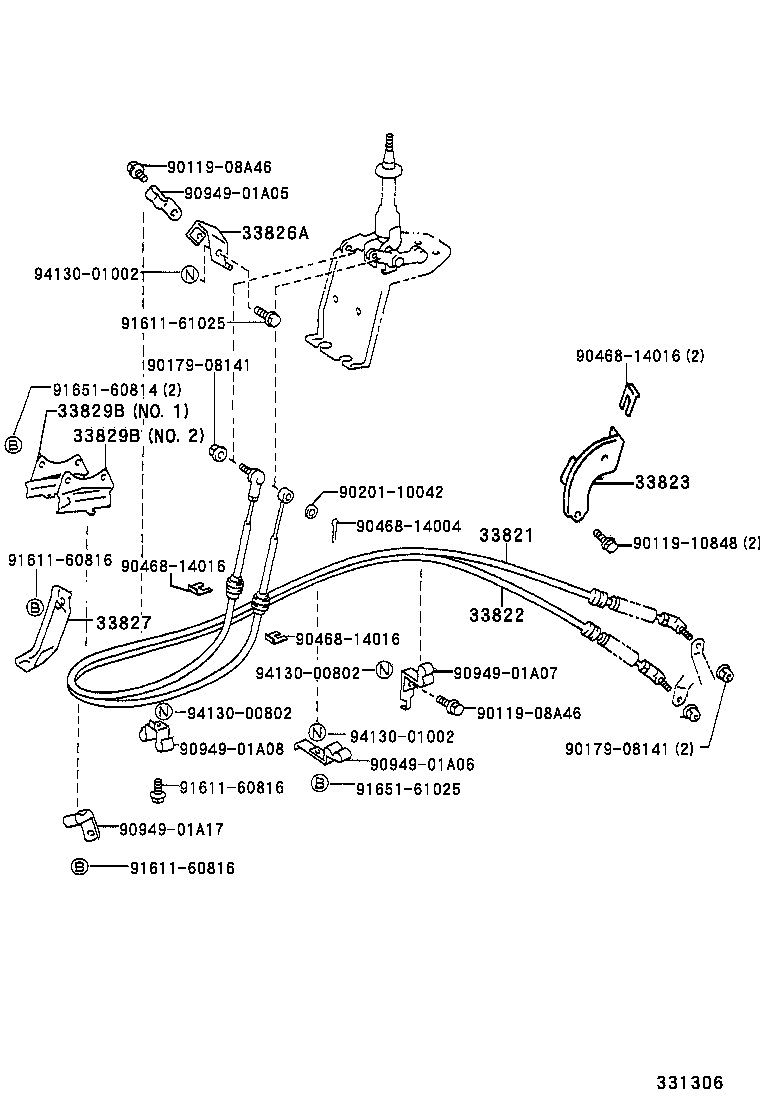

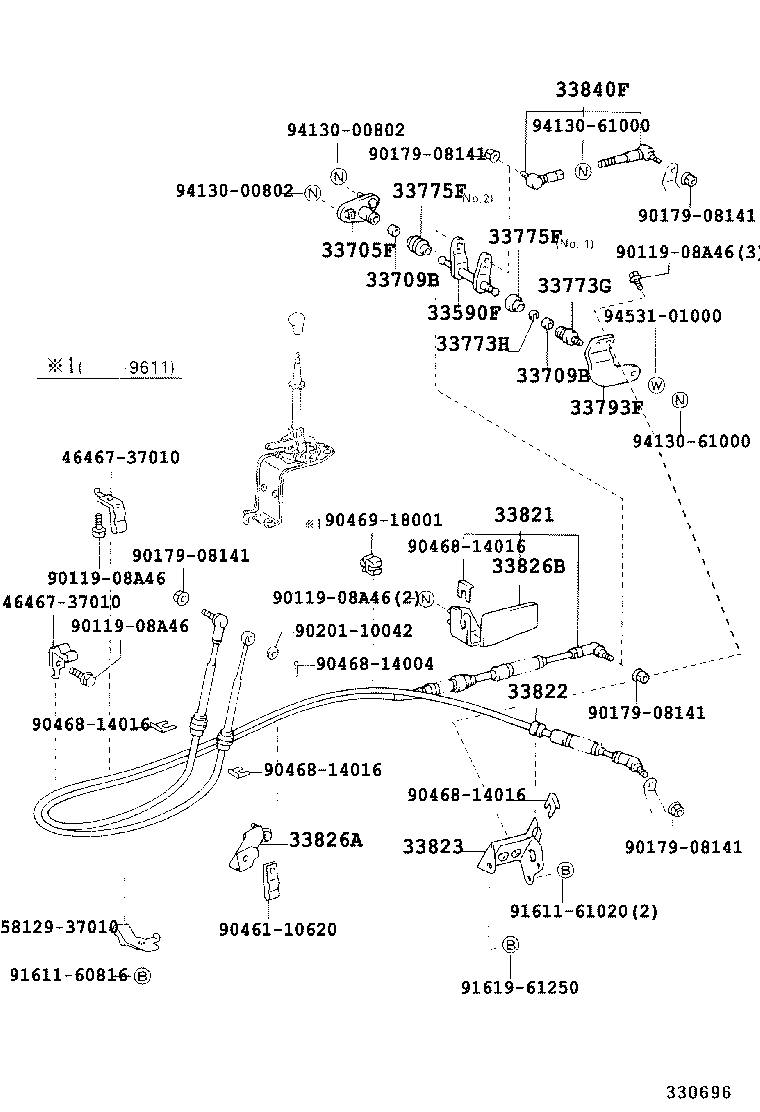

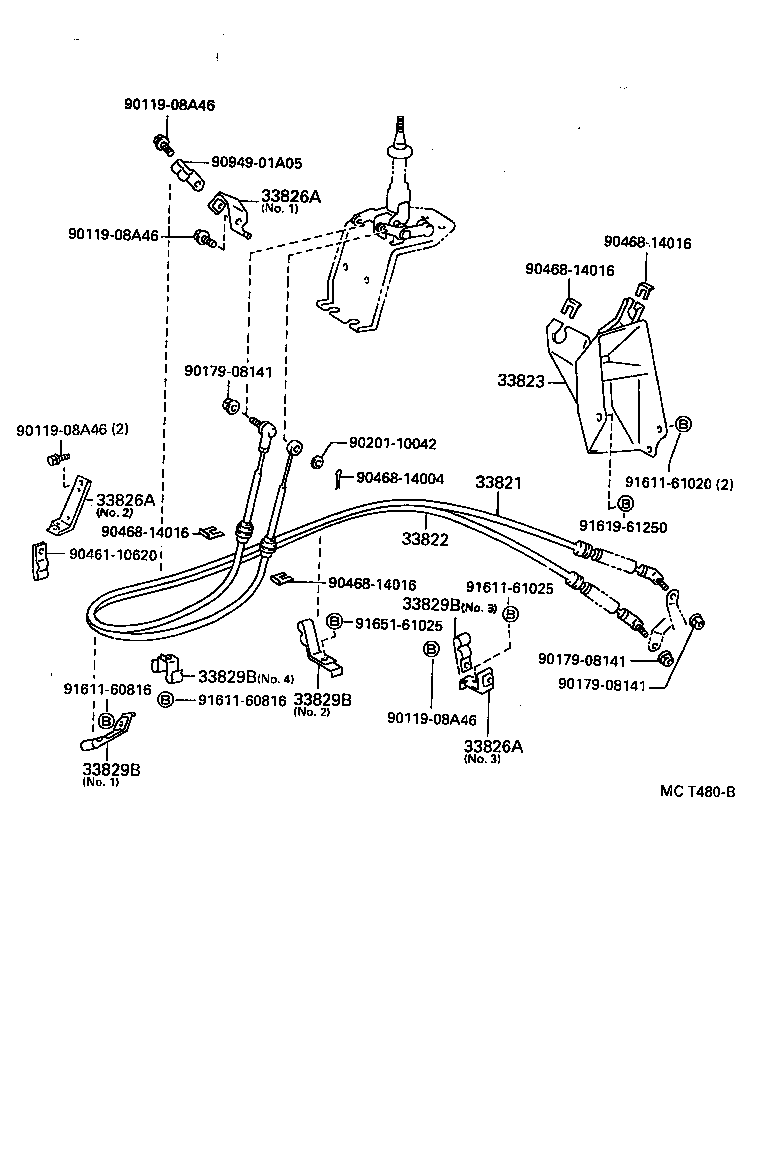

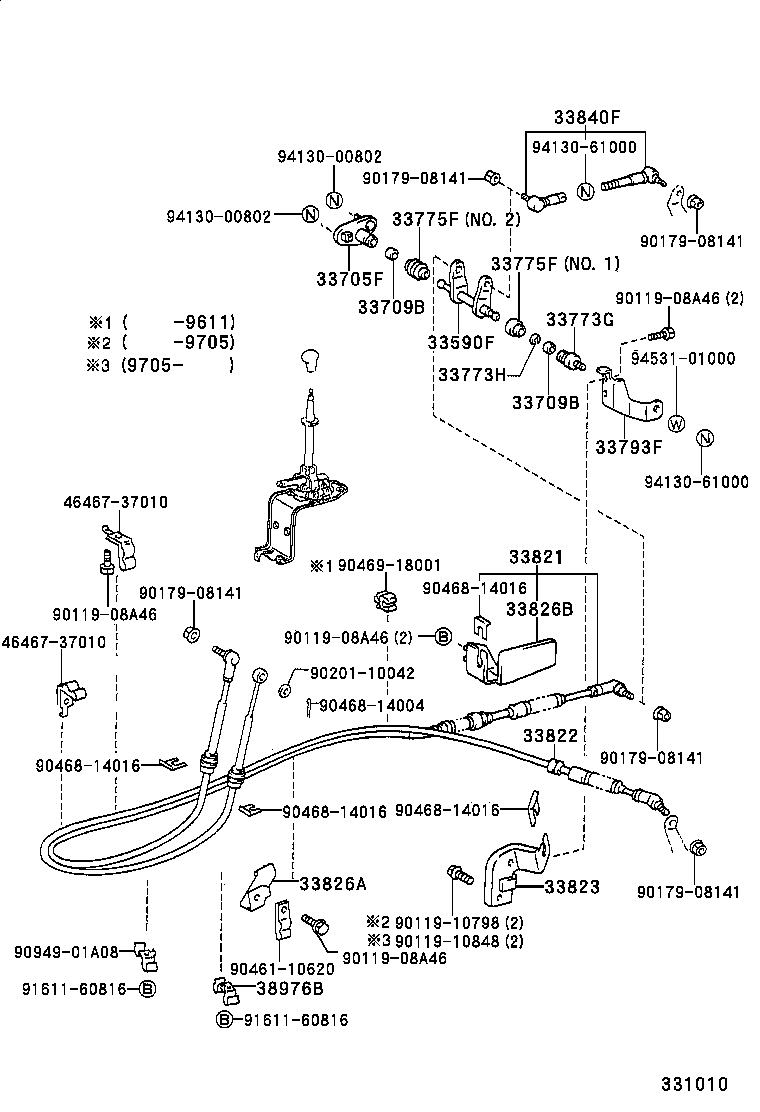

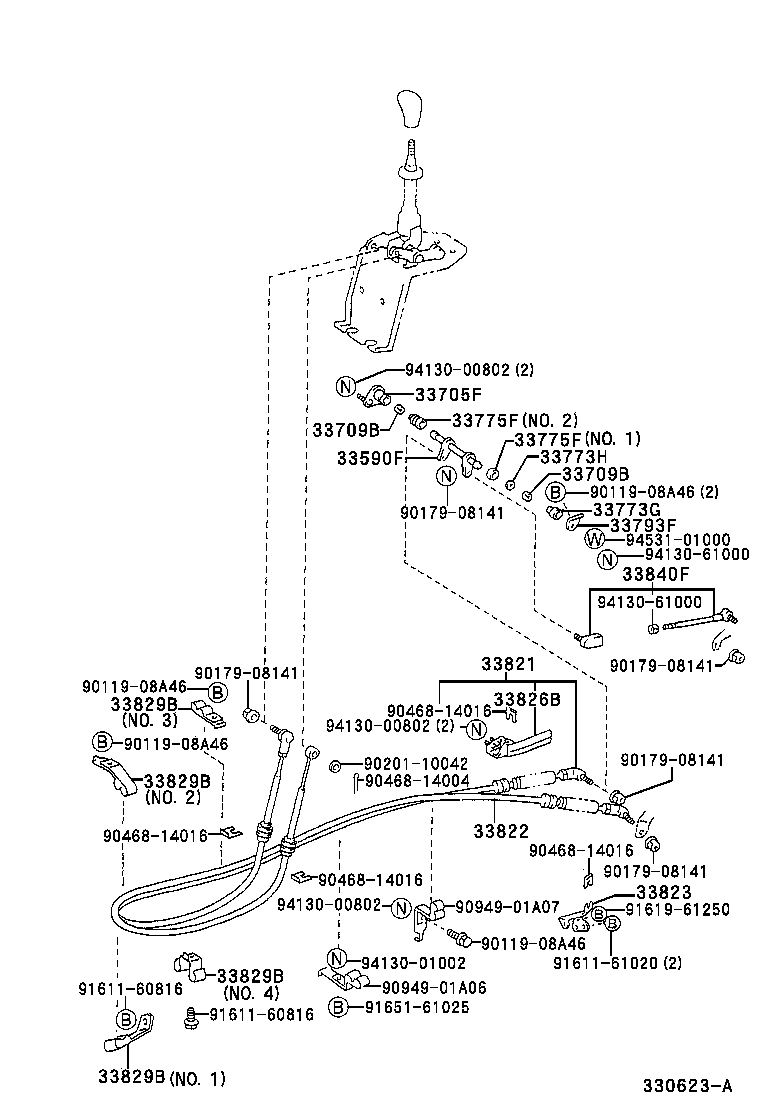

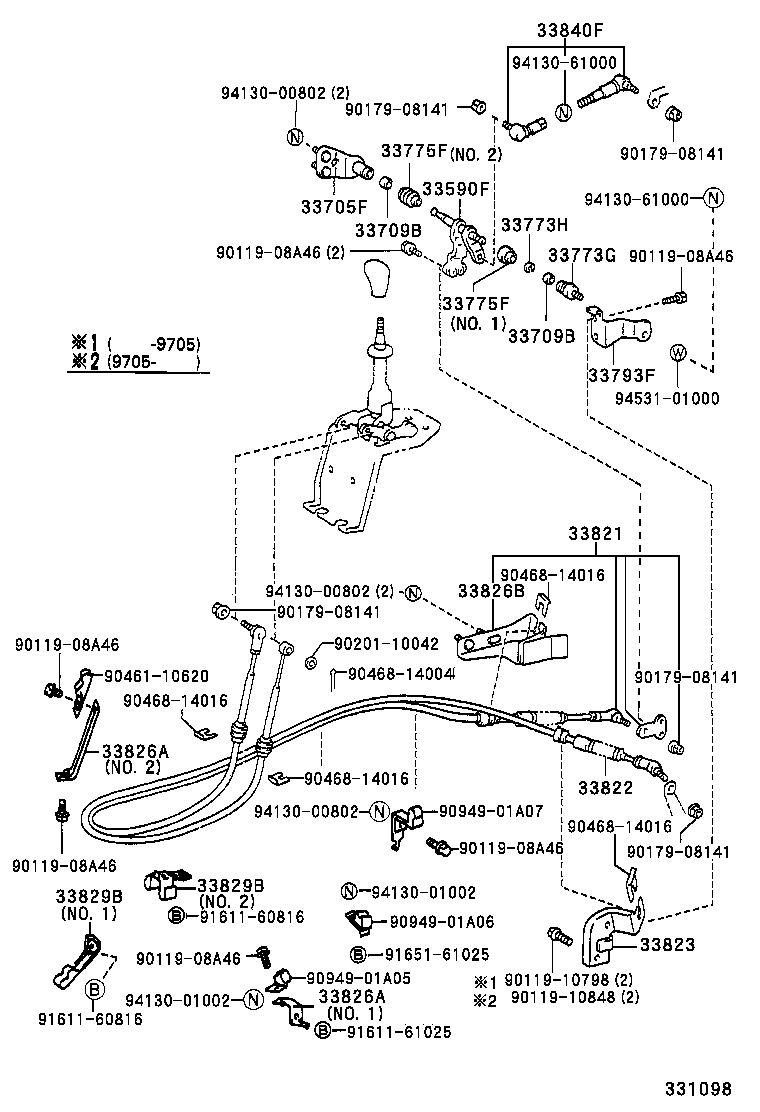

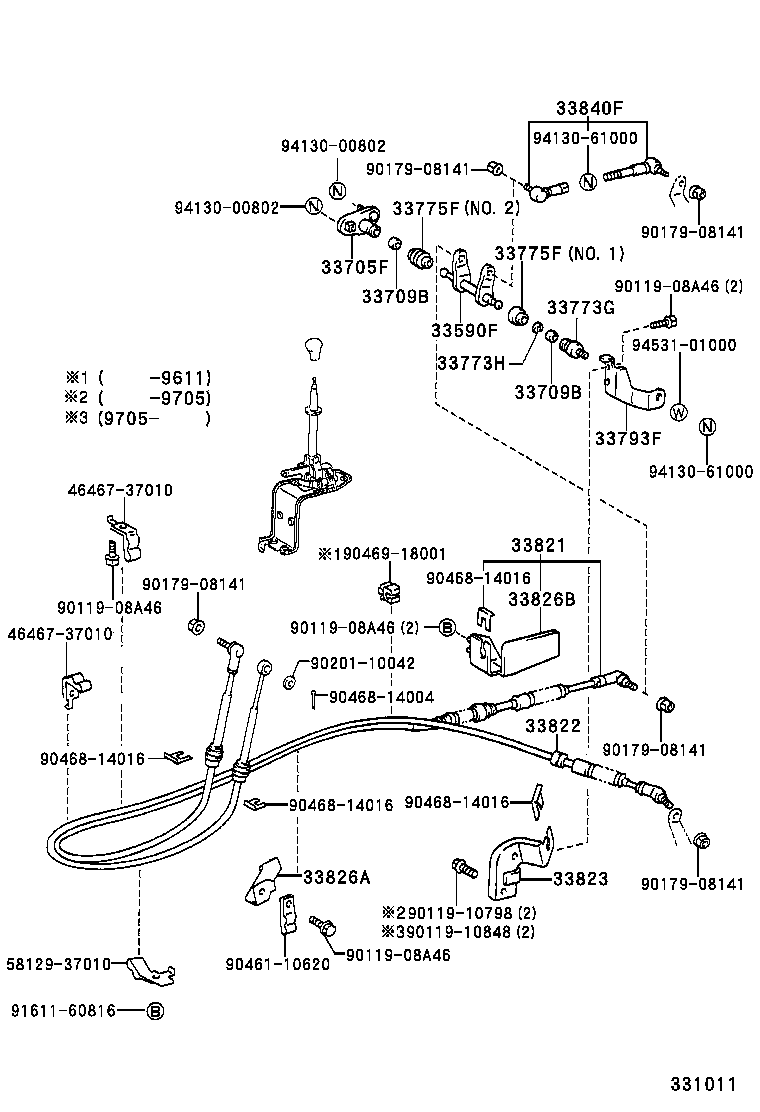

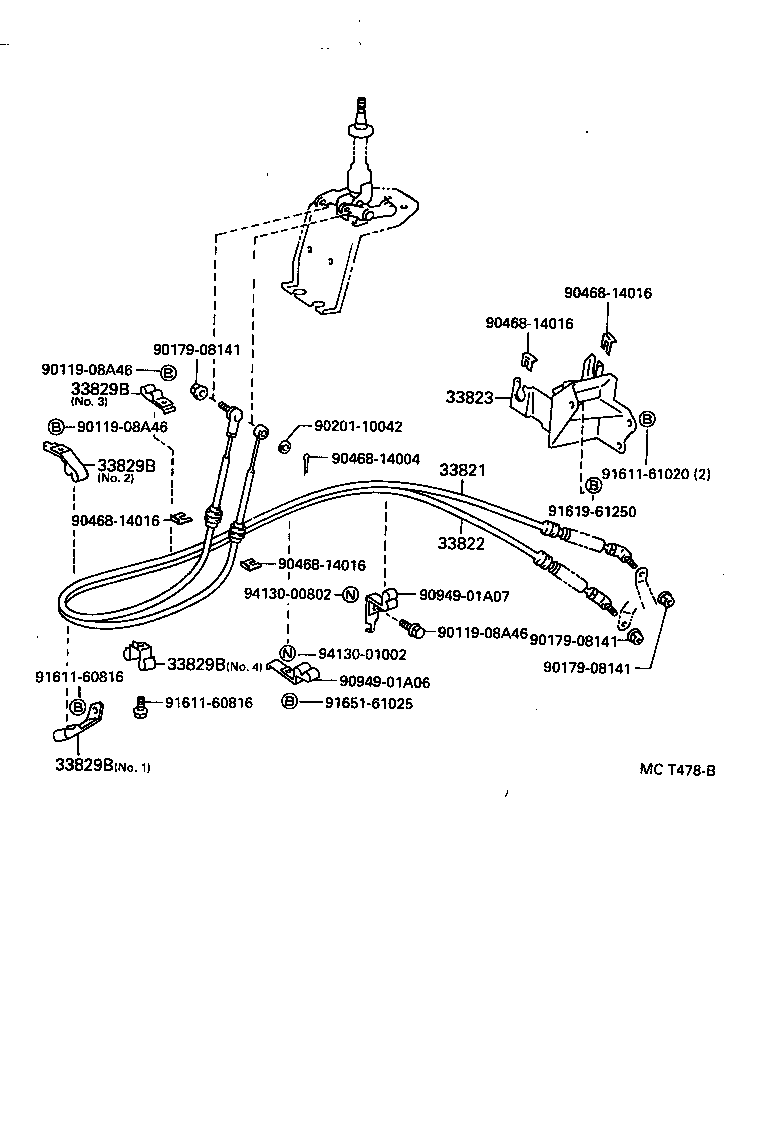

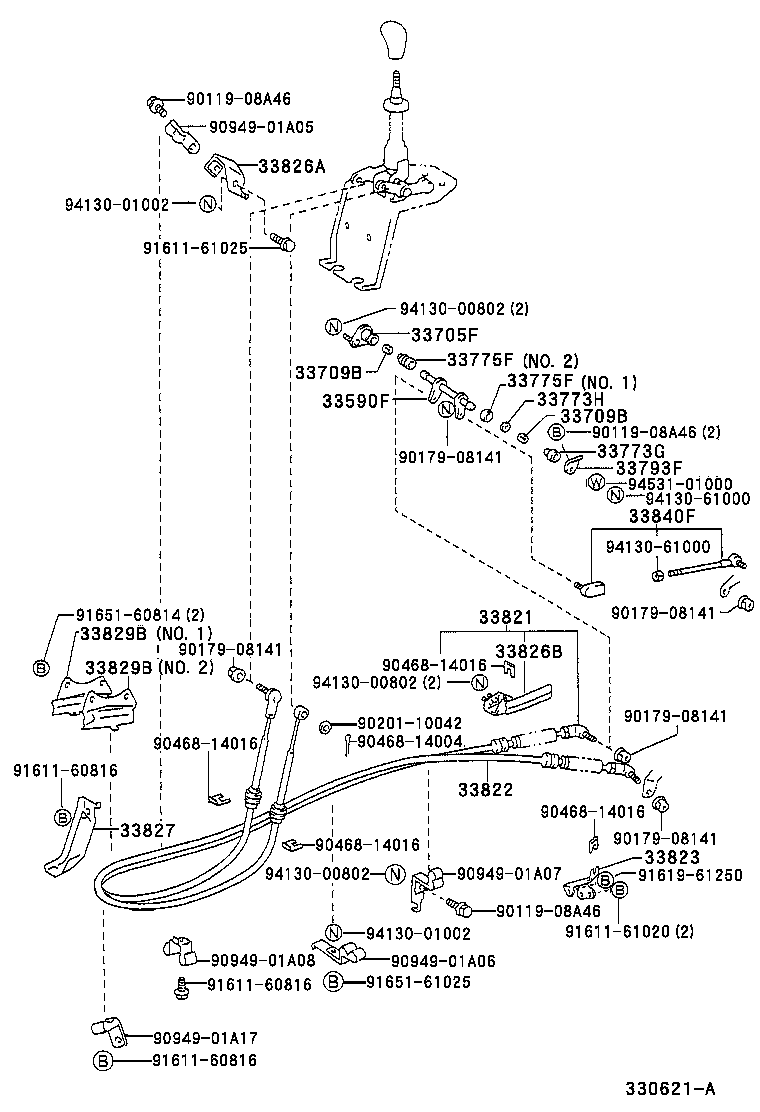

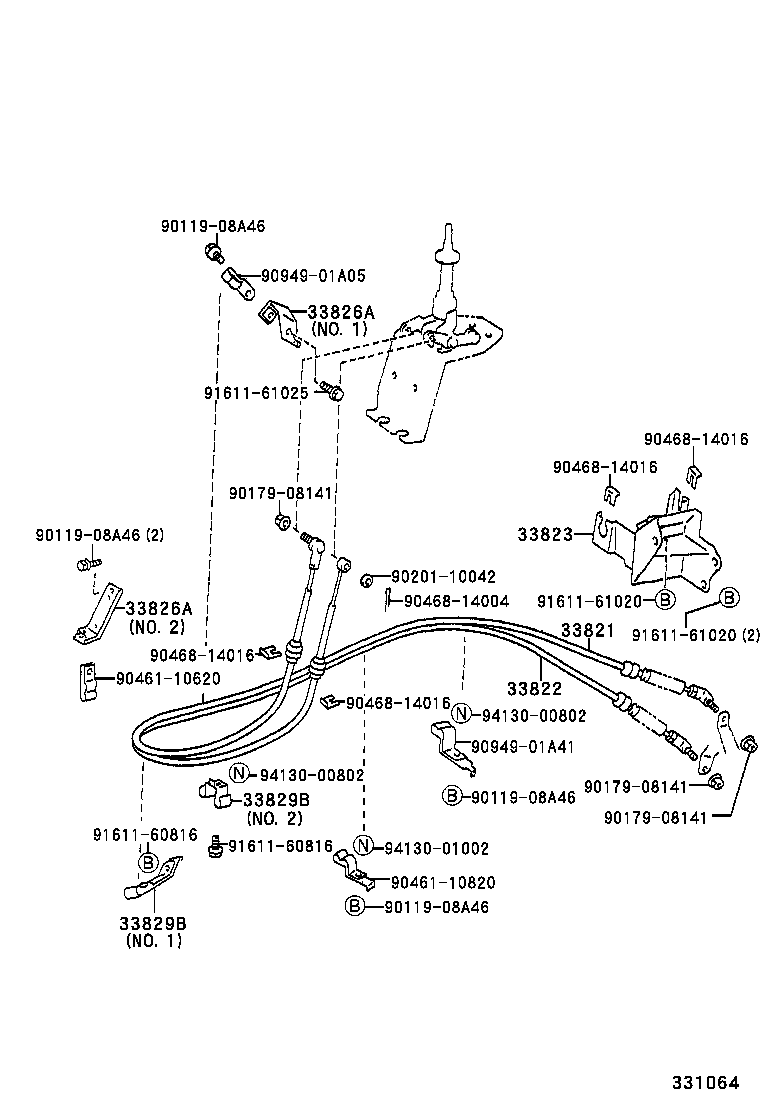

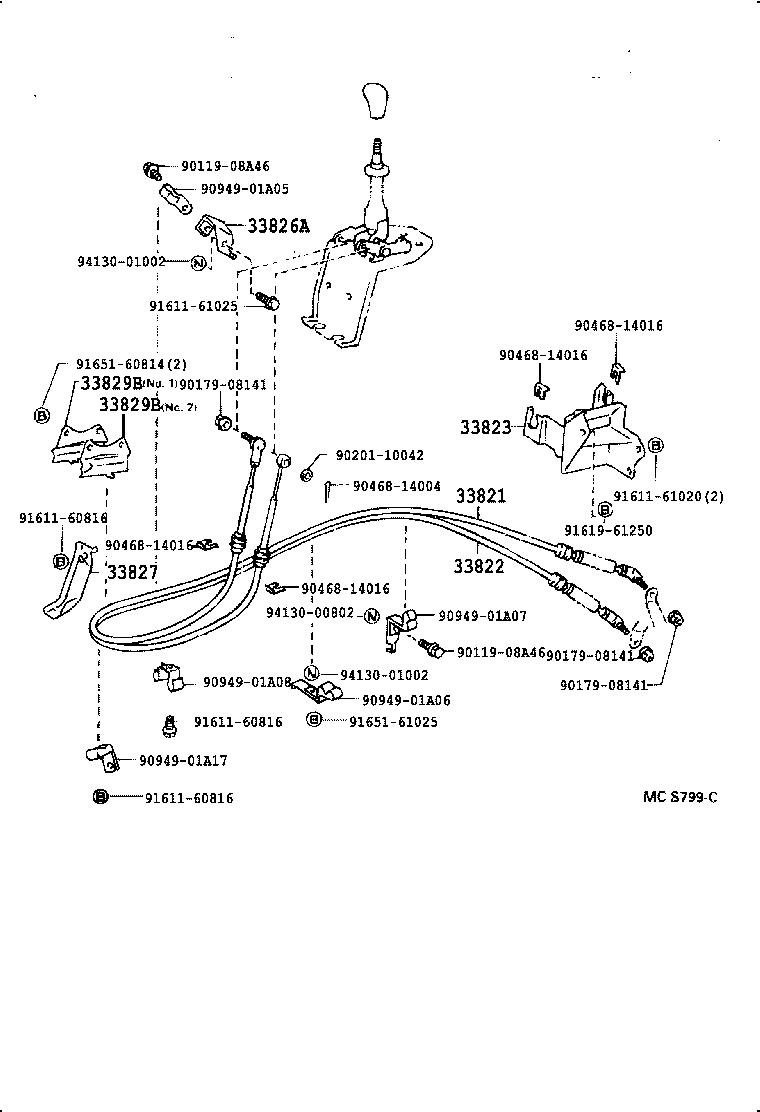

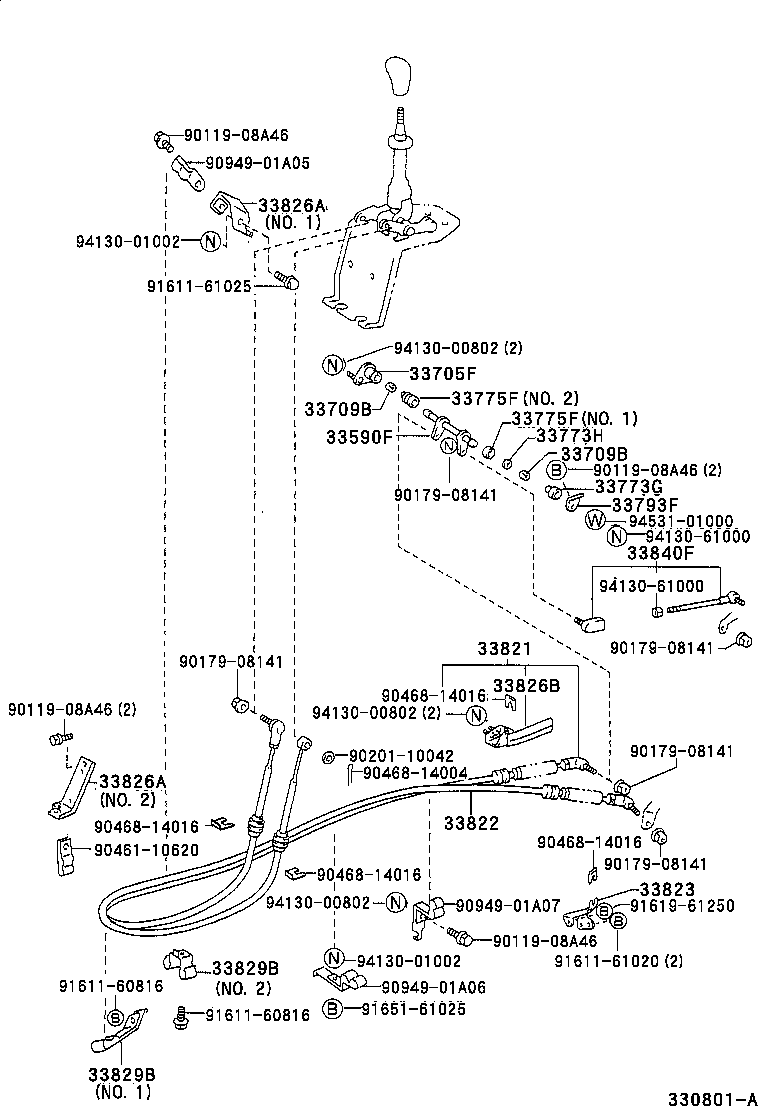

Figure MCT179C MCT179C 1995-05 → — Figure MCS799C MCS799C 1995-05 → 1996-10 Figure 330621A 330621A 1996-10 → — Figure MCS800F MCS800F 1995-05 → — Figure 330509 330509 1995-05 → 1996-10 Figure 330509 330509 1995-05 → — Figure 330509 330509 1996-10 → 2000-08 Figure 330696 330696 1996-10 → — Figure 331011 331011 1996-10 → — Figure 331033 331033 1997-03 → — Figure MCT478B MCT478B 1995-05 → 1996-10 Figure 330623A 330623A 1996-10 → 1997-03 Figure 330623A 330623A 1996-10 → — Figure 330623A 330623A 1997-03 → — Figure 330513 330513 1997-03 → 1999-05 Figure 331098 331098 1999-05 → 1999-08 Figure 330853 330853 1995-05 → 1996-10 Figure 330853 330853 1996-10 → — Figure 330801A 330801A 1996-10 → — Figure MCT480B MCT480B 1995-05 → 1997-03 Figure MCT480B MCT480B 1997-03 → — Figure MCW094 MCW094 1997-03 → — Figure 330514 330514 1995-05 → 1996-10 Figure 330697 330697 1996-10 → — Figure 331010 331010 1996-10 → — Figure 331065A 331065A 1999-08 → — Figure 331064 331064 1999-08 → — Figure 331306 331306 2000-07 → —

Part groups

PNCDescription
33503F Lever Sub-assy, Shift(FOR FLOOR SHIFT)
33504F Knob Sub-assy, Shift Lever
33506F Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT)
33506H Bush (FOR SHIFT LEVER RETAINER)
33506Q Grommet, NO.1(FOR CONTROL SHIFT LEVER RETAINER)
33509 Crank Sub-assy, Selecting Bell, NO.1
33534 Bellcrank, Selecting
33534C Bush (FOR SELECTING BELLCRANK NO.1)
33534F Bush (FOR SELECTING BELLCRANK NO.2)
33539 Cushion, Shift Lever Anti-rattle
33548F Bush, NO.1, Shift Lever (FOR FLOOR SHIFT)
33586A Stopper, Control Lever (FOR FLOOR SHIFT)
33590F Crank Assy, Selecting Bell (FOR FLOOR SHIFT)
33602B Bushing (FOR SELECT LEVER)
33602D Collar (FOR SELECT LEVER)
33602E Spring, Torsion (FOR SELECT LEVER)
33602F Lever Sub-assy, Select (FOR FLOOR SHIFT)
33608 Support Sub-assy, Selecting Bellcrank
33705F Support Sub-assy, Cross Shaft, NO.1 (FOR FLOOR SHIFT)
33709B Bush (FOR CROSS SHAFT)
33709F Shaft Sub-assy, Cross, NO.1 (FOR FLOOR SHIFT)
33773G Support, Cross Shaft
33773H Ring, Snap (FOR CROSS SHAFT SUPPORT SNAP)
33775F Cover, Cross Shaft Dust, NO.1 (FOR FLOOR SHIFT)
33793F Bracket, Cross Shaft, NO.2(FOR FLOOR SHIFT)
33821 Cable Transmission Control Shift (FOR FLOOR SHIFT)
33822 Cable Transmission Control Select (FOR FLOOR SHIFT)
33823 Bracket, Transmission Control Cable, NO.1
33826A Bracket, Transmission Control Cable, NO.2
33826B Bracket, Transmission Control Cable, NO.3
33827 Bracket, Transmission Control Cable, NO.3
33829B Clamp, Transmission Control Cable
33840F Rod Assy, Gear Shifting, NO.3
38976B Clamp, Push Pull Cable
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
