Toyota DYNA200

1995-05 → 2003-12 · chassis BU10#,11#,14#,21#,22#,YU210,RZU100 · catalogue 751260 · Europe

Discontinued model Data version 2004-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

26 part groups · 12 illustrations

Illustrations

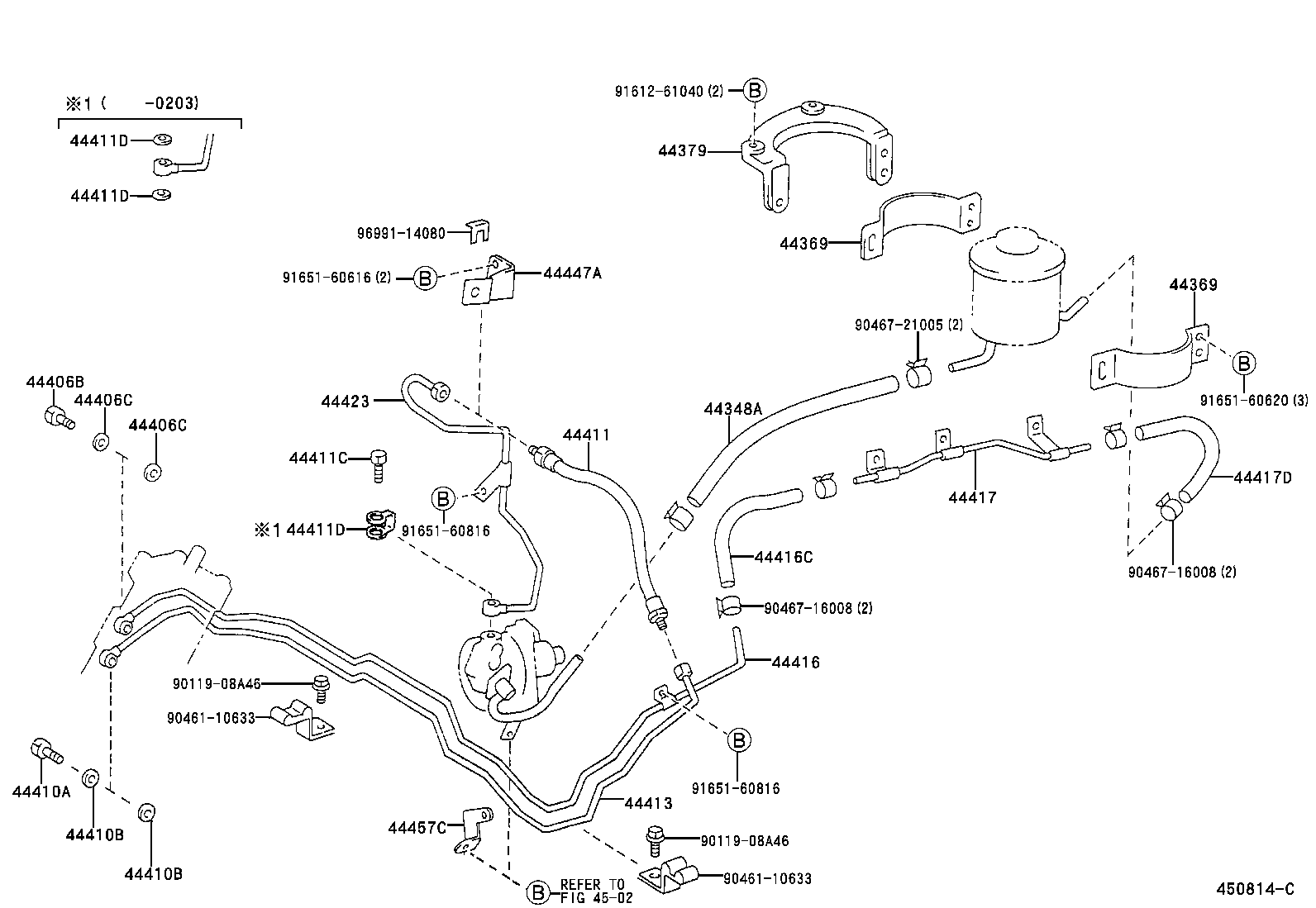

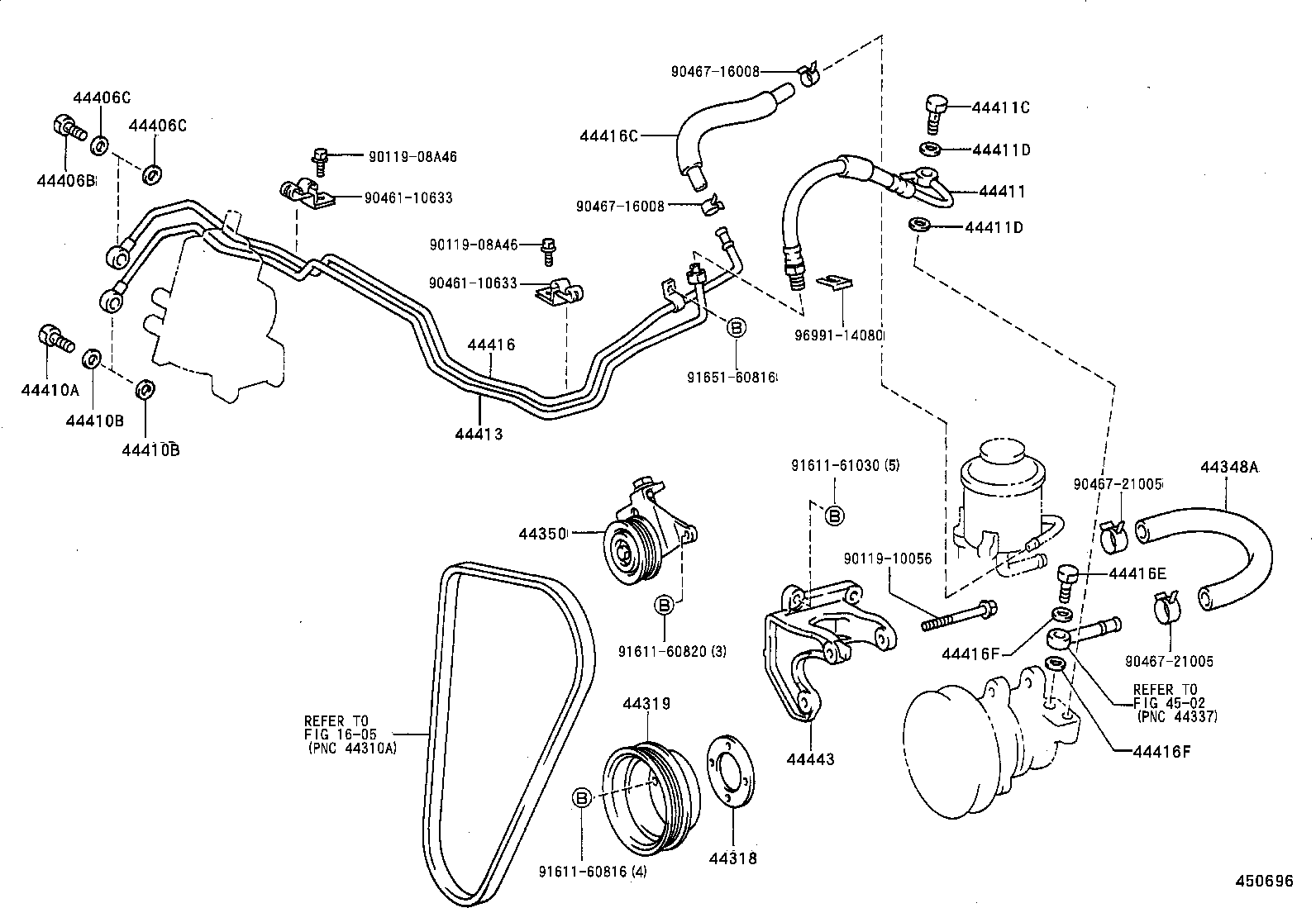

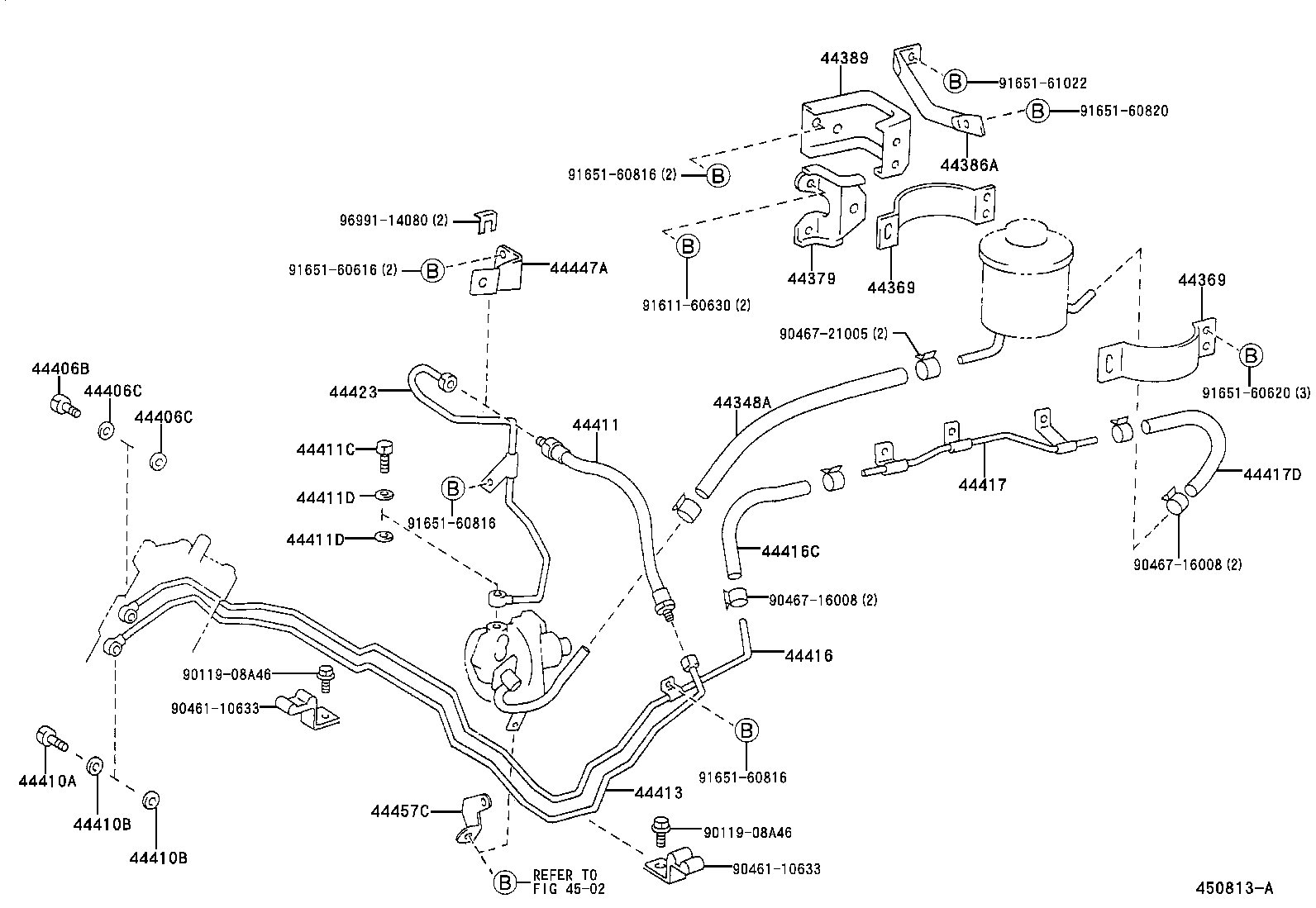

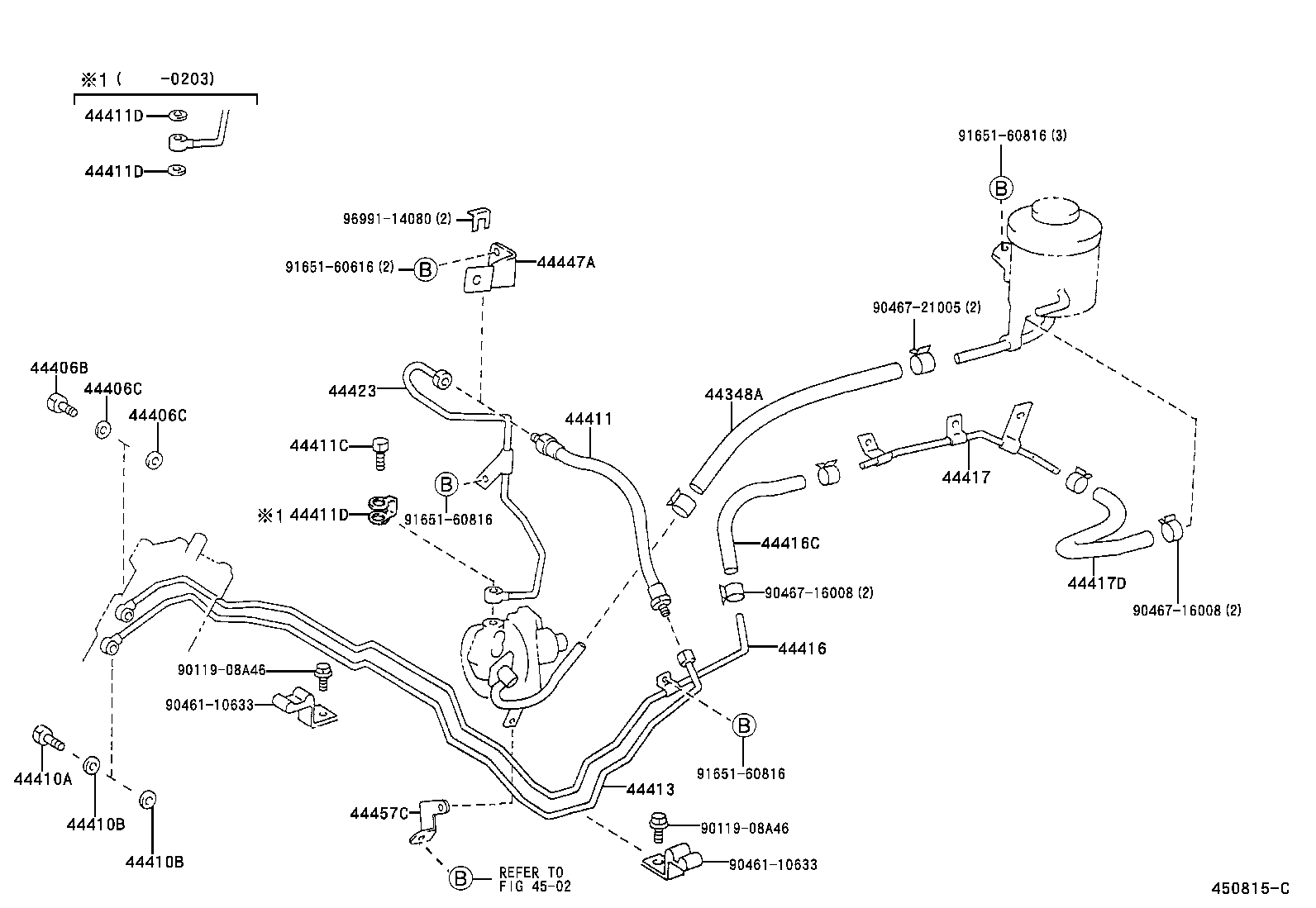

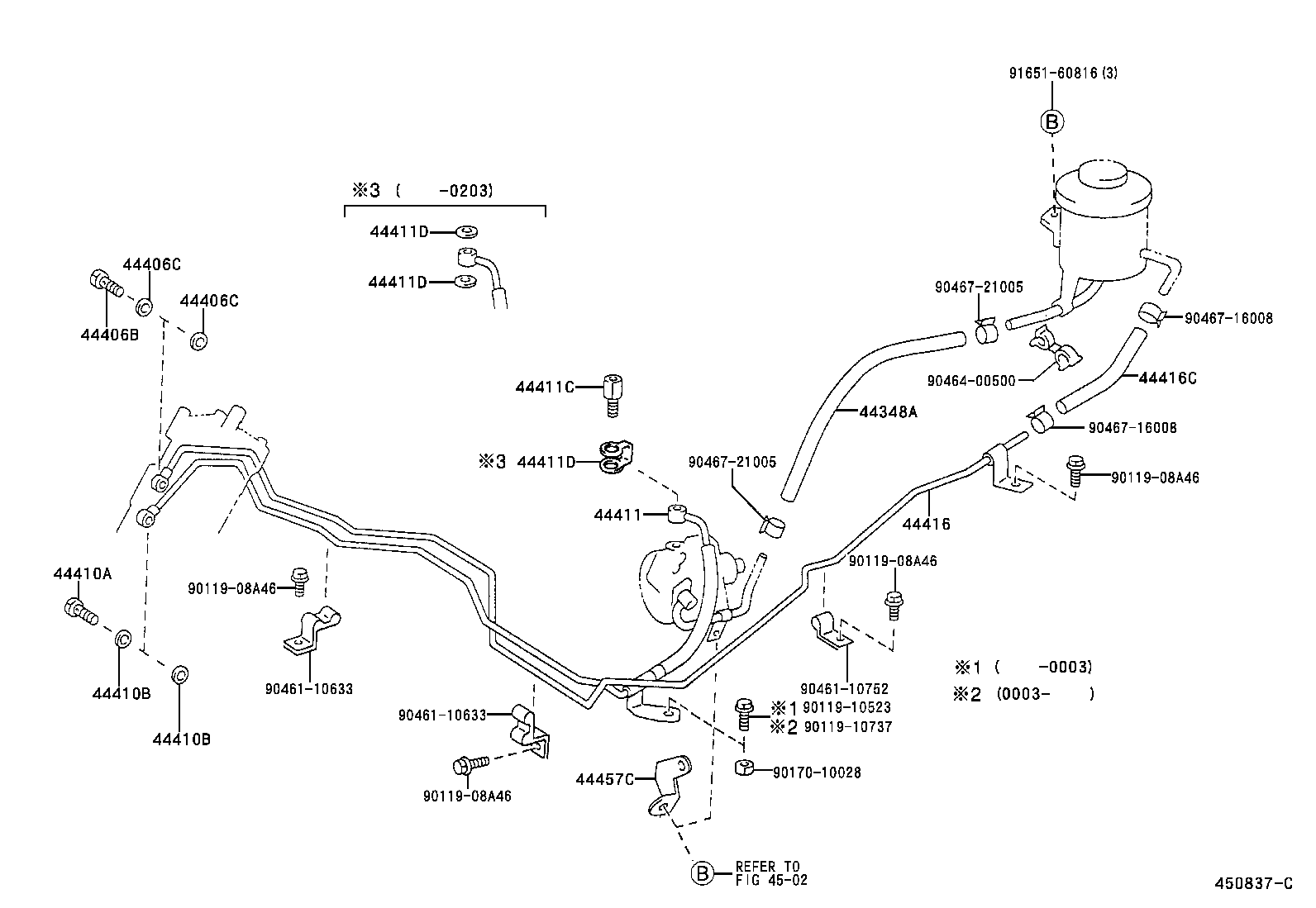

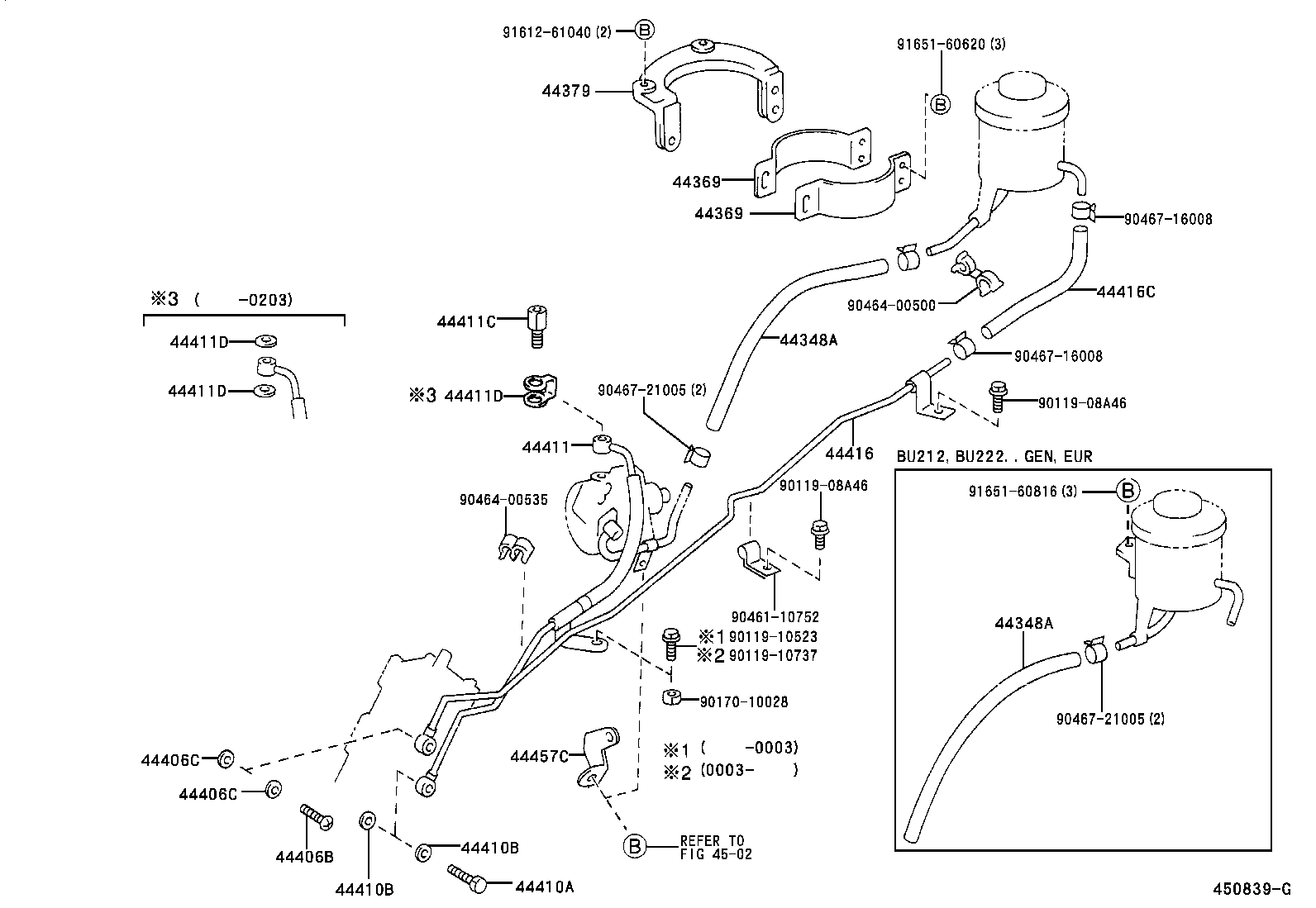

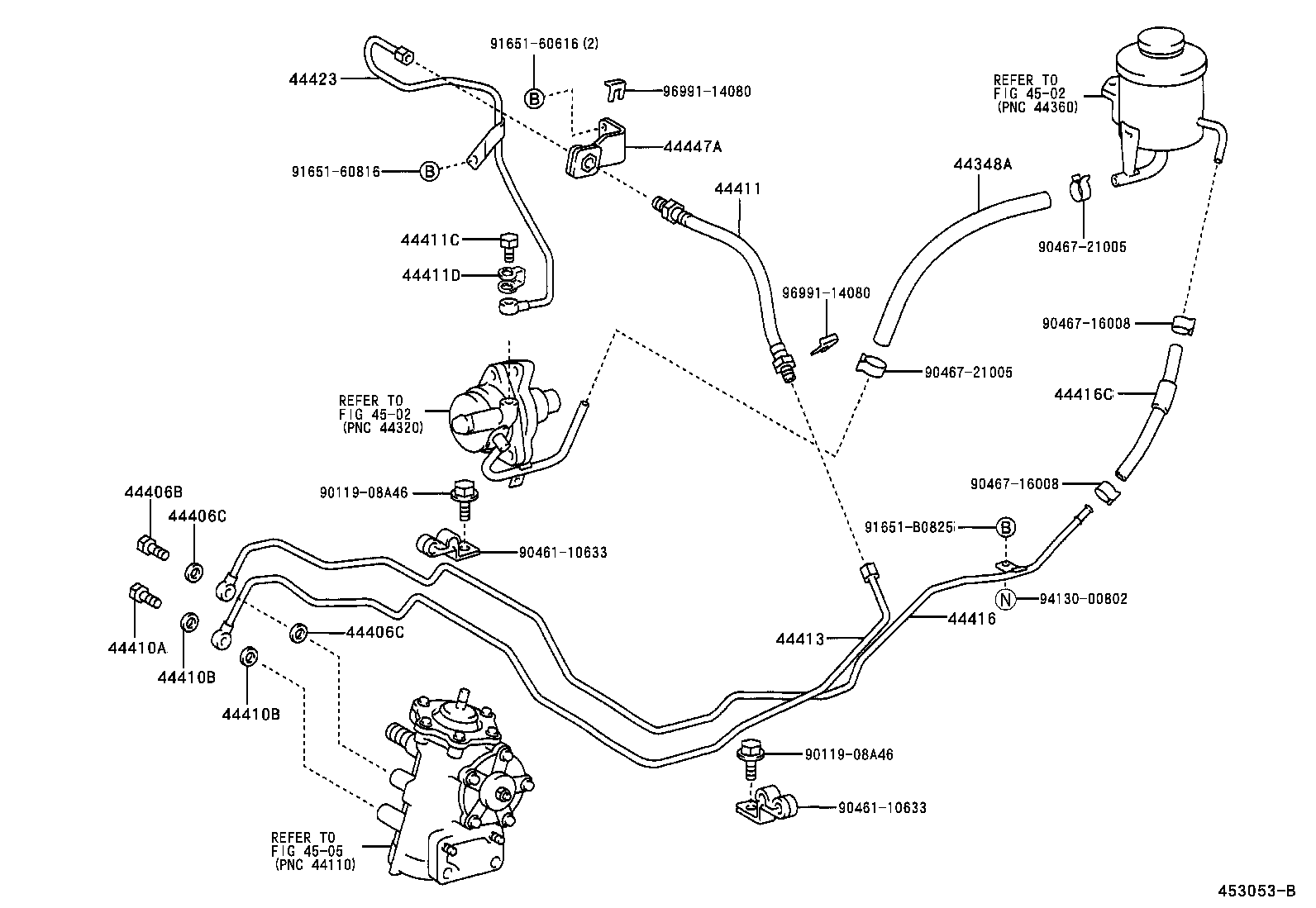

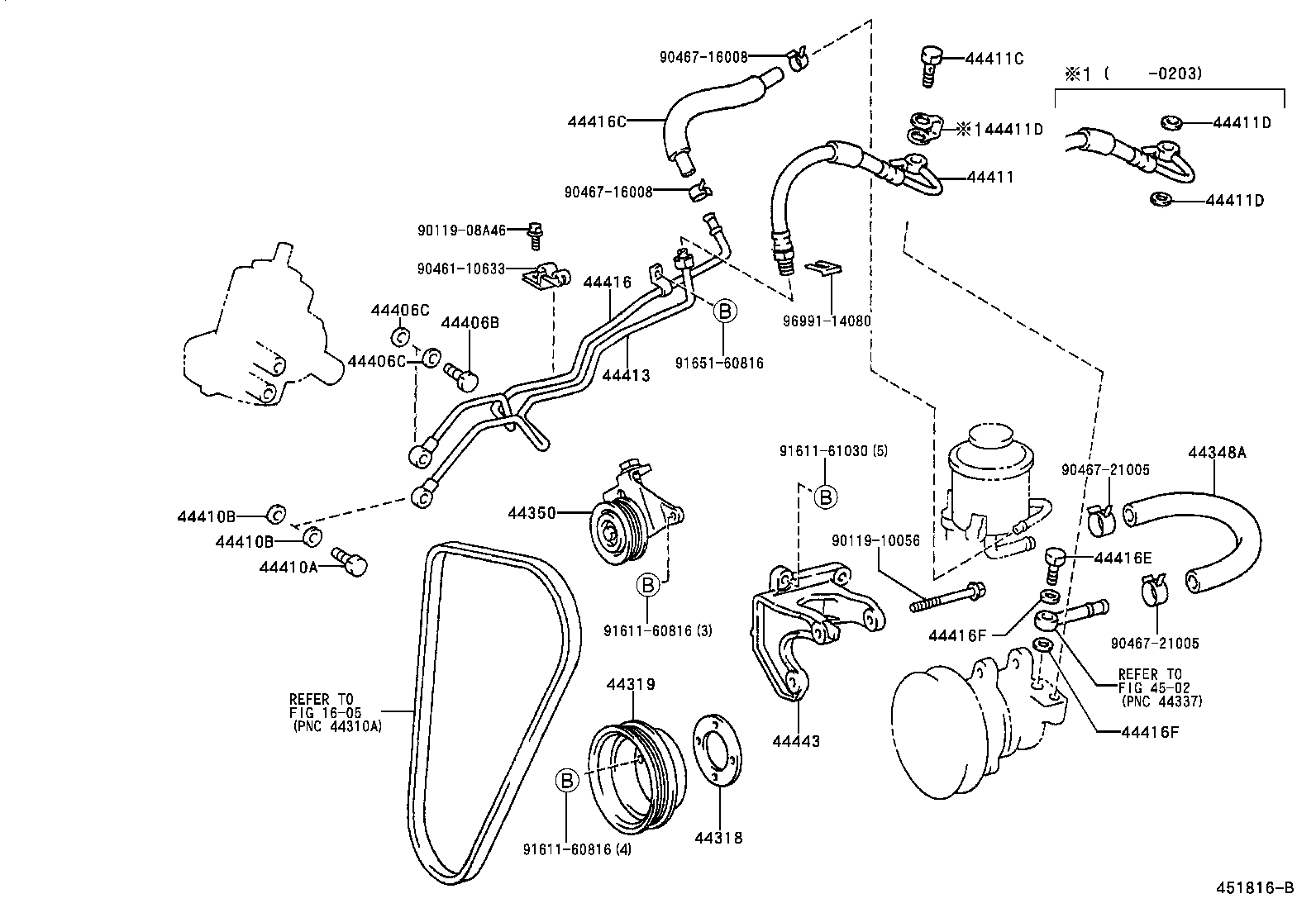

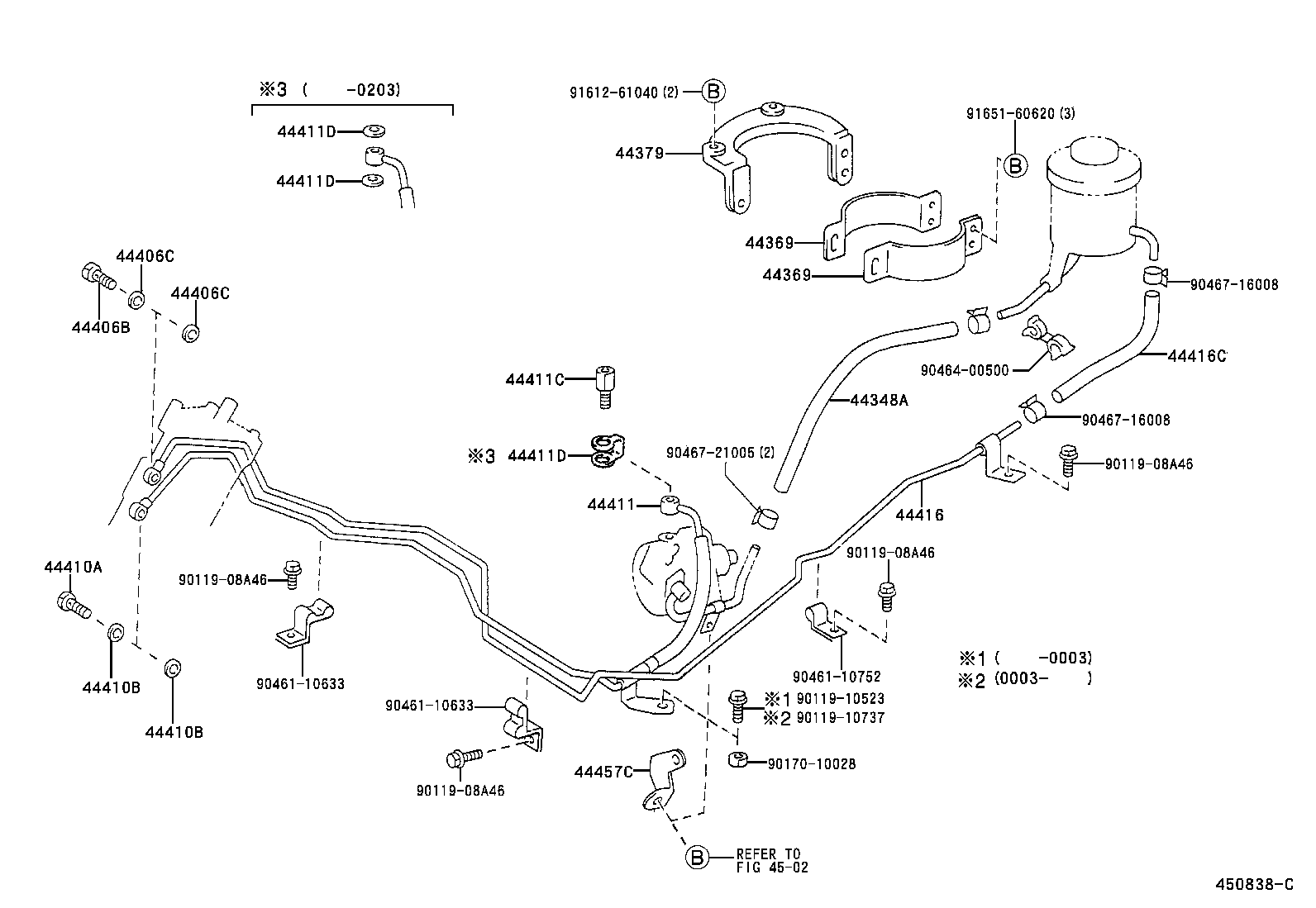

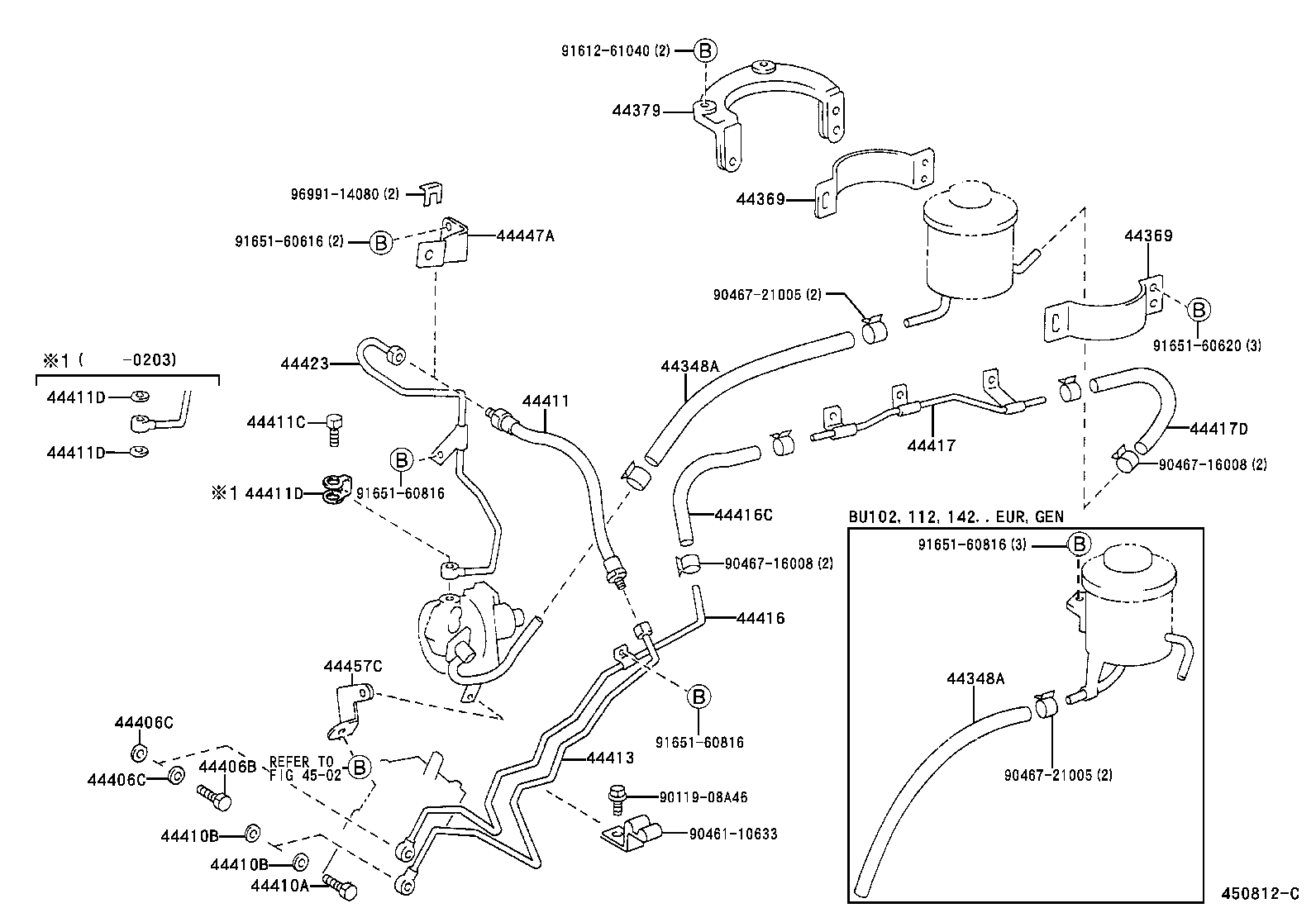

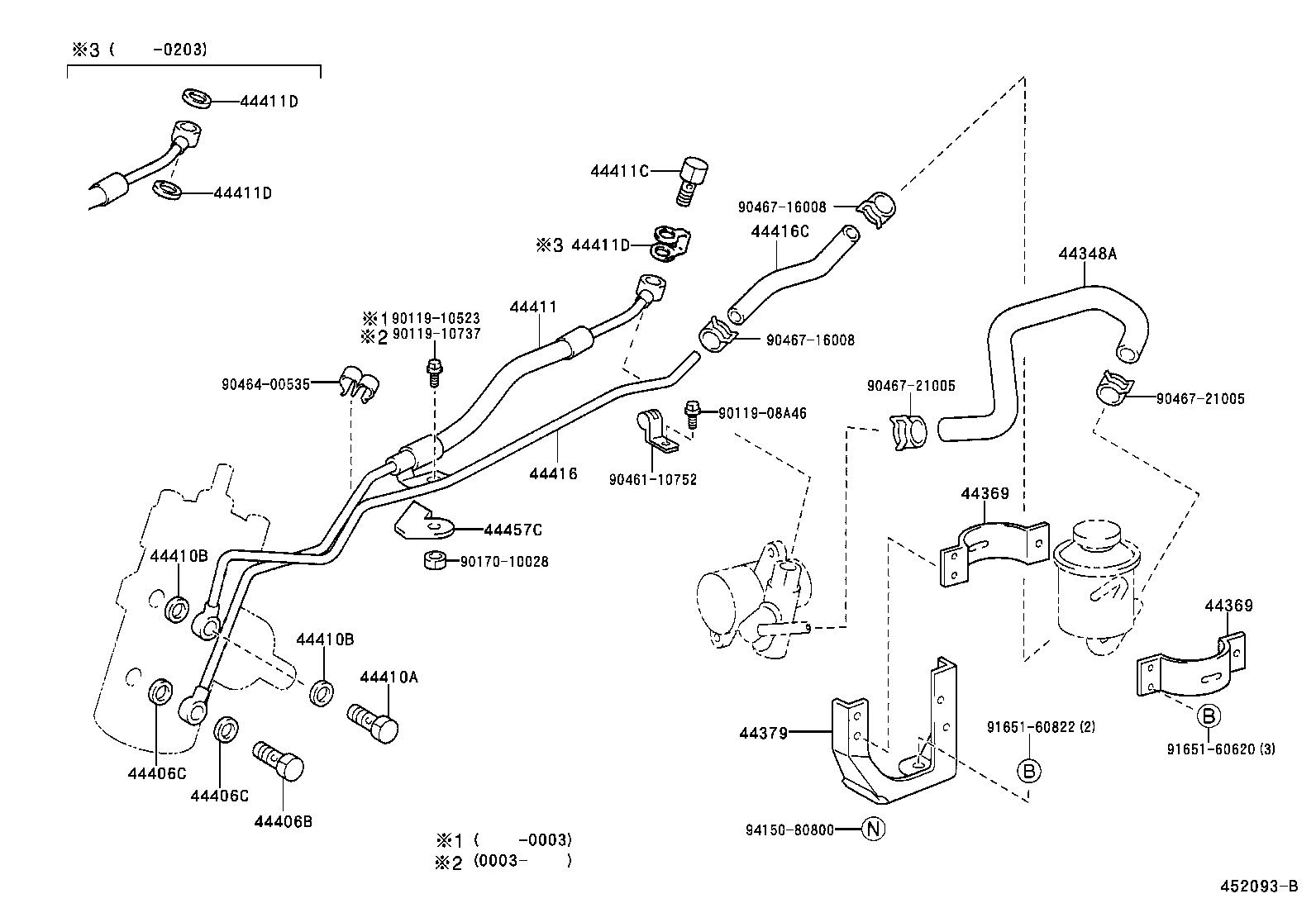

Figure 450811A 450811A 1995-05 → — Figure 450812C 450812C 1995-05 → — Figure 450839G 450839G 1995-05 → — Figure 450813A 450813A 1995-05 → — Figure 450814C 450814C 1995-05 → — Figure 450815C 450815C 1995-05 → — Figure 450838C 450838C 1995-05 → — Figure 450837C 450837C 1995-05 → — Figure 450696 450696 1997-03 → — Figure 451816B 451816B 1999-08 → — Figure 452093B 452093B 1999-08 → — Figure 453053B 453053B 2002-03 → —

Part groups

PNCDescription
44318 Spacer, Vane Pump Drive Pulley
44319 Pulley, Vane Pump Drive
44348A Hose, Oil Reservoir TO Pump, NO.1
44350 Pulley Assy, Power Steering Idle
44369 Bracket, Oil Reservoir, NO.1
44379 Bracket, Oil Reservoir, NO.2
44386A Support, Oil Reservoir
44389 Bracket, Oil Reservoir, NO.3
44406B Bolt, Union(FOR RETURN TUBE)
44406C Gasket(FOR RETURN TUBE)
44410A Bolt, Union(FOR PRESSURE FEED TUBE)
44410B Gasket(FOR PRESSURE FEED TUBE)
44411 Hose, Pressure Feed
44411C Bolt, Union(FOR PRESSURE FEED HOSE)
44411D Gasket(FOR PRESSURE FEED HOSE)
44413 Tube, Pressure Feed, NO.1
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44416C Hose(FOR RETURN TUBE TO RESERVIOR)
44416E Bolt, Union(FOR RETURN TUBE)
44416F Gasket(FOR RETURN TUBE)
44417 Tube, Return, NO.2
44417D Hose(FOR RETURN TUBE TO RESERVOIR)
44423 Tube, Oil Pump TO Gear Box
44443 Bracket, Pump
44447A Bracket, Hose Support, NO.1
44457C Bracket, Power Steering Tube Support, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
