Toyota DYNA200

1995-05 → 2003-12 · chassis BU10#,11#,14#,21#,22#,YU210,RZU100 · catalogue 751260 · Europe

Discontinued model Data version 2004-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

4 part groups · 4 illustrations

Illustrations

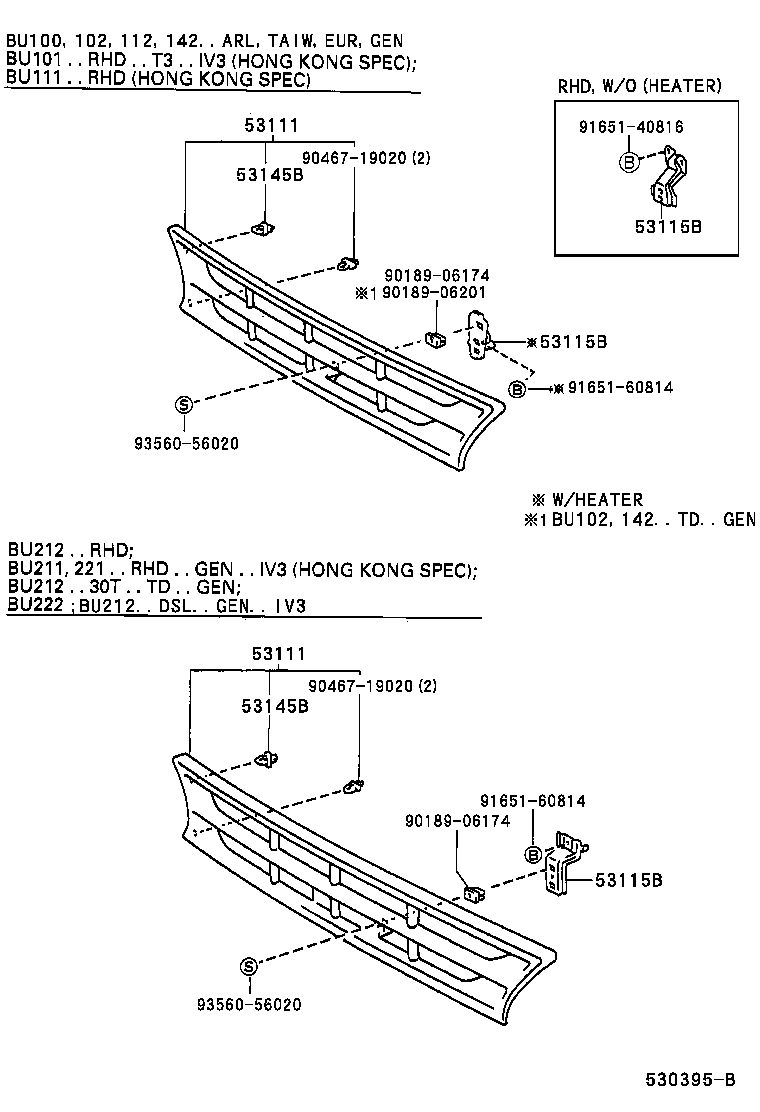

Figure 530394C 530394C 1995-05 → — Figure 530395B 530395B 1995-05 → — Figure 530396A 530396A 1995-05 → — Figure 530396A 530396A 1995-05 → —

Part groups

PNCDescription
53111 Grille, Radiator
53115B Bracket, Radiator Grille
53116B Bracket, Radiator Grille, NO.2
53145B Clip, Radiator Grille Garnish
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
