Toyota DYNA200

1995-05 → 2003-12 · chassis BU10#,11#,14#,21#,22#,YU210,RZU100 · catalogue 751260 · Europe

Discontinued model Data version 2004-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Panel & Back Panel

46 part groups · 9 illustrations

Illustrations

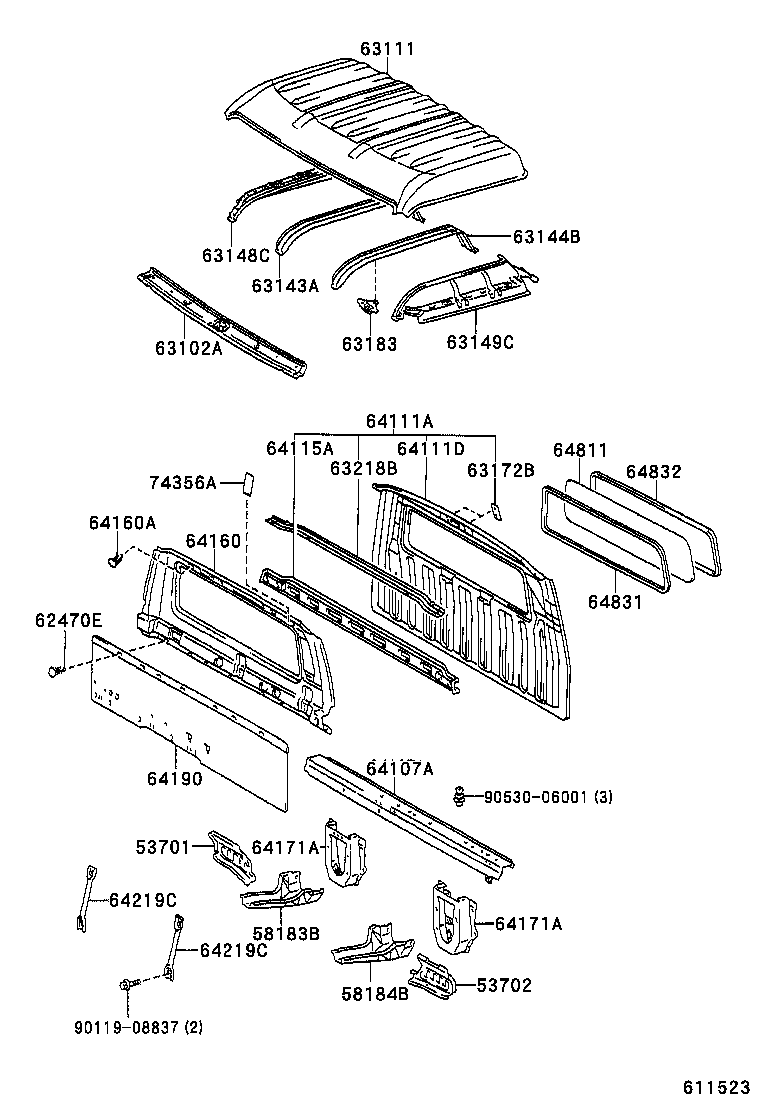

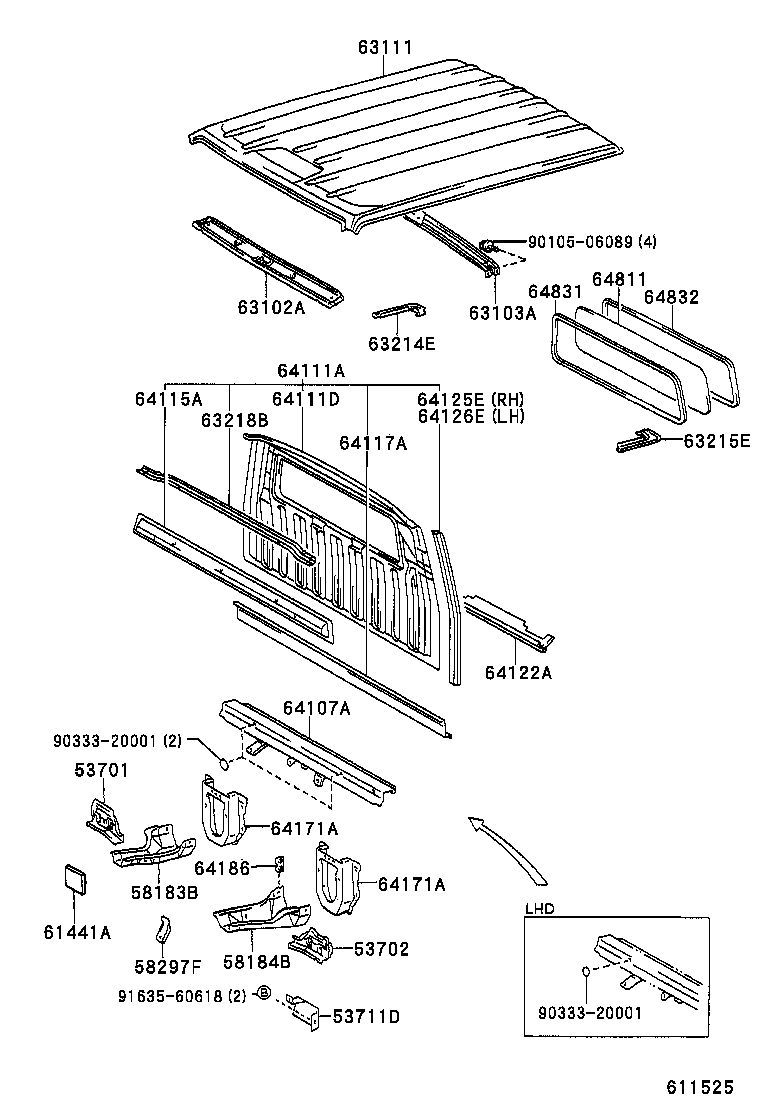

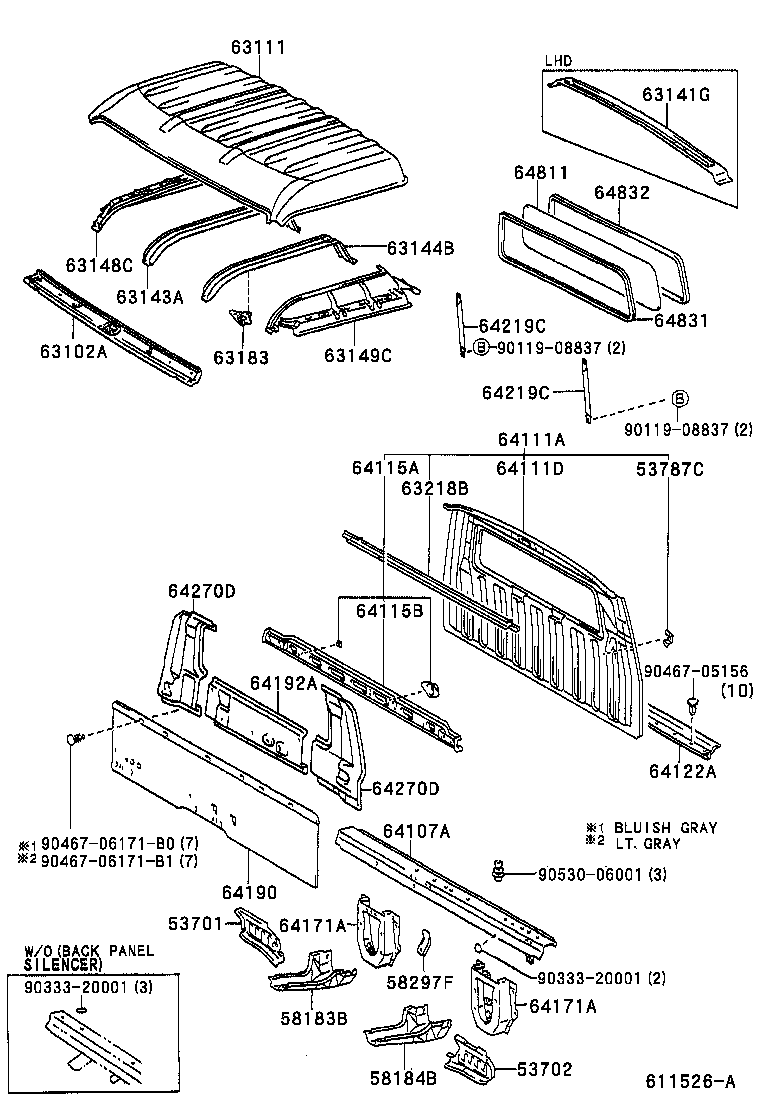

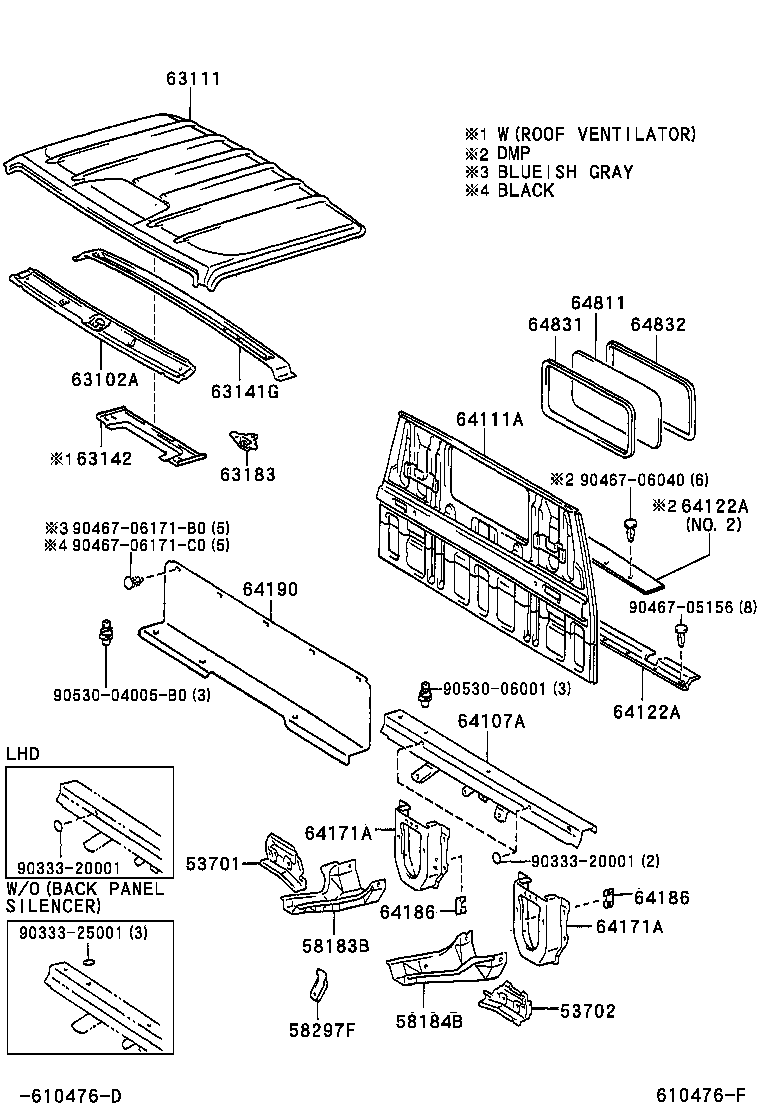

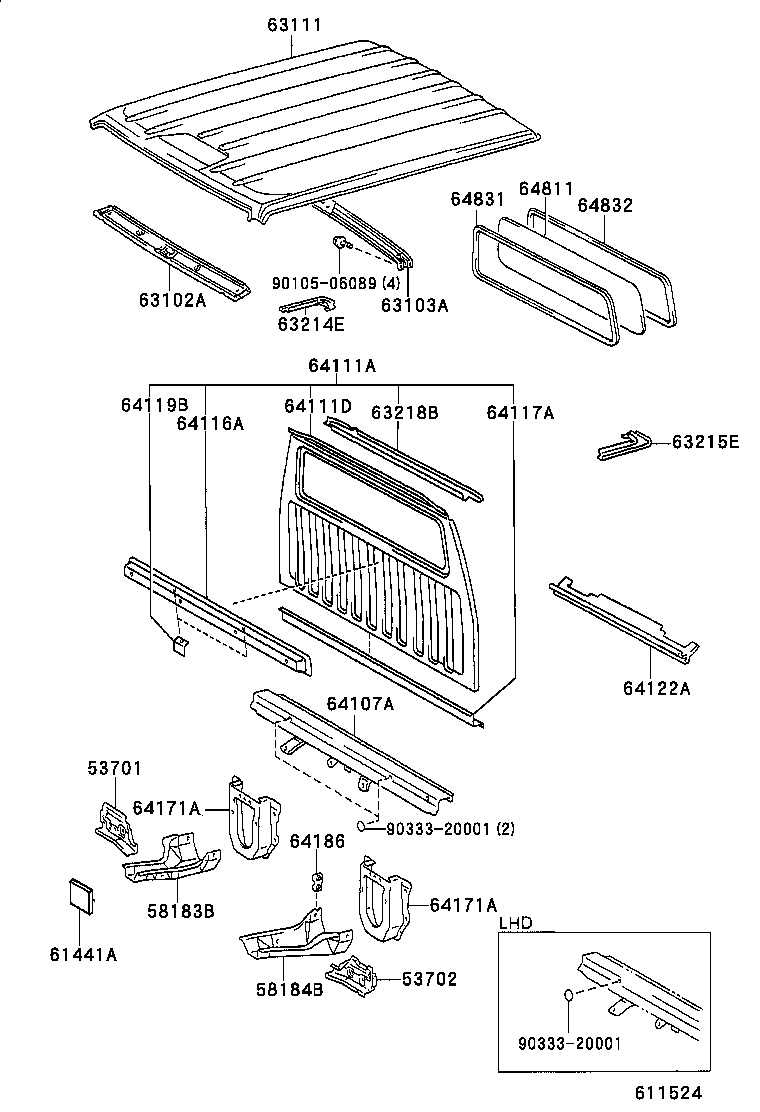

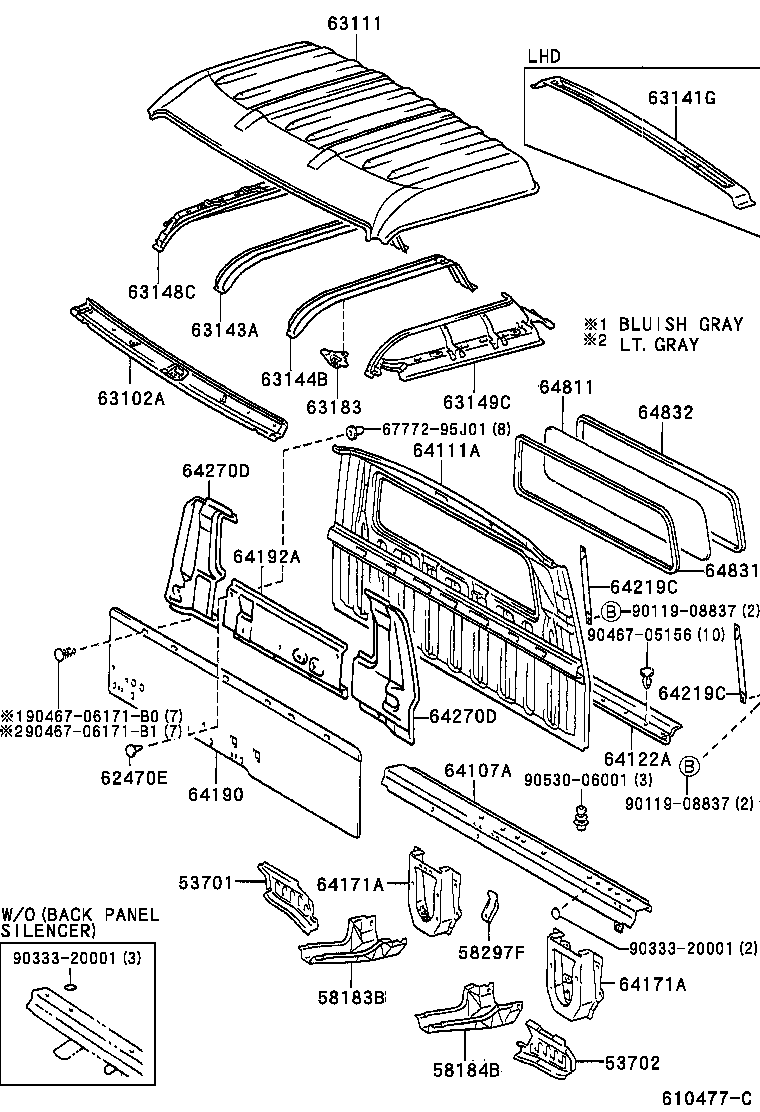

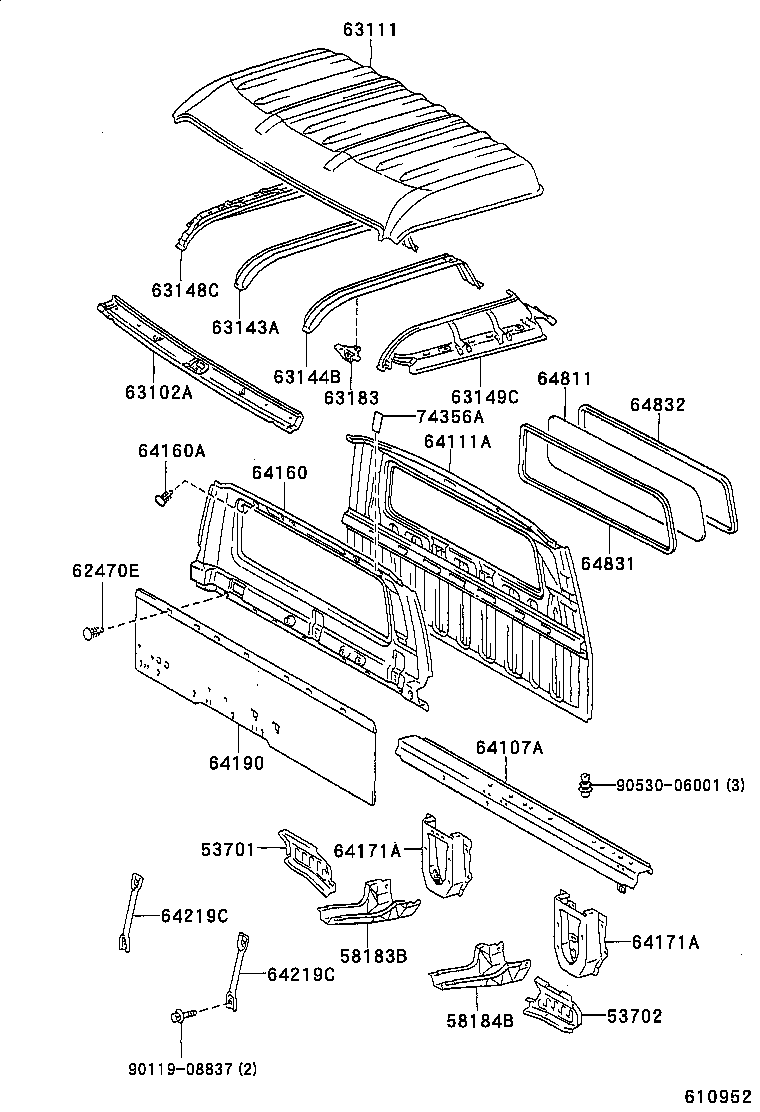

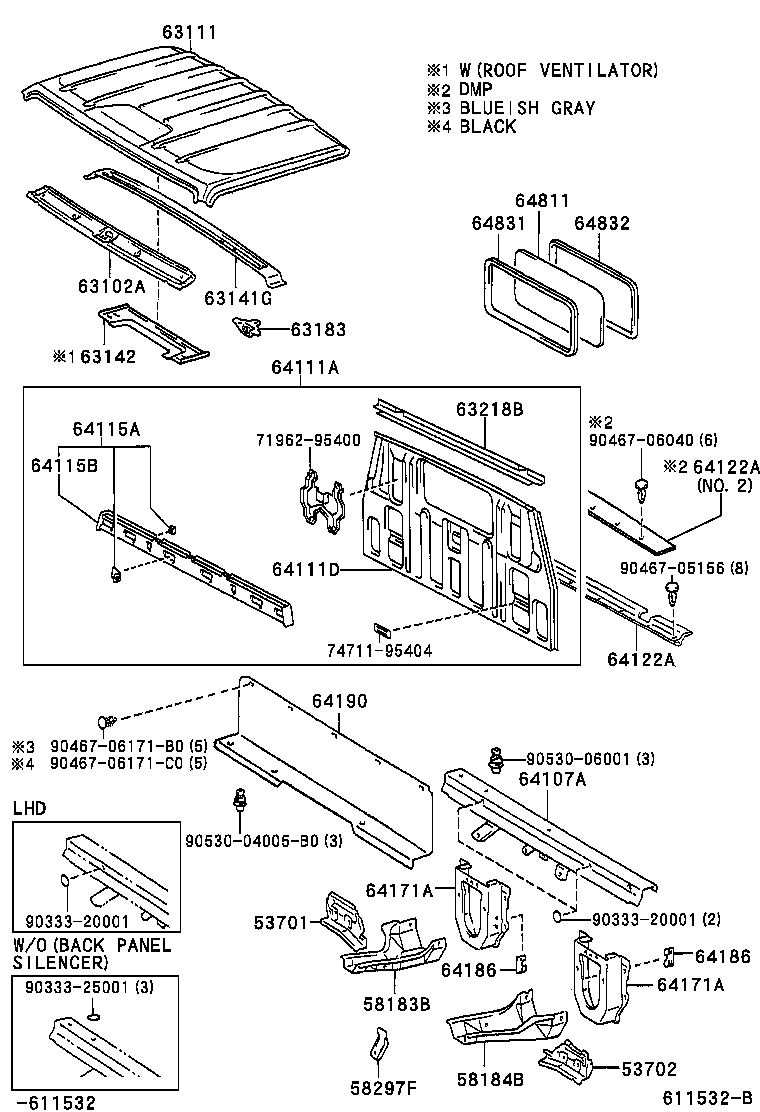

Figure 610546A 610546A 1995-05 → 2001-05 Figure 610952 610952 1999-08 → 2001-05 Figure 610477C 610477C 1995-05 → 2001-05 Figure 610476F 610476F 1995-05 → 2001-05 Figure 611526A 611526A 2001-05 → — Figure 611524 611524 2001-05 → — Figure 611525 611525 2001-05 → — Figure 611523 611523 2001-05 → — Figure 611532B 611532B 2001-05 → —

Part groups

PNCDescription
53701 Apron Sub-assy, Front Fender, RH
53702 Apron Sub-assy, Front Fender, LH
53711D Apron, Front Fender
53787C Bracket, Air Cleaner Inlet, NO.5
58183B Reinforcement, Rear Mounting, RH
58184B Reinforcement, Rear Mounting, LH
58297F Reinforcement, Seat Belt Anchor, NO.2
61441A Silencer, Rear Pillar
62470E Clip(FOR BACK PANEL TRIM)
63102A Panel Sub-assy, Windshield Header
63103A Reinforcement Sub-assy, Roof Panel
63111 Panel, Roof
63141G Reinforcement, Roof Panel, NO.1
63142 Reinforcement, Roof Panel, NO.2
63143A Reinforcement, Roof Panel
63144B Reinforcement, Roof Panel, NO.4
63148C Reinforcement, Roof Panel Side, RH
63149C Reinforcement, Roof Panel Side, LH
63172B Base, Room Lamp, NO.1
63183 Bracket, Roof Console, Front
63214E Channel, Roof Drip, Rear, RH
63215E Channel, Roof Drip, Rear, LH
63218B Channel, Roof Drip, Rear
64107A Frame Sub-assy, Back
64111A Panel, Back
64111D Panel, Upper Back
64115A Reinforcement, Back, Upper
64115B Reinforcement, Back Panel
64116A Reinforcement, Back, Lower
64117A Reinforcement, Cab Back, Lower
64119B Reinforcement, Cab Back Side, LH
64122A Baffle, Dust Rear Body
64125E Extension, Back Corner Panel, RH
64126E Extension, Back Corner Panel, LH
64160 Silencer Assy, Back Panel, Upper
64160A Clip(FOR BACK PANEL UPPER SILENCER)
64171A Bracket Sub-assy, Rear Mounting
64186 Retainer, Rear Mounting Bracket
64190 Silencer Assy, Back Panel
64192A Board, Back Panel Silencer, Upper
64219C Stay, Back Panel
64270D Trim Assy, Back Panel
64811 Glass, Back Window
64831 Weatherstrip, Back Window Glass
64832 Key, Back Window Weatherstrip
74356A Cover, Hole(FOR BACK PANEL SILENCER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
