Toyota DYNA200
1995-05 → 2003-12 · chassis BU10#,11#,14#,21#,22#,YU210,RZU100 · catalogue 751260 · Europe
Discontinued model
Data version 2004-06

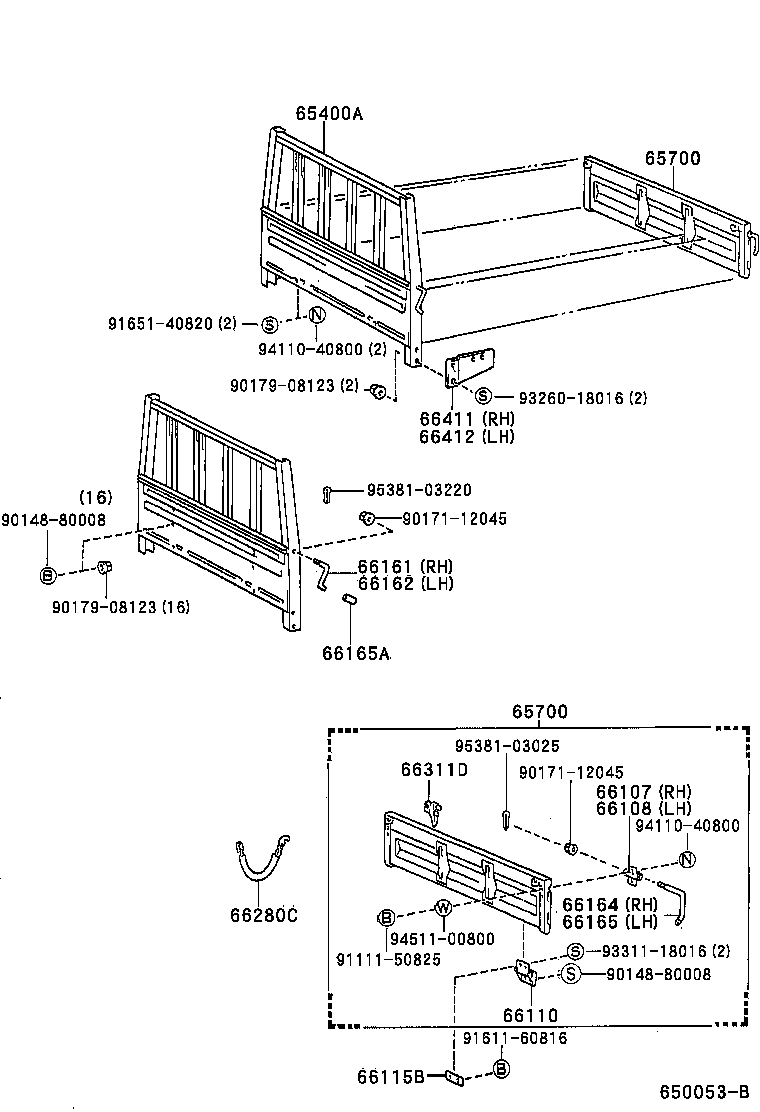

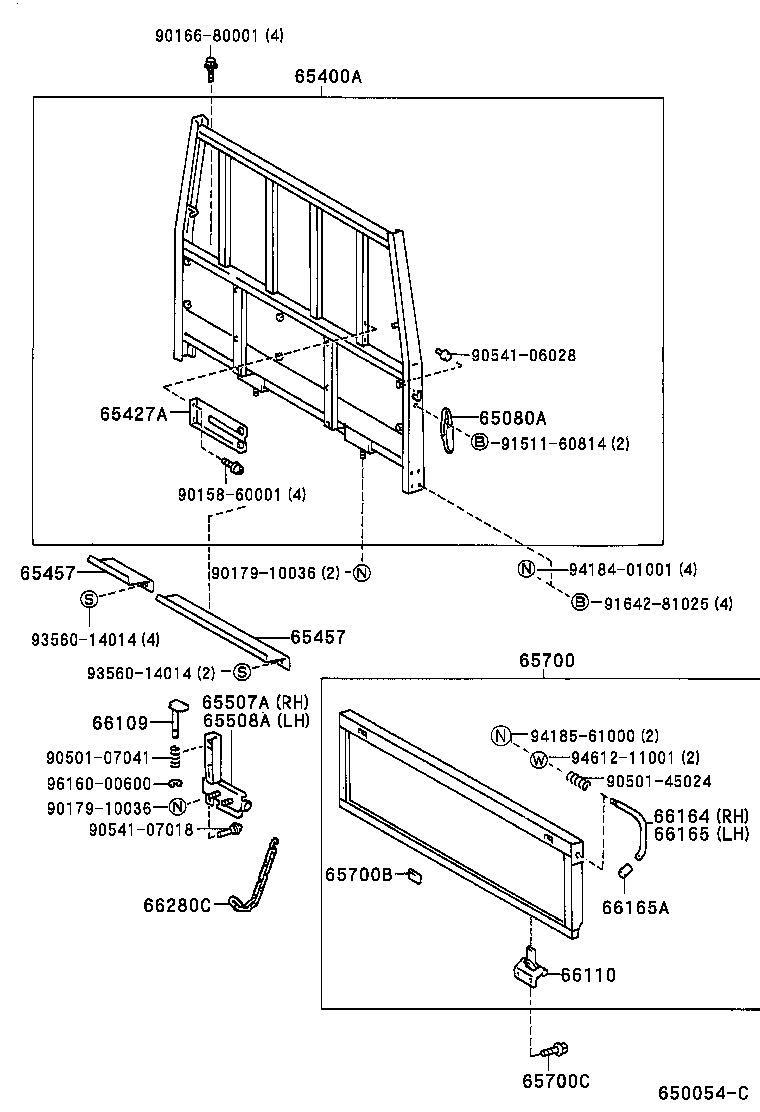

Rear Body Guard Frame & Tail Gate
30 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 65080A | Handle Assy, Side Gate Latch |
| 65400A | Guard Assy, Rear Body |
| 65402B | Frame Sub-assy, Rear Body |
| 65427A | Plate, Rear Body Guard, LH |
| 65457 | Plate, Baffle Dust Rear Body |
| 65474 | Insulator, Header |
| 65507A | Support Sub-assy, Corner, RH |
| 65508A | Support Sub-assy, Corner, LH |
| 65700 | Gate Assy, Rear Body Tail |
| 65700B | Plug, Hole(FOR TAIL GATE) |
| 65700C | Bolt, W/Washer(FOR TAIL GATE) |
| 65941 | Stopper, Shovel |
| 65951 | Clamp, Shovel |
| 66107 | Bracket Sub-assy, Tail Gate, RH |
| 66108 | Bracket Sub-assy, Tail Gate, LH |
| 66109 | Handle Sub-assy, Side Gate Support Corner |
| 66110 | Hinge Assy, Tail Gate |
| 66115B | Retainer, Gate Hinge |
| 66121A | Bolt, Tail Gate Male |
| 66161 | Handle, Side Gate Latch, RH |
| 66162 | Handle, Side Gate Latch, LH |
| 66164 | Handle, Tail Gate Latch, RH |
| 66165 | Handle, Tail Gate Latch, LH |
| 66165A | Cap, Gate Latch Handle |
| 66170 | Latch Assy, Rear Body Tail Gate |
| 66218 | Bracket, Tail Gate Latch Pin |
| 66280C | Chain Assy, Tail Gate |
| 66311D | Hook, Rope |
| 66411 | Bracket, Guard Frame, RH |
| 66412 | Bracket, Guard Frame, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
