Toyota DYNA200
1995-05 → 2003-12 · chassis BU10#,11#,14#,21#,22#,YU210,RZU100 · catalogue 751260 · Europe
Discontinued model
Data version 2004-06

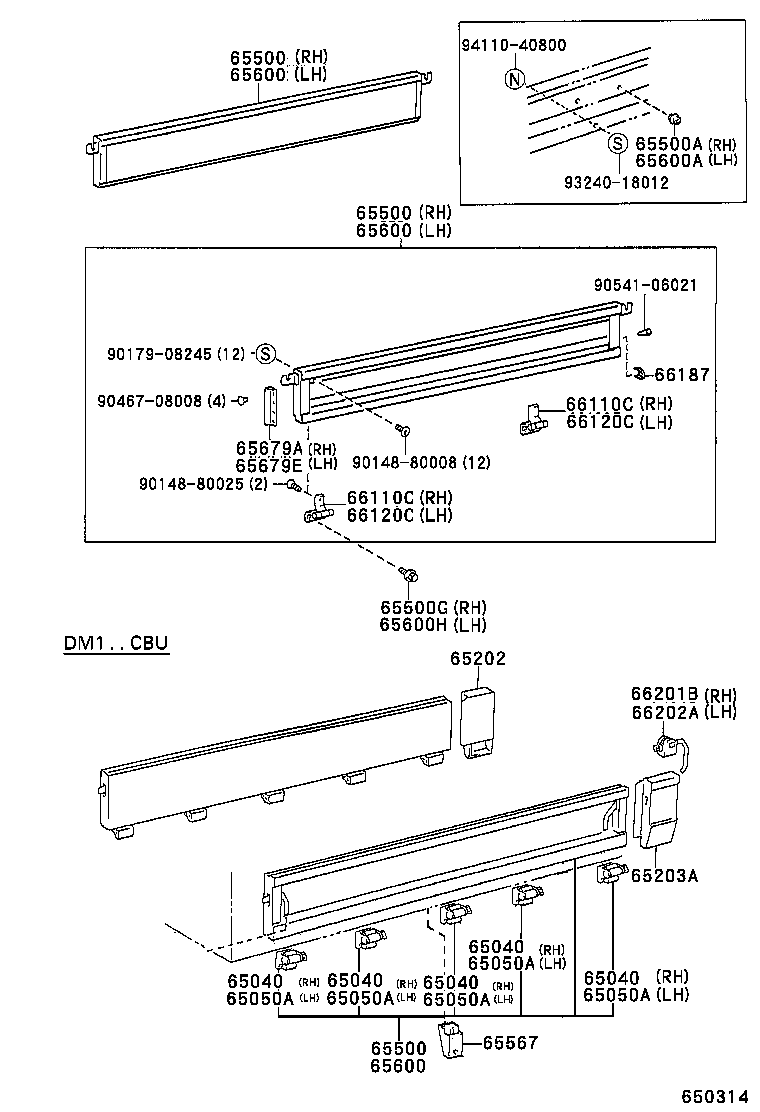

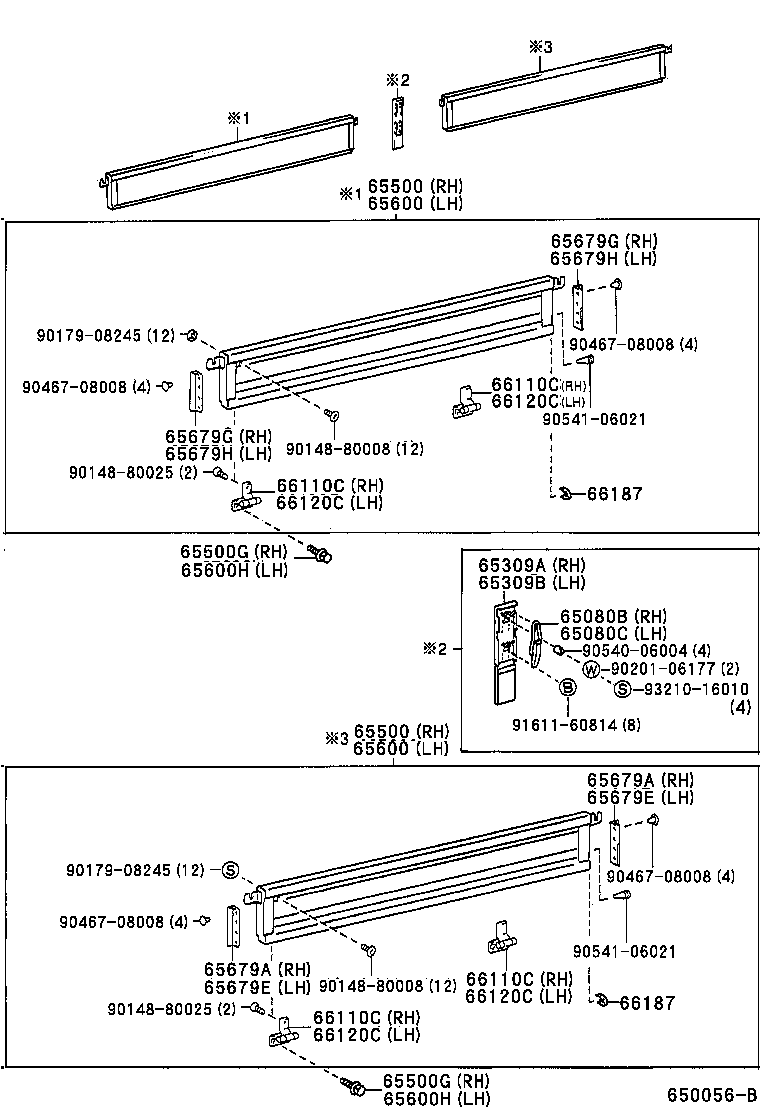

Rear Body Side Panel
38 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 65040 | Hinge Assy, Side Gate 1 |
| 65050A | Hinge Assy, Side Gate 2 |
| 65080B | Handle Assy, Side Gate Latch |
| 65080C | Handle Assy, Side Gate Latch |
| 65202 | Post Sub-assy, Side Gate, Rear RH |
| 65203A | Post Sub-assy, Side Gate, Rear LH |
| 65309A | Post Sub-assy, RH |
| 65309B | Post Sub-assy, LH |
| 65313 | Panel, Floor Front Corner, RH |
| 65314 | Panel, Floor Front Corner, LH |
| 65315 | Panel, Floor Rear Corner, RH |
| 65316 | Panel, Floor Rear Corner, LH |
| 65500 | Panel Assy, Rear Body Side, RH |
| 65500A | Plug, Hole(FOR REAR BODY SIDE PANEL) |
| 65500G | Bolt, W/Washer(FOR SIDE GATE, RH) |
| 65567 | Support, Side Gate |
| 65577 | Retainer, Tail Gate Latch Female |
| 65577A | Retainer, Tail Gate Female |
| 65600 | Panel Assy, Rear Body Side, LH |
| 65600A | Plug, Hole(FOR SIDE GATE, LH) |
| 65600H | Bolt, W/Washer(FOR SIDE GATE, LH) |
| 65651 | Panel, Wheel House |
| 65651C | Panel, Wheel House |
| 65679A | Seal, Side Gate |
| 65679E | Seal, Side Gate |
| 65679G | Seal, Side Gate |
| 65679H | Seal, Side Gate |
| 66110C | Hinge Assy, Side Gate, NO.1 RH |
| 66115C | Retainer, Gate Hinge |
| 66120C | Hinge Assy, Side Gate, NO.1 LH |
| 66153A | Latch, Tail Gate Female, RH |
| 66154A | Latch, Tail Gate Female, LH |
| 66187 | Handle, Side Gate Latch, Center NO.2 |
| 66201B | Latch Sub-assy, Tail Gate, RH |
| 66202A | Latch Sub-assy, Tail Gate, LH |
| 66311E | Hook, Rope |
| 66312C | Hook, Rope |
| 66332 | Cushion, Rubber |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
