Toyota DYNA200

1995-05 → 2003-12 · chassis BU10#,11#,14#,21#,22#,YU210,RZU100 · catalogue 751260 · Europe

Discontinued model Data version 2004-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Mounting

14 part groups · 4 illustrations

Illustrations

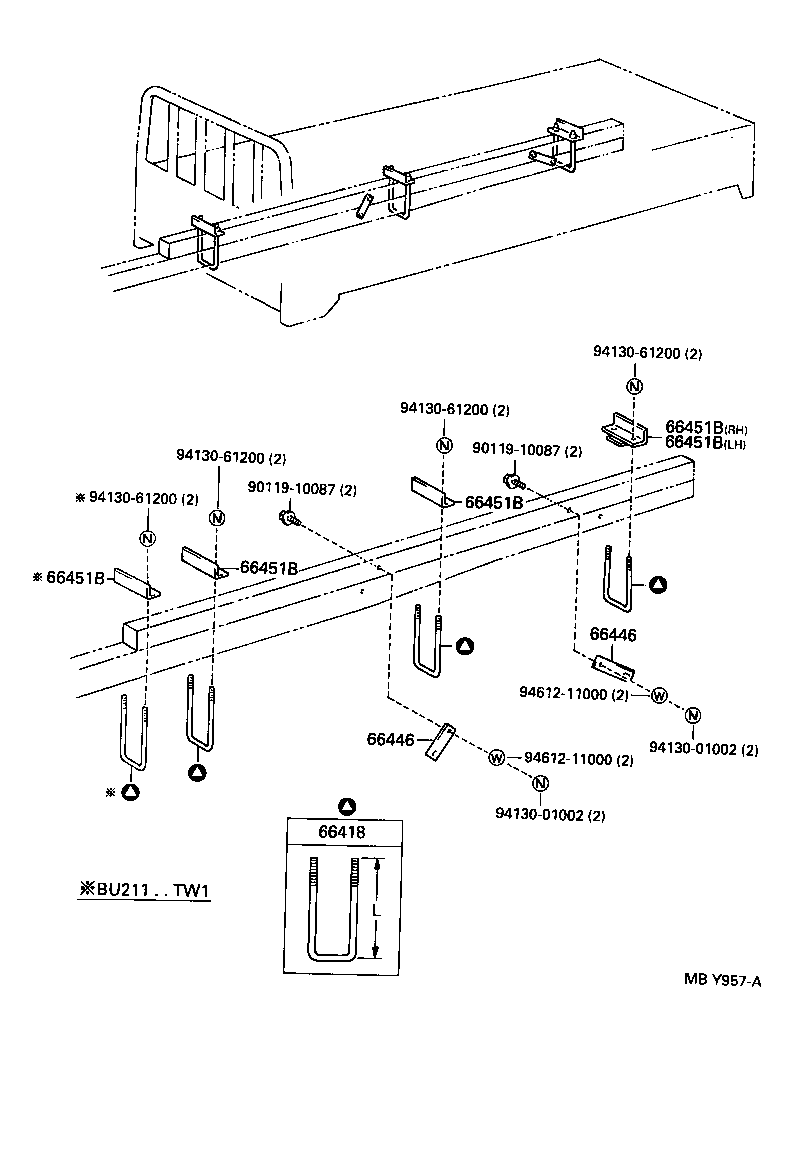

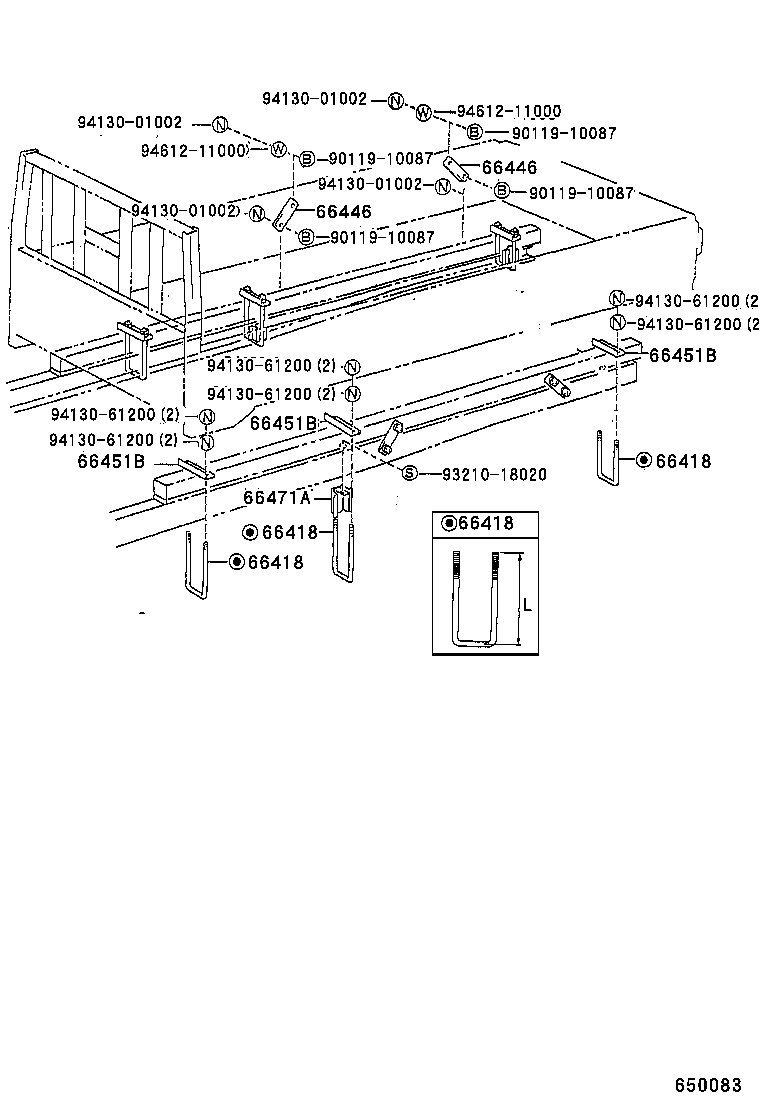

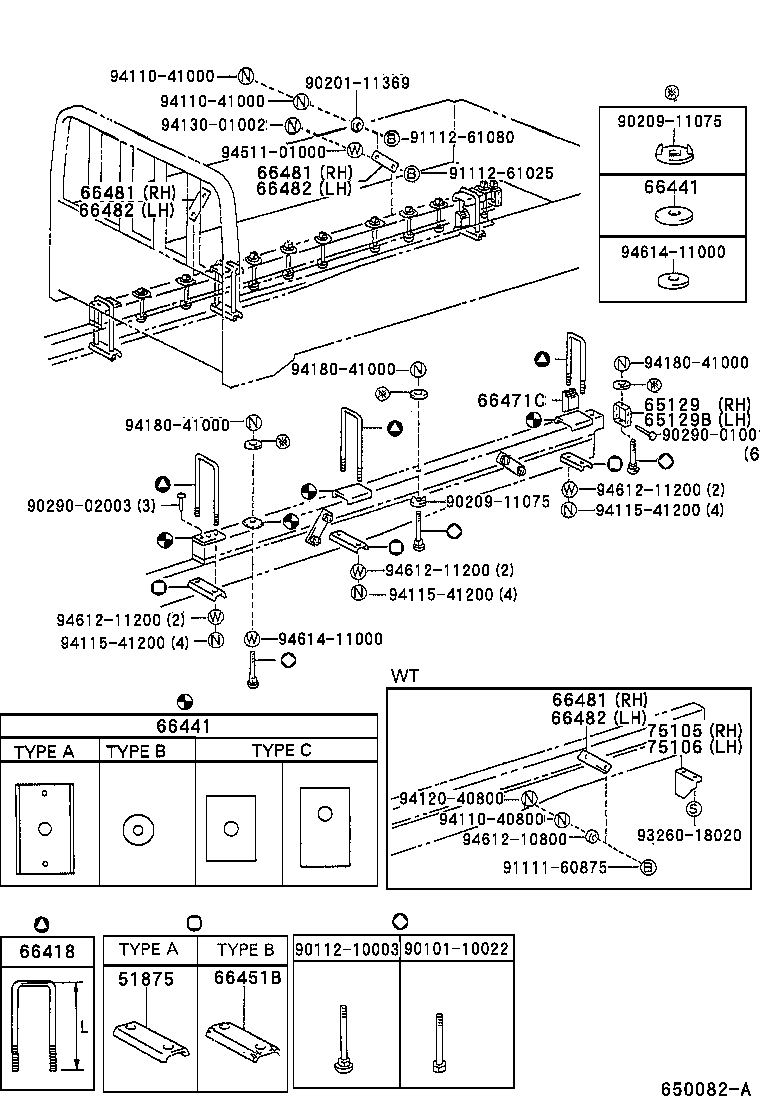

Figure 650071 650071 1995-05 → — Figure 650082A 650082A 1995-05 → — Figure 650083 650083 1995-05 → — Figure MBY957A MBY957A 1995-05 → —

Part groups

PNCDescription
51875 Plate, U-bolt
65129 Cover, Main Sill Rear End
65129B Cover, Main Sill Rear End
66418 Bolt, Mounting
66439 Shim, Support
66441 Shim, Mounting, NO.1
66446 Brace, Frame Floor
66451B Plate, U Bolt
66471A Reinforcement, Frame U Bolt
66471C Block, U Bolt
66481 Brace, Sill TO Frame, RH
66482 Brace, Sill TO Frame, LH
75105 Support Sub-assy, Main Sill, RH
75106 Support Sub-assy, Main Sill, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
