Toyota DYNA200
1995-05 → 2003-12 · chassis BU10#,11#,14#,21#,22#,YU210,RZU100 · catalogue 751260 · Europe
Discontinued model
Data version 2004-06
Seat Belt
15 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|

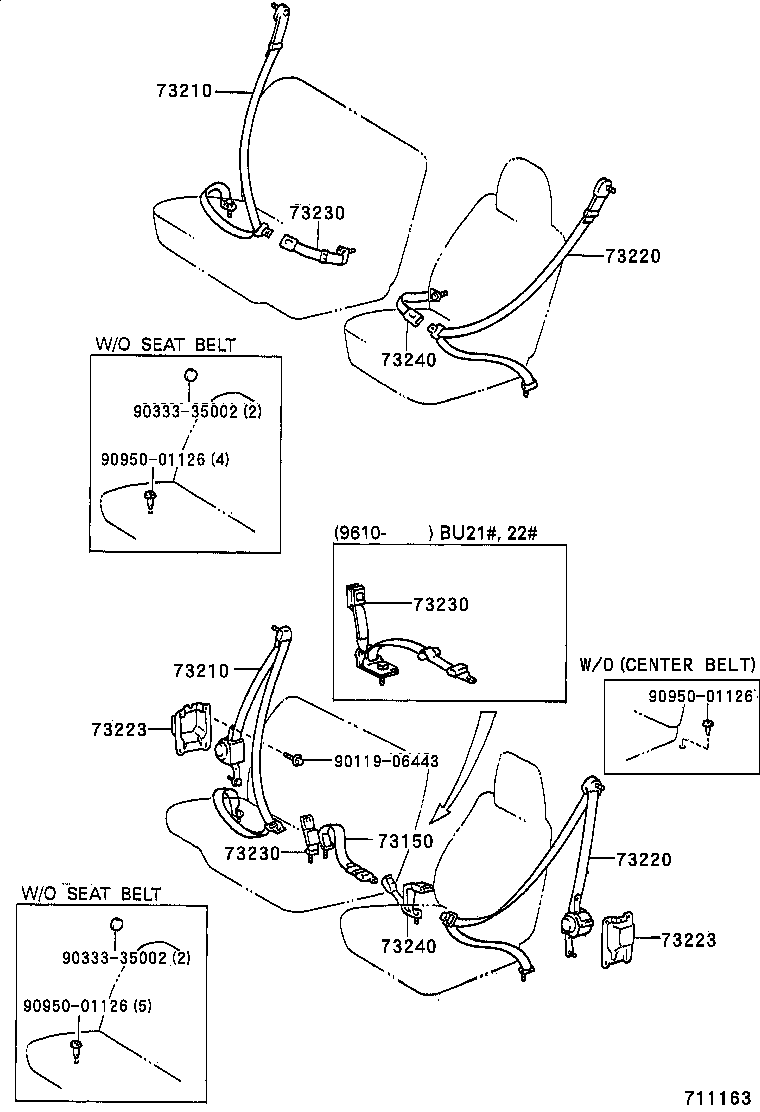

| 73150 | Belt Assy, Front Seat Lap Type, Center |
| 73210 | Belt Assy, Front Seat Outer, RH |
| 73220 | Belt Assy, Front Seat Outer, LH |
| 73223 | Cover, Seat Belt Retractor |
| 73230 | Belt Assy, Front Seat Inner, RH |
| 73240 | Belt Assy, Front Seat Inner, LH |

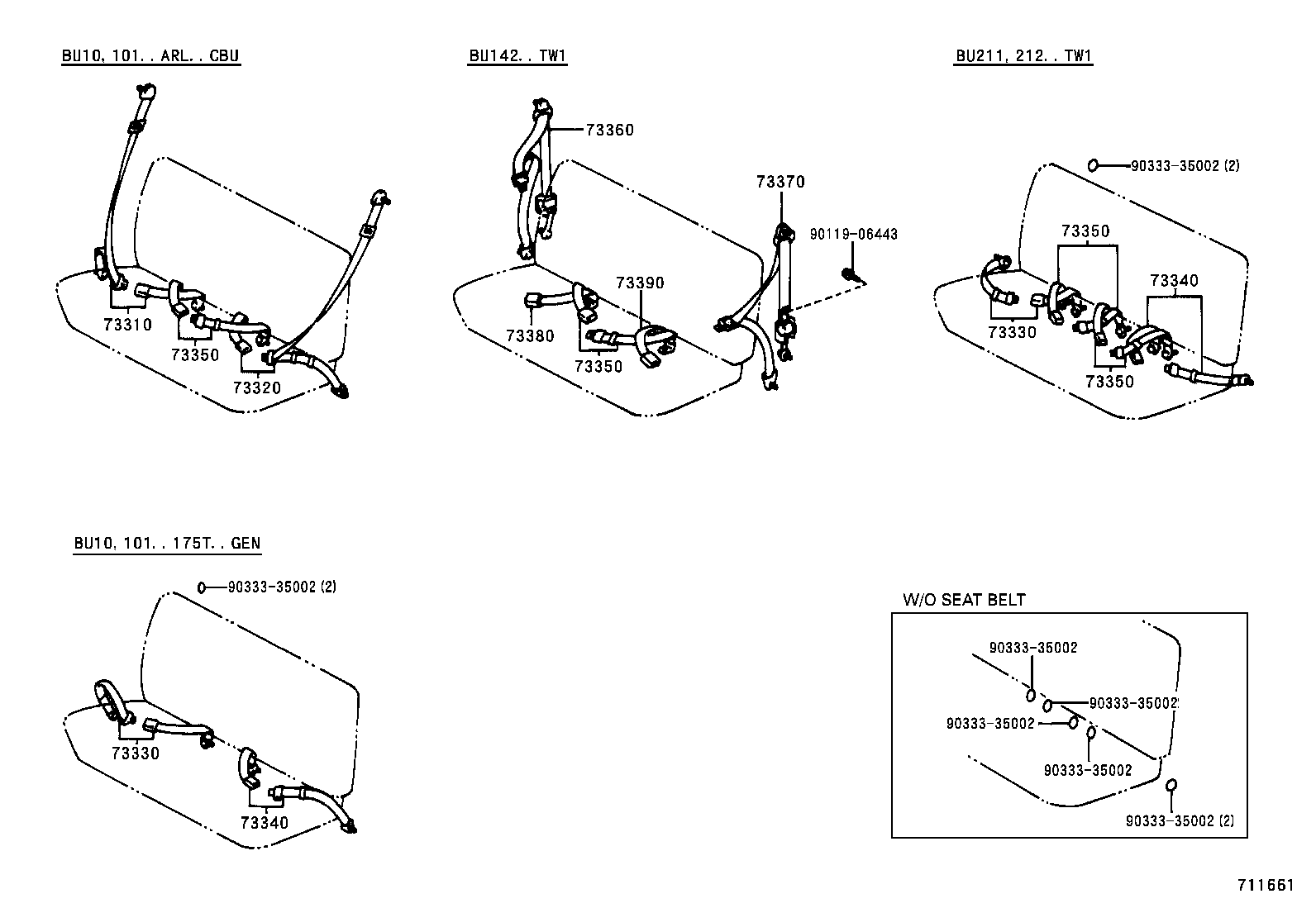

| 73310 | Belt Assy, Rear Seat 3 Point Type, RH |
| 73320 | Belt Assy, Rear Seat 3 Point Type, LH |
| 73330 | Belt Assy, Rear Seat Lap Type, RH |
| 73340 | Belt Assy, Rear Seat Lap Type, LH |
| 73350 | Belt Assy, Rear Seat Lap Type, Center |
| 73360 | Belt Assy, Rear Seat 3 Point Type, Outer RH |
| 73370 | Belt Assy, Rear Seat 3 Point Type, Outer LH |
| 73380 | Belt Assy, Rear Seat 3 Point Type, Inner, RH |
| 73390 | Belt Assy, Rear Seat 3 Point Type, Inner, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
