Toyota DYNA200

1995-05 → 2003-12 · chassis BU10#,11#,14#,21#,22#,YU210,RZU100 · catalogue 751260 · Europe

Discontinued model Data version 2004-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

25 part groups · 14 illustrations

Illustrations

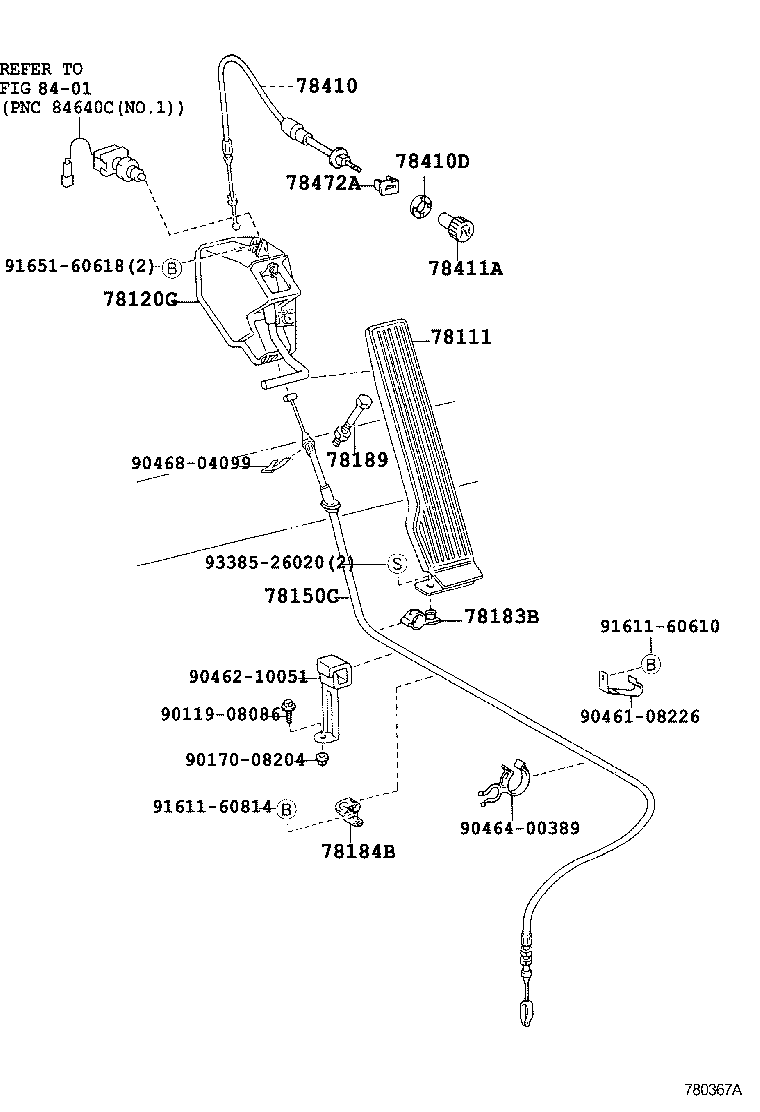

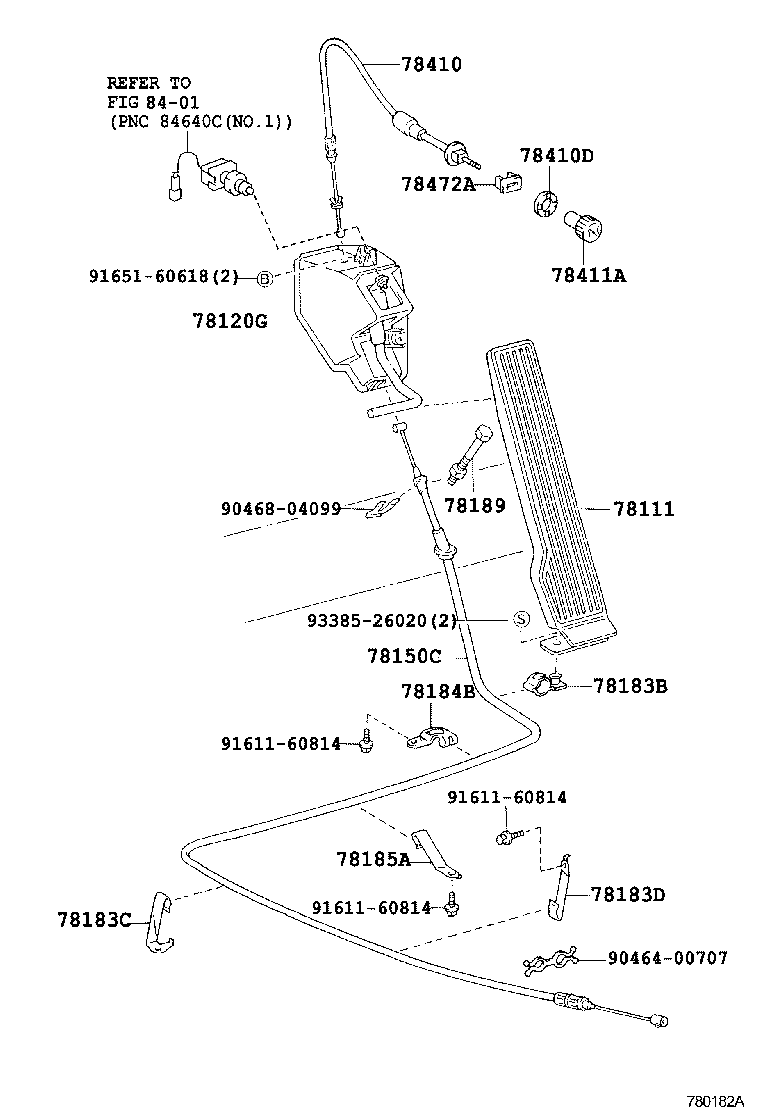

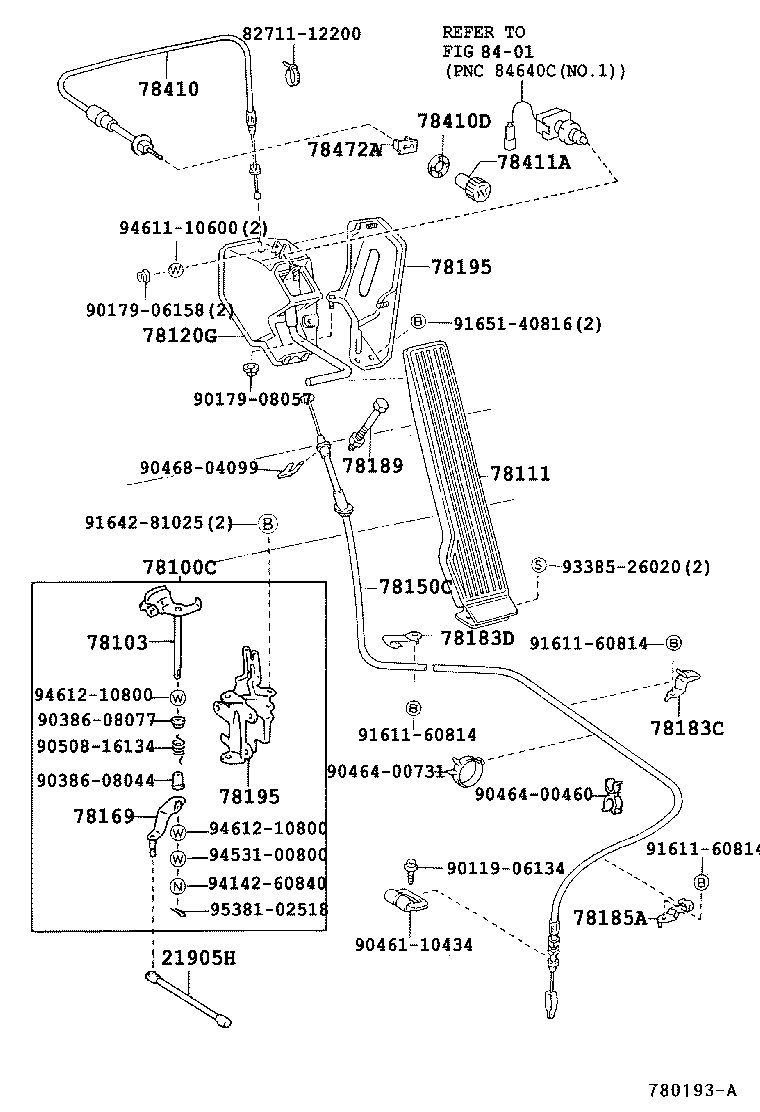

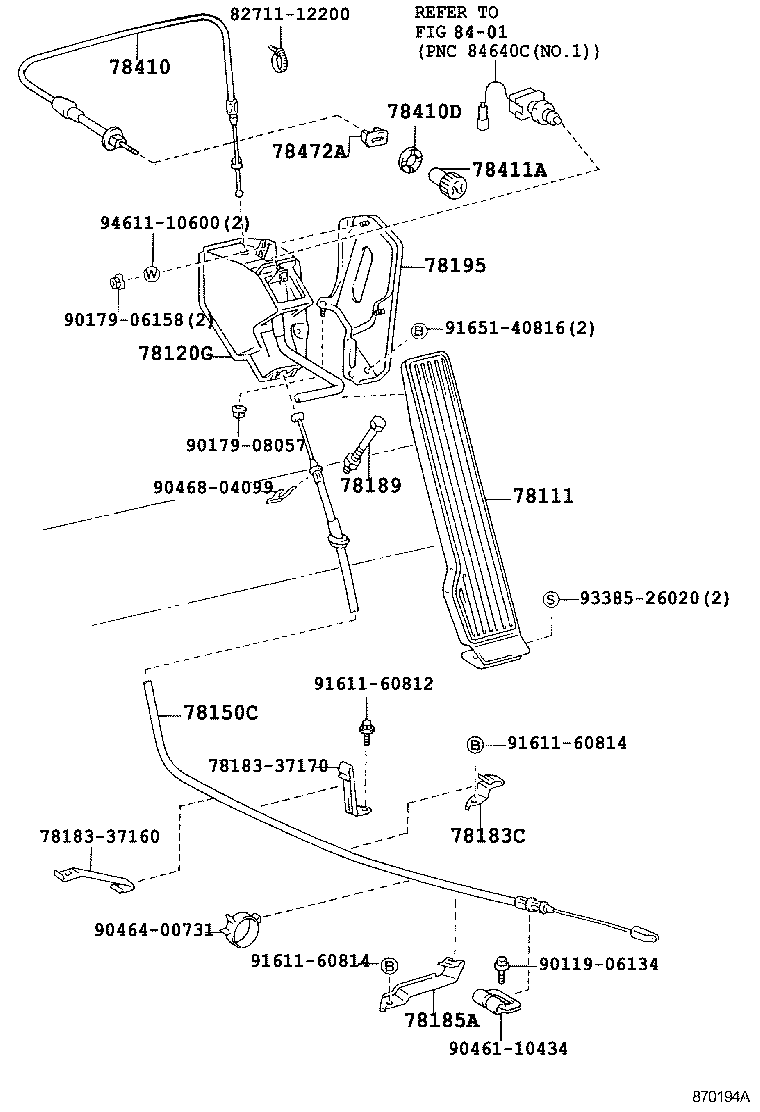

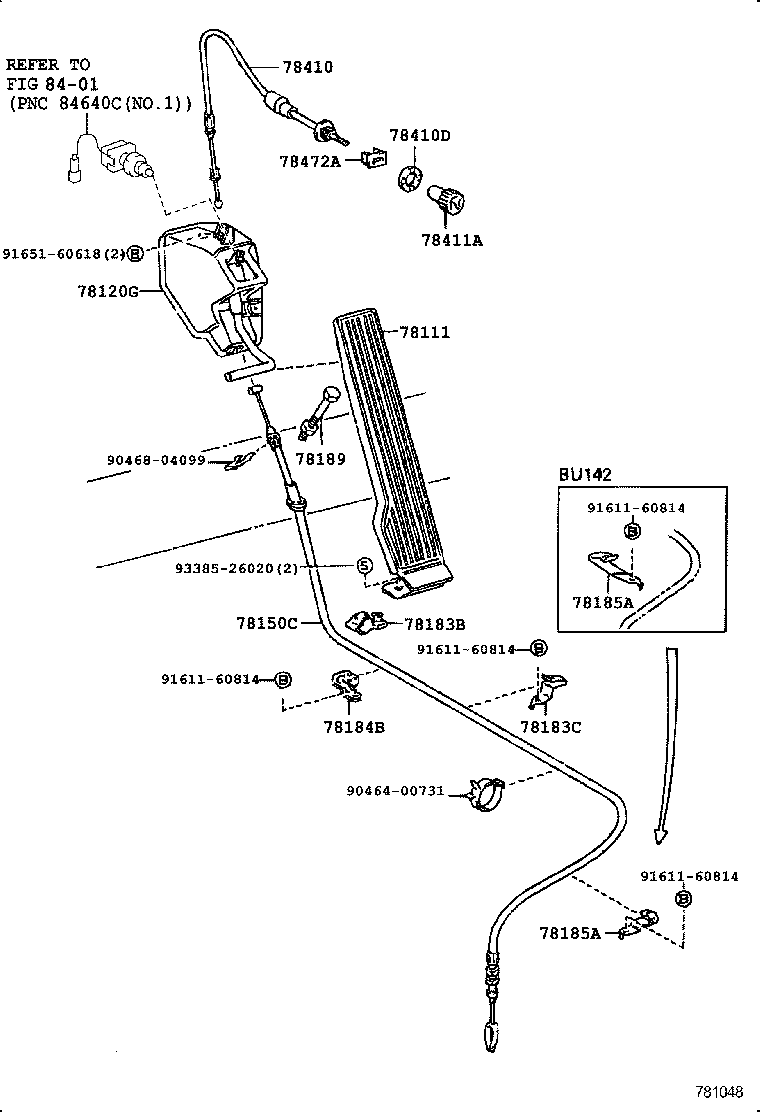

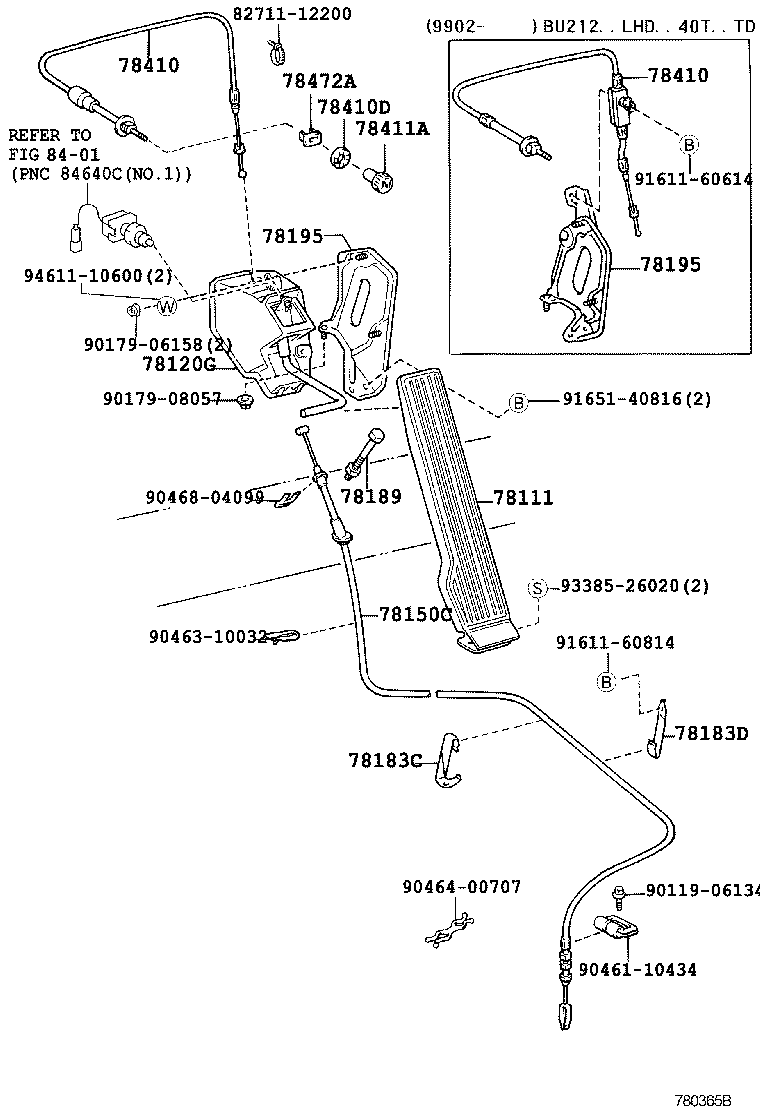

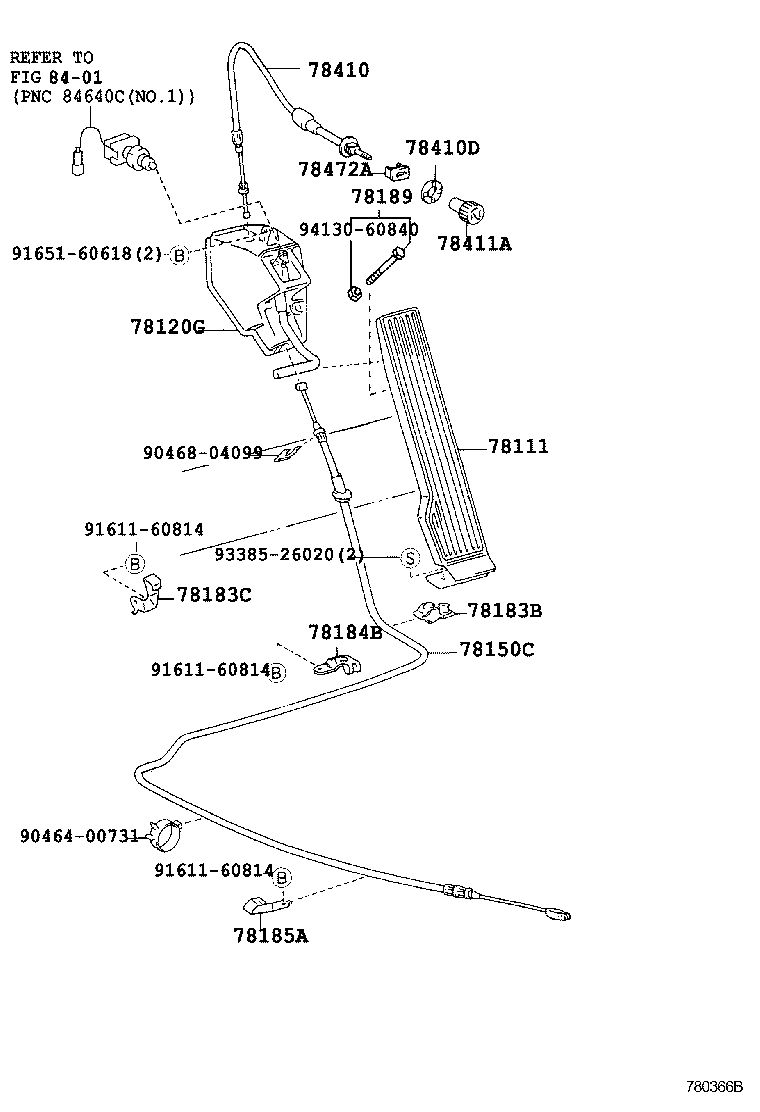

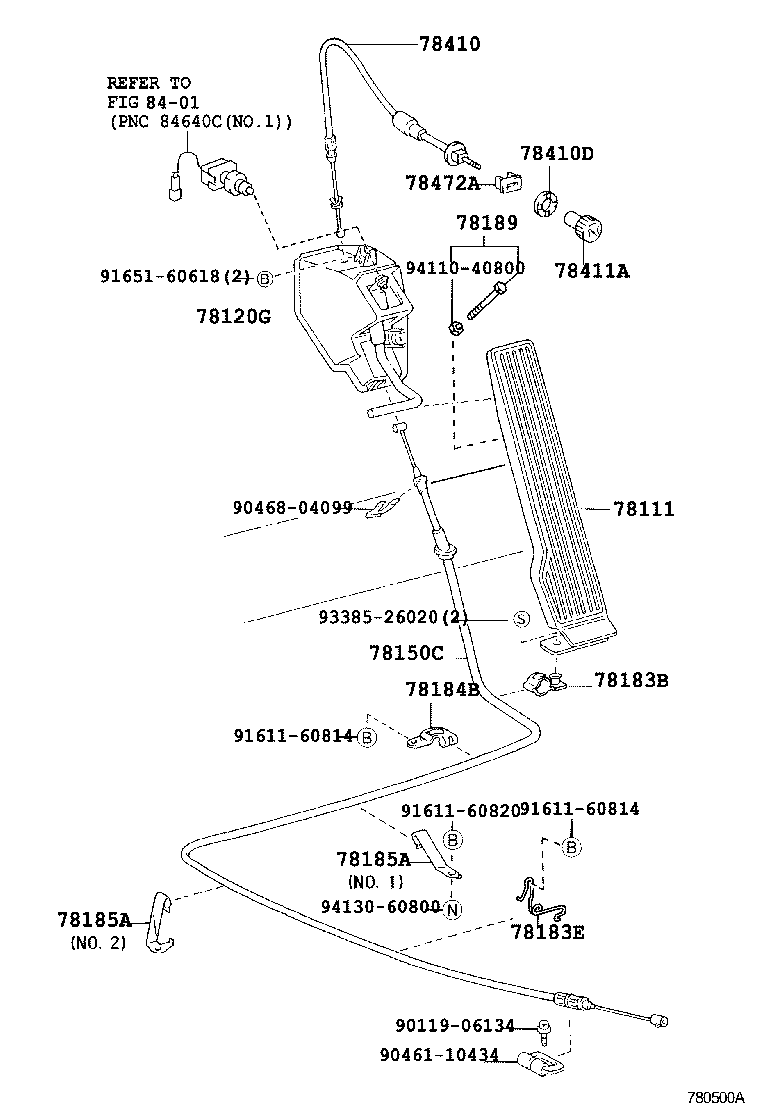

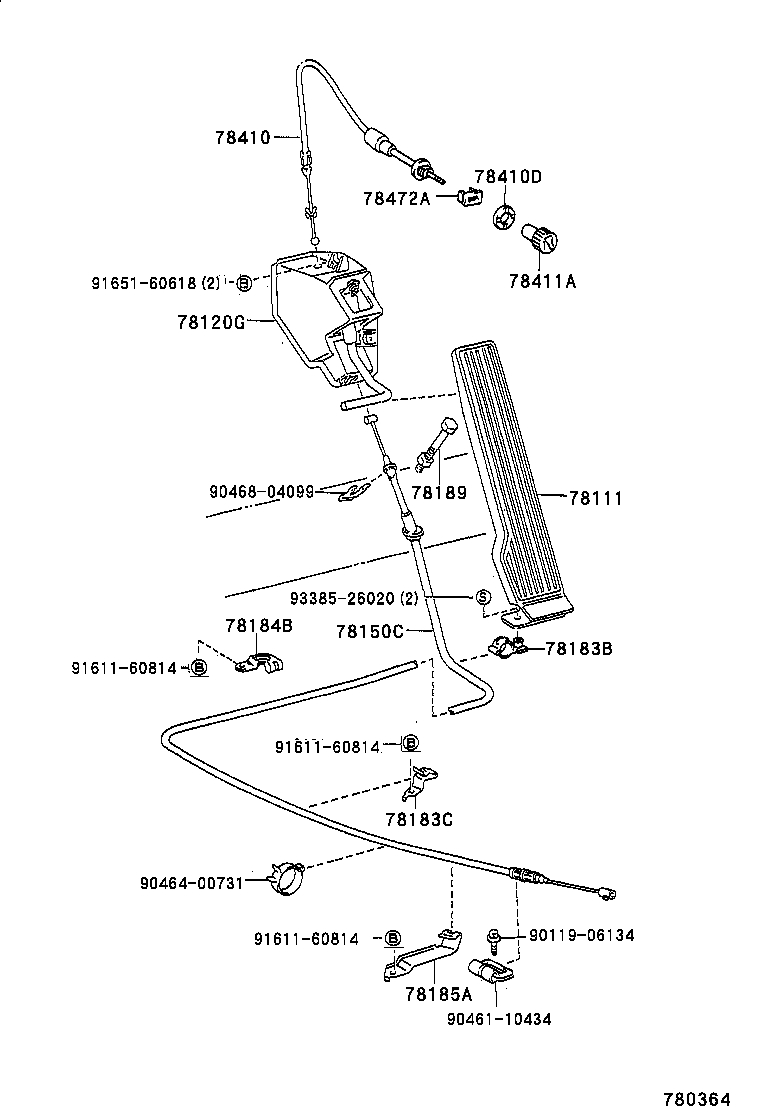

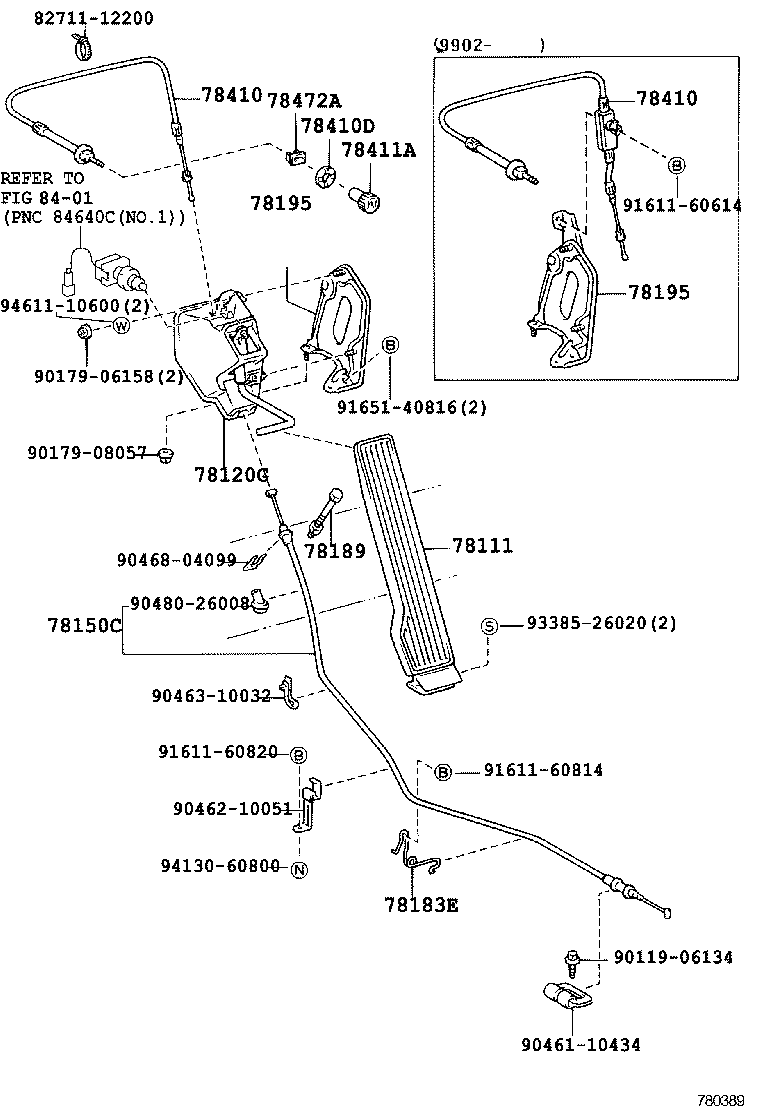

Figure MBY877B MBY877B 1995-05 → — Figure 780194A 780194A 1995-05 → — Figure 781048 781048 1995-05 → — Figure 780193B 780193B 1995-05 → — Figure 780364 780364 1995-05 → — Figure 780365B 780365B 1995-05 → — Figure 780366B 780366B 1995-05 → — Figure 780367A 780367A 1995-05 → — Figure 780389A 780389A 1996-05 → — Figure 780182A 780182A 1997-03 → — Figure 780181 780181 1997-03 → — Figure 780401B 780401B 1999-08 → — Figure 780402 780402 1999-08 → — Figure 780500A 780500A 2000-07 → —

Part groups

PNCDescription
21905H Rod Sub-assy, Accelerator Connecting
78100 Link Assy, Accelerator
78100C Link Assy, Accelerator, NO.2
78103 Rod Sub-assy, Accelerator Connecting, NO.1
78111 Pedal, Accelerator
78120G Rod Assy, Accelerator Pedal
78129B Seal, Accelerator Pedal Arm
78150C Wire Assy, Accelerator Flexible
78169 Hanger, Accelerator Spring
78183B Clamp, Accelerator Control Cable
78183C Clamp, Accelerator Control Cable
78183D Clamp, Accelerator Control Cable
78183E Clamp, Accelerator Control Cable
78184B Bracket, Accelerator Control Cable
78184C Bracket, Accelerator Control Cable
78185A Clamp, Accelerator Control Cable, NO.2
78189 Bolt, Accelerator Pedal Stopper
78195 Bracket, Accelerator Link
78310 Cable Assy, Choke
78311 Knob, Choke Control Cable
78311A Nut, Choke Shaft Set
78410 Cable Assy, Throttle Control
78410D Nut, Throttle
78411A Knob, Throttle Control Cable
78472A Support, Throttle Control Cable
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
