Toyota DYNA200

1995-05 → 2003-12 · chassis BU10#,11#,14#,21#,22#,YU210,RZU100 · catalogue 751260 · Europe

Discontinued model Data version 2004-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

31 part groups · 10 illustrations

Illustrations

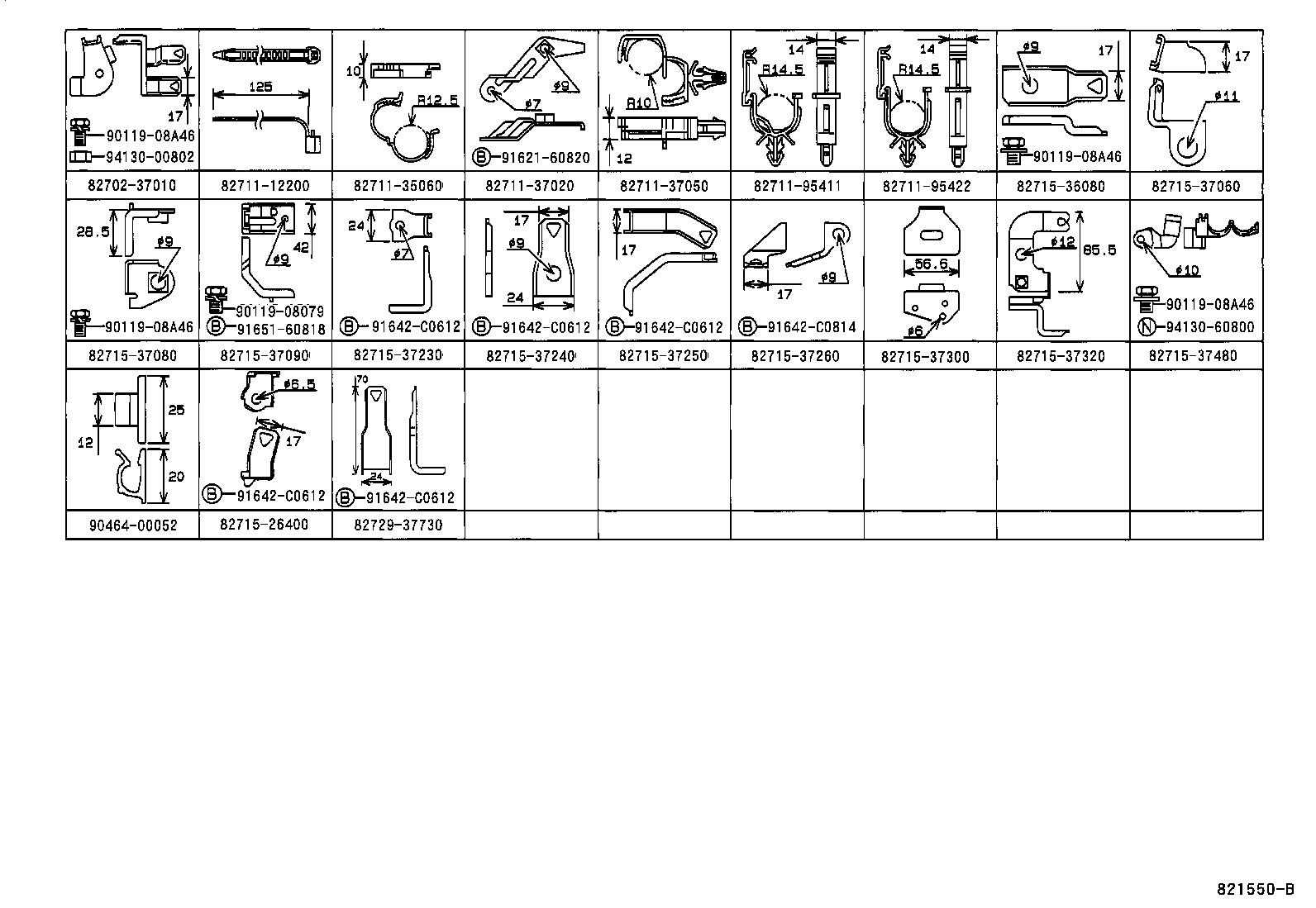

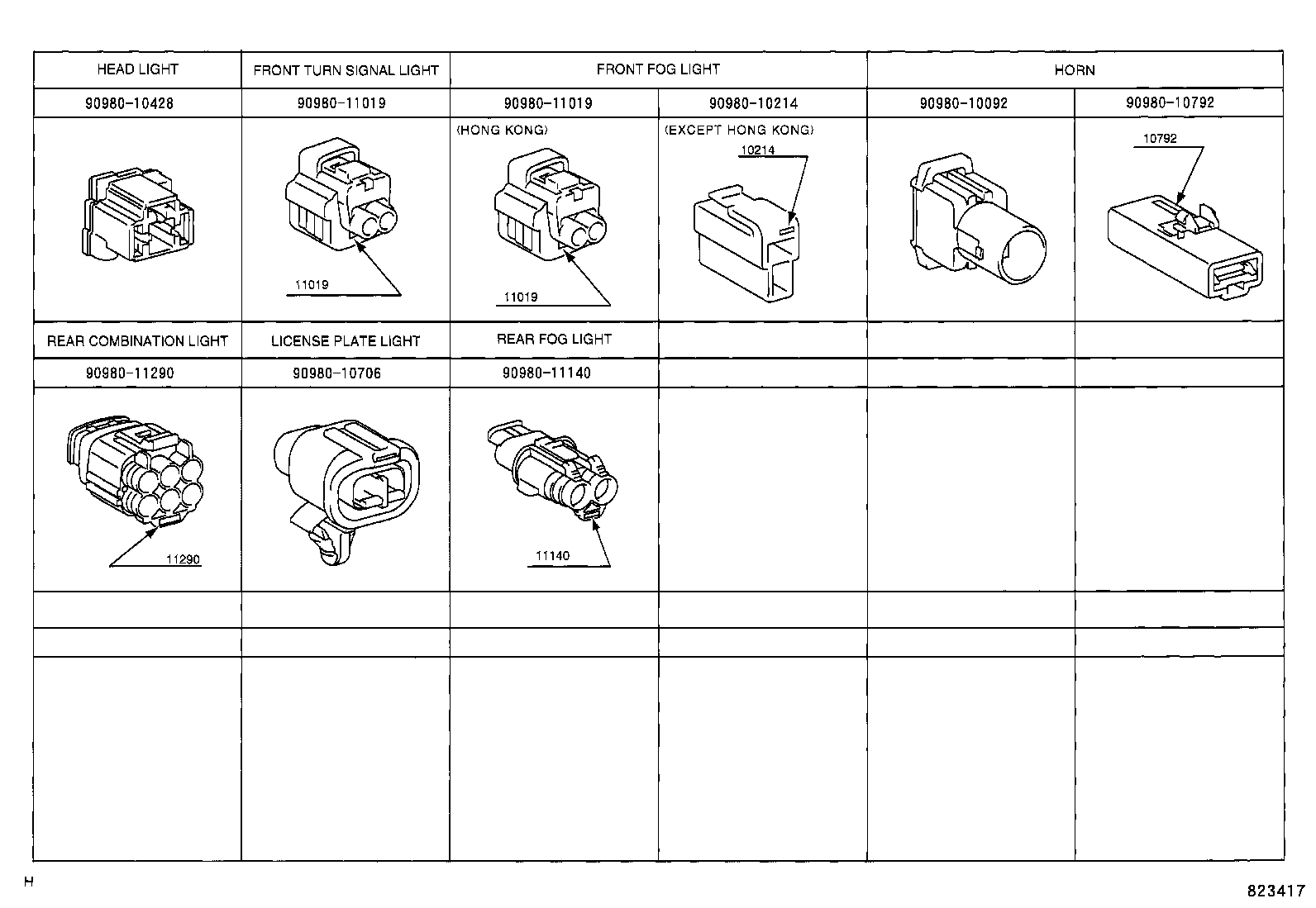

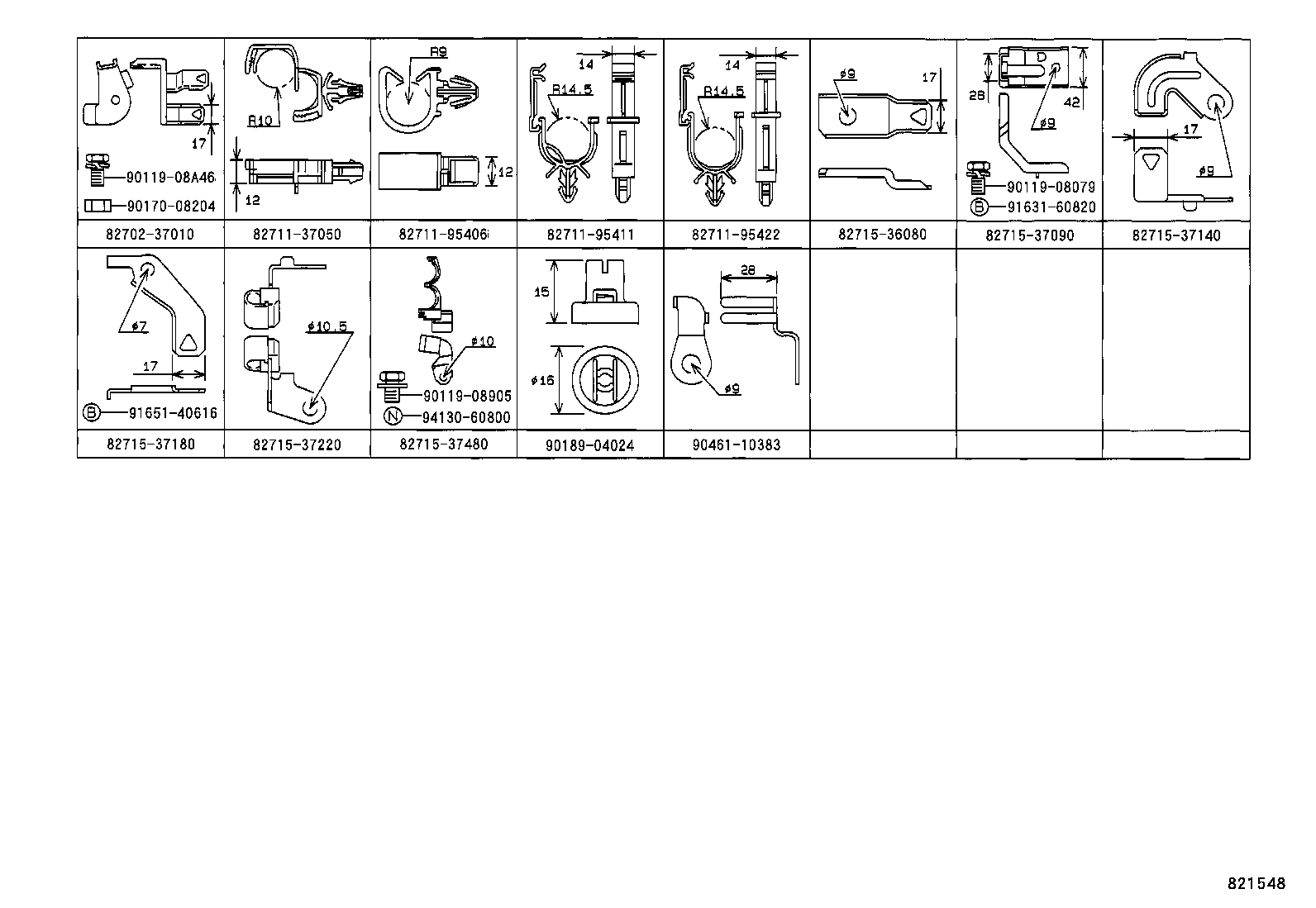

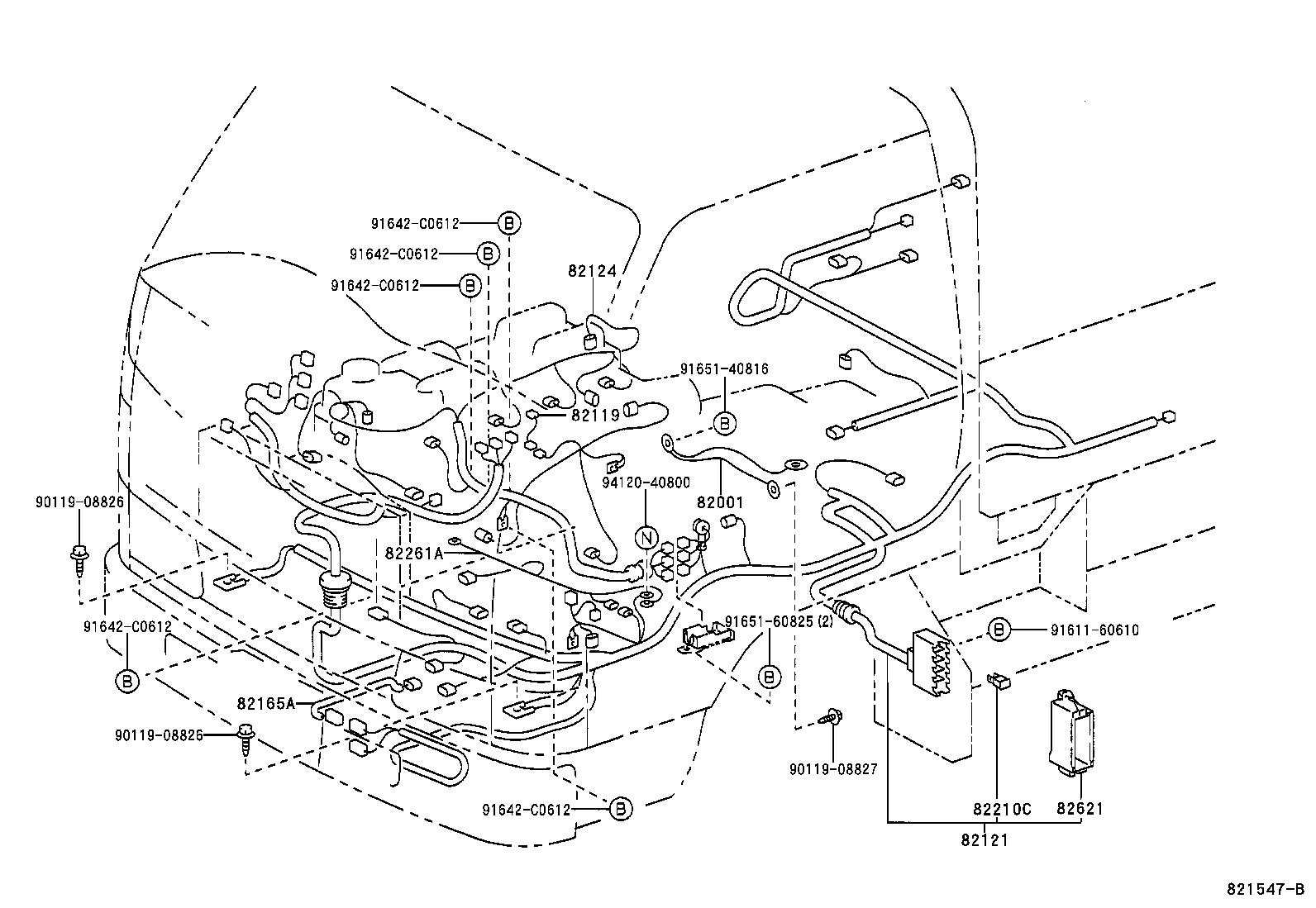

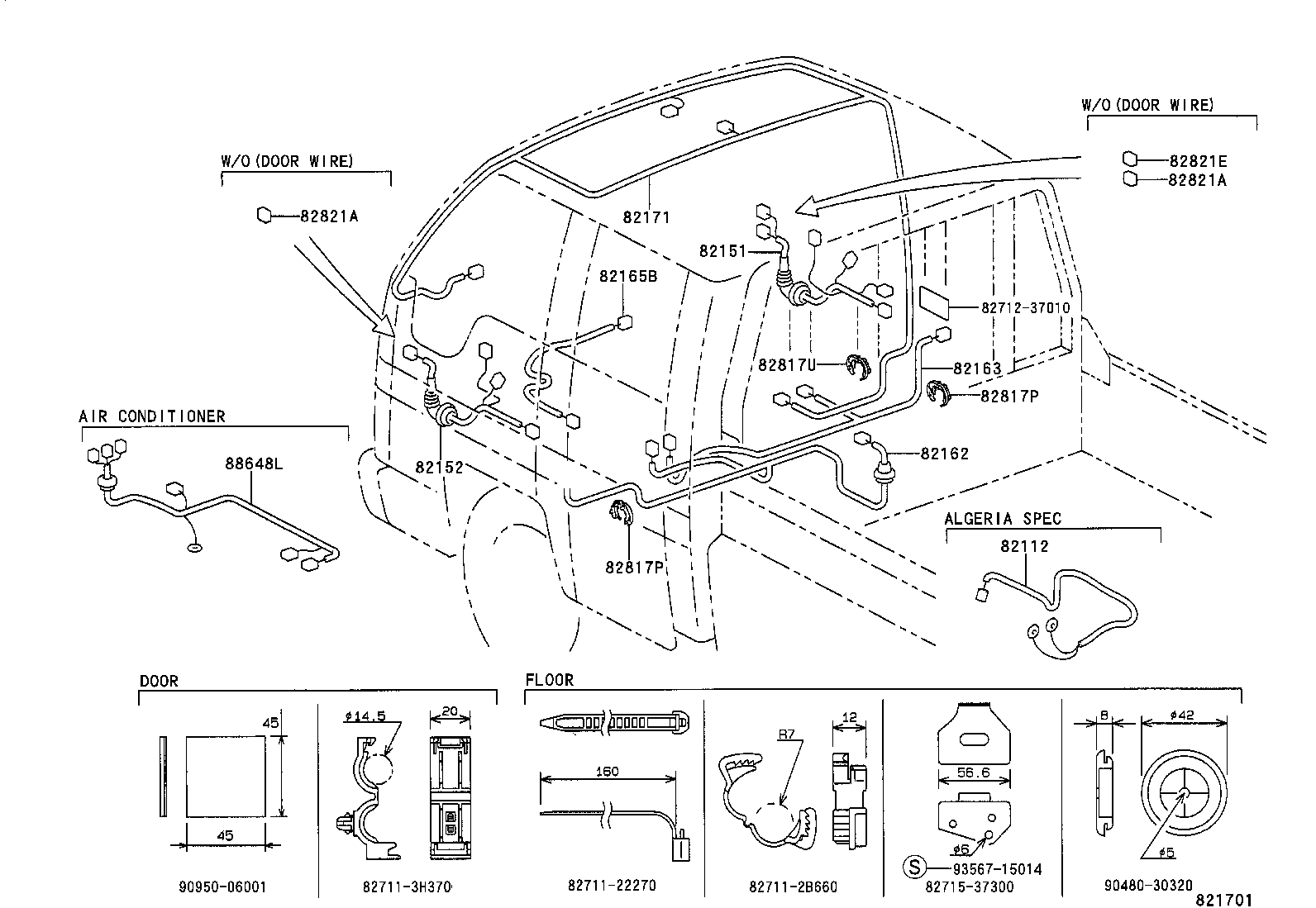

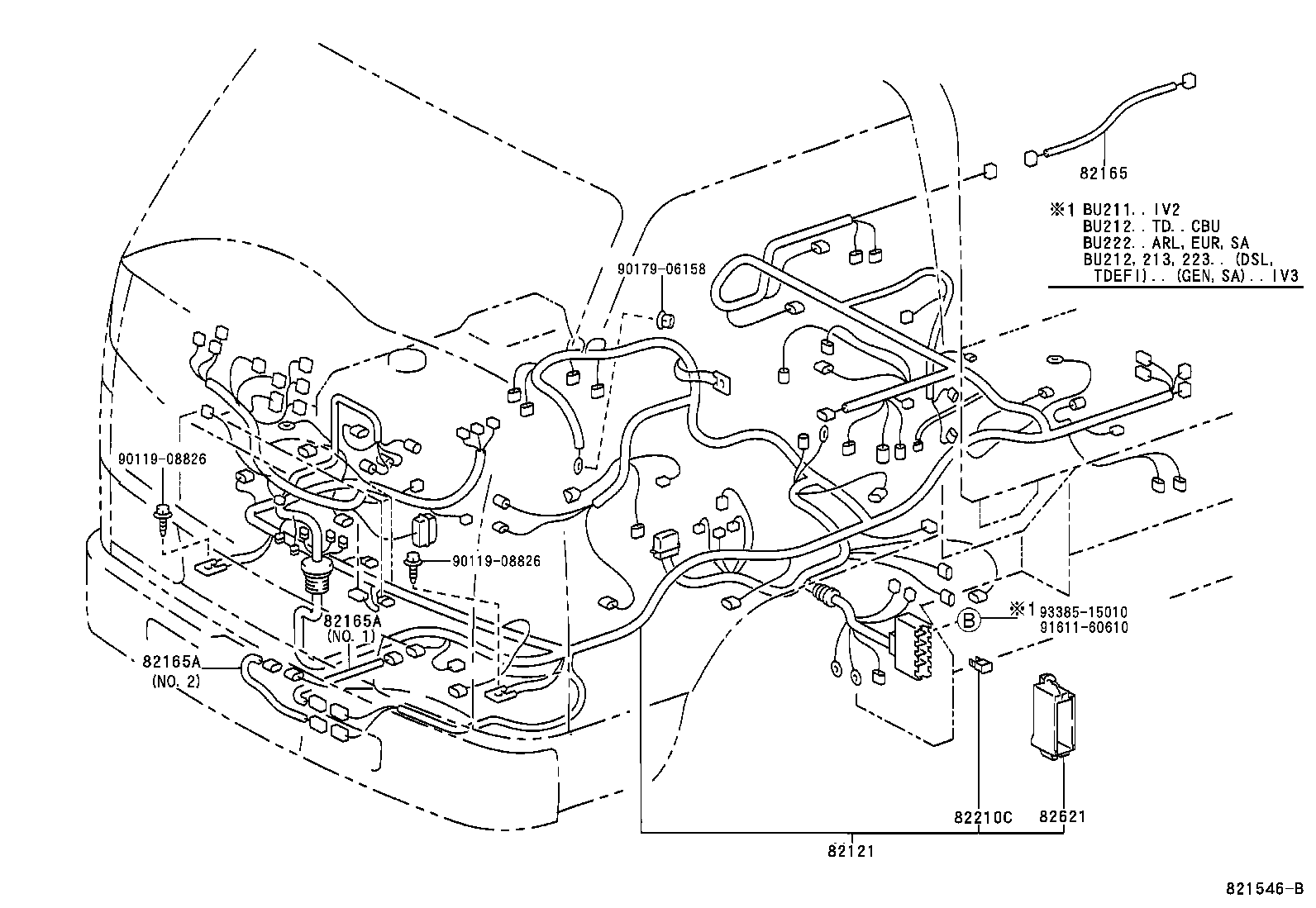

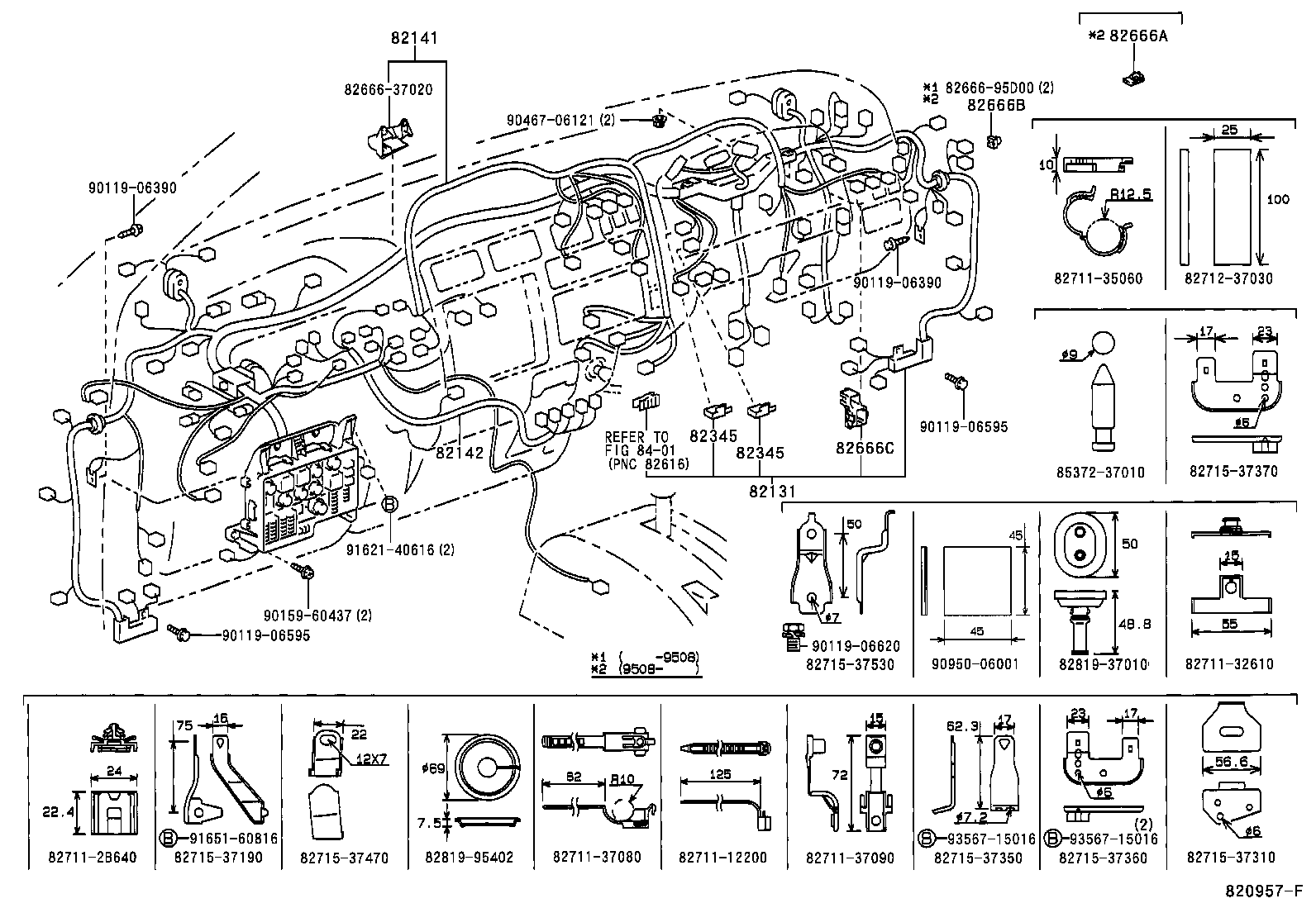

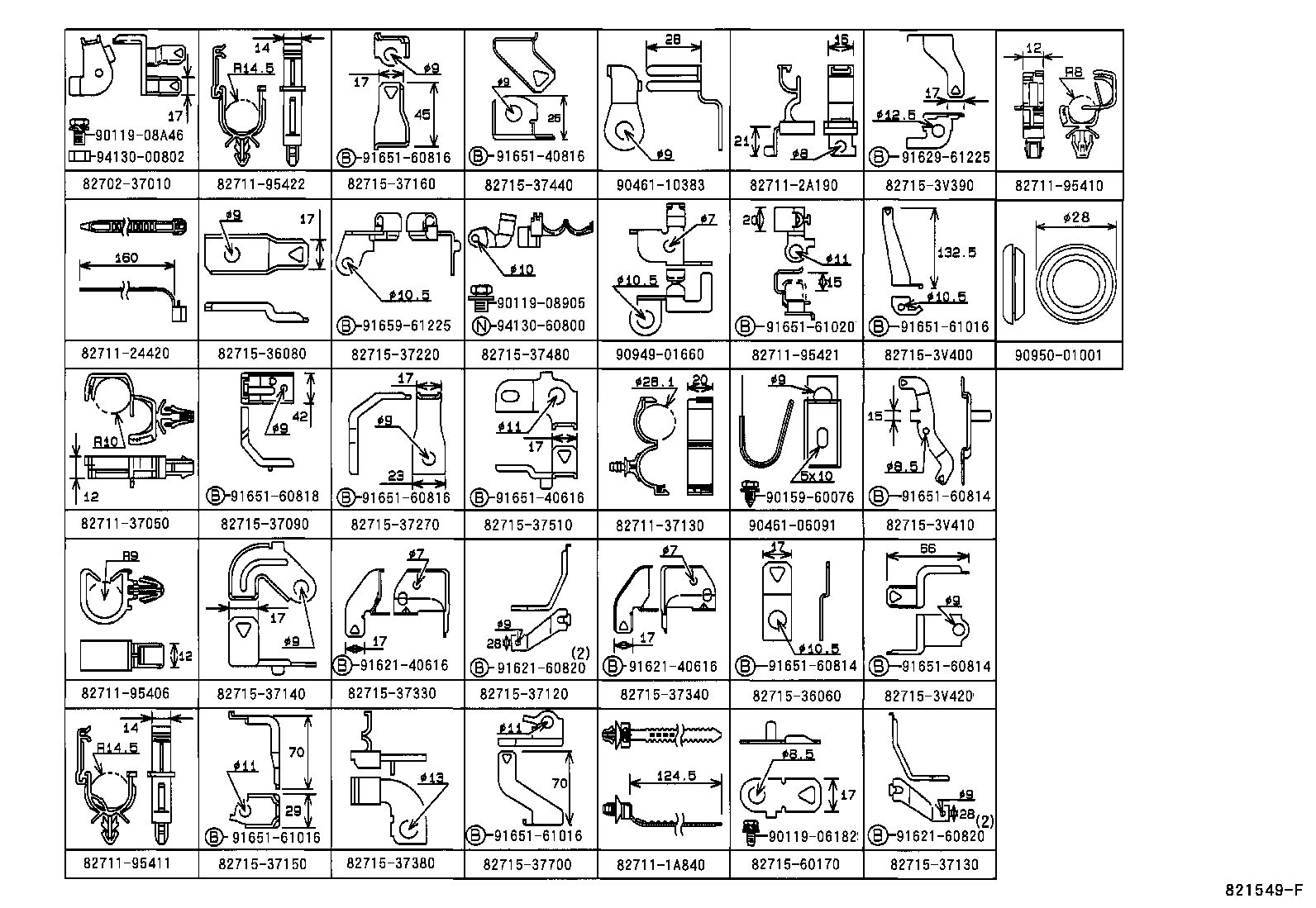

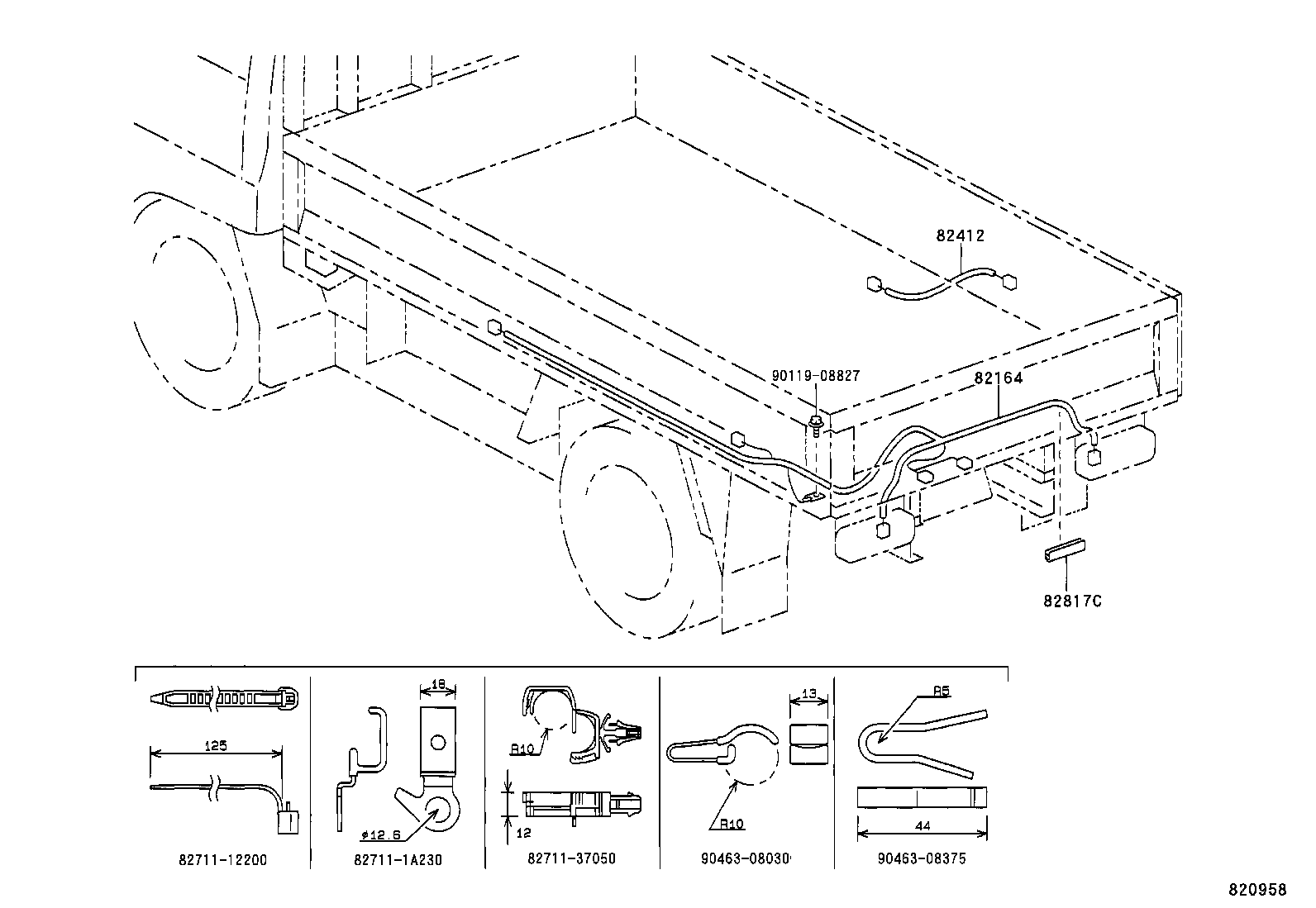

Figure 821545A 821545A 1995-05 → — Figure 821546B 821546B 1995-05 → — Figure 821547B 821547B 1997-03 → — Figure 821701 821701 1995-05 → — Figure 820957F 820957F 1995-05 → — Figure 820958 820958 1995-05 → — Figure 821548 821548 1995-05 → — Figure 821549F 821549F 1995-05 → — Figure 821550B 821550B 1997-03 → — Figure 823417 823417 1995-05 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82112 Wire, Engine Room, NO.2
82119 Wire, Sensor
82121 Wire, Engine
82124 Wire, Engine, NO.4
82131 Wire, Cowl
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82164 Wire, Frame
82165 Wire, Frame, NO.2
82165A Wire, Frame, NO.2
82165B Wire, Frame, NO.2
82171 Wire, Roof, NO.1
82210C Fusible Link
82261A Wire, Alternator
82345 Diode
82412 Wire, Fuel Gage
82621 Cover, Fusible Link
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82817C Protector, Wiring Harness, NO.4
82817P Protector, Wiring Harness, NO.14
82817U Protector, Wiring Harness, NO.16
82821A Cover, Connector
82821E Cover, Connector
88648L Wire, Air Conditioner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
