Toyota DYNA200

1995-05 → 2003-12 · chassis BU10#,11#,14#,21#,22#,YU210,RZU100 · catalogue 751260 · Europe

Discontinued model Data version 2004-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Take-off Control

7 part groups · 4 illustrations

Illustrations

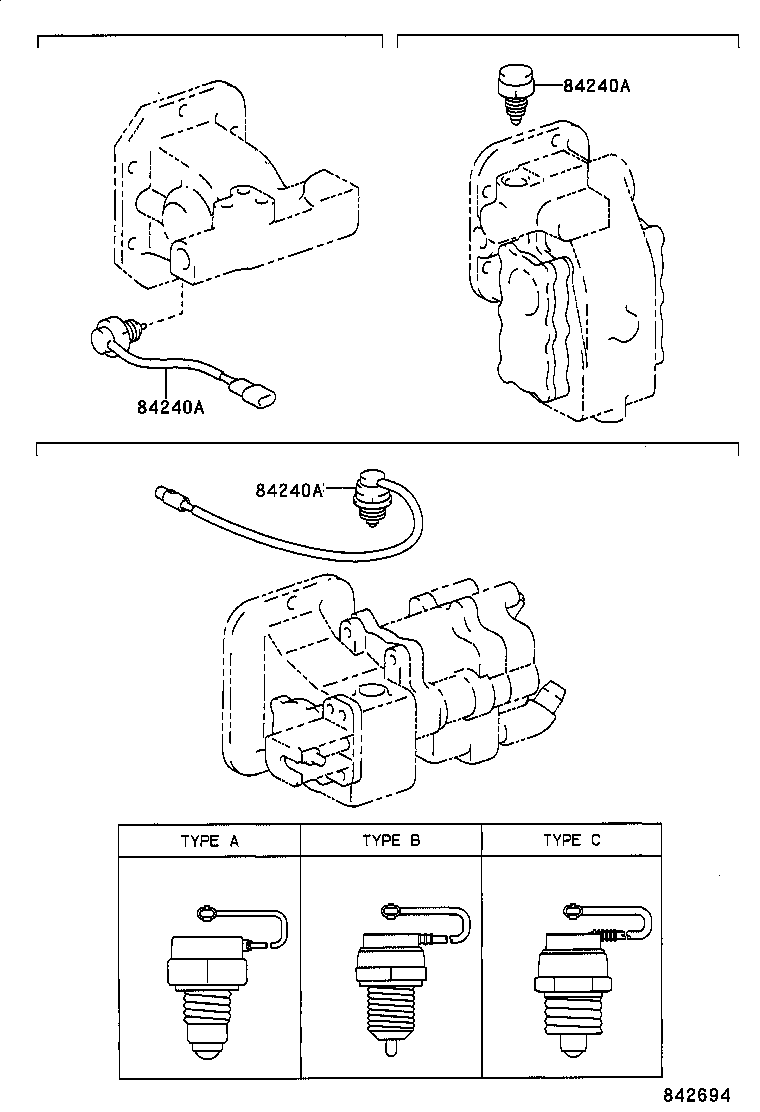

Figure 841903A 841903A 1995-05 → — Figure 841903A 841903A 1995-05 → — Figure 842694 842694 1995-05 → — Figure 842694 842694 1995-05 → —

Part groups

PNCDescription
84240A Switch Assy, Power Take-off Indicator
84280C Switch Assy, Power Take-off Clutch
85999K Bracket, Power Take-off Relay, NO.1
85999L Bracket, Power Take-off Relay, NO.2
88610K Switch Assy, Power Take-off Control
88610U Bulb, Power Take-off Control Switch
88630L Relay, Power Take-off Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
