Toyota DYNA200

1995-05 → 2003-12 · chassis BU10#,11#,14#,21#,22#,YU210,RZU100 · catalogue 751260 · Europe

Discontinued model Data version 2004-06

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

5 part groups · 3 illustrations

Illustrations

Figure 860393A

860393A 1995-05 → —

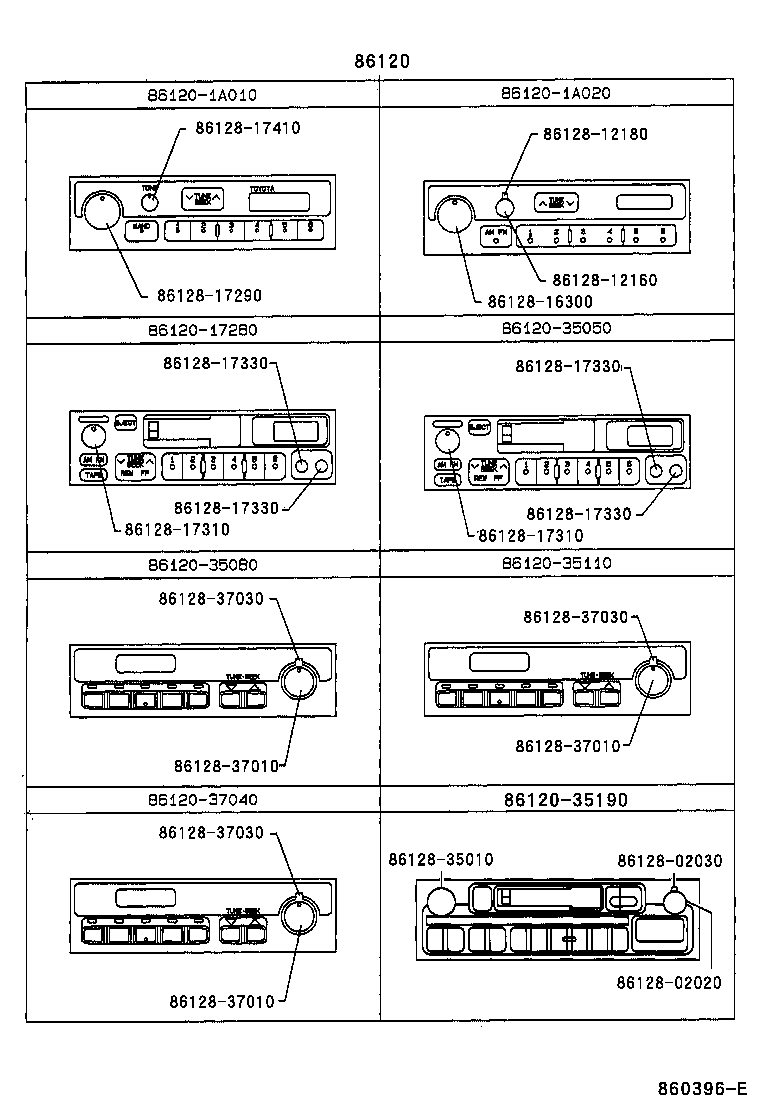

Figure 860396E

860396E 1995-05 → —

Figure 860834A

860834A 1995-05 → —

Part groups

PNC	Description
86011A	Condenser, Radio Setting
86120	Receiver Assy, Radio
86206	Converter Sub-assy, Voltage
86211	Bracket, Radio, NO.1
86212	Bracket, Radio, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
