Toyota DYNA200

1995-05 → 2003-12 · chassis BU10#,11#,14#,21#,22#,YU210,RZU100 · catalogue 751260 · Europe

Discontinued model Data version 2004-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

16 part groups · 5 illustrations

Illustrations

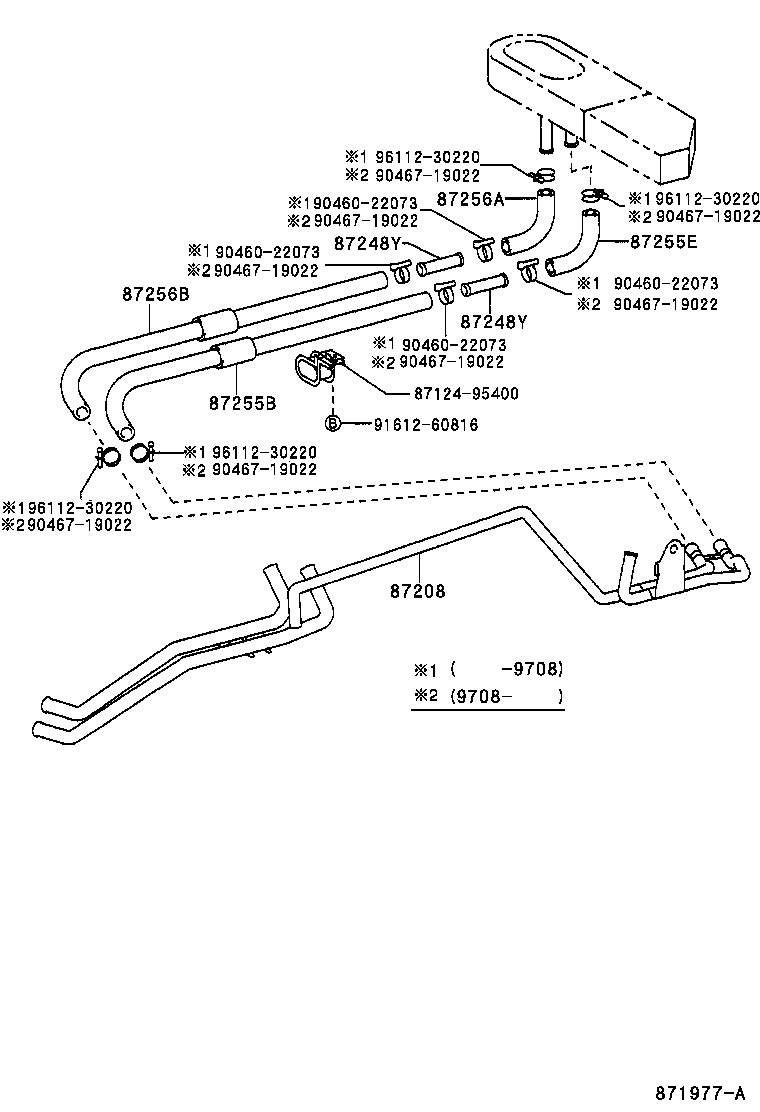

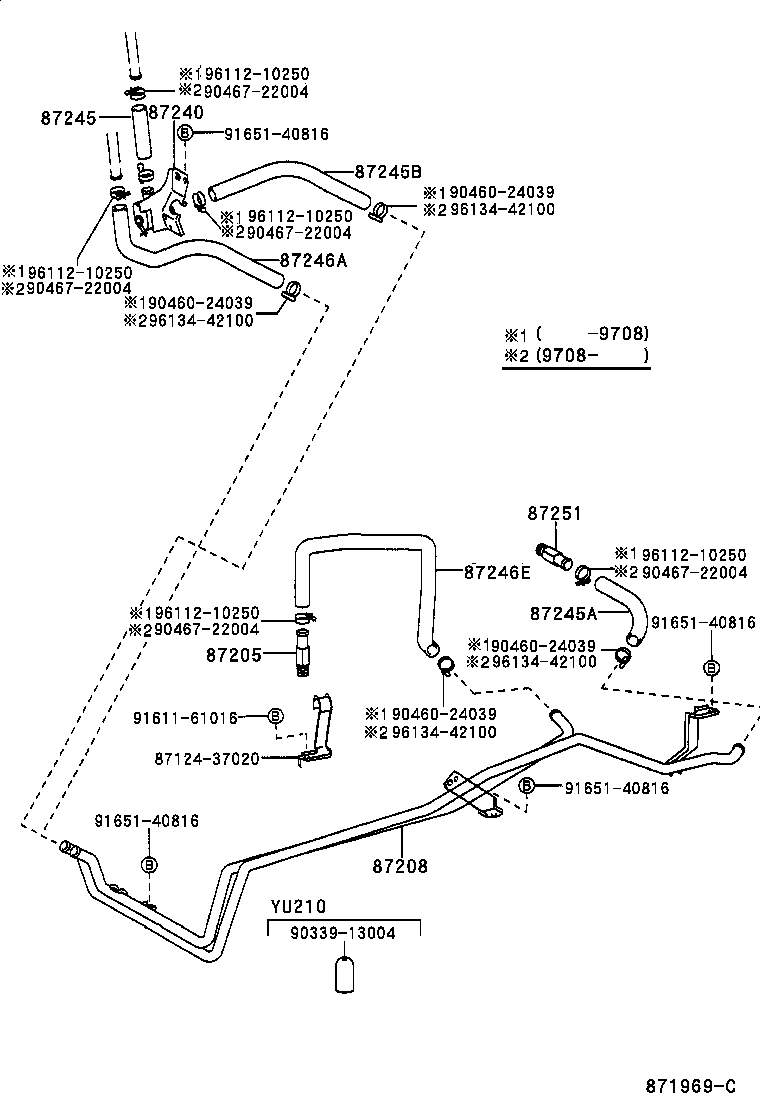

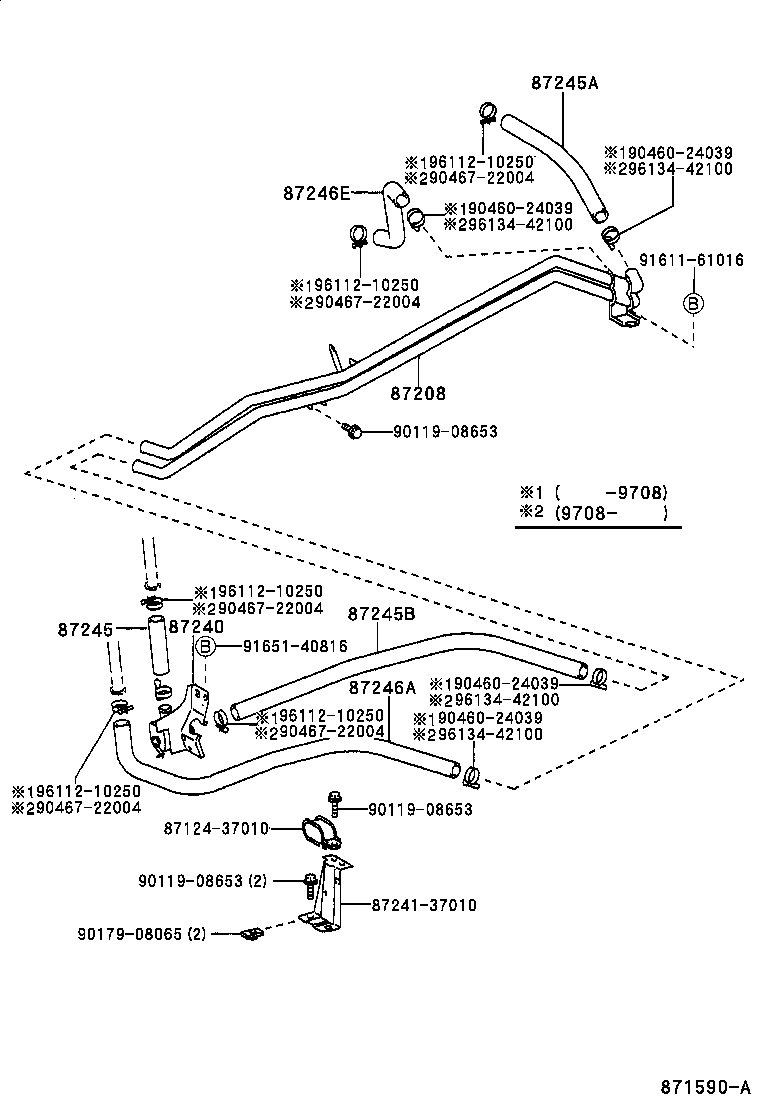

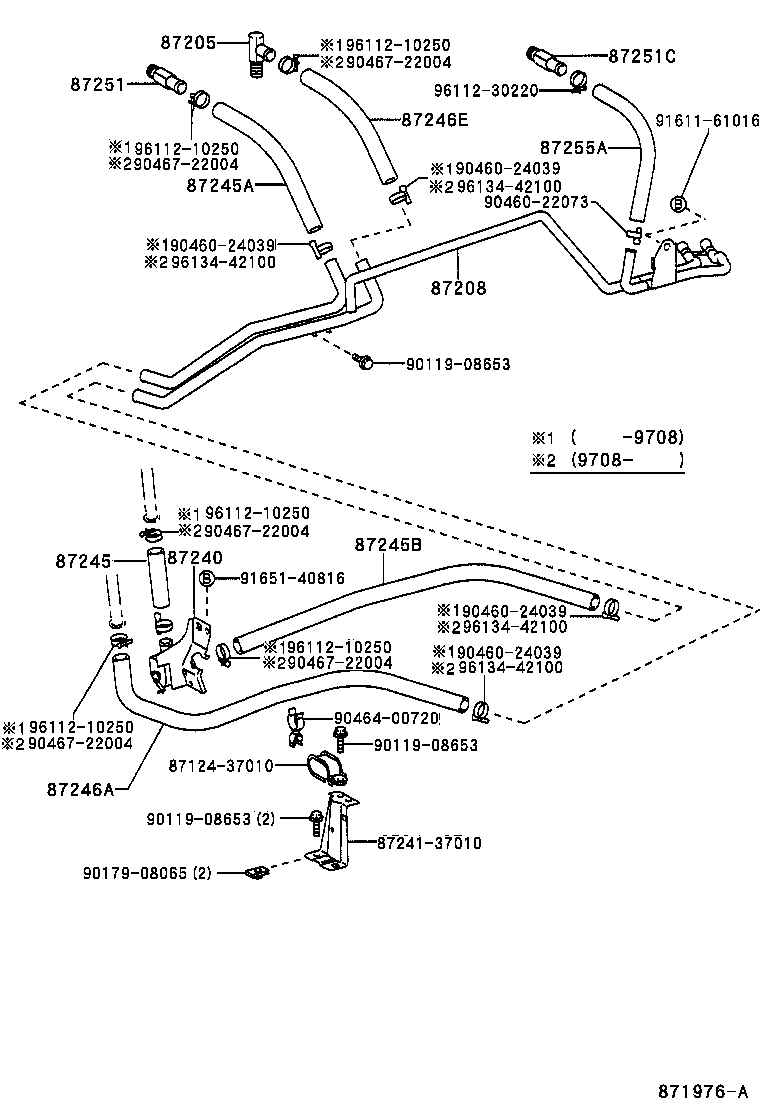

Figure 871975A 871975A 1995-05 → — Figure 871976A 871976A 1995-05 → — Figure 871969C 871969C 1995-05 → — Figure 871590A 871590A 1997-03 → — Figure 871977A 871977A 1995-05 → —

Part groups

PNCDescription
87205 Joint OR Union, Front Heater Hose Through OR Inlet Valve
87208 Pipe Sub-assy, Heater Water
87240 Valve Assy, Heater Water
87245 Hose, Heater Water, Inlet
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87246A Hose, Heater Water, Outlet A
87246E Hose, Heater Water, Outlet E
87248Y Pipe, Heater Water, NO.2
87251 Joint OR Union, Water Hose Through
87251C Joint, Water Hose Through
87255A Hose, Rear Heater Water Inlet, A(FROM ENGINE)
87255B Hose, Rear Heater Water Inlet, B
87255E Hose, Rear Heater Water Inlet, E(TO HEATER UNIT)
87256A Hose, Rear Heater Water Outlet, A (FROM HEATER UNIT)
87256B Hose, Rear Heater Water Outlet, B
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
